SWIT BM-245-NDI | 23.8" 4K-NDI QLED HDR 100%DCI-P3 Zero-Delay professional FHD Monitor with Auto-Cal

The SWIT BM-245-NDI is a 23.8-inch professional FHD QLED monitor with 100% DCI-P3 color coverage, Zero-Delay NDI® decoding, and auto-calibration, ideal for broadcast, live production, and post-production monitoring.

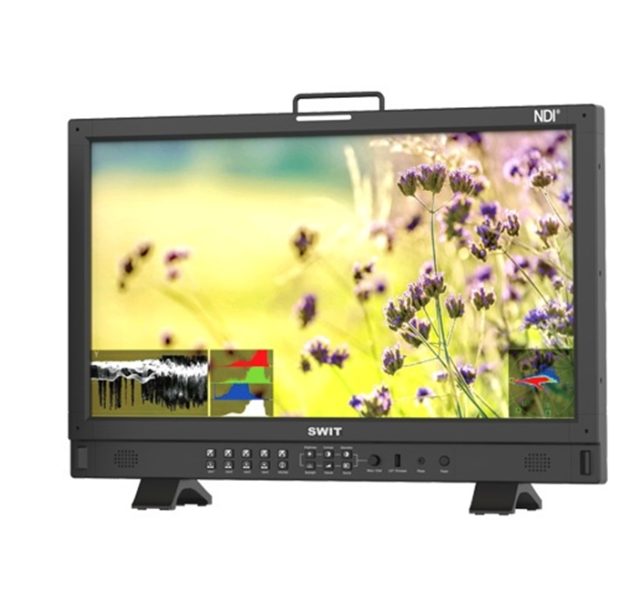

The BM-245-NDI is a high-performance 23.8-inch 1920×1080 QLED monitor designed for professional NDI® broadcast and live production environments. Featuring a 100% DCI-P3 wide color gamut, 400 nits LED backlight, and 178° viewing angles, it delivers accurate, vivid colors for critical monitoring tasks.

The monitor supports high-bandwidth 4K NDI® input, and decodes NDI® streams to 3G-SDI output with zero-delay, making it ideal for live video production. Multiple inputs include 3G-SDI 2-in 1-loop and HDMI® 2.0, and the monitor supports PBP (Picture by Picture) or PIP (Picture in Picture) views for multi-source monitoring.

Built-in features for professional workflows include Rec.709, DCI-P3, and Rec.2020 color gamut selection, 3D LUT auto self-calibration without PC, delog LUTs, and user LUT upload via USB. Monitoring tools include waveform, vector, histogram, focus assist, false color, zebra, and 16-channel audio meters with Lissajous patterns.

The BM-245-NDI also offers convenient control and flexibility, with auto-detect and quick select of NDI® sources, NDI® Discover Server support, and future IP webserver remote control. Power options include AC, DC, and battery plate, making it suitable for studio, field, and mobile setups.

Key Features

• 23.8-inch FHD QLED panel (1920×1080)

• 100% DCI-P3 wide color gamut

• VICO 1.97 A-class eye-protecting panel

• High-bandwidth 4K NDI® input with zero-delay decoding

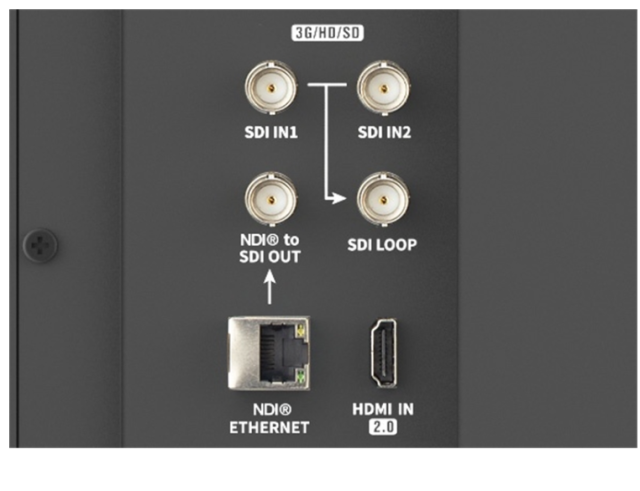

• 3G-SDI 2-in 1-loop, HDMI® 2.0 input

• NDI® decode to 3G-SDI output

• PBP / PIP multi-source view

• Auto-detect and quick select NDI® sources

• Support for NDI® Discover Server

• Rec.709 / DCI-P3 / Rec.2020 color gamut selection

• 3D LUT auto self-calibration without PC

• Built-in delog LUTs and user LUT upload via USB

• Waveform, vector, histogram

• Focus assist, false color, zebra

• 16-channel audio meters with Lissajous pattern

• Future IP webserver remote control

• Power options: AC, DC, battery plate
