SWIT BM-H245 | 23.8" 12G-SDI 4K QLED HDR 100%DCI-P3 Zero-Delay professional FHD Monitor with Auto-Ca

The SWIT BM-H245 is a 23.8″ professional broadcast monitor featuring 12G-SDI and HDMI 2.0 inputs, 4K signal support, HDR/SDR display, 100% DCI-P3 color coverage, and zero-latency video processing. With 18-bit internal processing and automatic 3D LUT calibration without a PC, it delivers accurate color reproduction for cinema and broadcast workflows.

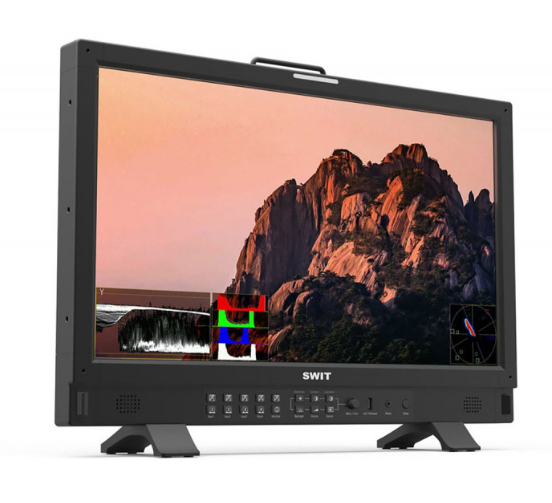

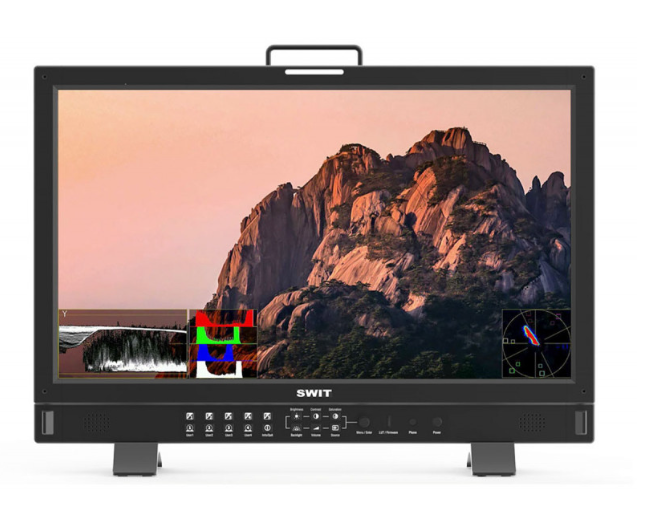

The SWIT BM-H245 is a high-performance 23.8-inch professional monitor designed for broadcast, post-production, and cinematic environments. Built around a Full HD (1920 × 1080) IPS panel, it supports 4K signals via 12G-SDI and HDMI 2.0 while providing accurate downscaled monitoring with exceptional color precision.

With 18-bit internal signal processing and 100% DCI-P3 color gamut support, the BM-H245 ensures outstanding color fidelity for HDR and SDR workflows. The monitor features integrated multi-camera DeLog LUTs and supports automatic 3D LUT calibration without requiring a PC, streamlining color management for professional users.

The BM-H245 includes 12G-SDI, 4×3G-SDI, and HDMI 2.0 inputs, supporting 4-channel SDI/HDMI mixed multiview display. Users can configure PBP (Picture-by-Picture) or PIP (Picture-in-Picture) views for dual-channel monitoring. Zero-latency audio and video processing ensures perfect lip-sync accuracy, making it ideal for live production and broadcast control rooms.

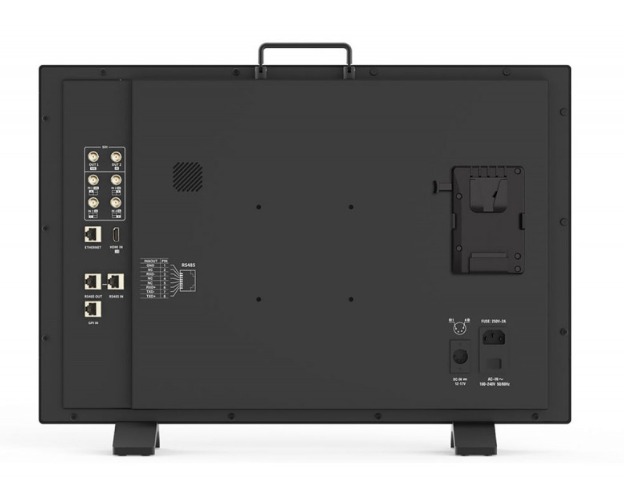

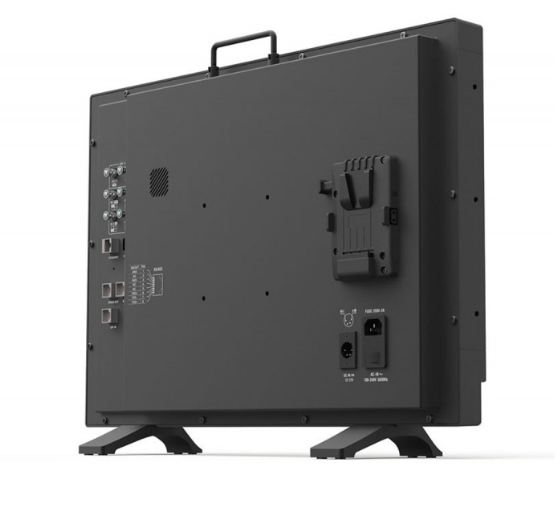

Additional connectivity includes Ethernet for web server IP control, RS485 for TSL 3.1/4.0 UMD and tally control, SDI loop outputs, and analog audio monitoring via headphones or 3.5mm speaker output. With wide 178° viewing angles, 1000:1 contrast ratio, and durable construction, the BM-H245 is built for professional studio use.

Key Features

• 23.8″ IPS LCD panel, 1920 × 1080 resolution

• 12G-SDI & 4×3G-SDI inputs with 4K signal support

• HDMI 2.0 input

• 4-channel SDI/HDMI mixed multiview

• PBP & PIP dual-channel display modes

• HDR/SDR display with multi-color range

• 18-bit internal color processing

• 100% DCI-P3 color gamut

• Zero-latency audio/video for accurate lip-sync

• Automatic 3D LUT calibration (no PC required)

• Integrated multi-camera DeLog LUTs

• Ethernet IP control via web server
