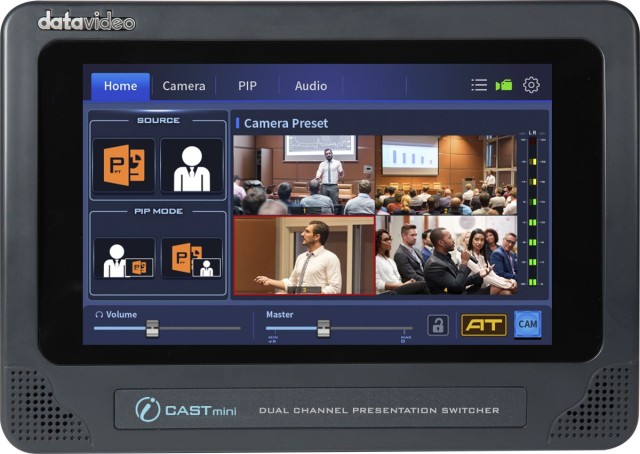

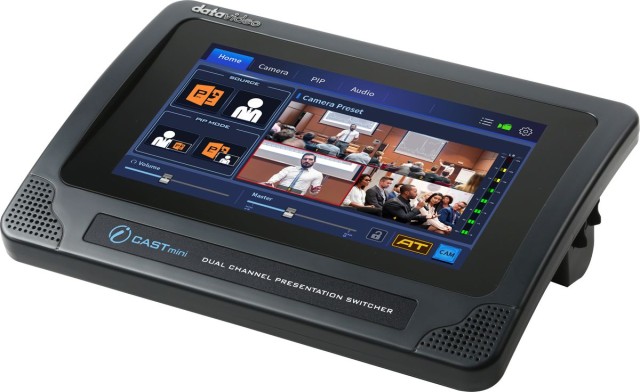

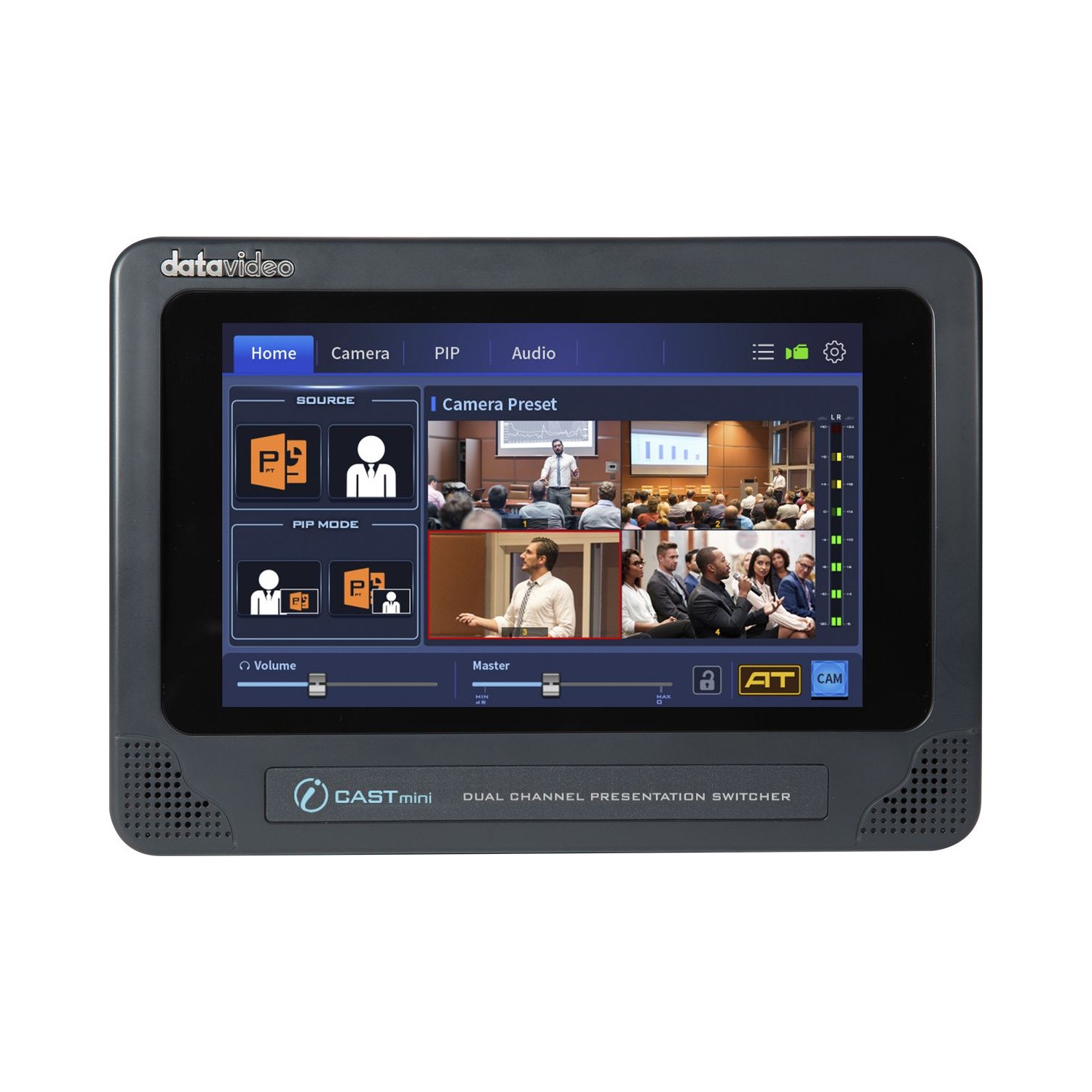

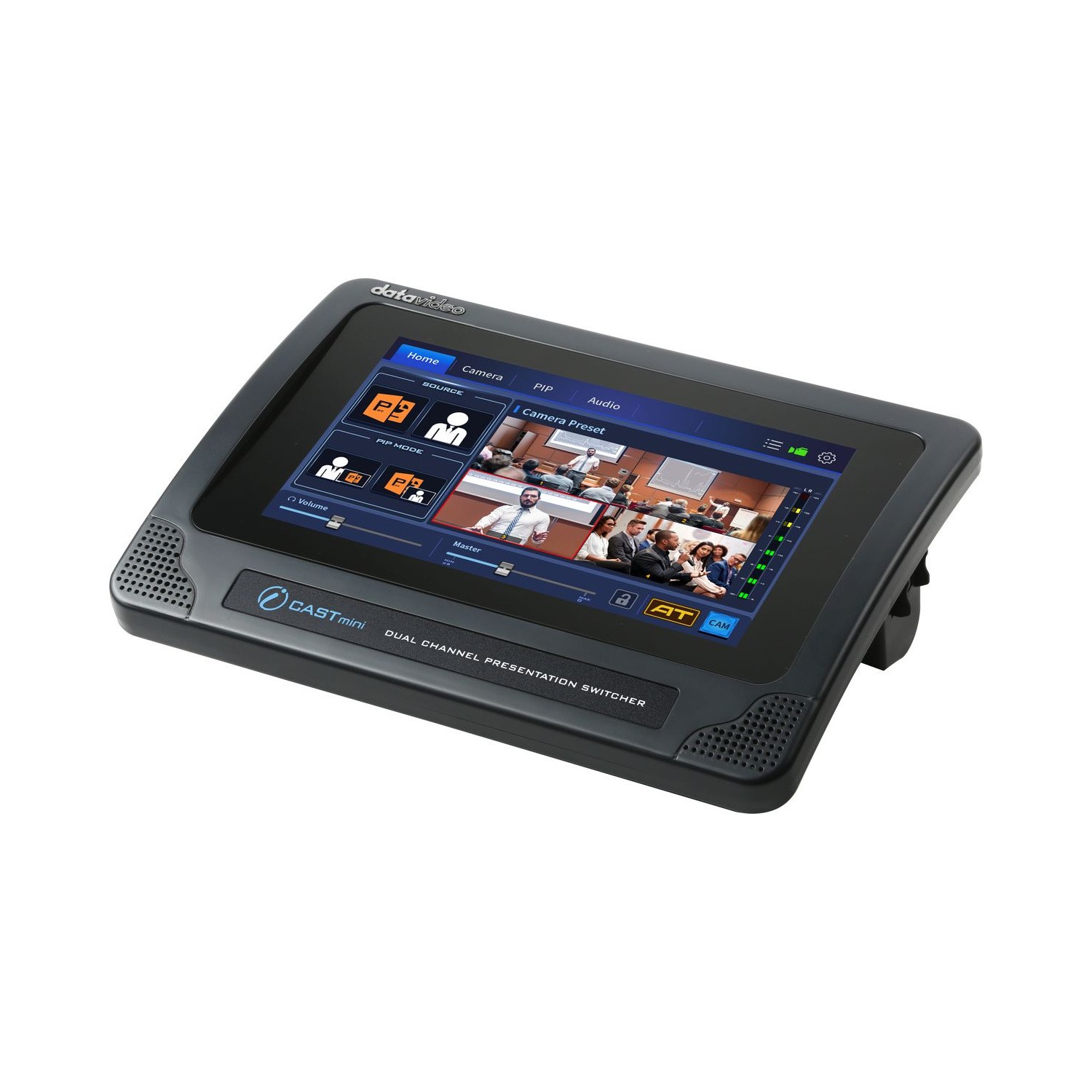

Datavideo iCAST Mini 4K Dual-Channel Presentation Switcher

Datavideo iCAST Mini is a compact 4K presentation switcher for corporate training, hybrid classrooms and conference rooms. One operator can switch between a camera and computer presentation, mix audio and control a compatible PTZ camera. The 7-inch touchscreen provides direct access to source previews, presets and image functions.

Two HDMI 1.4 inputs accept a camera and computer. Send the program to a display or projector over HDMI, or connect USB-C to a computer as a UVC video and audio source for Zoom, Microsoft Teams or Google Meet. UVC requires no separate driver.

• 4K HDMI source switching and output up to 4K/30p
• Picture-in-picture with a swap between the main and inset images
• 7-inch touchscreen with previews and image presets
• Built-in audio mixer and up to 170 ms audio delay adjustment
• Control compatible PTZ cameras over DVIP, RS-232 or RS-422
• USB-C UVC connection for video meetings and online teaching

CAMERA AND PRESENTATION

Switch between a camera and presentation, add picture-in-picture and send the finished program to a display or video-meeting computer.

CONNECTIONS AND CAMERA CONTROL

The rear panel provides two HDMI inputs for a camera and computer, an HDMI program output and USB-C UVC for connection to a computer. Control a compatible PTZ camera over DVIP, RS-232 or RS-422; analog audio inputs and stereo output are also available.
