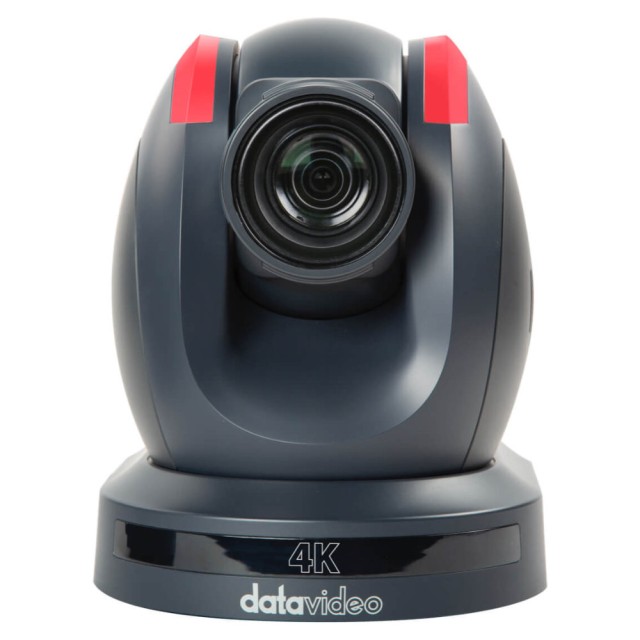

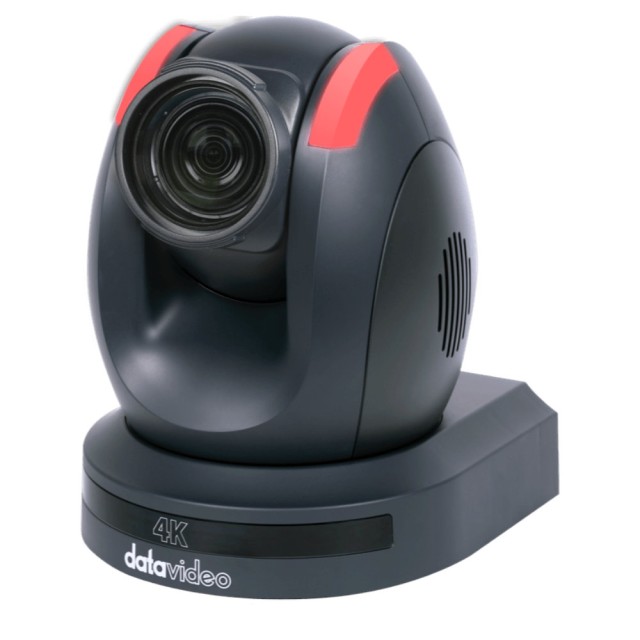

Datavideo PTC-285 4K PTZ Camera (Dark Grey)
SKU: 7000-3085
The Datavideo PTC-285 is a professional 4K PTZ camera with 12x optical and 16x digital zoom for live production, lecture halls and conferences. Its 1/2.8-inch Sony CMOS sensor and automatic tracking keep a presenter or performer in frame. HDMI 2.0 supports up to 2160p60, 3G-SDI up to 1080p60, IP output offers selectable 4K NDI|HX3 with simultaneous Full HD…
2 539 € with VAT
2 098.35 € without VAT
Availability
on request
Datavideo PTC-285 (White) 4K PTZ Camera
2 539 €without VAT 2 098.35 €
Datavideo PTC-285T 4K HDBaseT Auto-Tracking PTZ Camera (Dark Grey)
3 169 €without VAT 2 619.01 €
Datavideo PTC-285TW (White)
3 169 €without VAT 2 619.01 €
Datavideo PTC-285NDI 4K Tracking NDI PTZ Camera (Dark Grey)
2 919 €without VAT 2 412.4 €
Datavideo PTC-285NDIW 4K Tracking NDI PTZ Camera (White)
2 919 €without VAT 2 412.4 €Top accessories for Datavideo PTC-285 4K PTZ Camera (Dark Grey)
Datavideo WM-1 Black Wall Mount for PTZ Cameras
The Datavideo WM-1 is a three-piece wall-mount kit for fixed installation of compatible
139 €
To be sent 1 pcs
Datavideo RMC-180 MARK II PTZ Camera Controller
The Datavideo RMC-180 MARK II is a hardware controller for up to four compatible
1 289 €
In stock 1 pcs
Datavideo TP-900 PTZ Camera Teleprompter
The Datavideo TP-900 is a stand-alone teleprompter designed for most PTZ cameras.
1 969 €
3-5 days
Datavideo RMC-300A Universal PTZ Camera Control Panel
The Datavideo RMC-300A is a universal control panel for multi-camera PTZ and block-camera
1 679 €
14-30 days
Datavideo iCAST Mini 4K Dual-Channel Presentation Switcher
Datavideo iCAST Mini is a compact 4K presentation switcher for corporate training,
2 199 €
14-30 days
Datavideo ShowCast 100 4K Streaming Studio
The ShowCast 100 is a brand new 4K 4-Channel Touch Panel Switcher that features 7
5 749 €
14-30 days
Product description
ARTICLES
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Datavideo PTC-285 is a professional 4K PTZ camera with 12x optical and 16x digital zoom for live production, lecture halls and conferences. Its 1/2.8-inch Sony CMOS sensor and automatic tracking keep a presenter or performer in frame. HDMI 2.0 supports up to 2160p60, 3G-SDI up to 1080p60, IP output offers selectable 4K NDI|HX3 with simultaneous Full HD HDMI, or 4K HDMI with Full HD NDI|HX3; streaming supports RTSP, RTMP(S), SRT and ONVIF. Remote control is available over RS-422, DVIP or VISCA over IP. The camera is compatible with Datavideo RMC-180 and RMC-300A controllers and the PTZ View Assist app, which can manage up to four DVIP cameras. PoE can simplify installation with a single network cable.
4K PTZ Camera
The Datavideo PTC-285, available in dark gray, captures speakers, performers, and the entire scene for live broadcasts, conference rooms, educational settings, and religious services. A 1/2.8″ Sony CMOS sensor with 8.51-megapixel resolution, 12× optical zoom, and an 80° wide-angle field of view help produce a detailed 4K image.
Automatic tracking keeps the selected speaker in frame. HDMI, 3G-SDI, and IP outputs operate simultaneously. When streaming via NDI|HX3, you can choose between 4K video over NDI and Full HD over HDMI, or 4K over HDMI and Full HD over NDI. The camera also supports RTSP, RTMP/RTMPS, SRT, ONVIF, and multicast; it can be powered by PoE+ or 12 V DC and controlled remotely via IR, a web interface, RS-422, and network protocols.
Automatic Speaker Tracking
The camera automatically tracks the selected person and adjusts its movement as well as pan and tilt speeds to ensure a smooth, natural shot. When multiple people are speaking, you can specify who the camera should track.
Simultaneous Video Outputs
HDMI 2.0 and IP provide video up to 2160p at 50/60 frames per second; 3G-SDI transmits up to 1080p at 50/60 frames per second. The outputs can be used simultaneously in various parts of the production chain.
Streaming and Network Integration
RTSP, RTMP(S), SRT, ONVIF, and multicast are available for IP transmission. The NDI|HX3 output can be set to 4K, while HDMI simultaneously provides Full HD, or vice versa: 4K via HDMI and Full HD via NDI|HX3. Two network streams are available for streaming.
Control and Installation
The PTC-285 is compatible with Datavideo RMC-180 and RMC-300A controllers and the PTZ View Assist app. It can also be controlled via IR, a web interface, RS-422, VISCA, or DVIP. PoE+ (IEEE 802.3at) delivers power over an Ethernet cable; a 12 V DC adapter is also available as an alternative.
PACKAGE CONTENT
- 1× Datavideo PTC-285 camera
- 1× RMC-1AT infrared remote control
- 1× A ceiling mount bracket
- 1× Ceiling Mount Bracket B
- 6× M3 × 4 mm screws for mounting the brackets
- 1× 12 V DC power adapter
- 1× safety cable
SPECIFICATIONS
- Camera type: PTZ with automatic tracking
- Image sensor: Sony CMOS, 1/2.8", 8.51 Mpx
- Optical zoom: 12×
- Digital zoom: 16×
- Focal length: 4.4–52.8 mm; aperture f/1.8–2.6
- Horizontal field of view: up to 80°
- Minimum illumination: 0.5 lx at f/1.8, AGC on
- Electronic shutter: 1/30–1/10,000 s
- Rotation range: 300°
- Tilt range: −15° to +90°
- Rotation speed: 0.876–43°/s
- Tilt speed: 0.693–21.32°/s
- Presets: 255

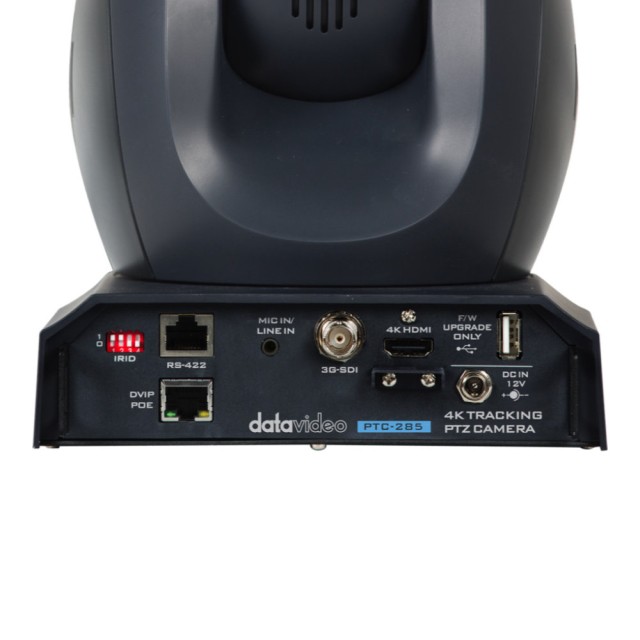

- Video outputs: HDMI 2.0, 3G-SDI, IP via RJ45 10/100/1000 Mb/s
- Audio input: 3.5 mm microphone/line input
- Streaming protocols: RTSP, RTMP/RTMPS, SRT, ONVIF, multicast, NDI|HX3
- Video codecs: H.264, H.265, MJPEG
- Control protocols: DVIP, VISCA, VISCA over IP, Pelco-D, Pelco-P
- Power: PoE+ IEEE 802.3at or 12 V DC; power consumption 21 W
- Mounting: 1/4″-20 UNC thread; compatible with ceiling mounts included in the package
- Dimensions (W × H × D): 173 × 219 × 189.08 mm
- Weight: 2.6 kg
- Operating temperature: 0–40 °C
- Color: dark gray
ARTICLES
WE RECOMMEND
The Datavideo PTC-285 is a high-performance 4K PTZ camera with HDMI and 3G-SDI interfaces that supports advanced streaming and automatic object tracking. To take full advantage of it in professional installations, we recommend accessories for signal distribution, communication systems, and tools for remote control and monitoring.
Converters and Signal Distribution - Devices for converting and extending the range of video signals from the camera.
- Datavideo DAC-9P
- Datavideo DAC-70
- Datavideo DAC-80
- Datavideo VP-634
- Datavideo CAP-1
- Datavideo DAC-8PA
Communication and Audio - Intercom and audio processing systems essential for coordinated production.
Reading devices - Teleprompters suitable for presenters and speakers in front of a PTZ camera.
Production and Monitoring - Control rooms, monitors, and decoders for video output processing.
Installation and Protection - Accessories for secure mounting and protection of cameras in outdoor environments or racks.
Parameters
| Manufacturer: | Datavideo |
| Category: | PTZ |
Main parameters
| Camera Sensor size | 1/2,8" |
| Resolution | 4K |
| Zoom | 12x |
| Type of bayonet | integrated lens |
| Output | HDMI · 3G SDI |
| Maximum video resolution | 4K |
| Video outputs | HDMI · NDI / Ethernet / IP · 3G-SDI |
| Network protocols | SRT · RTMP / RTMPS · RTSP / RTP · NDI|HX3 · ONVIF |
Other parameters
| Version | PTZ |
| FPS | 4K 60fps · HD 60fps · HD 50fps · UHD 50fps · UHD 25fps · 1080P 60fps |
| Other features | Streaming · Tally · PoE · NDI / NDI HX · SRT · AI tracking |
| Control protocol | Pelco-P · Pelco-D · RS-422 · VISCA · DVIP · ONVIF |
