Datavideo RMC-300A Universal PTZ Camera Control Panel

  • Free transport
SKU: 2205-1801

The Datavideo RMC-300A is a universal control panel for multi-camera PTZ and block-camera setups. It controls up to 24 compatible Datavideo cameras over DVIP or up to 8 cameras over serial RS-422. Supported protocols include Sony VISCA, VISCA over IP-S, VISCA over IP-C and Datavideo DVIP, with 14 stored position presets for each camera.

More information

1 679 € with VAT 1 387.6 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
2205-1801
Add to Compare Price history

Top accessories for Datavideo RMC-300A Universal PTZ Camera Control Panel

Datavideo PTC-145TW Full HD PTZ Camera (White)

  • Free transport
The Datavideo PTC-145TW is a white Full HD installation PTZ camera with HDBaseT connectivity.
1 909 €
on request

Datavideo PTC-280W 4K PTZ Camera (White)

  • Free transport
The Datavideo PTC-280W is a white professional PTZ camera designed for conference
2 149 €
14-30 days

Datavideo PTC-305NDI 4K 20x NDI Auto-Tracking PTZ Camera (Dark Grey)

  • Free transport
The Datavideo PTC-305NDI is a 4K PTZ camera with 20x optical and 16x digital zoom,
3 169 €
14-30 days

Datavideo PTC-280NDIW 4K NDI PTZ Camera, White

  • Free transport
The Datavideo PTC-280NDIW is a white 4K PTZ camera with NDI|HX for conference rooms,
2 539 €
14-30 days

Datavideo PTC-285NDI 4K Tracking NDI PTZ Camera (Dark Grey)

  • Free transport
The Datavideo PTC-285NDI is a professional 4K PTZ camera for live production, lectures,
2 919 €
on request

Datavideo PTC-280 4K PTZ Camera, Dark Blue

  • Free transport
The Datavideo PTC-280 is a dark-blue 4K PTZ camera for conference rooms, education,
2 149 €
14-30 days

Datavideo PTC-145T HDBaseT PTZ Camera (Dark Blue)

  • Free transport
The Datavideo PTC-145T installation camera in dark blue combines Full HD resolution
1 909 €
on request

Datavideo PTC-285 (White) 4K PTZ Camera

  • Free transport
  • Auto Tracking
The Datavideo PTC-285 is a professional 4K PTZ camera with 12x optical and 16x digital
2 539 €
on request

Datavideo PTC-305 4K Auto Tracking PTZ Camera (Dark Grey)

  • Free transport
The Datavideo PTC-305 is a professional 4K PTZ camera with auto tracking for live
2 789 €
14-30 days

Datavideo PTC-280NDI 4K PTZ Camera (Dark Blue)

  • Free transport
The Datavideo PTC-280NDI is a dark-blue professional PTZ camera with resolution up
2 539 €
14-30 days

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Datavideo RMC-300A is a universal control panel for multi-camera PTZ and block-camera setups. It controls up to 24 compatible Datavideo cameras over DVIP or up to 8 cameras over serial RS-422. Supported protocols include Sony VISCA, VISCA over IP-S, VISCA over IP-C and Datavideo DVIP, with 14 stored position presets for each camera.

The built-in 5-inch, 1280 × 720 touchscreen displays a live preview and camera settings. Operators can control pan and tilt with the two-axis joystick, adjust zoom with the dedicated knob, and use the hardware buttons for direct access. Eight RS-422 ports, 10/100 Mbps Ethernet and two USB 2.0 ports connect the panel to cameras and other production equipment.

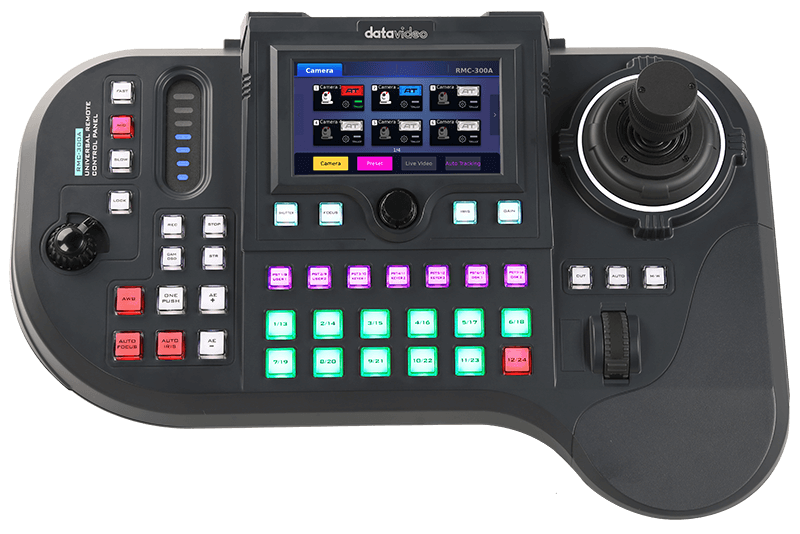

Datavideo RMC-300A control panel

One control surface for multi-camera production

The RMC-300A centralizes control of compatible Datavideo PTZ and block cameras. A setup can include up to 24 cameras over DVIP or up to 8 over RS-422, with 14 position presets stored for each camera. The touchscreen, joystick and dedicated zoom knob give operators direct control from the production desk.

Touchscreen with live preview

The integrated 5-inch, 1280 × 720 display provides access to camera settings and a live image preview on the controller itself. A two-axis joystick moves the camera, a separate rotary knob adjusts zoom, and hardware buttons provide direct access to functions.

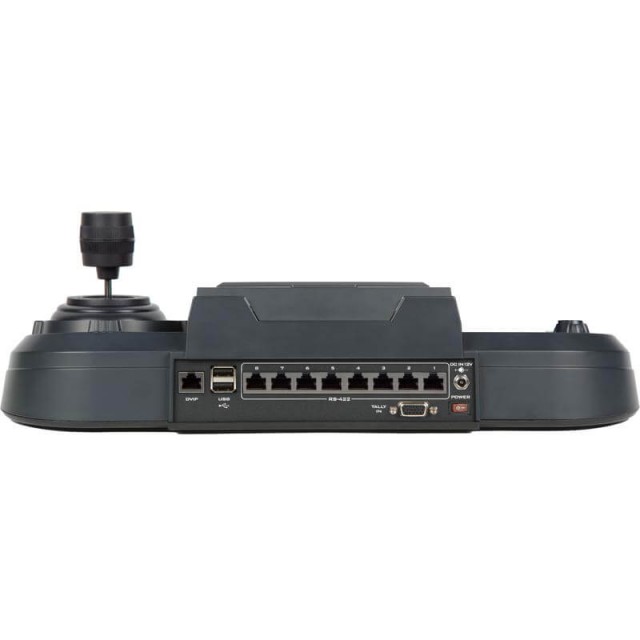

Network and serial connections

The panel provides one 10/100 Mbps Ethernet port with an RJ-45 connector, eight RS-422 ports with RJ-45 connectors, and two USB 2.0 ports. USB 2.0 is also used for firmware updates. Control protocols include Datavideo DVIP, Sony VISCA and VISCA over IP-S/IP-C, depending on the connected setup.

PACKAGE CONTENT

  • Datavideo RMC-300A control panel × 1
  • DC 12 V power adaptor × 1

SPECIFICATIONS

  • Maximum camera control: up to 24 over DVIP; up to 8 over RS-422
  • Position presets: 14 for each camera
  • Control protocols: Sony VISCA, VISCA over IP-S, VISCA over IP-C, Datavideo DVIP
  • Ethernet: 10/100 Mbps, 1 × RJ-45
  • RS-422: 8 × RJ-45 ports
  • USB: 2 × USB 2.0; also used for firmware updates
  • Touchscreen: 5 inches, 1280 × 720
  • Controls: two-axis joystick, rotary zoom knob, hardware buttons
  • Dimensions: 420 × 294 × 134 mm
  • Unit weight: 1.5 kg
  • Power: DC 12 V, 19 W
  • Operating temperature: 0 to 40 °C
  • Storage temperature: −10 to 60 °C
  • Operating humidity: 10 to 80%, non-condensing
Parameters

Parameters

Manufacturer: Datavideo
Category: Accessories

Main parameters

For cameraDatavideo PTC-280 series
Dimensions420x294x134mm
Weight1500g
FunctionsPTZ

Other parameters

Control protocolVISCA · DVIP
