Datavideo PTR-15 Robotic Pan Tilt Head

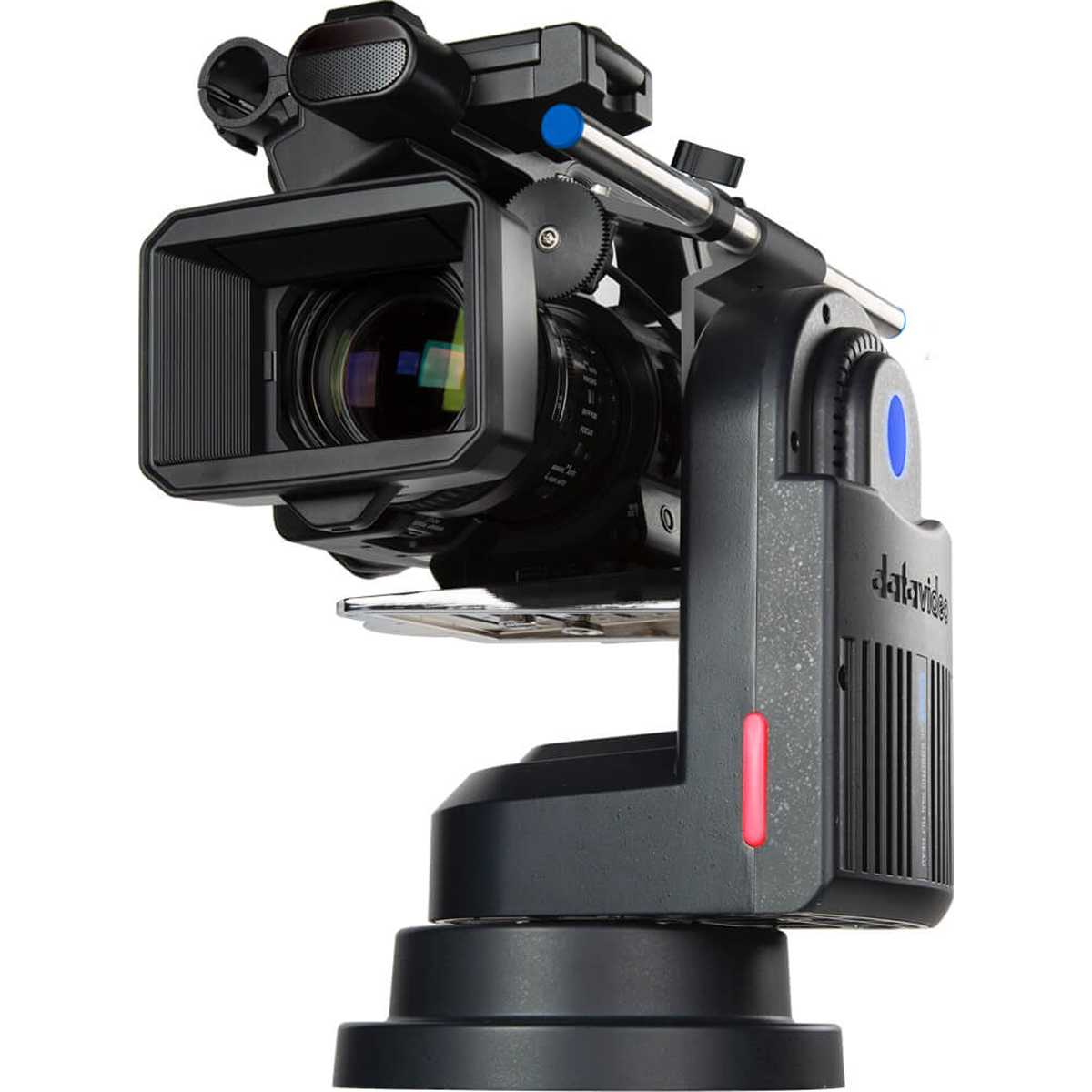

The Datavideo PTR-15 is a professional robotic pan-tilt head that adds remote control capabilities to select film and broadcast cameras for studio and multi-camera production. It transmits video via HDMI 2.0, 12G-SDI, or 3G-SDI up to UHD 4K 50/60p. The head can be controlled via DVIP/IP, RS-422, the VISCA protocol, or an infrared remote control, and can store up to 199 preset positions. The range of motion is 340° for pan and ±45° for tilt; Genlock and timecode facilitate synchronization, and FreeD data can be used in virtual production. The aluminum alloy body weighs 3.7 kg and supports cameras weighing up to 4 kg. A switchable 12/24 V output powers a compatible camera. The current list of supported cameras includes, among others, the RED KOMODO-X, Canon EOS C80, and Blackmagic PYXIS.

ROBOTIC HEAD FOR PROFESSIONAL CAMERAS

Remote control for cinema cameras

The PTR-15 combines the image quality of a camera with the convenience of a remote-controlled PTZ system. It controls both the head’s movement and compatible camera functions; it is suitable for studios, lecture halls, religious services, and multi-camera broadcasts.

Build a system around your camera

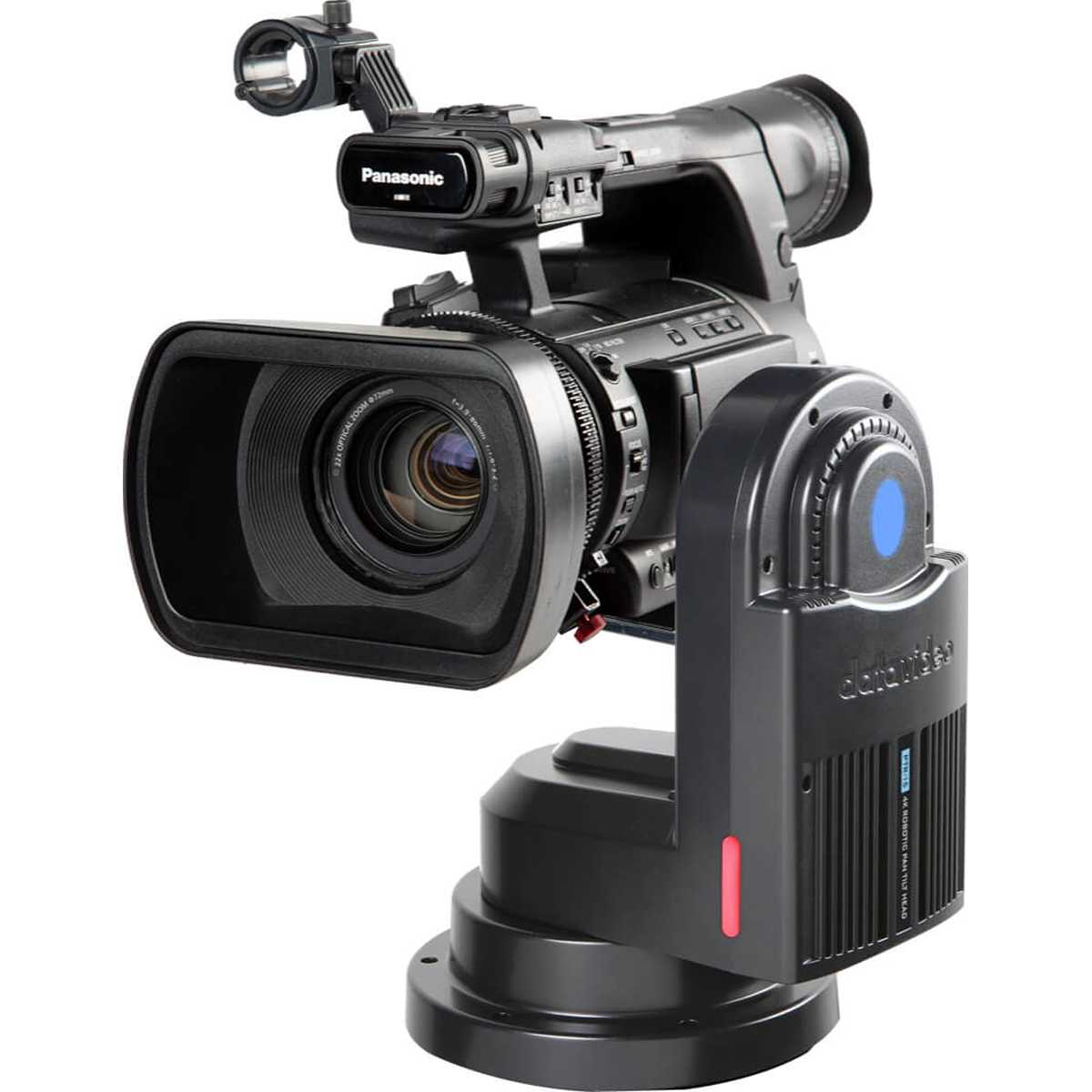

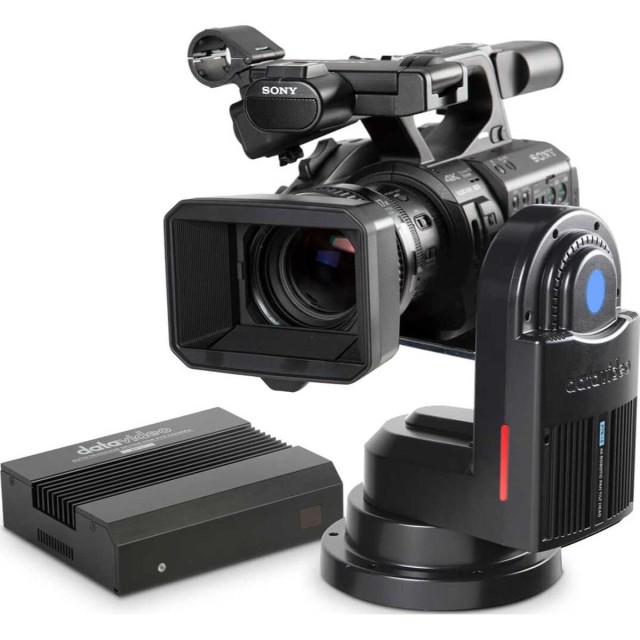

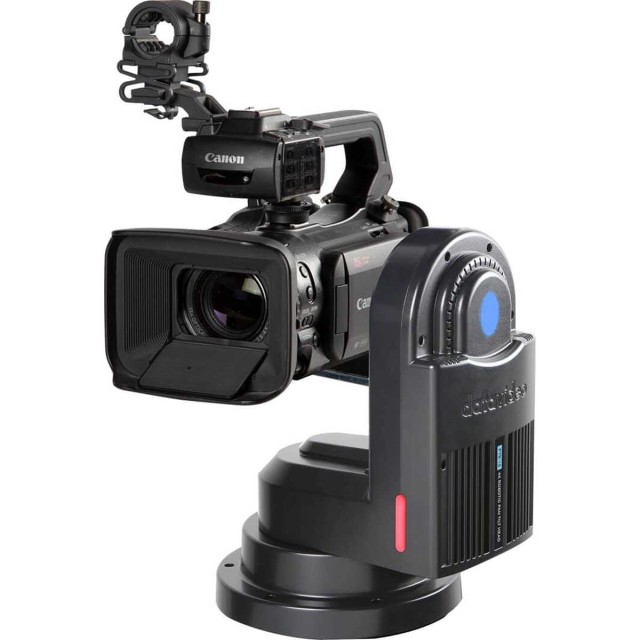

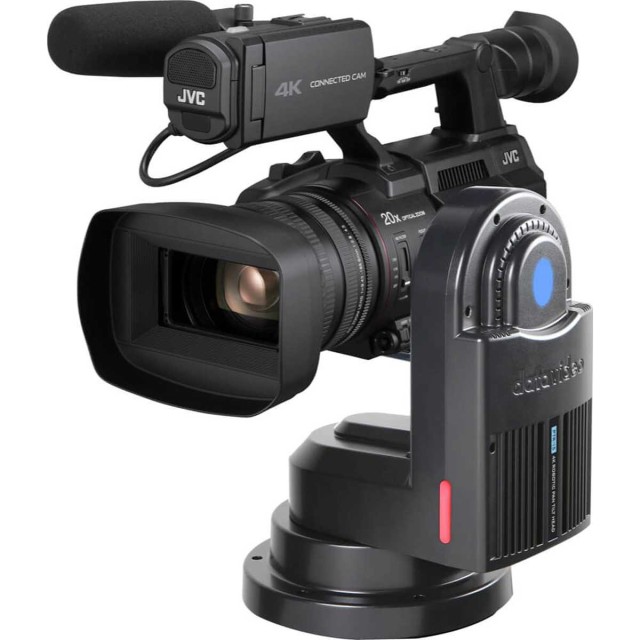

The system is compatible with select models from RED, Canon, Blackmagic Design, Sony, Panasonic, and JVC, including the RED KOMODO-X, Canon EOS C80, and Blackmagic PYXIS. Before installation, verify the compatibility of your specific camera and lens in the manufacturer’s current list.

Precise movements and easy studio integration

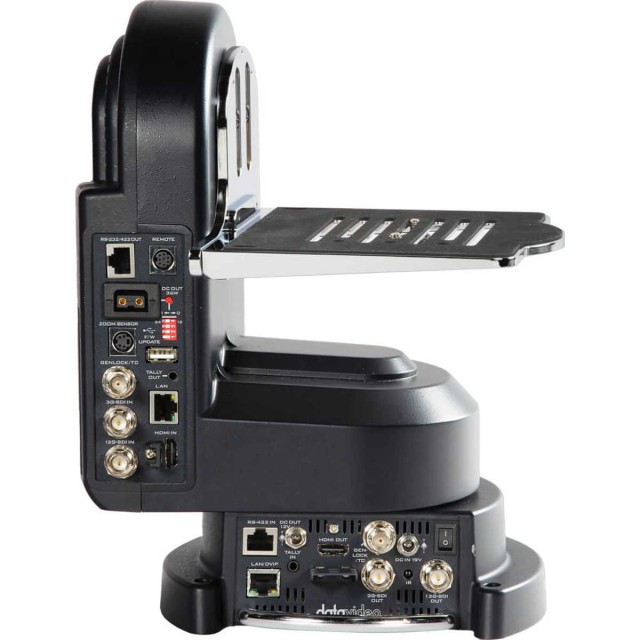

HDMI 2.0, 12G-SDI, and 3G-SDI interfaces support video transmission up to UHD 4K 50/60p. The motorized head and camera can be controlled via DVIP, RS-422, VISCA, or an IR remote control; Genlock and timecode are used for synchronization. The head offers 199 presets, a front Tally light, and a switchable 12/24 V power output. For zoom and tracking, the system can be expanded with the manufacturer’s ZEK-1 or ZEK-2 accessories.
