Datavideo RMC-180 MARK II PTZ Camera Controller

The Datavideo RMC-180 MARK II is a hardware controller for up to four compatible Datavideo PTZ cameras, block cameras or robotic pan/tilt heads. Each device connects point-to-point over RS-422 through one of the four RJ-45 ports, using a standard network cable.

More information

Promotion: -20% ends in: 19d: 11h: 20m
1 288.65 € 1 027.22 € with VAT 848.94 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: 18. 11.
In stock 1 pcs
Praha 1 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

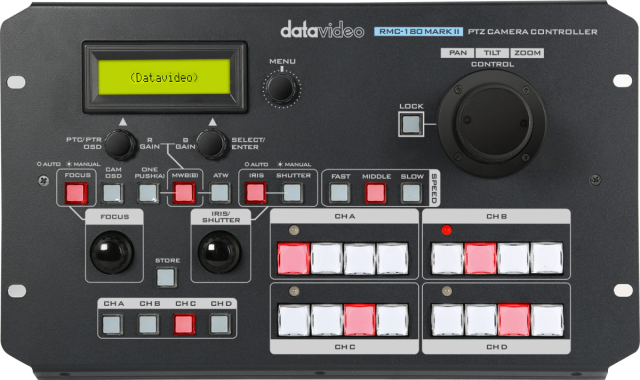

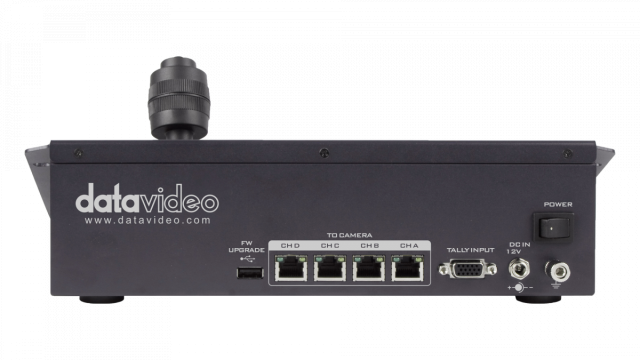

The Datavideo RMC-180 MARK II is a hardware controller for up to four compatible Datavideo PTZ cameras, block cameras or robotic pan/tilt heads. Each device connects point-to-point over RS-422 through one of the four RJ-45 ports, using a standard network cable.

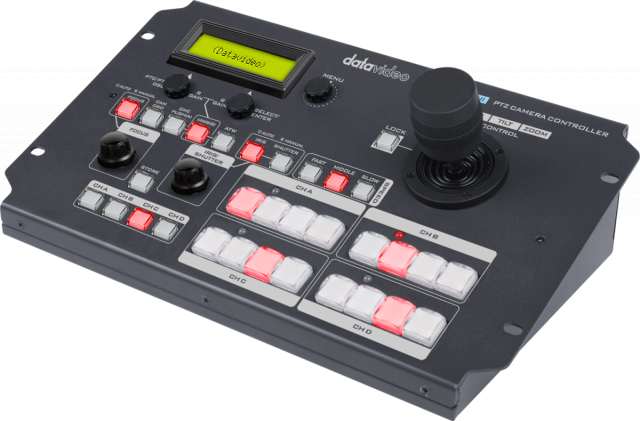

An ergonomic joystick and clearly arranged buttons provide hands-on control during live production. Store and recall four position presets for each camera, or use up to eight presets when controlling two cameras. The controller uses Sony VISCA and offers slow, medium and fast movement speeds. It controls pan, tilt and zoom, plus iris, focus, gain and OSD on supported models. It also supports tally indicators from compatible Datavideo switchers. Control status appears on a monochrome display, and firmware can be updated via USB.

Datavideo RMC-180 MARK II PTZ Camera Controller

A hardware controller for direct control of up to four compatible Datavideo PTZ cameras, block cameras, or robotic pan-tilt heads. Connection is via a dedicated RS-422 line through four RJ-45 connectors; a standard network cable is used for the connection.

An ergonomic joystick, intuitive button controls, and quick presets simplify the process of repeatedly setting up shots during live production. A monochrome display shows the selected camera and control status.

Ovládací jednotka Datavideo RMC-180 MARK II
Ovládací prvky pro předvolby polohy kamer

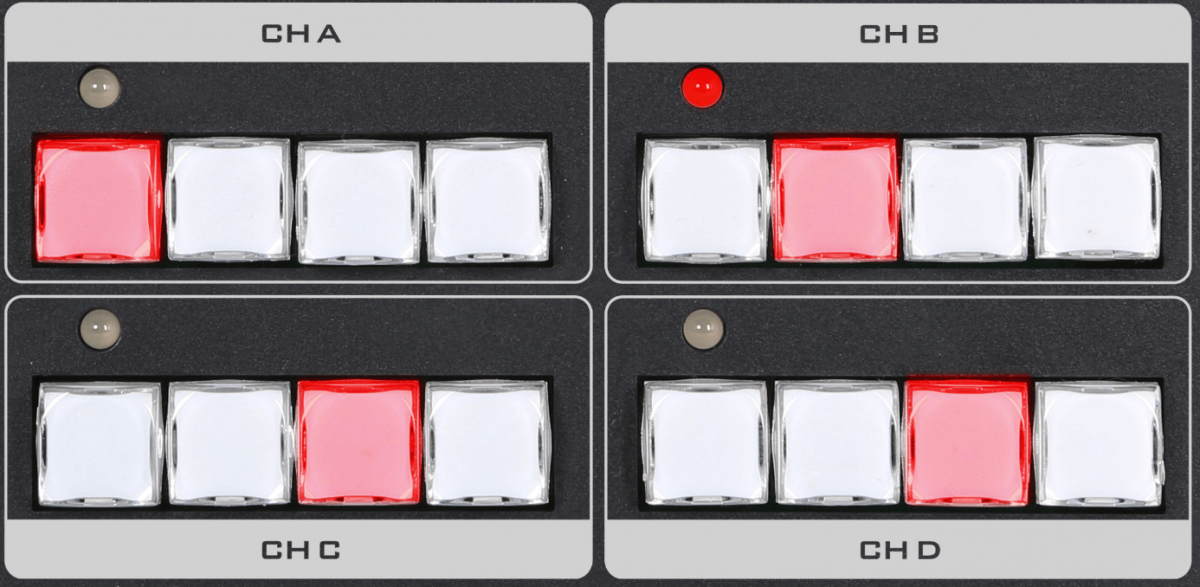

Quick Shot Presets

Four button presets are available for each connected camera. When controlling two cameras, up to eight presets can be used. With the push of a button, you can quickly recall recurring close-ups or wide shots.

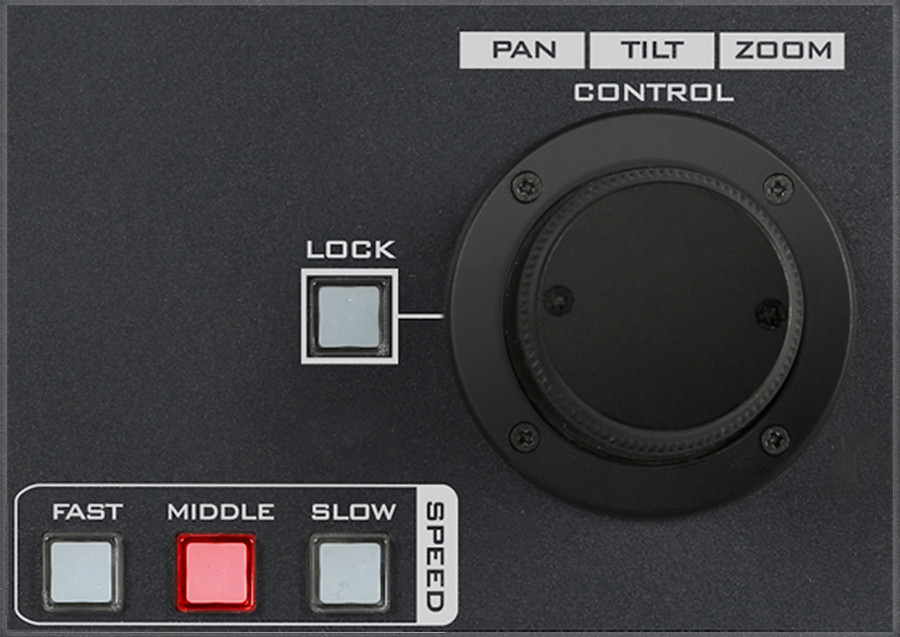

Movement Speed Based on Program Pace

Three speeds are available for pan, tilt, and zoom movements: slow, medium, and fast. On supported models, you can also control aperture, focus, gain, and OSD. The RMC-180 MARK II also supports tally indication from compatible Datavideo production consoles.

Ovládací prvky pro rychlost pohybu kamery

PACKAGE CONTENT

  • 1× Datavideo RMC-180 MARK II control unit
  • 1× power adapter
  • 1× USB-A to USB-A cable
  • 1× list of accessories

SPECIFICATIONS

Type: Controller for PTZ, block cameras, and robotic pan/tilt heads
Number of controlled devices: up to 4
Control protocol: Sony VISCA via RS-422
Device connectors: 4× RJ-45, direct RS-422 connection
Position presets: 4 for each camera; up to 8 when connecting 2 cameras
Motion control: pan, tilt, and zoom; slow, medium, and fast speeds
Additional features: iris, focus, gain, and OSD on supported models; tally
Controls: joystick, buttons, and monochrome display
Firmware update: via USB
Power supply: 12 V DC, 1 A
Dimensions: 310 × 170 × 125 mm
Controller weight: 1.53 kg
Operating temperature: 0 to 40 °C
Storage temperature: −40 to 60 °C

WE RECOMMEND

The Datavideo RMC-180 MARK II is an advanced controller for PTZ cameras using the RS-422 interface, ideal for real-time multi-camera production. For efficient operation in a professional studio, it is recommended to supplement it with systems for communicating with operators, signal converters for video distribution, and monitoring equipment.

Signal Conversion and Distribution - Devices for converting and extending signal paths from cameras controlled by the RMC-180 unit.

Intercom and Communication - Systems for ensuring communication between the control room and camera operators during production.

Reading devices and accessories - Teleprompters and accessories compatible with PTZ cameras, sold as a set with a controller.

Audio and Production - Components for audio processing and video production to complement the control room.

Accessories and Monitoring - Accessories for mounting, camera protection, and previewing the final image.

Parameters

Parameters

Manufacturer: Datavideo
Category: PTZ

Other parameters

Weight1.5kg
Dimensions310x170x125mm
Number of preset positions4
Control protocolRS-422 · VISCA
