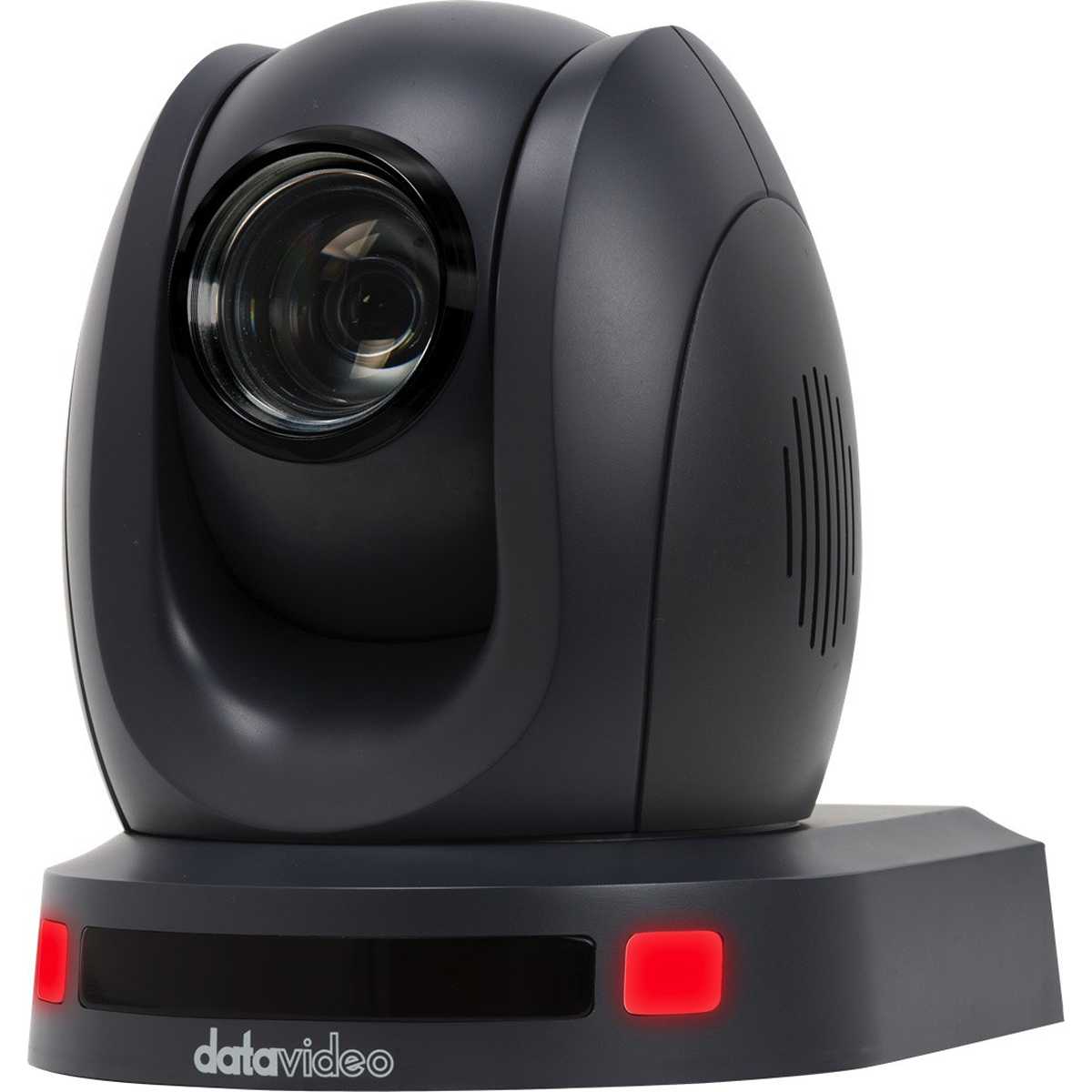

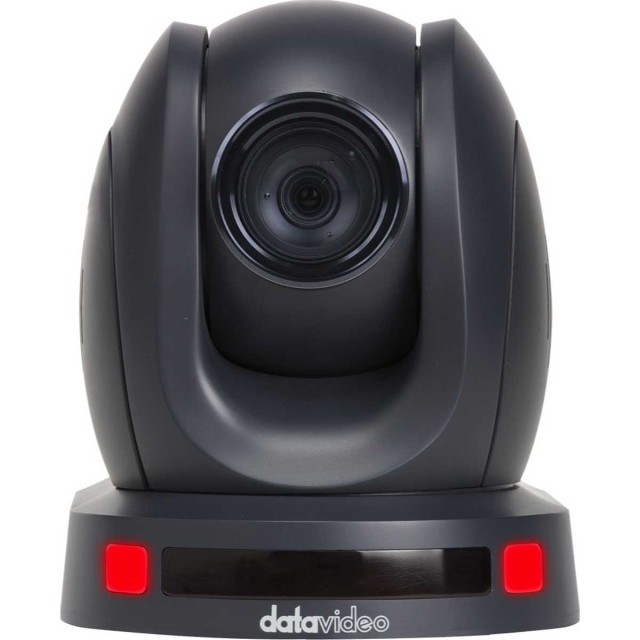

Datavideo PTC-145T HDBaseT PTZ Camera (Dark Blue)
SKU: 7000-3074
The Datavideo PTC-145T installation camera in dark blue combines Full HD resolution with HDBaseT for long-distance video and control transmission. It features a 1/2.8-inch CMOS sensor, 20× optical zoom, 8× digital zoom and automatic tracking of a selected subject. Connections include HDMI, 3G-SDI and HDBaseT with PoE support, alongside streaming and a 3.5…
1 909 € with VAT
1 577.69 € without VAT
Availability
on request
Top accessories for Datavideo PTC-145T HDBaseT PTZ Camera (Dark Blue)
Canare HDMI Cable 2 m
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs
Datavideo WM-1 Black Wall Mount for PTZ Cameras
The Datavideo WM-1 is a three-piece wall-mount kit for fixed installation of compatible
139 €
To be sent 1 pcs
Datavideo RMC-180 MARK II PTZ Camera Controller
The Datavideo RMC-180 MARK II is a hardware controller for up to four compatible
1 289 €
In stock 1 pcs
Datavideo RMC-300A Universal PTZ Camera Control Panel
The Datavideo RMC-300A is a universal control panel for multi-camera PTZ and block-camera
1 679 €
14-30 days
Datavideo VP-929 4K HDMI Repeater
Datavideo VP-929 is a 4K HDMI repeater for extending cable runs in fixed installations.
108 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Datavideo PTC-145T installation camera in dark blue combines Full HD resolution with HDBaseT for long-distance video and control transmission. It features a 1/2.8-inch CMOS sensor, 20× optical zoom, 8× digital zoom and automatic tracking of a selected subject. Connections include HDMI, 3G-SDI and HDBaseT with PoE support, alongside streaming and a 3.5 mm line input. A white version is available as the PTC-145TW.
Full HD PTZ camera with auto tracking
The Datavideo PTC-145T is an installation-ready Full HD PTZ camera with HDBaseT. It carries video and control over a single shielded Cat6A cable for distances up to 100 m; HDBaseT also supports PoE. The camera combines a Sony 1/2.8-inch sensor with 20× optical and 8× digital zoom and automatic tracking of a selected subject. Intelligent pan/tilt speed adaptation, 3D noise reduction and a wide 60° horizontal field of view support smooth operation. Video is available over HDMI, 3G-SDI or HDBaseT, with H.264/H.265 streaming.
Single-cable HDBaseT installation
HDBaseT carries video, control and PoE over a shielded Cat6A cable for distances up to 100 m. HDMI and 3G-SDI video outputs and a 3.5 mm line input are also available.
PACKAGE CONTENT
- 1× Datavideo PTC-145T camera (dark blue)
- 1× infrared remote controller
- 1× ceiling mount bracket A
- 1× ceiling mount bracket B
- 6× M3 × 4 mm screws for ceiling brackets
- 1× DC 12 V power adapter
- 1× power cord
- 1× safety cable
SPECIFICATIONS
- Resolution: Full HD; 1080p up to 60 fps, 1080i and 720p modes
- Image sensor: Sony 1/2.8-inch CMOS, approximately 2.07 effective megapixels
- Zoom: 20× optical, 8× digital
- Field of view: 60° horizontal at the wide end

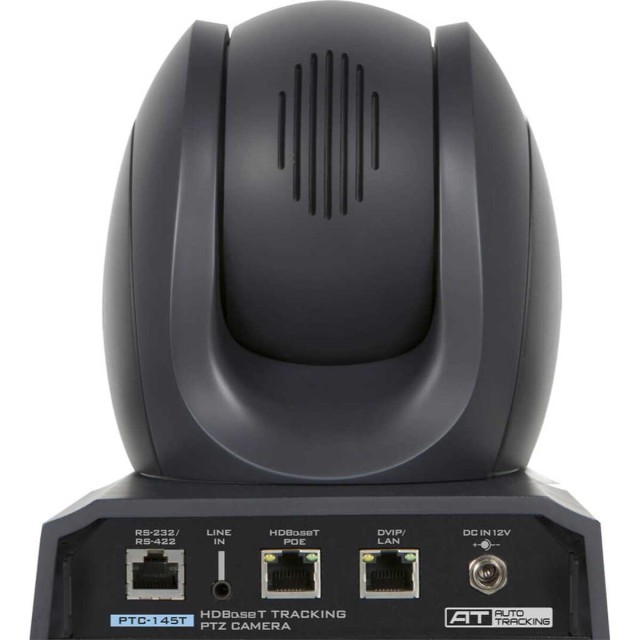

- Video outputs: HDMI, 3G-SDI and HDBaseT (PoE); HDBaseT over shielded Cat6A up to 100 m
- Audio input: 3.5 mm line input
- Streaming: H.264/H.265; RTSP, RTMP(S), ONVIF, SRT (caller/listener) and multicast
- Control protocols: VISCA, VISCA over IP, DVIP, ONVIF, Pelco-D and Pelco-P
- Presets: 255 positions
- Power: DC 12 V, 14 W; supports IEEE 802.3af PoE
- Dimensions: 156 × 184 × 186 mm
- Weight: 1.6 kg
- Operating temperature: 0–40 °C
WE RECOMMEND
The Datavideo PTC-145T is a professional Full HD PTZ camera with HDBaseT, SDI, and HDMI interfaces, making it ideal for fixed installations and streaming thanks to its AI Tracking feature. Key accessories for this model include solutions for long-distance signal distribution, studio communication, and integration into production setups.
Converters and Signal Distribution - Devices for converting and extending the range of video signals from the camera’s SDI and HDMI outputs.
- Datavideo DAC-9P
- Datavideo DAC-70
- Datavideo VP-634
- Datavideo CAP-1
- Datavideo DAC-8PA
- DATAVIDEO NVD-35
Control Room and Monitoring - Production tools for image processing and real-time video preview.
Reading devices - Teleprompters and accessories suitable for professional presentations in front of a PTZ camera.
Audio and Communication - Systems for audio synchronization and intercom communication among crew members.
Installation and Protection - Accessories for secure mounting and protection of cameras in various environments.
Parameters
| Manufacturer: | Datavideo |
| Category: | PTZ |
Main parameters
| Resolution | Full HD |
| Zoom | 20x |
| Type of bayonet | integrated lens |
| Output | HDMI · HDBaseT · 3G SDI |
| Maximum video resolution | Full HD |
| Optical zoom | 20× |
| Video outputs | HDMI · SDI |
Other parameters
| Version | PTZ |
| Other features | PTZ · Streaming |
| Control protocol | Pelco-P · Pelco-D · RS-422 · VISCA · DVIP · ONVIF |
