Datavideo PTC-145TW Full HD PTZ Camera (White)
SKU: 7000-3075
The Datavideo PTC-145TW is a white Full HD installation PTZ camera with HDBaseT connectivity. Its unobtrusive white finish suits lecture halls, meeting rooms, places of worship and other installed video spaces. A 1/2.8-inch Sony CMOS sensor, 20x optical zoom and 8x digital zoom capture speakers clearly from across the room. AI tracking follows a moving presenter…
1 909 € with VAT
1 577.69 € without VAT
Availability
on request
Top accessories for Datavideo PTC-145TW Full HD PTZ Camera (White)
Datavideo RMC-180 MARK II PTZ Camera Controller
The Datavideo RMC-180 MARK II is a hardware controller for up to four compatible
1 289 €
In stock 1 pcs
Datavideo RMC-2P 3-Channel Camera Controller with Plate
The Datavideo RMC-2P is a three-channel controller for Datavideo PTZ cameras. Over
321 €
In stock 1 pcs
Datavideo WM-1W White Wall Mount for PTZ Cameras
Datavideo WM-1W is the white version of the WM-1 wall mount for PTC-series PTZ cameras.
139 €
14-30 days
Datavideo RMC-300A Universal PTZ Camera Control Panel
The Datavideo RMC-300A is a universal control panel for multi-camera PTZ and block-camera
1 679 €
14-30 days
Datavideo VP-929 4K HDMI Repeater
Datavideo VP-929 is a 4K HDMI repeater for extending cable runs in fixed installations.
108 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Datavideo PTC-145TW is a white Full HD installation PTZ camera with HDBaseT connectivity. Its unobtrusive white finish suits lecture halls, meeting rooms, places of worship and other installed video spaces. A 1/2.8-inch Sony CMOS sensor, 20x optical zoom and 8x digital zoom capture speakers clearly from across the room. AI tracking follows a moving presenter without requiring a dedicated camera operator. Route video through HDMI, 3G-SDI or HDBaseT, and stream in H.264/H.265. HDBaseT carries video, control and PoE over a single Cat 6A cable for runs up to 100 m.
Full HD PTZ camera
The Datavideo PTC-145TW is a white installation PTZ camera with HDBaseT connectivity. Full HD video, 20x optical zoom, 8x digital zoom and AI tracking help capture a speaker from across the room. Its white finish blends into bright meeting rooms, lecture halls and worship spaces. Connect it to a production system through HDMI, 3G-SDI or HDBaseT; HDBaseT carries video, control and PoE over one Cat 6A cable for runs up to 100 m.
Full HD20x optical zoomAI trackingHDBaseT + PoE
Mobile production setup

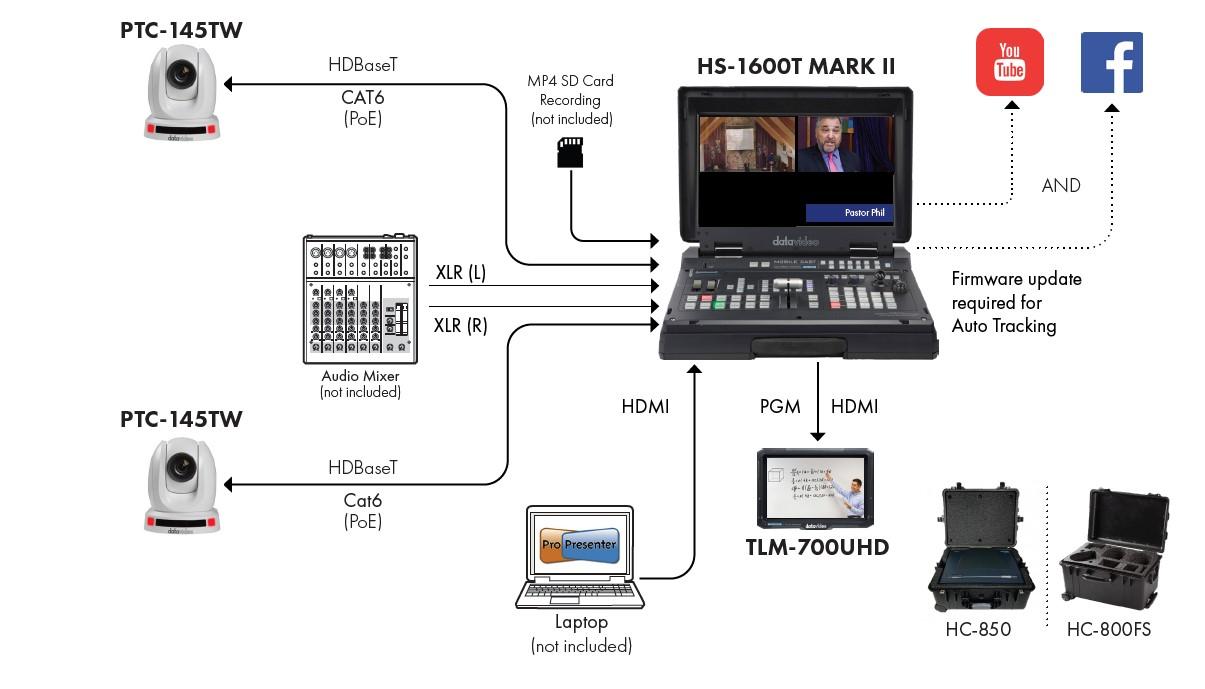

The diagram shows an example setup with two white PTC-145TW cameras connected via HDBaseT (Cat 6/PoE) to an HS-1600T Mark II portable streaming studio. It combines the camera feeds with audio from an external mixer and a laptop presentation; the program can be recorded to an SD card and streamed at the same time. The additional equipment shown—the studio, mixer, SD card and laptop—is not included with this camera.
PACKAGE CONTENT
- 1× Datavideo PTC-145T camera (white)
- 1× infrared remote controller
- 1× ceiling mount bracket A
- 1× ceiling mount bracket B
- 6× M3 × 4 mm screws for ceiling brackets
- 1× DC 12 V power adapter
- 1× power cord
- 1× safety cable
SPECIFICATIONS
- Resolution: Full HD; 1080p up to 60 fps, 1080i and 720p modes
- Image sensor: Sony 1/2.8-inch CMOS, approximately 2.07 effective megapixels
- Zoom: 20× optical, 8× digital
- Field of view: 60° horizontal at the wide end
- Video outputs: HDMI, 3G-SDI and HDBaseT (PoE); HDBaseT over shielded Cat6A up to 100 m
- Audio input: 3.5 mm line input
- Streaming: H.264/H.265; RTSP, RTMP(S), ONVIF, SRT (caller/listener) and multicast
- Control protocols: VISCA, VISCA over IP, DVIP, ONVIF, Pelco-D and Pelco-P
- Presets: 255 positions
- Power: DC 12 V, 14 W; supports IEEE 802.3af PoE
- Dimensions: 156 × 184 × 186 mm
- Weight: 1.6 kg
- Operating temperature: 0–40 °C
WE RECOMMEND
The Datavideo PTC-145TW is a professional Full HD PTZ camera that features HDBaseT technology for video transmission, power delivery, and control over a single cable. To maximize its potential in a production environment, we recommend accessories for signal distribution, remote control, and integration into Datavideo studio systems.
Video Production and Streaming - Equipment for real-time processing and distribution of signals from PTZ cameras.
Converters and Signal Distribution - Tools for converting camera SDI and HDMI outputs for various types of display and transmission.
Audio and Communication - Accessories for audio synchronization and communication among production team members.
Reading Devices - Teleprompters compatible with PTZ cameras for professional on-camera presentations.
Protection and Mounting - Accessories for secure installation and image monitoring.
Parameters
| Manufacturer: | Datavideo |
| Category: | PTZ |
Main parameters
| Camera Sensor size | Sony 1/2.8" CMOS |
| Resolution | Full HD |
| Zoom | 20x |
| Type of bayonet | integrated lens |
| Output | HDMI · HDBaseT · 3G SDI |
| Maximum video resolution | Full HD |
| Optical zoom | 20× |
| Video outputs | HDMI · SDI |
| Network protocols | SRT · RTMP / RTMPS · ONVIF · RTSP |
Other parameters
| Weight | 1.6kg |
| Dimensions | 156x184x186mm |
| Digital zoom | 8× |
| Number of preset positions | 255 |
| Version | PTZ |
| Min. focal length | 5.1mm |
| Max. focal length | 91.5mm |
| Other features | PTZ · Streaming · AI tracking |
| Control protocol | Pelco-P · Pelco-D · RS-422 · VISCA · DVIP · ONVIF |
