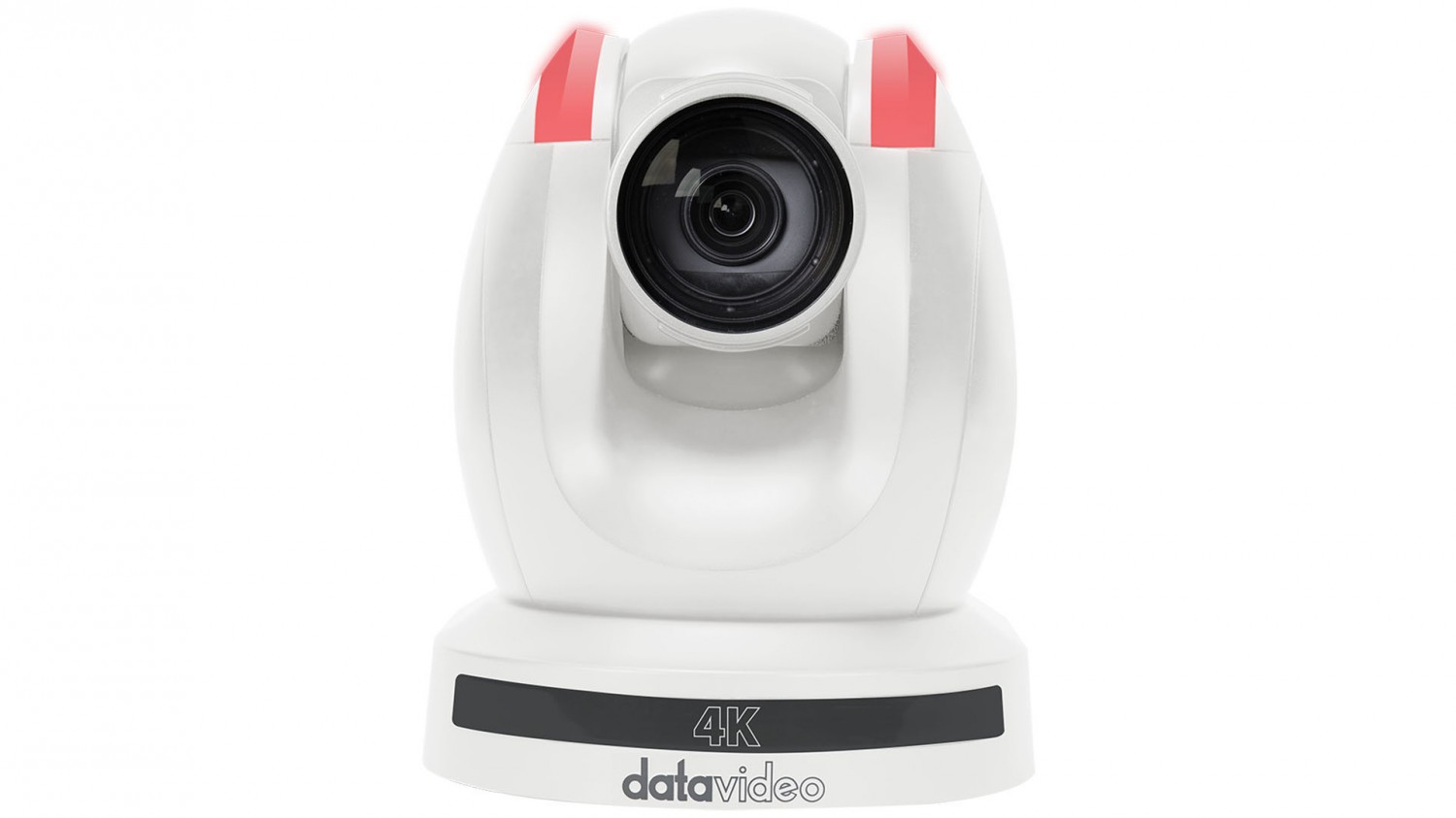

Datavideo PTC-280NDIW 4K NDI PTZ Camera, White
SKU: 7000-3083
The Datavideo PTC-280NDIW is a white 4K PTZ camera with NDI|HX for conference rooms, lecture spaces, live production and other permanent installations. Its 12x optical zoom, 16x digital zoom and 71° wide-end horizontal field of view make it easy to frame both a complete room and a tighter shot. HDMI 2.0, 3G-SDI and Gigabit Ethernet outputs can be used together;…
2 539 € with VAT
2 098.35 € without VAT
Availability
14-30 days
Top accessories for Datavideo PTC-280NDIW 4K NDI PTZ Camera, White
Datavideo RMC-2P
The Datavideo RMC-2P is a three-channel controller for Datavideo PTZ cameras. Over
321 €
In stock 1 pcs
Datavideo HDR-1 Standalone H.264 USB Recorder/Player
The Datavideo HDR-1 is a standalone USB recorder and player that records HD video
769 €
14-30 days
Datavideo IP68 PTZ Camera Housing with Heater Blower (D2-BASE-HEAT)
The Datavideo D2-BASE-HEAT is an IP68 protective housing with a heater blower for
1 279 €
on request
Libec LX ePed
LX-ePed / LX-ePed Studio is Libec’s electronical pedestal system specially designed
2 709 €
on request
Datavideo iCAST Mini 4K Dual-Channel Presentation Switcher
Datavideo iCAST Mini is a compact 4K presentation switcher for corporate training,
2 199 €
14-30 days
Datavideo RMC-300A
The Datavideo RMC-300A is a universal control panel for multi-camera PTZ and block-camera
1 679 €
14-30 days
Libec LX-ePed Studio
LX-ePed / LX-ePed Studio is Libec’s electronical pedestal system specially designed
2 839 €
on request
Datavideo IP68 PTZ Camera Housing (D2-BASE-EXT)
The Datavideo D2-BASE-EXT protective housing is compatible with PTC-140, PTC-145,
769 €
on request
Datavideo iCast 10NDI
iCAST 10NDI is a new and innovative live production equipment that houses a switcher,
3 439 €
new product, yet unavailable
Lilliput K1 PTZ Camera Controller with Joystick
The Lilliput K1 PTZ is a professional controller designed to manage PTZ (pan-tilt-zoom)
499 €
14-30 days
Product description
ARTICLES
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Datavideo PTC-280NDIW is a white 4K PTZ camera with NDI|HX for conference rooms, lecture spaces, live production and other permanent installations. Its 12x optical zoom, 16x digital zoom and 71° wide-end horizontal field of view make it easy to frame both a complete room and a tighter shot. HDMI 2.0, 3G-SDI and Gigabit Ethernet outputs can be used together; NDI|HX lets the camera join an IP production over Ethernet, with IEEE 802.3at PoE carrying power, tally and control as well as video. The camera supports up to 4K60p over HDMI, up to 1080p60 over SDI, dual IP streaming, 255 presets and remote control via NDI, DVIP, VISCA, RS-422, the web interface or the included IR remote. Its white finish suits bright conference and education spaces. The package includes both ceiling brackets, mounting screws, a 12 V power adapter, a safety cable and an IR remote controller.
4K PTZ WITH NDI|HX
The white PTC-280NDIW adds a remotely controlled 4K camera angle to a conference room or lecture space, with NDI|HX support. HDMI 2.0, 3G-SDI and Gigabit Ethernet connect the camera to a production switcher or IP workflow; with IEEE 802.3at PoE, one Ethernet cable also carries power, tally and control.

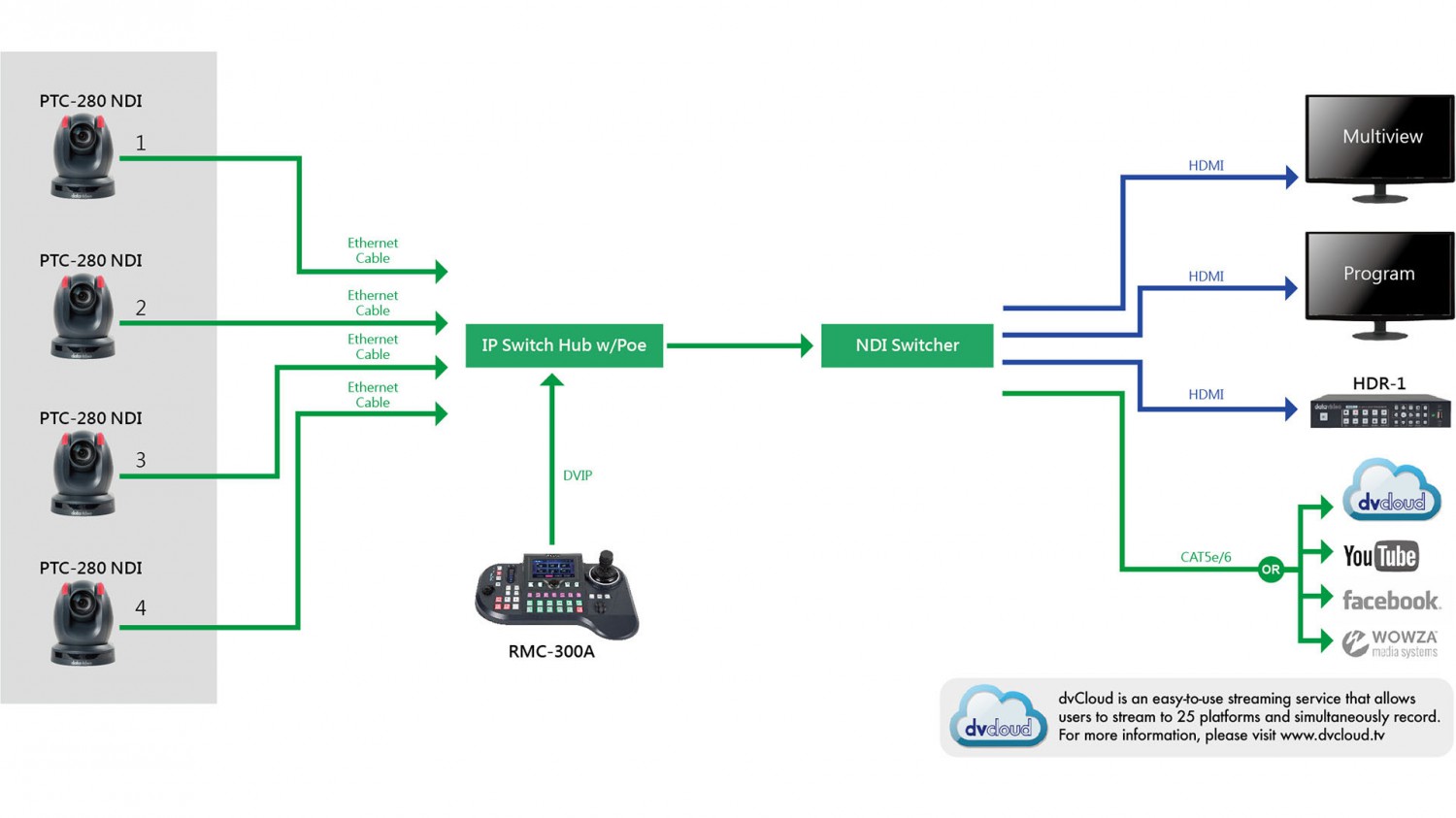

ONE CAMERA, MULTIPLE SIGNAL PATHS
HDMI 2.0 and NDI/IP outputs can operate simultaneously, while 3G-SDI provides a separate link up to 1080p. The camera supports HDMI output up to 2160p60, dual IP streaming, and RTSP, RTMP(S), SRT, ONVIF and NDI|HX protocols. Remote pan, tilt, zoom and presets can be controlled through NDI, DVIP, VISCA, RS-422, the web interface or the included IR remote.
PACKAGE CONTENT
- 1× Datavideo PTC-280NDI camera (white finish)
- 1× IR remote controller
- 1× ceiling mount bracket A
- 1× ceiling mount bracket B
- 6× M3 × 4 mm ceiling bracket screws
- 1× DC 12 V power adapter
- 1× safety cable
SPECIFICATIONS
- Type: 4K PTZ camera, white finish
- Image sensor: 1/2.5-inch CMOS
- Effective pixels: approximately 8.51 megapixels
- Optical zoom: 12x
- Digital zoom: 16x
- Focal length: 4.4–52.8 mm; f/1.8–f/2.6
- Wide-end field of view: 71° horizontal
- HDMI video: up to 2160p60
- SDI video: up to 1080p60
- IP resolution: up to 3840 × 2160; dual streaming
- Video outputs: HDMI 2.0, 3G-SDI, Gigabit Ethernet RJ-45 with NDI|HX
- Streaming protocols: RTSP, RTMP(S), ONVIF, multicast, SRT, NDI|HX
- Video compression: H.264, H.265, MJPEG
- Audio compression: AAC
- Audio input: 3.5 mm stereo, line or microphone
- Pan range: 300°
- Tilt range: −15° to +90°
- Presets: 255 positions
- Control protocols: NDI, DVIP, VISCA, VISCA over IP, RS-422, Pelco-D, Pelco-P
- Power: DC 12 V, 12 W; IEEE 802.3at PoE
- Mount: 1/4-20 UNC thread
- Dimensions: 173 × 219 × 189.08 mm (W × H × D)
- Weight: 2.8 kg
- Operating temperature: 0 to 40 °C
ARTICLES
WE RECOMMEND
The Datavideo PTC-280NDIW is an advanced 4K PTZ camera with integrated NDI|HX technology, which enables the transmission of video, power, and control over a single cable. To fully utilize it in a professional environment, it is essential to pair it with compatible IP decoders, control systems, and components for signal distribution via SDI and HDMI.
IP Streaming and Decoding - Products for processing and converting IP streams from the camera into standard video formats.
Converters and Signal Distribution - Devices for conversion between SDI, HDMI, and other formats for integration into existing systems.
Reading devices - Teleprompters compatible with PTZ camera systems to facilitate the work of presenters.
Audio and Communication - Systems for audio synchronization and intercom communication within the studio.
Installation and Monitoring - Accessories for secure camera mounting and previewing the resulting image.
Production Control - Mobile studios and switchers compatible with camera inputs.
Parameters
| Manufacturer: | Datavideo |
| Category: | PTZ |
Main parameters
| Resolution | 4K UltraHD (3840 x 2160) @ 50/60 fps |
| Zoom | 12x |
| Type of bayonet | integrated lens |
| Output | HDMI · 3G-SDI · Ethernet / IP |
| Sensor size | 1/2.5" |
| Maximum video resolution | 4K |
| Optical zoom | 12× |
| Video outputs | HDMI · SDI · Ethernet / IP |
| Network protocols | NDI|HX · SRT · RTMP / RTMPS · RTSP / RTP |
Other parameters
| Weight | 2.8kg |
| Dimensions | 173x219x189.1mm |
| Digital zoom | 16× |
| Number of preset positions | 255 |
| Version | PTZ |
| Lens lens aperture | 1.8x2.6f |
| Min. focal length | 4.4mm |
| Max. focal length | 52.8mm |
| Battery type | DC 12V / PoE+ (IEEE802.3at) |
| Control protocol | NDI · RS-422 · VISCA · DVIP |
