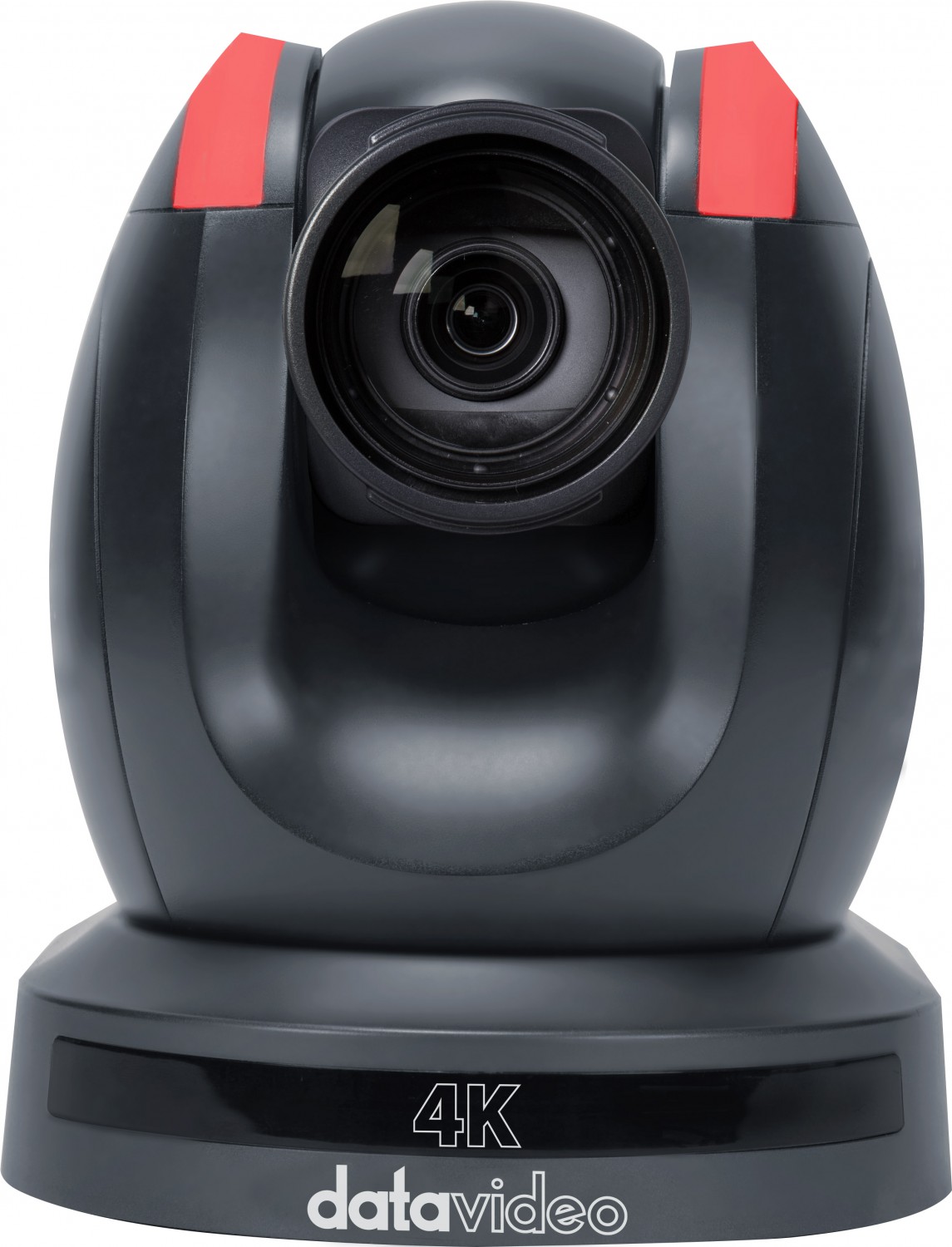

Datavideo PTC-280 4K PTZ Camera, Dark Blue
SKU: 7000-3080
The Datavideo PTC-280 is a dark-blue 4K PTZ camera for conference rooms, education, worship spaces, live events and remote production. Its 12× optical zoom, 16× digital zoom and 255 preset positions make it easy to recall repeatable framing, from a wide room view to a close shot of a speaker. Video is available simultaneously over HDMI 2.0, 3G-SDI and Gigabit…
2 149 € with VAT
1 776.03 € without VAT
Availability
14-30 days
Top accessories for Datavideo PTC-280 4K PTZ Camera, Dark Blue
Datavideo BB-1 KIT dvCloud Remote Device Control Kit
Promotion: -30%
The BB-1 allows you to access almost to any IP enabled device over the public internet.
387.81 €
550.55 €
To be sent 1 pcs
Datavideo RMC-2P 3-Channel Camera Controller with Plate
The Datavideo RMC-2P is a three-channel controller for Datavideo PTZ cameras. Over
321 €
In stock 1 pcs
Datavideo KMU-200 4K Multi-Channel Touch Screen ROI Switcher
All-In-One Video Switching, Streaming, Audio Mixing and Camera Control.4K Single
4 539 €
14-30 days
Libec LX ePed
LX-ePed / LX-ePed Studio is Libec’s electronical pedestal system specially designed
2 709 €
on request
Lilliput K1 PTZ Camera Controller with Joystick
The Lilliput K1 is a professional PTZ camera controller with a joystick and an aluminium
499 €
14-30 days
Datavideo RMC-300A Universal PTZ Camera Control Panel
The Datavideo RMC-300A is a universal control panel for multi-camera PTZ and block-camera
1 679 €
14-30 days
Datavideo IP68 PTZ Camera Housing (D2-BASE-EXT)
The Datavideo D2-BASE-EXT protective housing is compatible with PTC-140, PTC-145,
769 €
on request
Libec LX-ePed Studio
LX-ePed / LX-ePed Studio is Libec’s electronical pedestal system specially designed
2 839 €
on request
Datavideo iCAST Mini 4K Dual-Channel Presentation Switcher
Datavideo iCAST Mini is a compact 4K presentation switcher for corporate training,
2 199 €
14-30 days
Datavideo ShowCast 100 4K Streaming Studio
The ShowCast 100 is a brand new 4K 4-Channel Touch Panel Switcher that features 7
5 749 €
14-30 days
Product description
ARTICLES
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Datavideo PTC-280 is a dark-blue 4K PTZ camera for conference rooms, education, worship spaces, live events and remote production. Its 12× optical zoom, 16× digital zoom and 255 preset positions make it easy to recall repeatable framing, from a wide room view to a close shot of a speaker. Video is available simultaneously over HDMI 2.0, 3G-SDI and Gigabit Ethernet/IP, allowing the camera to feed a production system and network workflow in parallel. HDMI supports up to 2160p50/60 in YUV 4:2:0; SDI supports up to 1080p50/60. The built-in encoder supports two IP streams and H.264, H.265 or MJPEG. Control is available over IR, RS-422, DVIP, VISCA, Pelco-D/P and NDI; the camera also has a 3.5 mm stereo line input and can be powered by 12 V DC or IEEE 802.3at PoE+.
4K 12× PTZ CAMERA FOR LIVE PRODUCTION
ONE CAMERA, MULTIPLE VIDEO PATHS
The Datavideo PTC-280 is a dark-blue 4K PTZ camera for conference rooms, education, houses of worship, live events and remote production. Its 12× optical zoom, 16× digital zoom and 255 preset positions make it practical for a fixed installation that needs both a wide room view and repeatable close-ups.
Send video simultaneously through HDMI 2.0, 3G-SDI and Gigabit Ethernet/IP. HDMI supports up to 2160p50/60 in YUV 4:2:0; SDI supports up to 1080p50/60. The camera can also encode two IP streams for distribution over a local network or supported streaming platforms.
REMOTE CONTROL FROM THE ROOM OR OVER IP
Recall up to 255 camera positions and adjust pan, tilt, zoom, focus, iris and white balance using the included infrared remote, the RS-422 serial connection, or network control. Supported control protocols include DVIP, Sony VISCA over IP, VISCA, Pelco-D, Pelco-P and NDI control.
The PTZ View Assist app can monitor and control up to four compatible Datavideo cameras. The PTC-280 also supports external stereo line-level audio through its 3.5 mm input and has a 1/4″-20 UNC tripod thread.
STREAMING AND SYSTEM INTEGRATION
The built-in encoder supports H.264, H.265 and MJPEG with RTSP/RTP, RTMP/RTMPS, SRT, ONVIF, multicast and NDI|HX network workflows. Dual-stream output lets the camera provide a main stream and a lower-resolution secondary stream at the same time.
Use the included 12 V DC adapter or power the camera over Ethernet with IEEE 802.3at PoE+. A ceiling-mount bracket is included; compatible WM-1, WM-10 and WM-11 wall mounts are available separately.
12× OPTICAL ZOOM
The 4.4–52.8 mm lens frames both wide shots and distant speakers; 16× digital zoom is available when additional enlargement is needed.
SIMULTANEOUS OUTPUTS
HDMI, 3G-SDI and Ethernet/IP allow the camera to feed production and streaming systems in parallel.
FIXED INSTALLATION
The included ceiling brackets and 255 presets support repeatable framing in classrooms, meeting spaces, studios and worship venues.
PACKAGE CONTENT
- 1× Datavideo PTC-280 4K PTZ camera
- 1× infrared remote controller
- 1× ceiling-mount bracket, part A
- 1× ceiling-mount bracket, part B
- 6× M3 × 4 mm ceiling-bracket screws
- 1× 12 V DC power adapter
- 1× safety cable
SPECIFICATIONS
- Camera type: 4K PTZ camera
- Image sensor: Sony 1/2.5-inch CMOS, approx. 8.51 MP
- HDMI output: up to 3840 × 2160 at 50/59.94/60p (YUV 4:2:0)
- SDI output: up to 1920 × 1080 at 50/59.94/60p
- Optical zoom: 12×
- Digital zoom: 16×
- Lens: 4.4–52.8 mm, F1.8–F2.6
- Horizontal field of view: 71°
- Pan range: 300°
- Tilt range: −15° to +90°
- Preset positions: 255
- Video outputs: HDMI 2.0, 3G-SDI, Gigabit Ethernet/IP
- Streaming protocols: RTSP/RTP, RTMP/RTMPS, SRT, ONVIF, multicast, NDI|HX
- Video compression: H.264, H.265, MJPEG
- Control: IR, Web GUI, RS-422, DVIP, VISCA, Pelco-D/P, NDI
- Audio input: 3.5 mm stereo line input
- Power: 12 V DC, 12 W or IEEE 802.3at PoE+
- Mounting thread: 1/4″-20 UNC
- Dimensions (W × H × D): 173 × 219 × 189.08 mm
- Weight: 2.8 kg
- Operating temperature: 0–40 °C
- Colour: dark blue
ARTICLES
WE RECOMMEND
The Datavideo PTC-280 is a professional 4K PTZ camera equipped with HDMI 2.0 and 3G-SDI outputs, as well as advanced IP streaming capabilities. Key accessories for this model ensure reliable signal distribution, studio communication, and integration into production setups using DVIP and VISCA protocols.
Signal Conversion and Distribution - Products for converting and extending the range of video signals from the camera’s HDMI and SDI outputs.
Monitoring and Decoding - Devices for viewing 4K images and decoding IP streams from cameras.
Studio Equipment and Control Room - Systems for live production management, audio mixing, and communication with operators.
- Datavideo ITC-100
- Datavideo HS-1300
- Datavideo AM-100
- Datavideo AD-100M
- Datavideo HP-2A
- Datavideo DAC-80
Reading devices - Teleprompters compatible with PTZ cameras to facilitate the work of speakers in front of the camera.
Installation Accessories - Accessories for secure outdoor camera mounting and rack-mounted installation.
Parameters
| Manufacturer: | Datavideo |
| Category: | PTZ |
Main parameters
| Resolution | UHD |
| Zoom | 12x |
| Type of bayonet | integrated lens |
| Output | HDMI · RTMP · 3G SDI |
| Sensor size | 1/2.5" |
| Maximum video resolution | 4K |
| Optical zoom | 12× |
| Video outputs | HDMI · SDI · Ethernet / IP |
| Network protocols | NDI · SRT · RTMP / RTMPS · RTSP / RTP |
Other parameters
| Weight | 2.8kg |
| Dimensions | 173x219x189.1mm |
| Digital zoom | 16× |
| Number of preset positions | 255 |
| Version | PTZ |
| Min. focal length | 4.4mm |
| Max. focal length | 52.8mm |
| Control protocol | RS-422 · VISCA · DVIP |
Blog and news
Date: 29. 11. 2023, Category: News
Datavideo: Durable PTZ camera cover
Brand Datavideo has prepared a new one for the upcoming hailstormspecial orchard housing for PTZ cameras, increasing the resistance of Datavideo…
ACCESSORIES (12)
ACCESSORIES (12)
Datavideo BB-1 KIT dvCloud Remote Device Control Kit
Promotion: -30%
The BB-1 allows you to access almost to any IP enabled device over the public internet.
387.81 €
550.55 €
To be sent 1 pcs
Datavideo RMC-2P 3-Channel Camera Controller with Plate
The Datavideo RMC-2P is a three-channel controller for Datavideo PTZ cameras. Over
321 €
In stock 1 pcs
Datavideo KMU-200 4K Multi-Channel Touch Screen ROI Switcher
All-In-One Video Switching, Streaming, Audio Mixing and Camera Control.4K Single
4 539 €
14-30 days
Libec LX ePed
LX-ePed / LX-ePed Studio is Libec’s electronical pedestal system specially designed
2 709 €
on request
Lilliput K1 PTZ Camera Controller with Joystick
The Lilliput K1 is a professional PTZ camera controller with a joystick and an aluminium
499 €
14-30 days
Datavideo RMC-300A Universal PTZ Camera Control Panel
The Datavideo RMC-300A is a universal control panel for multi-camera PTZ and block-camera
1 679 €
14-30 days
Datavideo IP68 PTZ Camera Housing (D2-BASE-EXT)
The Datavideo D2-BASE-EXT protective housing is compatible with PTC-140, PTC-145,
769 €
on request
Libec LX-ePed Studio
LX-ePed / LX-ePed Studio is Libec’s electronical pedestal system specially designed
2 839 €
on request
Datavideo iCAST Mini 4K Dual-Channel Presentation Switcher
Datavideo iCAST Mini is a compact 4K presentation switcher for corporate training,
2 199 €
14-30 days
Datavideo ShowCast 100 4K Streaming Studio
The ShowCast 100 is a brand new 4K 4-Channel Touch Panel Switcher that features 7
5 749 €
14-30 days

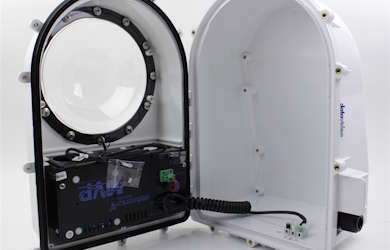

Datavideo IP68 PTZ Camera Housing with Heater Blower (D2-BASE-HEAT)
