Datavideo KMU-200 4K Multi-Channel Touch Screen ROI Switcher
SKU: 4000-1200
All-In-One Video Switching, Streaming, Audio Mixing and Camera Control.
4K Single Channel MultiSource Production Unit with; All-In-One Video Switching, Streaming, Audio Mixing and Camera Control (HDMI I/O).
4 539 € with VAT
3 751.24 € without VAT
Availability
14-30 days
Top accessories for Datavideo KMU-200 4K Multi-Channel Touch Screen ROI Switcher
HDMI cable 2.0b UHD 4K High Speed + Ethernet 5,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
17 €
In stock 1 pcs
Canare L-2T2S microphone cable 6.0 mm, XLR (M) / XLR (F) 3 m, BLK
XLR (M) / XLR (F) mikrofónový prepojovací kábel. Kábel vyrobený na mieru z kvalitného
21 €
In stock > 5 pcs
HDMI cable 2.0 UHD 4K High Speed + Ethernet 10m
Propojovací HDMI 2,0 kabel UHD 4K High Speed + Ethernet kabel s integrovaným zes
48 €
To be sent 2 pcs
Datavideo PTC-280W 4K PTZ Camera (White)
The Datavideo PTC-280W is a white professional PTZ camera designed for conference
2 149 €
14-30 days
Datavideo PTC-280 4K PTZ Camera, Dark Blue
The Datavideo PTC-280 is a dark-blue 4K PTZ camera for conference rooms, education,
2 149 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
All-In-One Video Switching, Streaming, Audio Mixing and Camera Control.
4K Single Channel MultiSource Production Unit with; All-In-One Video Switching, Streaming, Audio Mixing and Camera Control (HDMI I/O).
One 4K camera, up to four separate shots

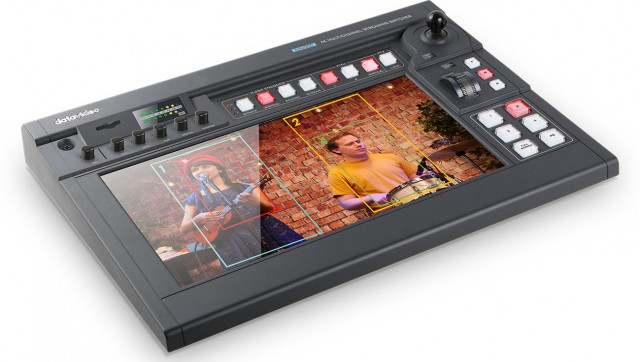

The Datavideo KMU-200 is a compact live production switcher that combines video switching, audio mixing, recording, and streaming. From a single 4K UHD HDMI 2.0 input, it creates up to four independently configurable HD video feeds. These can be used as virtual camera shots during interviews, small panel discussions, classes, or religious services, where they help capture multiple perspectives with a single 4K camera.
Touch Control for Virtual Cameras

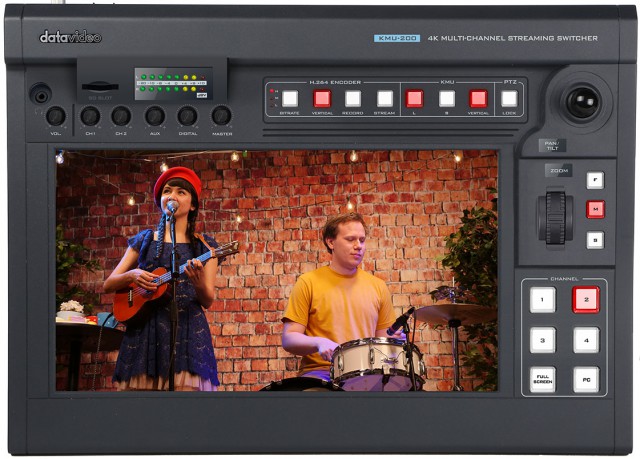

The 14-inch capacitive touchscreen allows you to pan and resize the video windows using gestures. A joystick, zoom control, and backlit buttons also provide precise control. Six direct selection buttons include four virtual camera angles, the full screen view, and an additional HDMI input, allowing the operator to quickly switch between preset views.
Landscape and Portrait Modes
The KMU-200 supports standard 16:9 widescreen production as well as the 9:16 vertical format for mobile content. You can change the orientation by rotating the screen and switch production modes directly on the unit. Full HD output is suitable for both live broadcasting and recording.
Simultaneous streaming and recording
The built-in H.264 encoder streams to supported services via the RJ-45 network interface and can simultaneously save recordings in MP4 format to an SD card. The device supports the RTMP/RTMPS, SRT, HLS, and RTSP streaming protocols. An additional HDMI 1.4 input with pass-through output allows you to connect another camera or a computer display; the HDMI pass-through makes it easy to preview the feed separately.
Four-Channel Audio Mixer
The built-in mixing console processes four audio channels and audio embedded in the HDMI signal. Two XLR microphone inputs, two RCA inputs, and two unbalanced RCA outputs are available for connection to a downstream audio system.
PACKAGE CONTENT
- 1× Datavideo KMU-200 main unit
- 1× 12 V DC switching power adapter with power cable
SPECIFICATIONS
- Type: 4K multi-channel touchscreen production console for creating regions of interest (ROI)

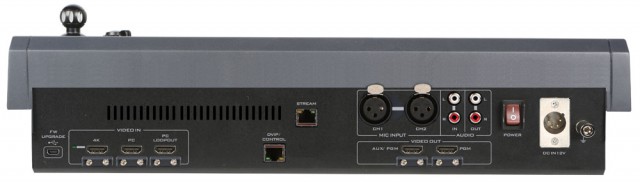

- Video inputs: 1× HDMI 2.0, 1× HDMI 1.4 with pass-through output
- Video outputs: 2× HDMI 1.4
- Input formats: UHD 3840 × 2160p at 23.98/24/25/29.97/30/50/59.94/60 Hz; HD 1080p at 50/59.94/60 Hz
- Output formats: 1080p or 720p at 50/59.94/60 Hz
- Color formats: 4:4:4, 4:2:2, 4:2:0
- Virtual shots: up to 4 cropped views from a single 4K input
- Production aspect ratio: 16:9 landscape, 9:16 portrait
- Stream encoding: H.264/AVC, Main and High profiles
- Streaming protocols: TS over TCP/UDP, RTSP over HTTP/TCP/UDP, RTMP/RTMPS, HLS, SRT
- Ethernet: 1× RJ-45, 10/100 Mbps
- Recording: MP4 to a Class 10 or higher SD card; NTFS, FAT, and exFAT file systems
- Audio inputs: 2× XLR for microphone, 2× RCA
- Audio outputs: 2× unbalanced RCA
- Audio mixer: built-in, 4 channels
- Display: 14″ capacitive touchscreen LCD
- Dimensions (L × W × H): 438 × 331 × 114 mm
- Weight: 4.3 kg
- Power supply: 12 V DC, 52 W
- Operating temperature: 0–40 °C
WE RECOMMEND
The Datavideo KMU-200 is a unique 4K production switcher that enables the creation of multiple HD cutaways from a single 4K source, which requires high-precision 4K cameras and reliable signal distribution. For professional production, it is essential to supplement the system with intercoms for crew communication, preview monitors, and converters for integrating various video formats.
Cameras and Accessories - High-quality 4K PTZ cameras are the ideal signal source for utilizing the cropping features of the KMU-200.
- Datavideo PTC-285NDI 4K Tracking NDI PTZ Camera (Dark Grey)
- Datavideo PTC-285NDIW 4K Tracking NDI PTZ Camera (White)
- Datavideo PTZ Camera Enclosure IP68 (D2-BASE-EXT)
Intercom and Communication - Ensuring reliable communication between the control room and camera operators is key to coordinating shots.
Signal Conversion and Distribution - Converters enable the connection of the control room’s HDMI interface to professional SDI lines over longer distances.
Monitoring and Streaming - External monitors and decoders for monitoring 4K output and distributing streamed content.
Reading devices - Teleprompters to assist presenters working in front of a camera connected to the control room.
Audio and Mounting - Accessories for audio synchronization and rack mounting.
