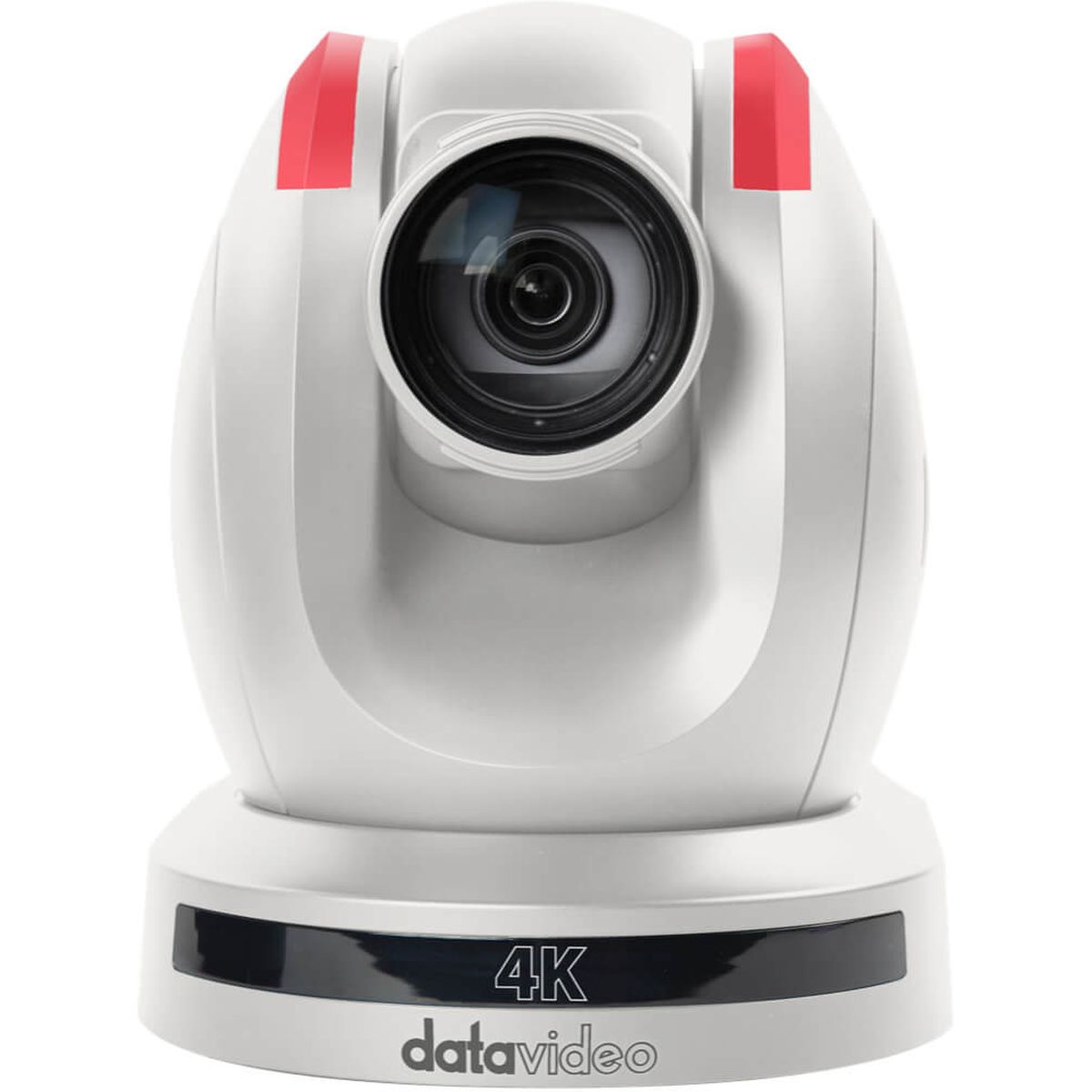

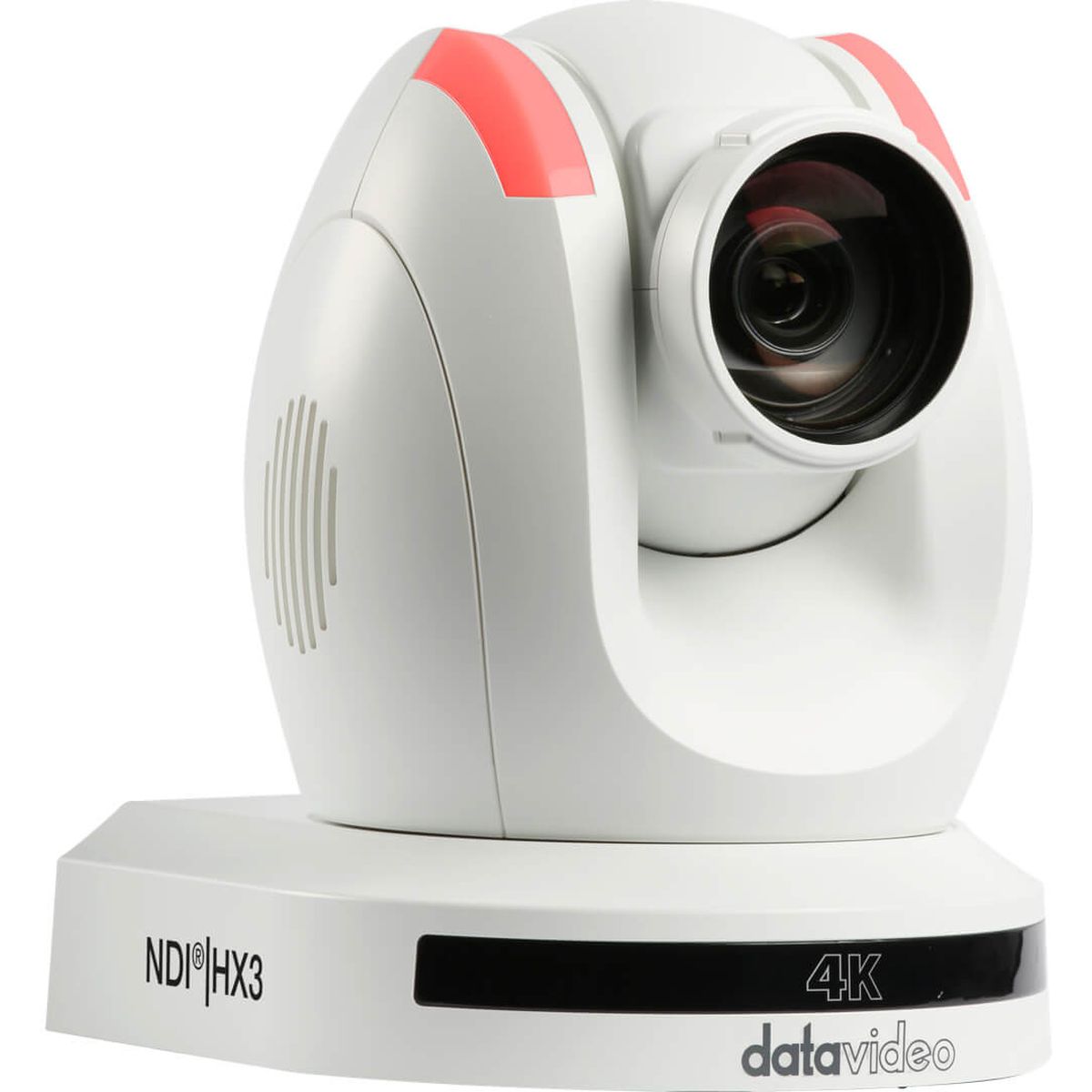

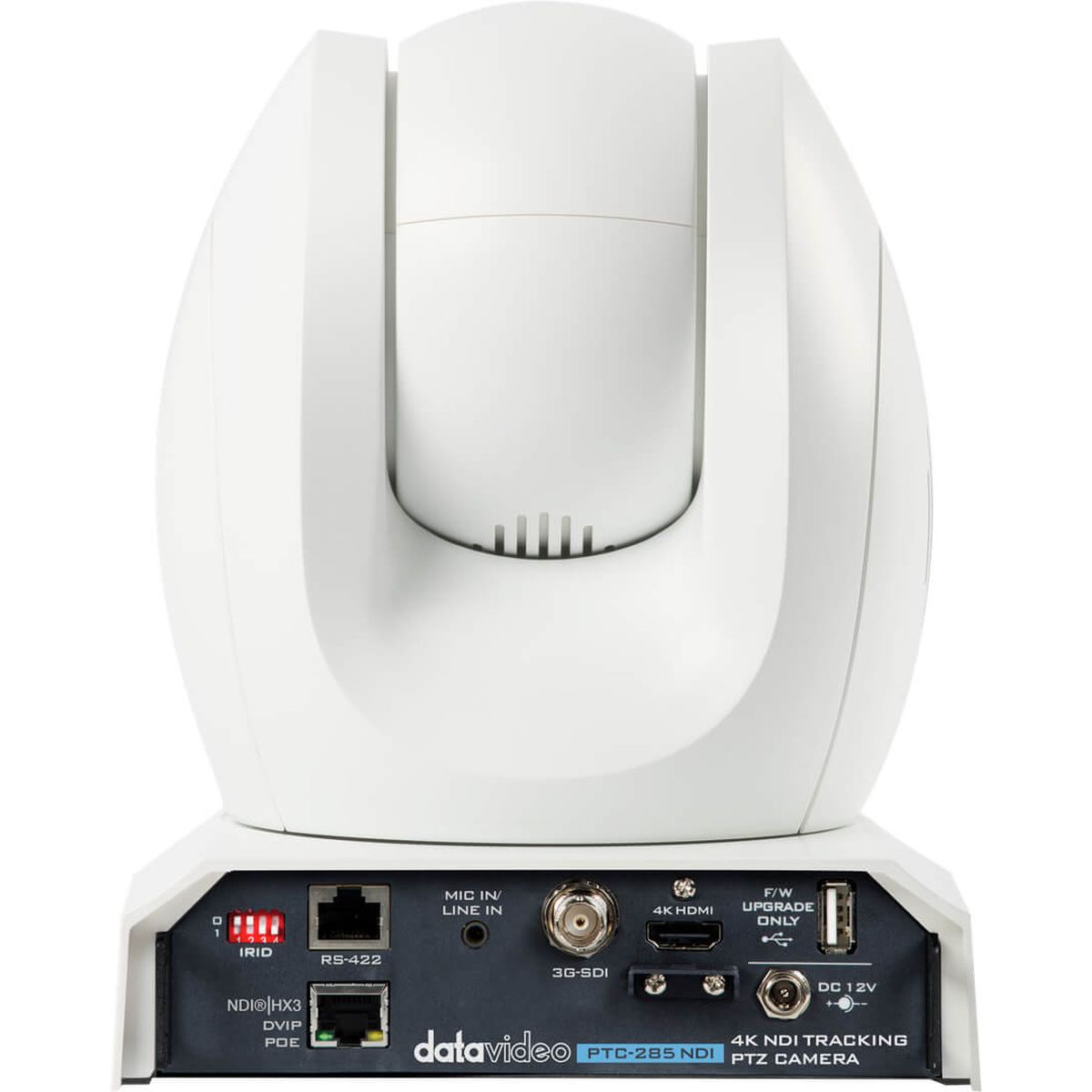

The Datavideo PTC-285NDI professional 4Kp50/60 installation camera offers automatic artist tracking, dual RTSP/RTMPS streaming (Facebook, YouTube, dvCloud...), NDI|HX3 and PoE technologies, a wide range of remote control options (RS-422 serial, IP, DVIP, Sony VISCA over IP) and simultaneous output of HDMI 2.0 and IP video up to 2160p50/60, as well as 1080p60/50 on 3G-SDI output. This allows the camera to be perfectly integrated into virtually any production chain.
The subject tracking function can be used via the included RMC-1 remote control, DVIP controllers (RMC-300A, RMC-180 MARK II, PTC View Assist) or overheads (KMU-200, ShowCast 100, ZR-1, etc.). The PTZ View Assist control app for iOS/Android supports up to four simultaneous DVIP cameras (PTC-140, PTC-280, PTC-285, PTC-300 and PTC-305 series) including preset creation, focus, white balance and aperture, as well as RTSP/SRT stream preview. Signal light, high quality H.264/H.265 video compression, and very good image rendering in lower light levels (incl. 3D noise reduction technology) are all standard features.
The Datavideo PTC-285NDIW is a state-of-the-art 4K PTZ camera with NDI|HX3 support and automatic tracking, which requires a robust infrastructure for signal distribution and remote control. Selected accessories include professional converters, monitoring solutions, and intercom systems that take full advantage of the camera’s extensive HDMI, SDI, and IP connectivity.
Converters and Signal Distribution - Devices for converting and extending the range of video signals from the camera’s HDMI and SDI outputs.
Monitoring and Decoding - Tools for viewing 4K resolution images and decoding IP streams for production purposes.
Communication and Audio - Intercom and audio processing systems essential for coordinated studio production.
Reading devices - Teleprompters compatible with PTZ cameras to facilitate the work of presenters in front of the camera.
Installation and Control - Production control units and protective mounts for permanent camera installation indoors and outdoors.
| Manufacturer: | Datavideo |
| Category: | PTZ |
| Camera Sensor size | 1/2,8" |
| Resolution | 4K |
| Type of bayonet | integrated lens |
| Output | HDMI |
| Output | NDI |
| Output | 3G SDI |
| Output | IP |
| Version | PTZ |
| FPS | 4K 60fps |
| FPS | 1080P 60fps |
| Min. focal length | 4.4mm |
| Max. focal length | 52.8mm |
| Other features | PTZ |
| Other features | Tally |
| Other features | PoE |
| Other features | NDI / NDI HX |
| Control protocol | NDI |
| Control protocol | Pelco-P |
| Control protocol | Pelco-D |
| Control protocol | VISCA |
| Control protocol | DVIP |
