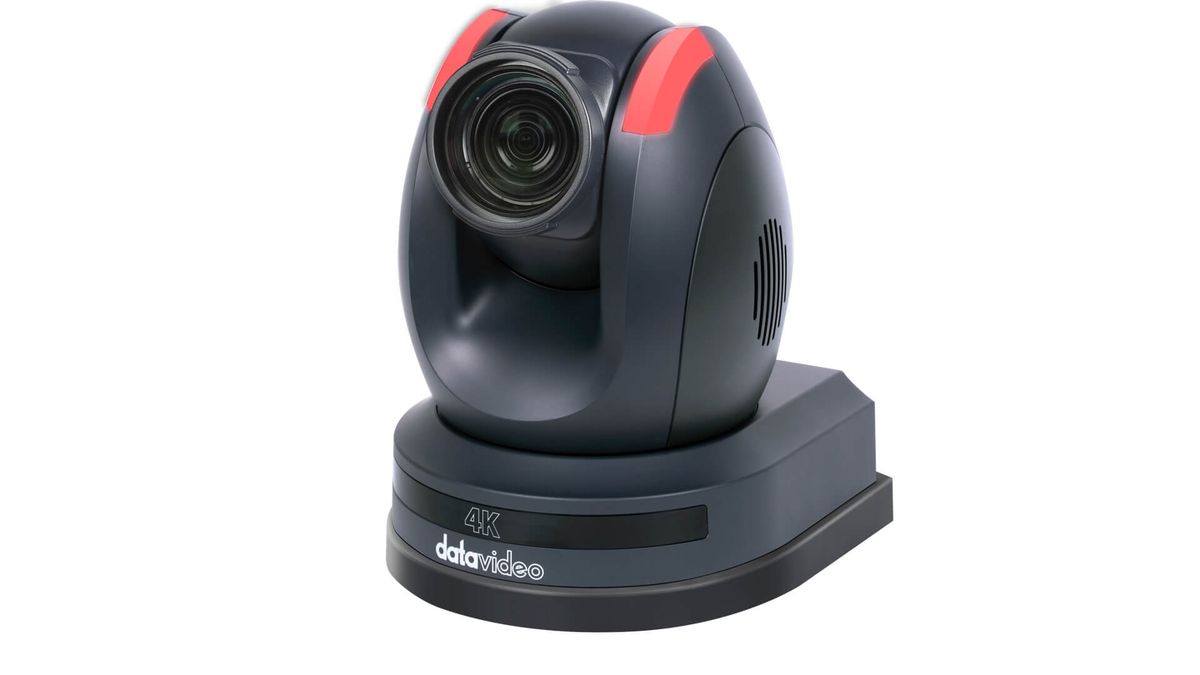

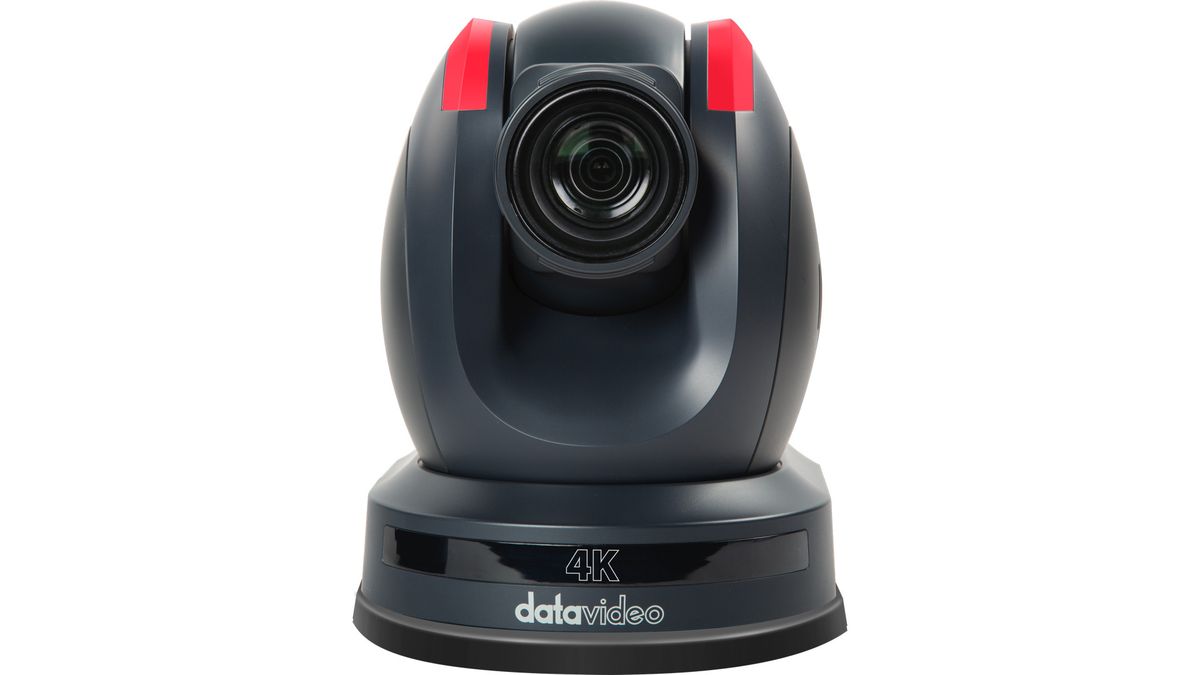

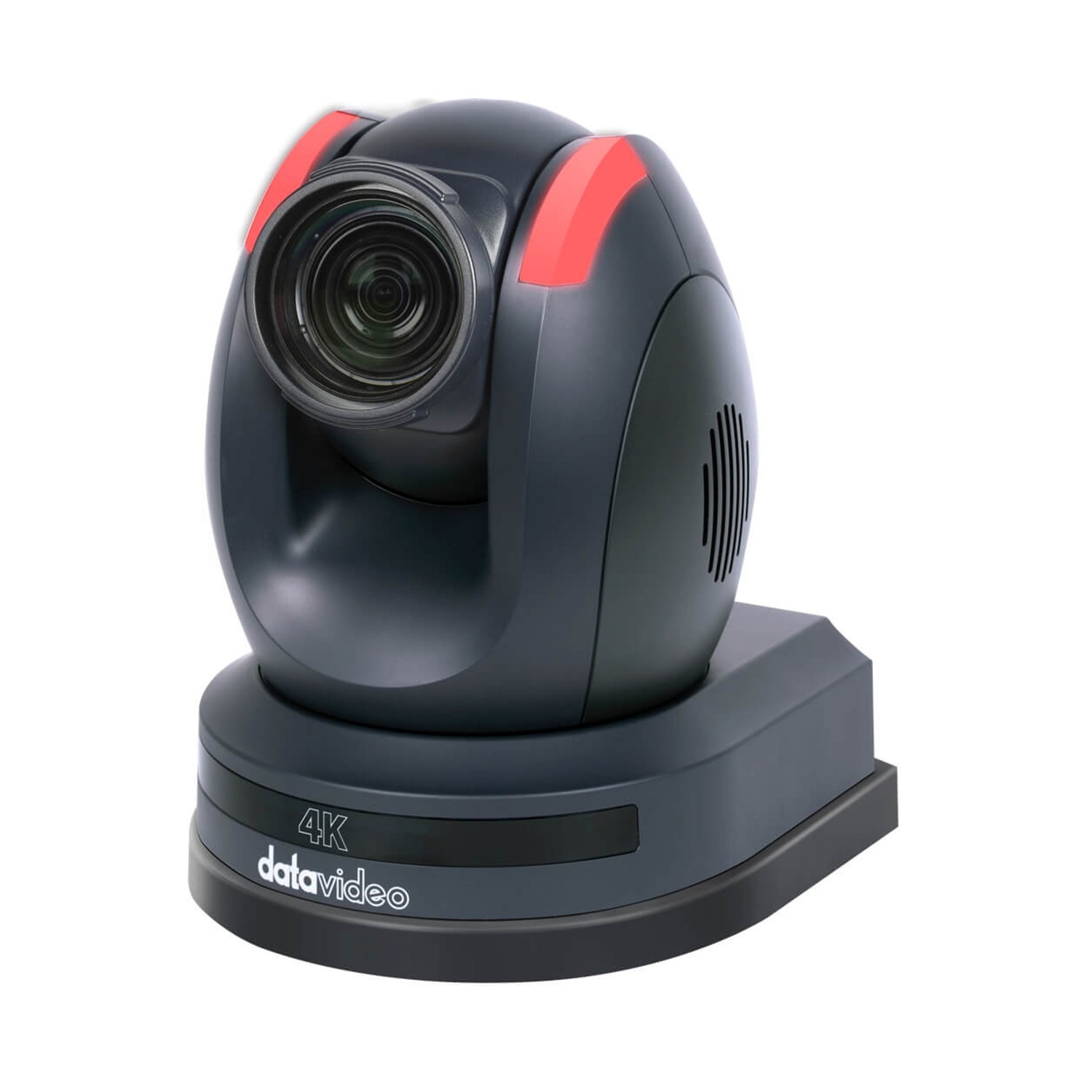

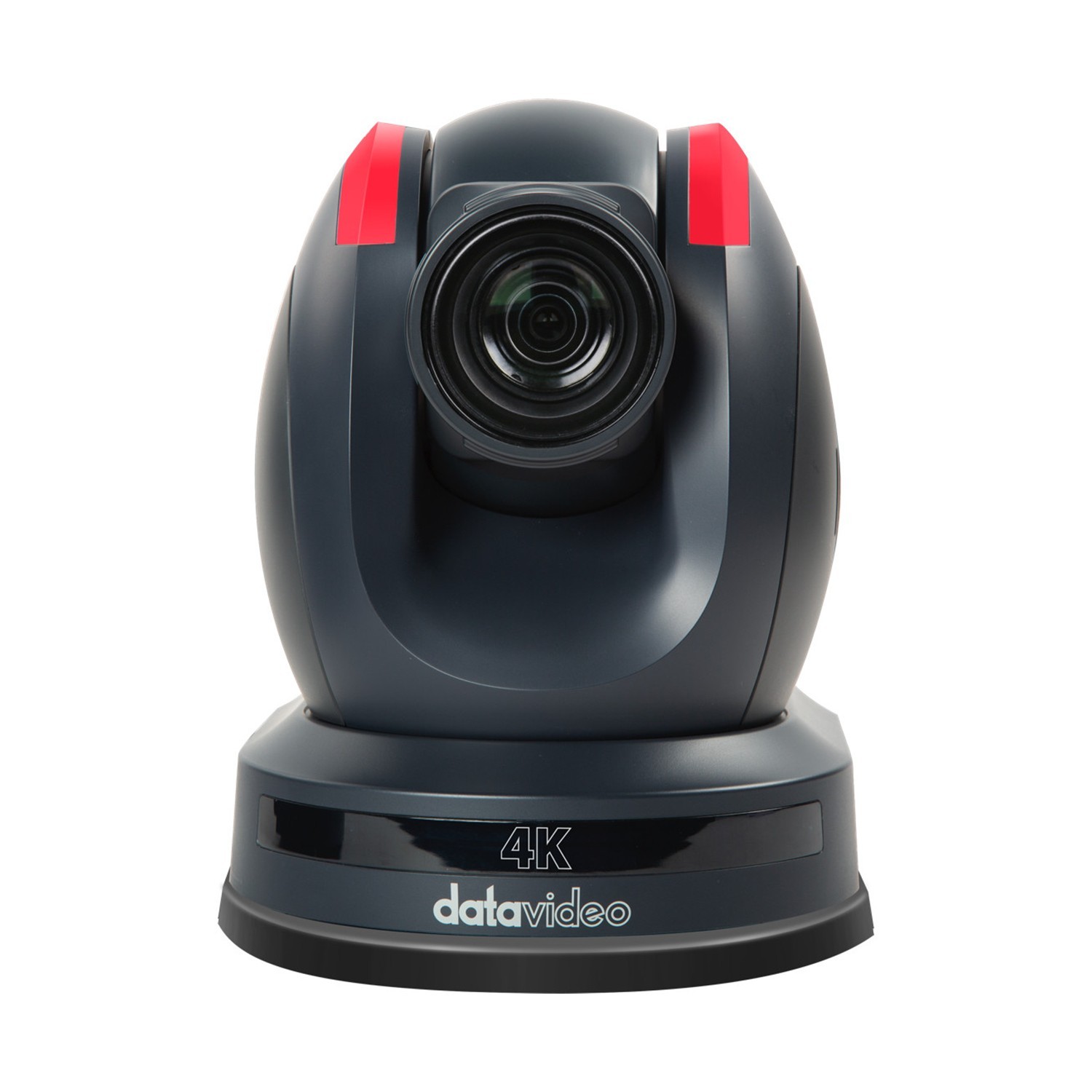

Datavideo PTC-285T 4K HDBaseT Auto-Tracking PTZ Camera (Dark Grey)
SKU: 7000-3087
The Datavideo PTC-285T is a 4K PTZ camera with automatic tracking for live production, lectures and conferences. Tracking can keep the subject framed without continuous manual camera operation. Its 1/2.8-inch Sony CMOS sensor and 12× optical zoom help capture both a presenter close-up and a wider view. The camera provides HDMI 2.0 and 3G-SDI video outputs,…
3 169 € with VAT
2 619.01 € without VAT
Availability
on request
Datavideo PTC-285 (White) 4K PTZ Camera
2 539 €without VAT 2 098.35 €
Datavideo PTC-285 4K PTZ Camera (Dark Grey)
2 539 €without VAT 2 098.35 €
Datavideo PTC-285TW (White)
3 169 €without VAT 2 619.01 €
Datavideo PTC-285NDI 4K Tracking NDI PTZ Camera (Dark Grey)
2 919 €without VAT 2 412.4 €
Datavideo PTC-285NDIW 4K Tracking NDI PTZ Camera (White)
2 919 €without VAT 2 412.4 €Top accessories for Datavideo PTC-285T 4K HDBaseT Auto-Tracking PTZ Camera (Dark Grey)
Datavideo RMC-180 MARK II PTZ Camera Controller
The Datavideo RMC-180 MARK II is a hardware controller for up to four compatible
1 289 €
In stock 1 pcs
Datavideo RMC-2P 3-Channel Camera Controller with Plate
The Datavideo RMC-2P is a three-channel controller for Datavideo PTZ cameras. Over
321 €
In stock 1 pcs
Datavideo RMC-300A Universal PTZ Camera Control Panel
The Datavideo RMC-300A is a universal control panel for multi-camera PTZ and block-camera
1 679 €
14-30 days
Datavideo iCAST Mini 4K Dual-Channel Presentation Switcher
Datavideo iCAST Mini is a compact 4K presentation switcher for corporate training,
2 199 €
14-30 days
Datavideo IP68 PTZ Camera Housing with Heater Blower (D2-BASE-HEAT)
The Datavideo D2-BASE-HEAT is an IP68 protective housing with a heater blower for
1 279 €
on request
Datavideo VP-929 4K HDMI Repeater
Datavideo VP-929 is a 4K HDMI repeater for extending cable runs in fixed installations.
108 €
14-30 days
Lilliput K1 PTZ Camera Controller with Joystick
The Lilliput K1 is a professional PTZ camera controller with a joystick and an aluminium
499 €
14-30 days
Datavideo IP68 PTZ Camera Housing (D2-BASE-EXT)
The Datavideo D2-BASE-EXT protective housing is compatible with PTC-140, PTC-145,
769 €
on request
Product description
ARTICLES
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Datavideo PTC-285T is a 4K PTZ camera with automatic tracking for live production, lectures and conferences. Tracking can keep the subject framed without continuous manual camera operation. Its 1/2.8-inch Sony CMOS sensor and 12× optical zoom help capture both a presenter close-up and a wider view. The camera provides HDMI 2.0 and 3G-SDI video outputs, IP streaming and dual-stream output. HDBaseT carries video, control, power and tally over a single shielded Cat 6A cable, simplifying installation when the camera is placed away from the control position. The PTC-285T integrates with existing production systems and supports remote control via RS-422, DVIP or Sony VISCA over IP.
Datavideo PTC-285T: 4K PTZ camera
The camera can track a selected person and automatically adjust pan, tilt and zoom. It suits lectures, conferences and live productions where the presenter needs to stay in frame without continuous manual camera operation.
- 4K 50/60p
- 12× optical zoom
- HDBaseT
HDBaseT: video and control over one cable

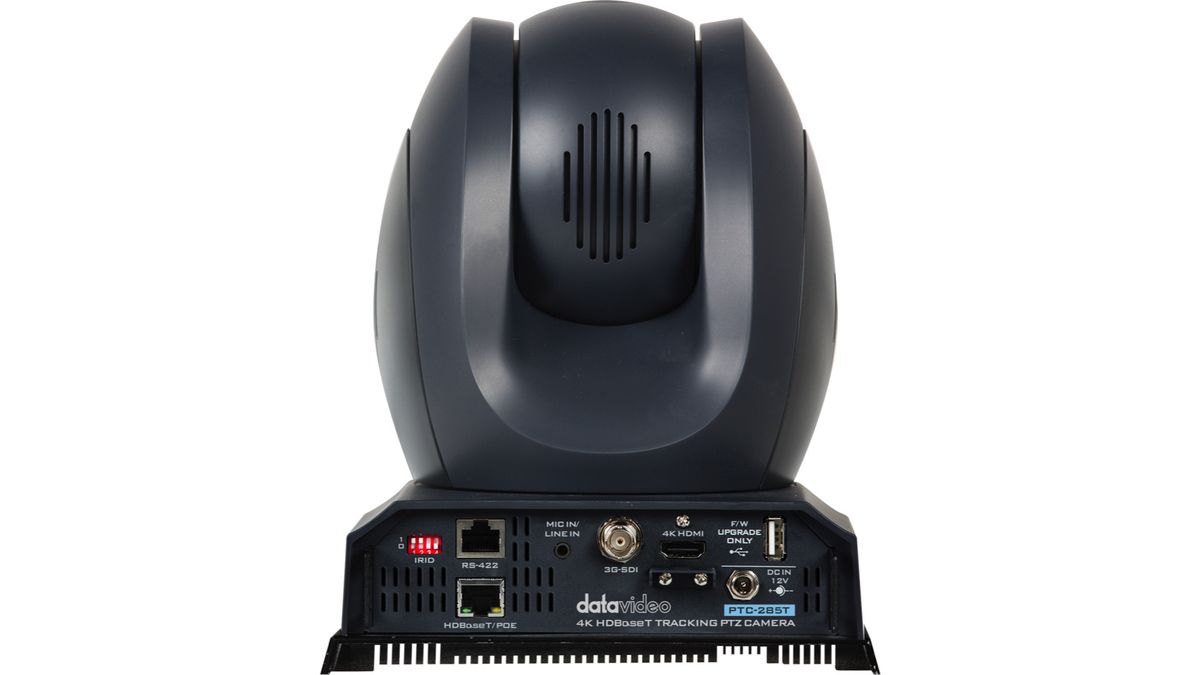

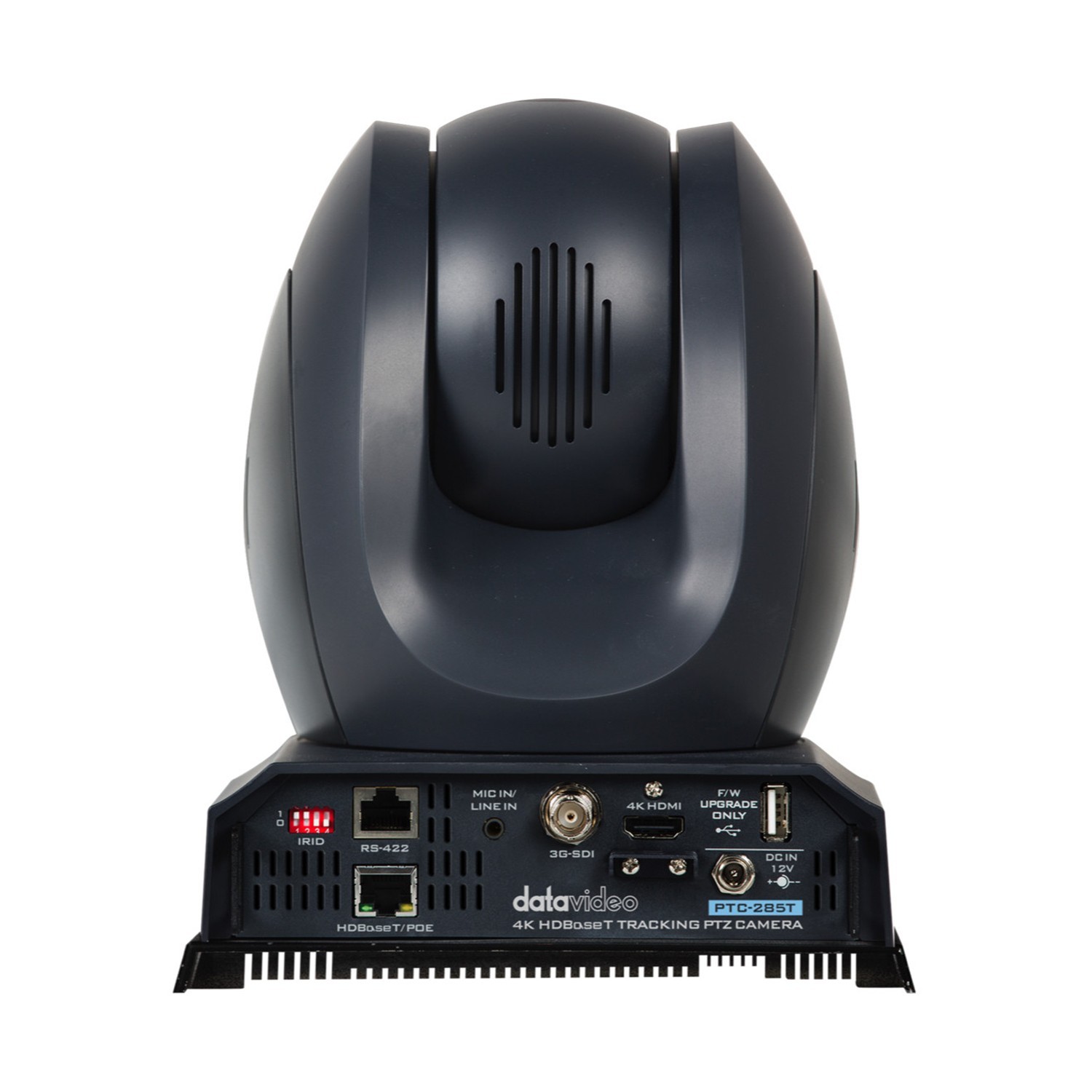

HDBaseT carries video, control, power and tally over a single cable. The rear panel also provides HDMI 2.0, 3G-SDI and RS-422 connections for integration into a production system.
PACKAGE CONTENT
- Datavideo PTC-285T PTZ camera ×1
- RMC-1AT infrared remote controller ×1
- Ceiling mount bracket, type B ×1
- M3 × 4 mm ceiling mount bracket screw ×6
- DC 12 V power adapter ×1
- Safety cable ×1
SPECIFICATIONS
- Type: 4K auto-tracking PTZ camera with HDBaseT
- Image sensor: 1/2.8-inch CMOS
- Effective pixels: 8.51 megapixels
- Zoom: 12× optical, 16× digital
- Focal length: 4.4–52.8 mm; F1.8–F2.6
- Horizontal field of view (wide): 80°
- Pan and tilt range: Pan 300°; tilt +90° to −15°
- Video outputs: HDMI 2.0 ×1; 3G-SDI ×1; HDBaseT (PoE) ×1
- Video formats: HDMI/HDBaseT up to 2160p60; SDI up to 1080p60
- Streaming protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT
- Control protocols: Pelco-D/P, VISCA, VISCA over IP, DVIP, ONVIF
- Audio input: 3.5 mm mic/line input ×1
- PoE: IEEE 802.3at
- Dimensions (W × H × D): 184 × 228.5 × 194 mm
- Weight: 2.7 kg
- Operating temperature: 0 to 40 °C
- Power: DC 12 V, 22 W
ARTICLES
WE RECOMMEND
The Datavideo PTC-285T is a state-of-the-art 4K PTZ camera with HDBaseT support and automatic tracking, designed for demanding studio and live streaming applications. To fully utilize it in a professional environment, it is essential to pair it with compatible components for signal distribution, monitoring, and integration into Datavideo production systems.
Protection and Outdoor Installation - Accessories for the secure installation of PTZ cameras in harsh environments.
Monitoring and Signal Decoding - Devices for previewing and processing the IP stream or 4K HDMI output from the camera.
Reading devices - Teleprompters compatible with PTZ cameras for the speaker to look directly into the lens.
Video conversion and distribution - Converters for integrating the camera's HDMI output into SDI infrastructure and USB interfaces.
Audio and Communication - Components for audio synchronization and communication within the production team.
Production Control and Installation - Systems for processing multiple camera inputs and rack-mounting accessories.
Parameters
| Manufacturer: | Datavideo |
| Category: | PTZ |
Main parameters
| Resolution | 4K UltraHD (3840 x 2160) @ 50/60 fps |
| Sensor size | 1/2.8 palce |
| Maximum video resolution | 4K |
| Optical zoom | 12× |
| Video outputs | HDMI · SDI · Ethernet / IP |
| Network protocols | SRT · RTMP / RTMPS · RTSP / RTP · ONVIF |
Other parameters
| Digital zoom | 16× |
