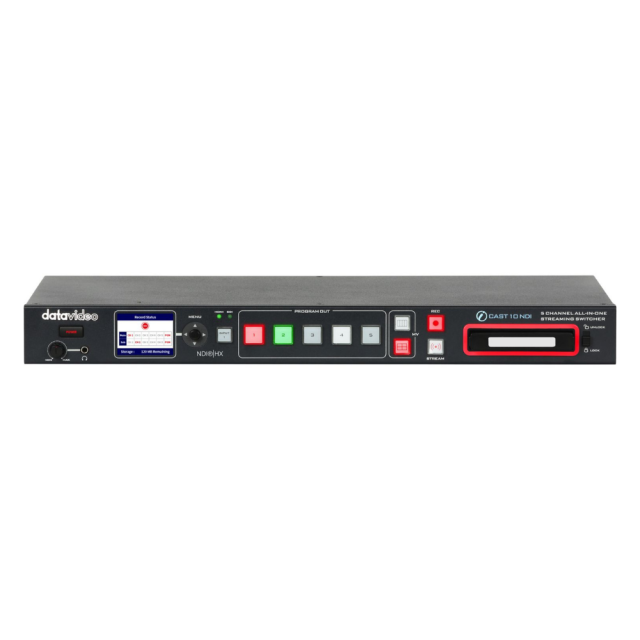

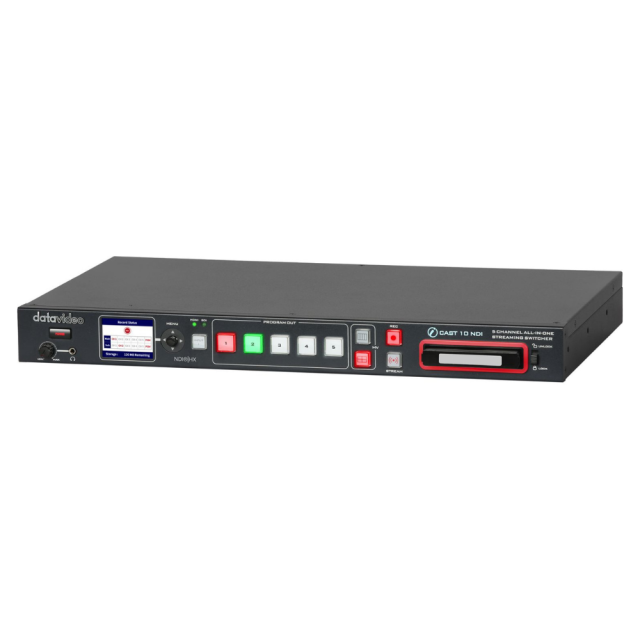

Datavideo iCAST 10NDI 5-Channel All-in-One Streaming Switcher
SKU: 2200-4010
iCAST 10NDI is a new and innovative live production equipment that houses a switcher, camera controller and streaming encoder in one box. A variety of inputs can be connected to iCAST 10NDI to allow you to create an eye catching presentation with different video sources, such as PTZ and document cameras, and a laptop for your presentation slides. Using the…
3 439 € with VAT
2 842.15 € without VAT
Availability
new product, yet unavailable
Top accessories for Datavideo iCAST 10NDI 5-Channel All-in-One Streaming Switcher
HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs
Datavideo PTC-280NDIW 4K NDI PTZ Camera, White
The Datavideo PTC-280NDIW is a white 4K PTZ camera with NDI|HX for conference rooms,
2 539 €
14-30 days
Datavideo TPC-700P Touch Panel Controller with PoE
The Datavideo TPC-700P is a 7-inch touch-panel controller with PoE for direct operation
1 279 €
14-30 days
Datavideo PTC-280NDI 4K PTZ Camera (Dark Blue)
The Datavideo PTC-280NDI is a dark-blue professional PTZ camera with resolution up
2 539 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
iCAST 10NDI is a new and innovative live production equipment that houses a switcher, camera controller and streaming encoder in one box. A variety of inputs can be connected to iCAST 10NDI to allow you to create an eye catching presentation with different video sources, such as PTZ and document cameras, and a laptop for your presentation slides. Using the built-in streaming encoder and recorder. You can easily live stream to multiple platforms and record your show to an SD card. Six video channels can be ISO recorded at the same time in order to provide you with more program materials for post production.
Switching, streaming and recording in one system
Datavideo iCAST 10NDI combines live video switching, camera control, audio mixing, a streaming encoder and a recorder. Build a classroom, conference or hybrid event from camera, computer and network sources.
- Five video inputs: one selectable SDI/HDMI, three HDMI and one USB 3.0; plus up to three NDI sources over IP
- Seamless switching and multiview: monitor sources and program output in horizontal or vertical layouts
- Live streaming: the built-in encoder supports RTMP/RTMPS, SRT and NDI | HX; RTSP and HLS are also available
- Six-channel ISO recording: record five inputs and the main program output separately for post-production
- Audio mixing: combine embedded audio with two balanced XLR inputs and stereo RCA input; monitor through headphones
- Titles and control: add logos, titles, text and graphics; control the unit through Web UI, DVIP or RS-232
PACKAGE CONTENT
- 1× Datavideo iCAST 10NDI main unit
- 1× DC 12 V power adapter
- 2× 1U rack-mount ears
- 6× M4 screws for rack ears
- 1× removable 2.5-inch HDD/SSD enclosure
- 4× screws for the HDD/SSD enclosure
- 1× blank label
- 1× SATA-to-USB 3.0 cable
SPECIFICATIONS
- Type: Five-channel live production switcher, streamer and recorder

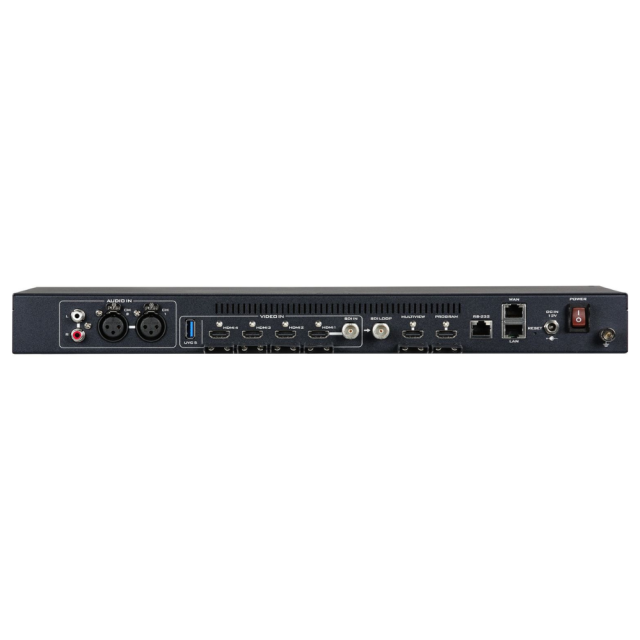

- Video inputs: 1× 3G/HD/SD-SDI; 4× HDMI 1.4, with input 1 selectable between SDI and HDMI; 1× USB 3.0
- IP inputs: Up to 3 RTSP, SRT or NDI | HX streams
- Video outputs: SDI loop-through; HDMI program output; HDMI multiview
- ISO recording: 6 channels: 5 inputs and main program output; H.264, MP4
- Audio: 2× balanced XLR, stereo RCA input, 3.5 mm headphone output
- Control: Web UI, DVIP, RS-232 and front-panel LCD
- Chassis and dimensions: 1U rack-mount; 440 × 284 × 44 mm
- Weight: 2.9 kg
- Power: DC 12 V, 24 W
- Operating temperature: 0 to 40 °C
WE RECOMMEND
The Datavideo iCast 10NDI is a powerful hybrid production switcher that combines the functions of a switcher, recorder, and streaming encoder with support for NDI and SDI/HDMI interfaces. For full use in a professional studio, it is recommended to supplement it with intercoms for communication with camera operators, preview monitors, and conversion kits for signal distribution.
Intercom and Communication - Provides the necessary connection between the control room and camera operators during live broadcasts.
Signal converters and distribution - Enable flexible conversion between SDI and HDMI formats and extend cable reach.
Audio Accessories - Tools for advanced audio processing, mixing, and synchronization with video.
Monitoring and IP decoding - Devices for visual output monitoring and decoding of IP streams on a local network.
Reading devices and accessories - Professional teleprompters and their accessories for presenters in hybrid studios.
Installation and Protection - Accessories for rack mounting and outdoor camera protection.
