Datavideo TPC-700P Touch Panel Controller with PoE

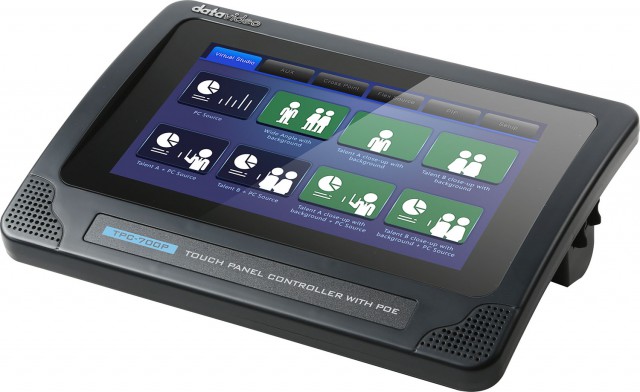

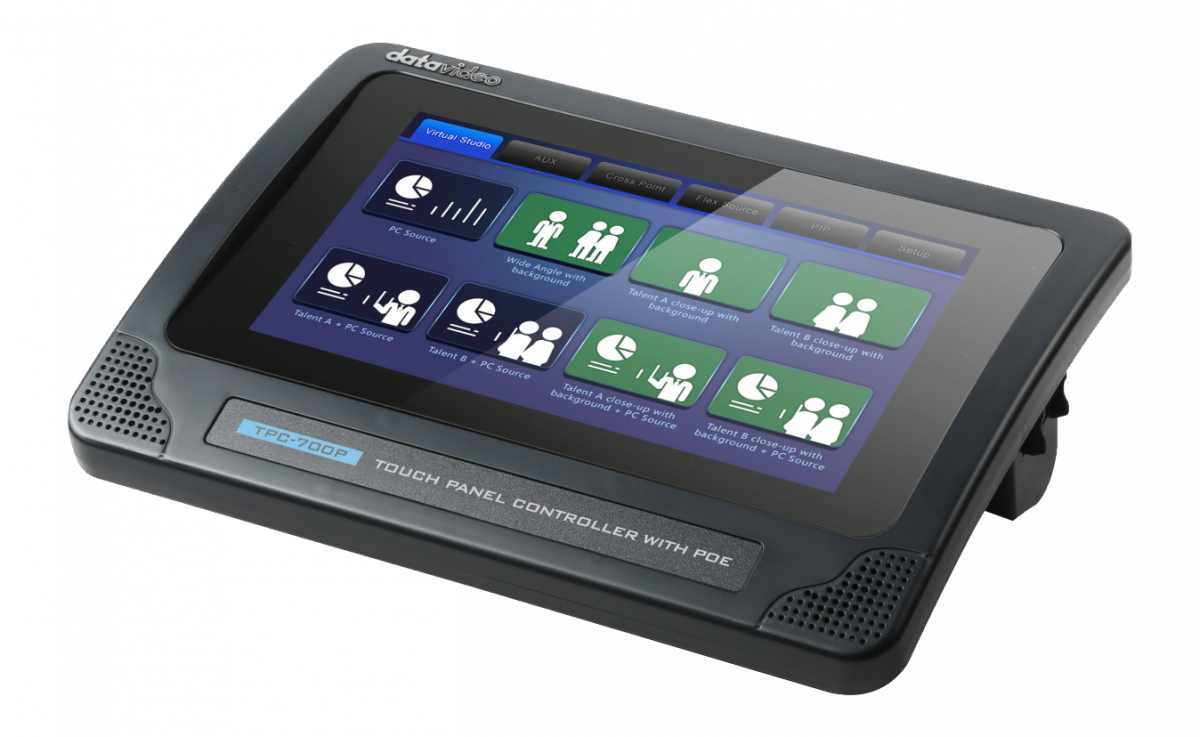

The Datavideo TPC-700P is a 7-inch touch-panel controller with PoE for direct operation of selected Datavideo equipment. Its installed applications provide ready-to-use control presets for the 3200 series switchers, VGB-2000 and TVS-2000A, while the buttons can be customized to suit the production workflow. With the DVK-400 chromakey processor, the panel can control Lumakey, Blur Background and Aux Layer Swap functions. PoE carries power and data over a single cable; alternatively, the panel can use a separate 12 V DC supply. The compact unit measures 220 × 152 × 79 mm and weighs 0.85 kg.

Touch control

The TPC-700P directly controls supported Datavideo equipment from its touchscreen. The SE-3200, VGB-2000 and TVS-2000A apps include ready-to-use presets, and the buttons can be tailored to each production.

Presets and customizable buttons

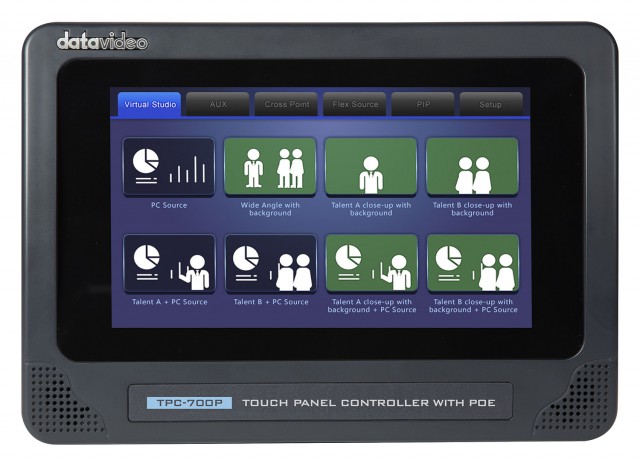

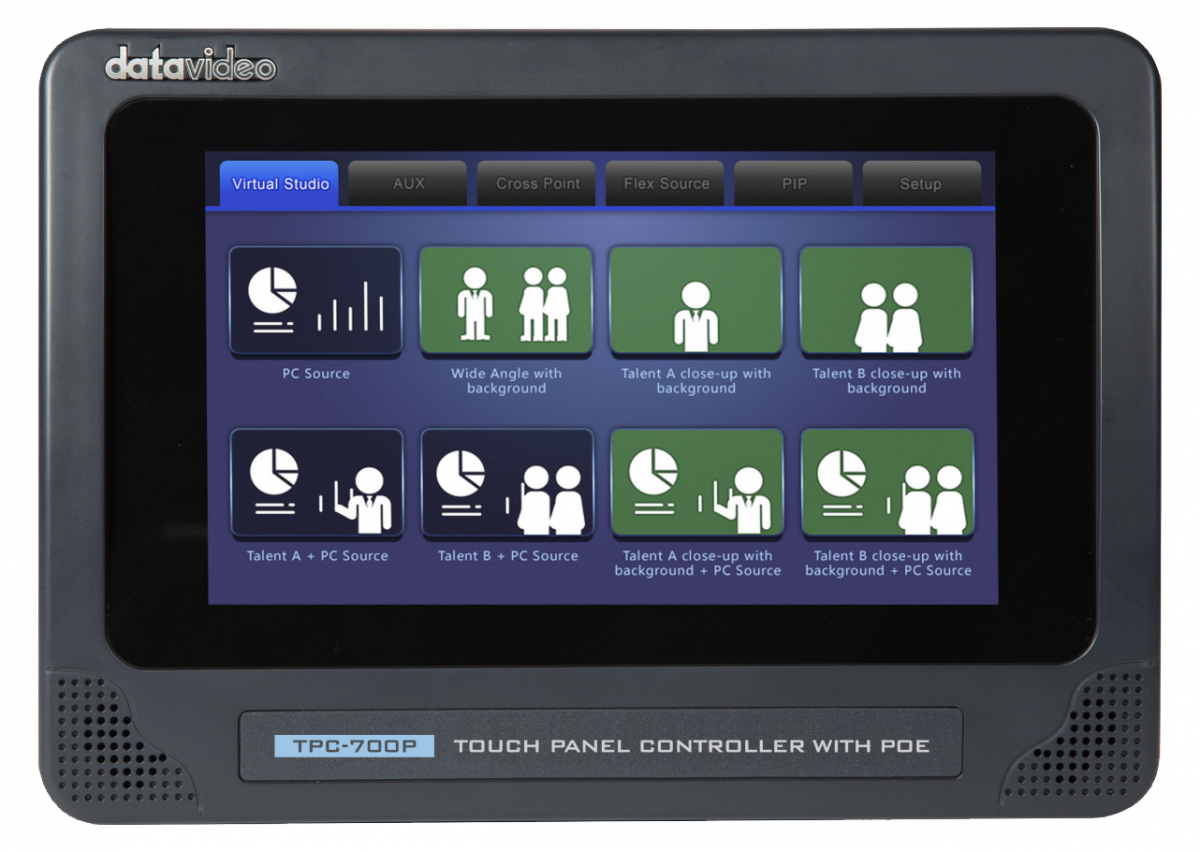

The touch interface recalls saved functions and scenes with a few taps. The TVS-2000A application supports up to four virtual studios, which can be selected directly from the panel. Custom button assignments help adapt operation to the studio and production workflow.

Simple PoE cabling

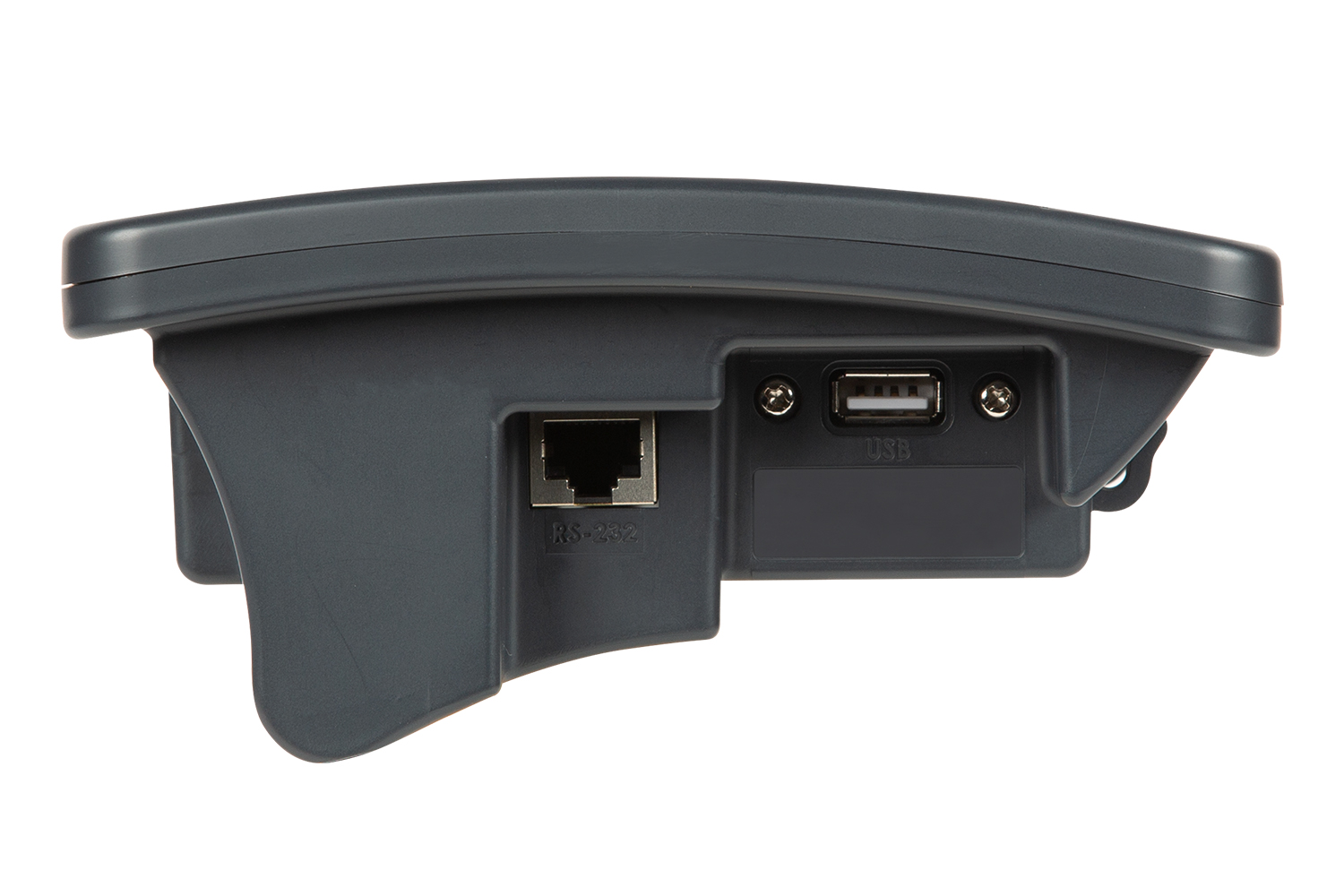

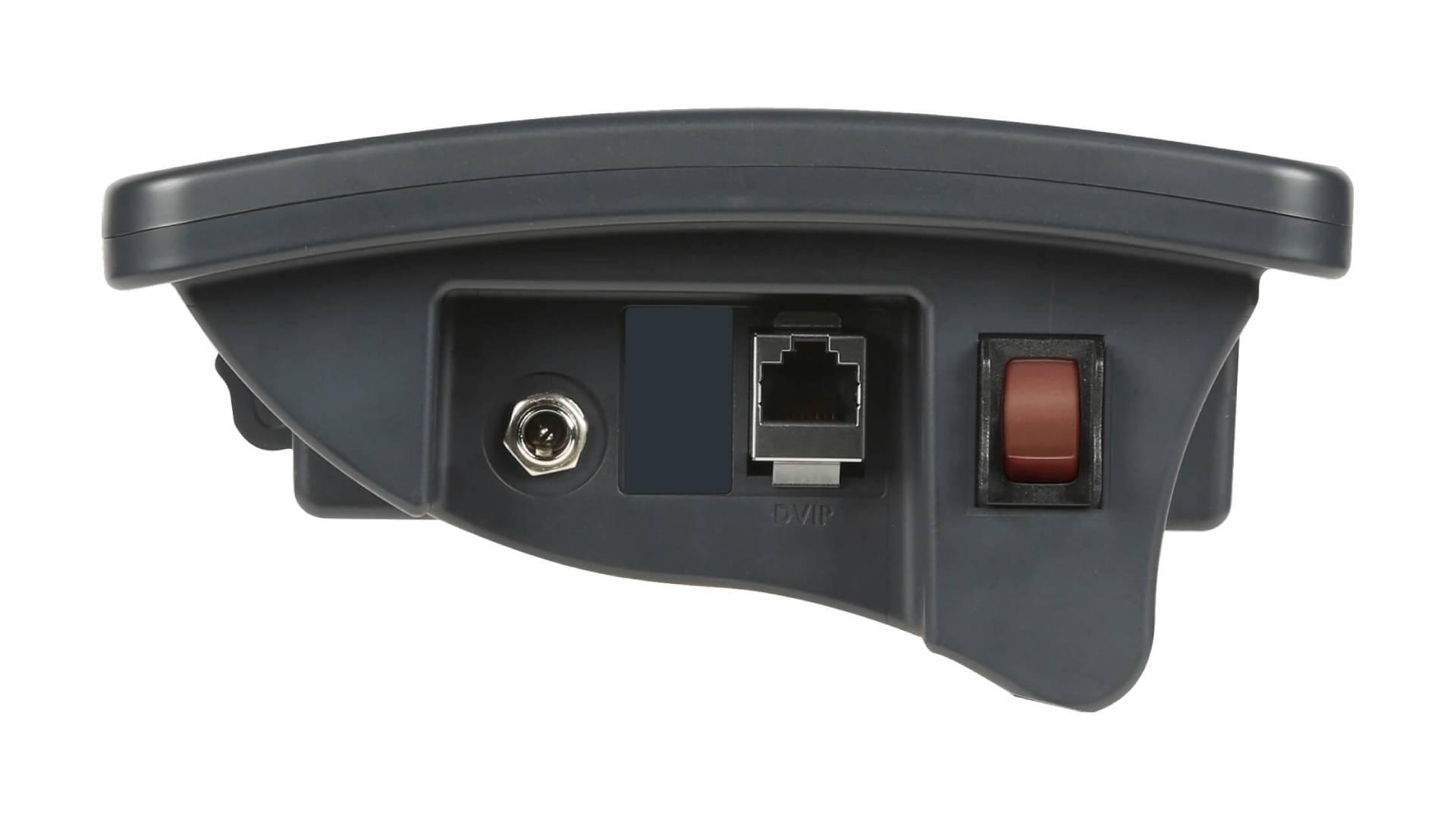

IEEE 802.3af PoE carries power and data to the panel over one Ethernet cable. Where PoE is unavailable, use the 12 V DC input. The rear panel also provides an RS-232 control interface on an RJ-45 connector and a USB 2.0 port for firmware upgrades.

Control DVK-400 keying functions

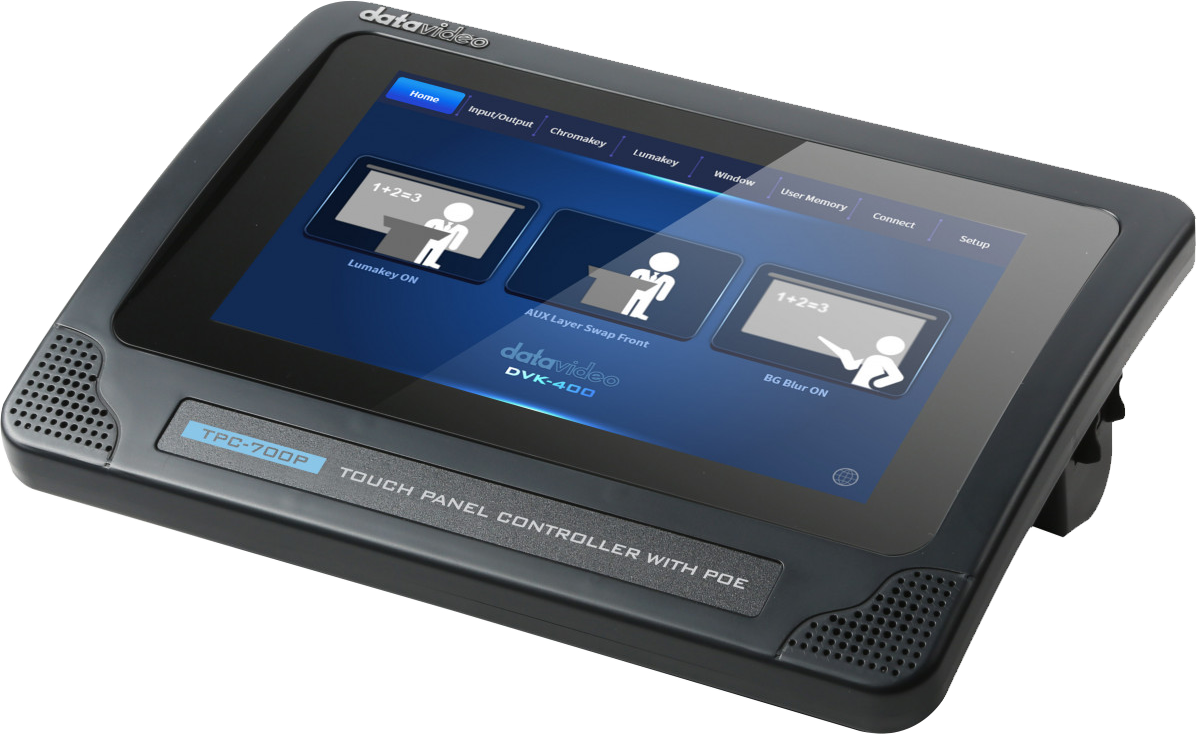

When used with the Datavideo DVK-400 processor, the panel can control Lumakey, Blur Background and Aux Layer Swap. The TPC-700P puts these production and presentation functions directly on its touchscreen.
