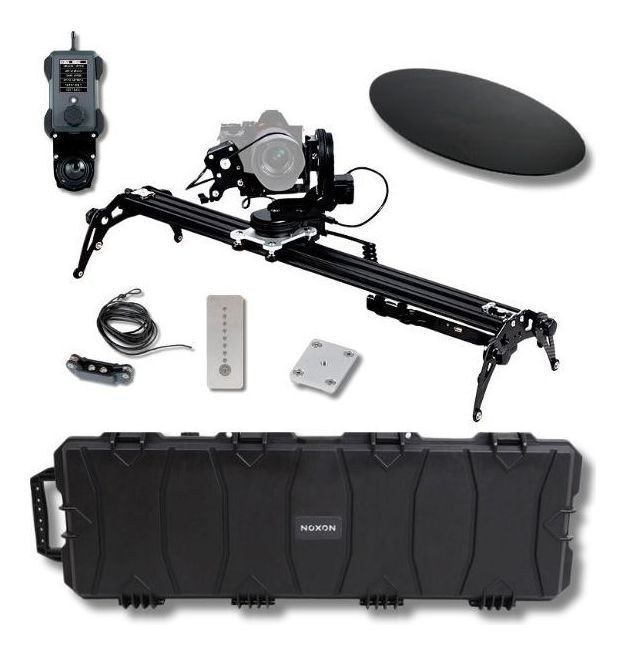

Noxon Mod Slider – Ultimate Kit
SKU: MS-007
The Noxon Mod Slider – Ultimate Kit is the most complete motorized slider kit: panning, tilting and follow focus modules, the Joystick Extension Dock, rotary table, counterweight accessory, tripod anchor, adjustment plate and a flightcase with shaped foam. The slider travels at 1.6–133 mm/s, carries 5 kg horizontally and is run by the wireless controller.…
2 129 € with VAT
1 759.5 € without VAT
Availability
on request
Top accessories for Noxon Mod Slider – Ultimate Kit
Noxon Battery
The Noxon Battery is a spare or auxiliary 12 V battery for the Mod Slider motorised
46 €
In stock 1 pcs
Noxon Mod Slider Rail 150 cm
The Noxon Mod Slider Rail 150 cm replaces the standard 80 cm rail and extends the
177 €
In stock 1 pcs
Noxon DMC Control for Dragonframe
Noxon DMC Control for Dragonframe links the Mod Slider to Dragonframe software via
248 €
on request
Noxon Dragonframe Plugin
The Noxon Dragonframe Plugin enables Dragonframe software for Noxon products with
90 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Noxon Mod Slider – Ultimate Kit is the most complete motorized slider kit: panning, tilting and follow focus modules, the Joystick Extension Dock, rotary table, counterweight accessory, tripod anchor, adjustment plate and a flightcase with shaped foam. The slider travels at 1.6–133 mm/s, carries 5 kg horizontally and is run by the wireless controller.
Everything for the perfect shot in one case
The Ultimate Kit combines multi-axis camera movement with accessories for advertising and studio work. The Joystick Extension Dock gives fine manual control of the head, the rotary table spins the product and the counterweight lifts the vertical payload above 3 kg.
1.6–133 mm/s5 kg horizontal4 key pointsDragonframeV-Mount
Sub-millimetre accuracy, silent running

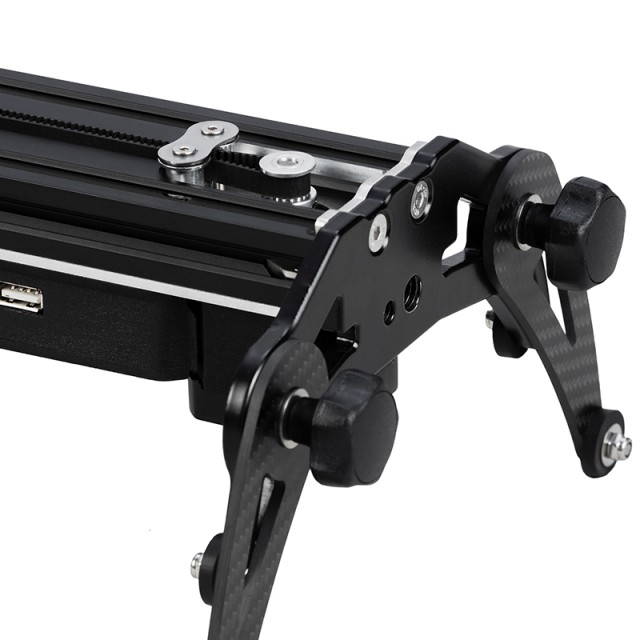

Stepper motors and the control electronics hold position to within a fraction of a millimetre, so every stop-motion frame follows exactly on the previous one. Smooth acceleration and braking plus quiet operation let you use the slider even during interviews.
80 or 150 cm
Swap the rail for a longer one in a few minutes without tools.
4 axes of movement
Travelling, panning, tilting and follow focus on a single cable to the control unit.
5 kg / 3 kg
Payload horizontally and hanging under the rail, 3 kg vertically, more with a counterweight.
12 V or V-Mount
Power from the supplied power supply, or from your own V-Mount battery on location.

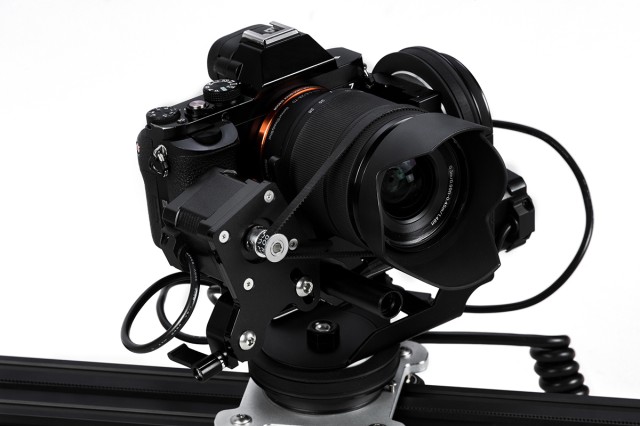

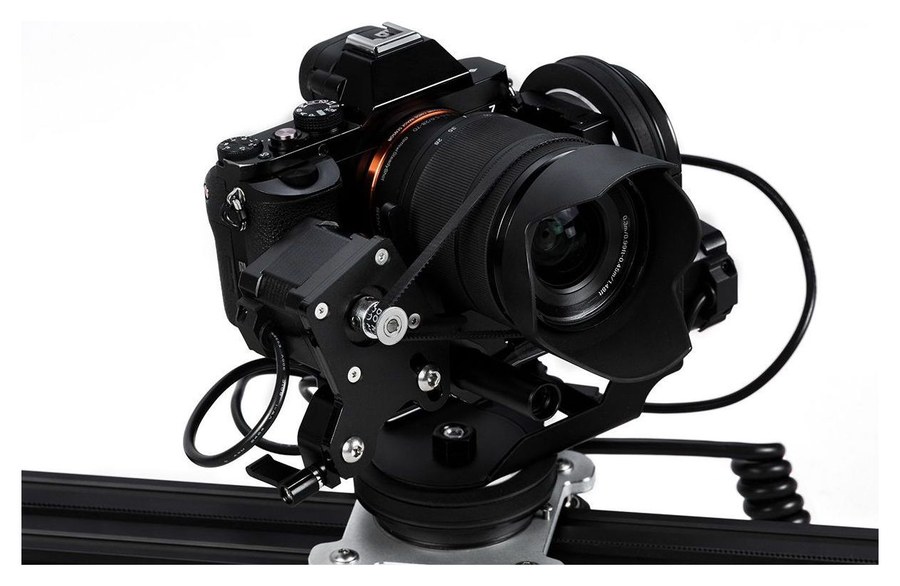

Follow focus in motion
The follow focus module programs focus together with travelling and rotation. It needs 15 mm rods and a camera baseplate.

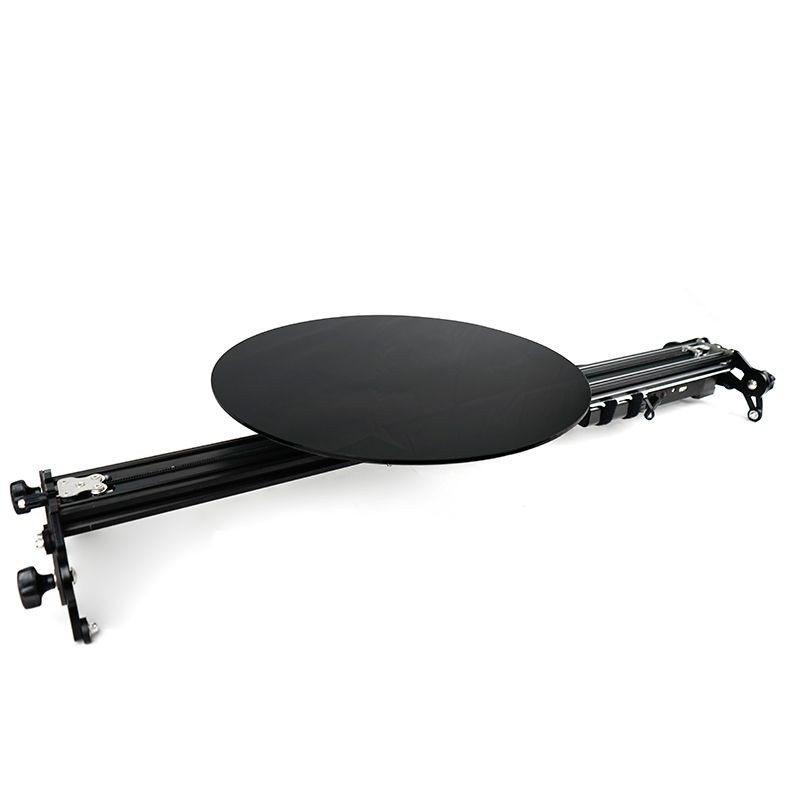

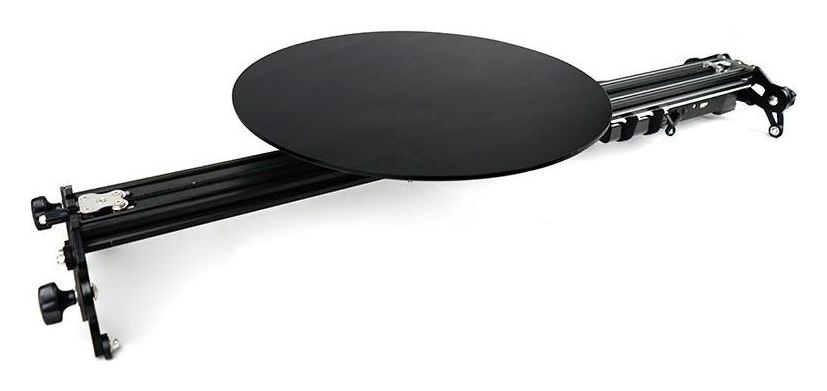

Rotary table
On the panning module it turns the product for advertising shots, 360° photography, photogrammetry and 3D scanning.

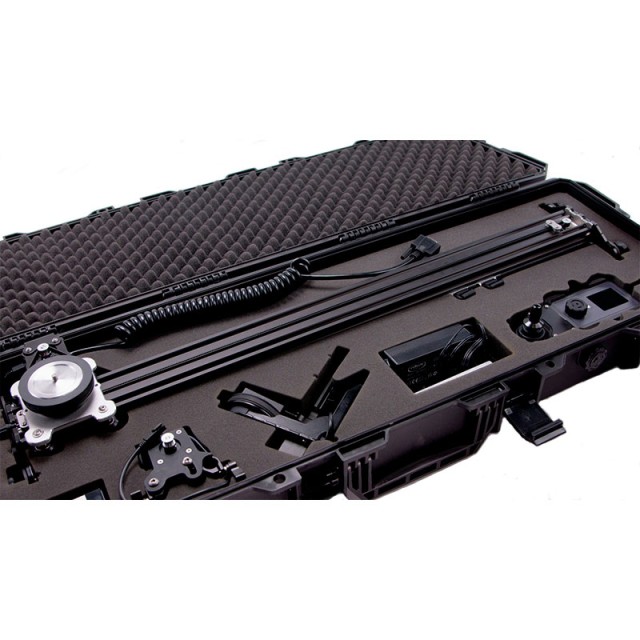

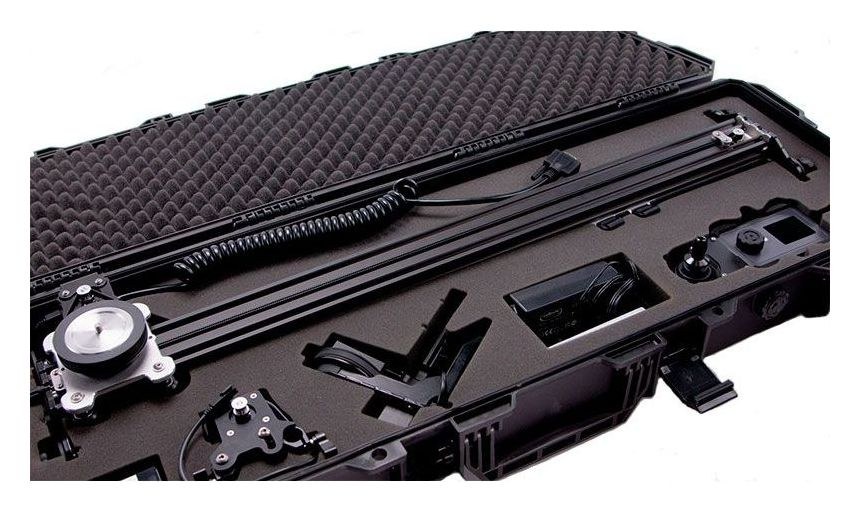

Flightcase with foam
Shaped foam holds the slider and the modules each in its own place, so the set travels safely.

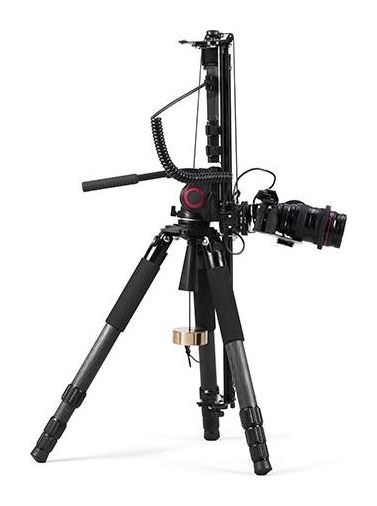

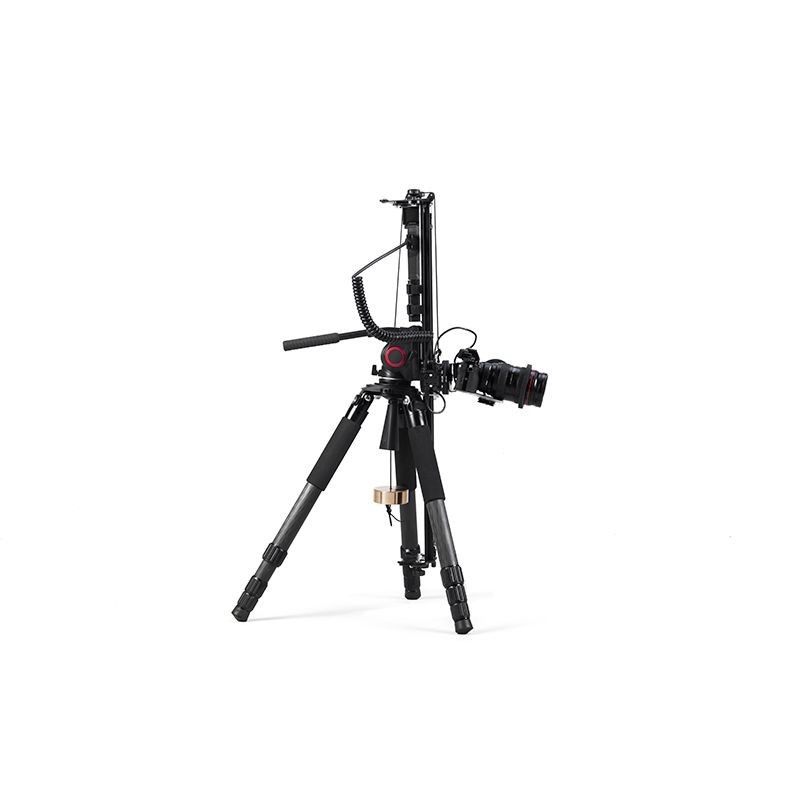

Vertical work with a counterweight
The counterweight accessory raises the payload above 3 kg when the slider stands vertically.
More information
About the product

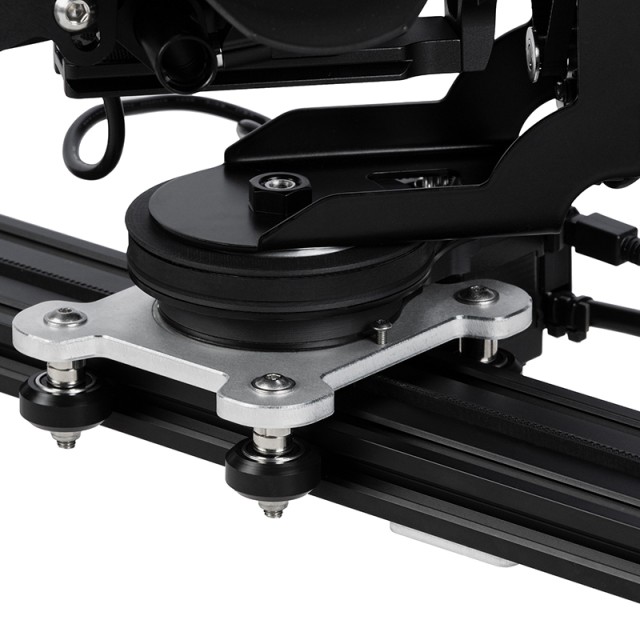

The Mod Slider – Ultimate Kit is a modular motorized slider for professionals who need precise and dynamic camera moves. The aluminium and stainless steel construction offers travelling, panning, tilting and controlled focus, making it a universal motion control solution.
The modules and the Joystick Extension Dock allow camera movement in several axes at once. The adjustment plate for the tilting module and the tripod anchor extend the mounting options, while the rotary table turns the subject precisely, ideal for product videos. Speeds of 1.6–133 mm/s cover very slow cinematic moves and fast tracking shots; the slider carries 5 kg horizontally and 3 kg vertically, more with the counterweight. 12 V power comes from the power supply or a V-Mount battery, and the flightcase protects the set in transport and storage.

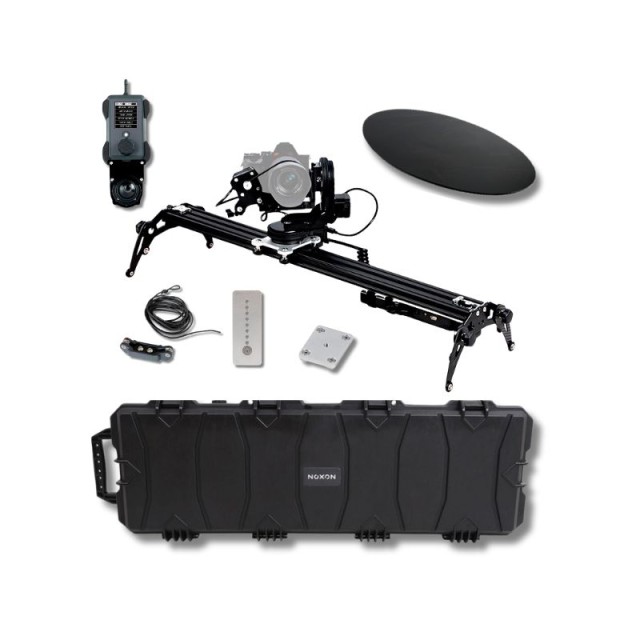

PACKAGE CONTENT
- Mod Slider with 80 cm rail
- Panning module
- Tilting module
- Follow focus module
- Joystick Extension Dock
- Adjustment plate for the tilting module
- Tripod anchor
- Rotary table
- Counterweight accessory
- Flightcase
- Wireless controller
- Silicone case for the controller
- USB cable
- Power supply
- V-Lock mount for V-Mount batteries
SPECIFICATIONS
- Type: motorized slider with 4 axes of movement
- Rail: 80 cm, interchangeable with a 150 cm rail
- Slider dimensions: 82 × 19 × 10 cm
- Slider weight: 2,080 g
- Module weights: panning 520 g, tilting 775 g, follow focus 320 g
- Movements: travelling, panning, tilting, follow focus
- Travel speed: 1.6–133 mm/s
- Payload: 5 kg horizontal (also hanging under the rail), 3 kg vertical
- Modes: automatic, manual, stop motion, time-lapse
- Key points: up to 4
- Control: wireless controller; Dragonframe (DFMoco or DMC); commands from a PC/Mac via a serial COM port
- Camera trigger: 2.5 mm minijack connector
- Power: 12 V – power supply or V-Mount battery
- Motors: stepper
- Material: aluminium, stainless steel
WE RECOMMEND
Recommended for the Noxon Mod Slider – Ultimate Kit:
Slider extensions – longer rail, mounting, counterweight and rotary table
Control – Dragonframe and manual joystick control
Transport and power – flightcase and spare battery
Parameters
| Manufacturer: | Noxon |
| Category: | Slider sets |
Main parameters
| Power Supply | External DC |
| Movement Functions | Time-lapse |
| Color | Black |
| Body Material | Metal |
| Engine Type | Stepper |
| Power Supply | V-Mount battery |
| Controls | Wireless controller |
| Movement Functions | Stop motion |
| Horizontal load capacity | 5kg |
| Vertical load capacity | 3kg |
| Dimensions (L × W × H) | 820x190x100mm |
| Rated voltage | 12V |
| Weight | 2.1kg |
