Noxon Mod Slider – Animator Kit

The Noxon Mod Slider – Animator Kit is a motorized slider for stop motion and animation with four axes of movement: travelling, panning, tilting and follow focus. The kit includes DMC Control for Dragonframe with real-time movement and blur motion, presets for Dragonframe and the wireless controller. Stepper motors hold position to within a fraction of a …

More information

1 809 € with VAT 1 495.04 € without VAT
-+
Availability
on request

Show all accessories

Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

The Noxon Mod Slider – Animator Kit is a motorized slider for stop motion and animation with four axes of movement: travelling, panning, tilting and follow focus. The kit includes DMC Control for Dragonframe with real-time movement and blur motion, presets for Dragonframe and the wireless controller. Stepper motors hold position to within a fraction of a millimetre.

The animator kit with Dragonframe

The kit is the result of years of Noxon working with stop-motion creators. Besides all three modules it includes an adjustment plate for balancing the camera on the tilting module and a tripod anchor, so the slider can sit on two tripods or overhead.

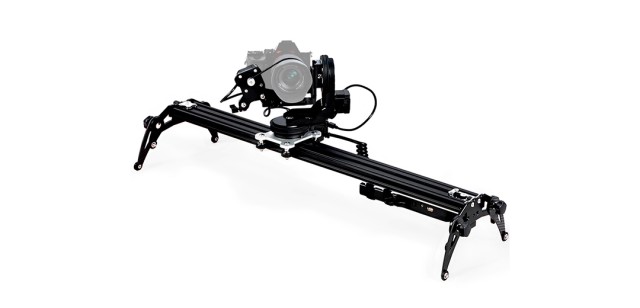

Noxon Mod Slider – Animator Kit
1.6–133 mm/s5 kg horizontal4 key pointsDragonframeV-Mount

Sub-millimetre accuracy, silent running

Stepper motors and the control electronics hold position to within a fraction of a millimetre, so every stop-motion frame follows exactly on the previous one. Smooth acceleration and braking plus quiet operation let you use the slider even during interviews.

80 or 150 cm

Swap the rail for a longer one in a few minutes without tools.

4 axes of movement

Travelling, panning, tilting and follow focus on a single cable to the control unit.

5 kg / 3 kg

Payload horizontally and hanging under the rail, 3 kg vertically, more with a counterweight.

12 V or V-Mount

Power from the supplied power supply, or from your own V-Mount battery on location.

Noxon Mod Slider – Animator Kit – Follow focus in motion

Follow focus in motion

The follow focus module programs focus together with travelling and rotation. It needs 15 mm rods and a camera baseplate.

Noxon Mod Slider – Animator Kit – Tilting module

Tilting module

A second camera rotation axis with a stainless steel frame and a high-accuracy stepper motor, with 40 speeds.

Noxon Mod Slider – Animator Kit – DMC Control for Dragonframe

DMC Control for Dragonframe

Connects the slider to Dragonframe over USB-C using the DMC protocol – with real-time movement and blur motion.

Noxon Mod Slider – Animator Kit – Legs and carriage

Legs and carriage

Integrated adjustable legs, several anchor points and a stepper motor for travelling. Place the slider on a table, mount it on a tripod or hang it.

More information

About the product

The Mod Slider – Animator Kit is a modular motion control system for professional animators and filmmakers. Precise motor control delivers smooth, repeatable travelling, panning, tilting and focus moves, the foundation of stop-motion and animation work.

The light yet durable aluminium and stainless steel construction carries 5 kg horizontally and 3 kg vertically. DMC Control for Dragonframe gives animators the precision needed for frame-by-frame adjustments; the speed range of 1.6–133 mm/s covers very slow animation sequences and dynamic shots. 12 V power comes from the supplied power supply or a V-Mount battery.

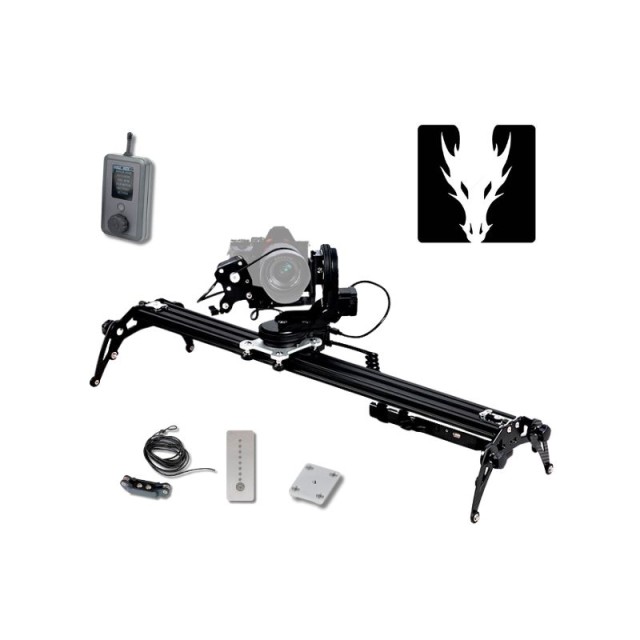

PACKAGE CONTENT

  • Mod Slider with 80 cm rail
  • Panning module
  • Tilting module
  • Follow focus module
  • Adjustment plate for the tilting module
  • Tripod anchor
  • DMC Control for Dragonframe
  • Noxon presets for Dragonframe
  • Wireless controller
  • Silicone case for the controller
  • USB cable
  • Power supply
  • V-Lock mount for V-Mount batteries

SPECIFICATIONS

  • Type: motorized slider with 4 axes of movement
  • Rail: 80 cm, interchangeable with a 150 cm rail
  • Slider dimensions: 82 × 19 × 10 cm
  • Slider weight: 2,080 g
  • Module weights: panning 520 g, tilting 775 g, follow focus 320 g
  • Movements: travelling, panning, tilting, follow focus
  • Travel speed: 1.6–133 mm/s
  • Payload: 5 kg horizontal (also hanging under the rail), 3 kg vertical
  • Modes: automatic, manual, stop motion, time-lapse
  • Key points: up to 4
  • Control: wireless controller; Dragonframe (DFMoco or DMC); commands from a PC/Mac via a serial COM port
  • Camera trigger: 2.5 mm minijack connector
  • Power: 12 V – power supply or V-Mount battery
  • Motors: stepper
  • Material: aluminium, stainless steel

ARTICLES

WE RECOMMEND

Recommended for the Noxon Mod Slider – Animator Kit:

Slider extensions – longer rail, mounting, counterweight and rotary table

Control – Dragonframe and manual joystick control

Transport and power – flightcase and spare battery

Parameters

Parameters

Manufacturer: Noxon
Category: Slider sets

Main parameters

Horizontal load capacity5kg
Vertical load capacity3kg
Dimensions (L × W × H)820x190x100mm
Rated voltage12V
Power SupplyExternal DC · V-Mount battery
ControlsWireless controller
Movement FunctionsStop motion · Time-lapse
ColorBlack
Body MaterialMetal
Engine TypeStepper
Weight2.1kg
