Noxon Mod Slider – Starter Kit

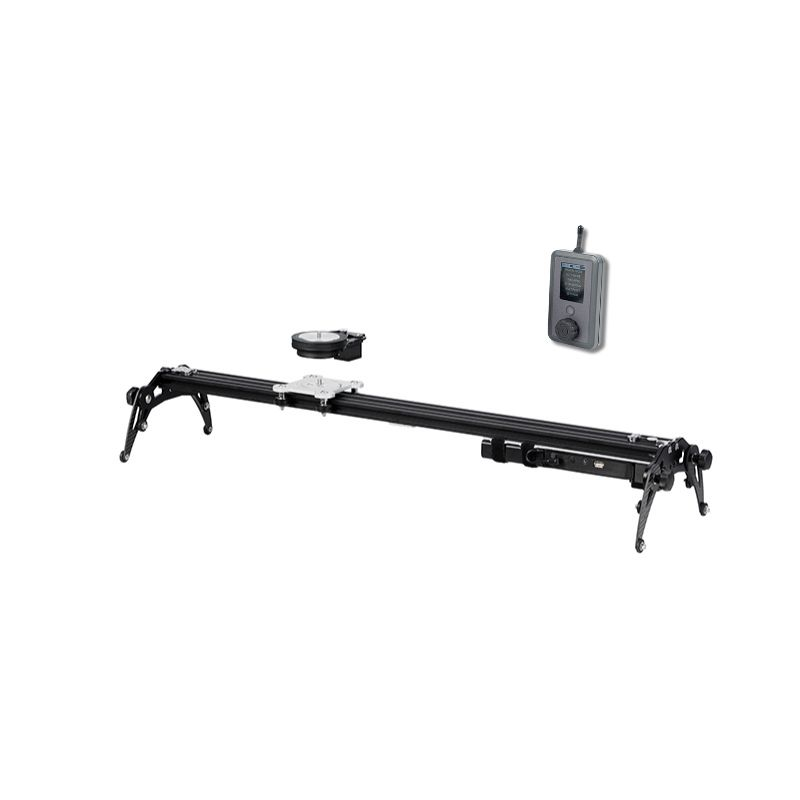

The Noxon Mod Slider – Starter Kit is a motorized slider with an 80 cm rail and a panning module for smooth travelling with camera rotation. It is run by a wireless controller with automatic, manual, time-lapse and stop-motion modes, travels at 1.6–133 mm/s and carries 5 kg horizontally. The tilting and follow focus modules can be added at any time.

More information

1 159 € with VAT 957.85 € without VAT
-+
Availability
Shipment day: 24. 11.
To be sent 1 pcs
Bratislava 1 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Noxon Mod Slider – Starter Kit is a motorized slider with an 80 cm rail and a panning module for smooth travelling with camera rotation. It is run by a wireless controller with automatic, manual, time-lapse and stop-motion modes, travels at 1.6–133 mm/s and carries 5 kg horizontally. The tilting and follow focus modules can be added at any time.

Travelling with panning from day one

The entry kit of the modular Mod Slider system: motorized travelling, a panning module and a wireless controller with power. The system grows with your work – add tilting, follow focus, a longer rail or Dragonframe later.

Noxon Mod Slider – Starter Kit
1.6–133 mm/s5 kg horizontal4 key pointsDragonframeV-Mount

Sub-millimetre accuracy, silent running

Stepper motors and the control electronics hold position to within a fraction of a millimetre, so every stop-motion frame follows exactly on the previous one. Smooth acceleration and braking plus quiet operation let you use the slider even during interviews.

80 or 150 cm

Swap the rail for a longer one in a few minutes without tools.

4 axes of movement

Travelling, panning, tilting and follow focus on a single cable to the control unit.

5 kg / 3 kg

Payload horizontally and hanging under the rail, 3 kg vertically, more with a counterweight.

12 V or V-Mount

Power from the supplied power supply, or from your own V-Mount battery on location.

Noxon Mod Slider – Starter Kit – Legs and carriage

Legs and carriage

Integrated adjustable legs, several anchor points and a stepper motor for travelling. Place the slider on a table, mount it on a tripod or hang it.

Noxon Mod Slider – Starter Kit – Module on the carriage

Module on the carriage

The panning module mounts on the slider carriage and connects to the control unit with a single cable.

Noxon Mod Slider – Starter Kit – Panning module

Panning module

Adds horizontal camera rotation beyond 360° with forty speeds; the camera can sit above or below the module.

Noxon Mod Slider – Starter Kit – Wireless controller

Wireless controller

Programs automatic moves in real time and also runs other Noxon systems. When ordering, state the firmware version or serial number of your slider.

More information

About the product

The Starter Kit gives camera operators and filmmakers the basic equipment for controlled camera movement. The modular aluminium and stainless steel construction is rigid and durable, and the kit is easy to carry on location.

The slider carries 5 kg horizontally and 3 kg vertically, which suits most cameras and rigs. A travel speed of 1.6–133 mm/s covers very slow time-lapses as well as dynamic shots. The tilting and follow focus modules are not part of the Starter Kit, but the slider supports them.

PACKAGE CONTENT

  • Mod Slider with 80 cm rail
  • Panning module
  • Wireless controller
  • Silicone case for the controller
  • USB cable
  • Power supply
  • V-Lock mount for V-Mount batteries

SPECIFICATIONS

  • Type: motorized slider with 4 axes of movement
  • Rail: 80 cm, interchangeable with a 150 cm rail
  • Slider dimensions: 82 × 19 × 10 cm
  • Slider weight: 2,080 g
  • Movements: travelling, panning, tilting, follow focus
  • Travel speed: 1.6–133 mm/s
  • Payload: 5 kg horizontal (also hanging under the rail), 3 kg vertical
  • Modes: automatic, manual, stop motion, time-lapse
  • Key points: up to 4
  • Control: wireless controller; Dragonframe (DFMoco or DMC); commands from a PC/Mac via a serial COM port
  • Camera trigger: 2.5 mm minijack connector
  • Power: 12 V – power supply or V-Mount battery
  • Motors: stepper
  • Material: aluminium, stainless steel

WE RECOMMEND

Recommended for the Noxon Mod Slider – Starter Kit:

Modules – more camera axes and balancing

Slider extensions – longer rail, mounting, counterweight and rotary table

Control – Dragonframe and manual joystick control

Transport and power – flightcase and spare battery

Parameters

Parameters

Manufacturer: Noxon
Category: Slider sets

Main parameters

Horizontal load capacity5kg
Vertical load capacity3kg
Dimensions (L × W × H)820x190x100mm
Rated voltage12V
Power SupplyExternal DC · V-Mount battery
ControlsWireless controller
Movement FunctionsStop motion · Time-lapse
ColorBlack
Body MaterialMetal
Engine TypeStepper
Weight2.1kg
