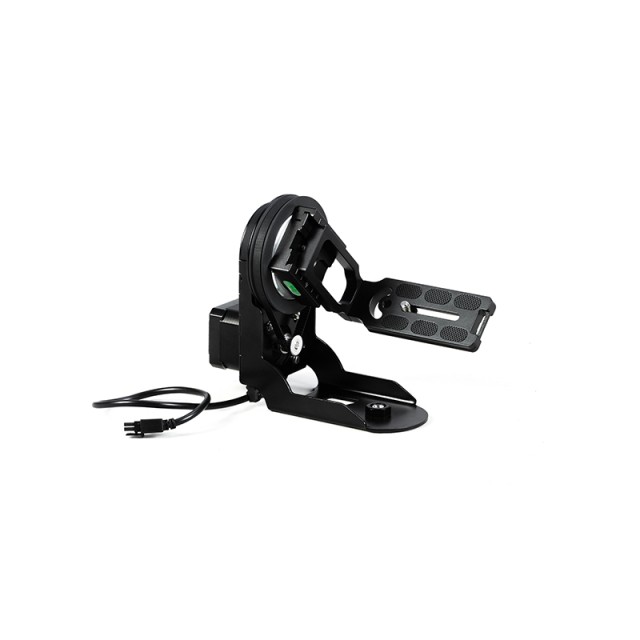

Noxon Tilting Module
SKU: AC-017
The Noxon Tilting Module adds a second camera rotation axis to the Mod Slider – vertical tilting. A stainless steel frame carries a high-accuracy stepper motor with forty speeds, it can rotate beyond 360° and the camera attaches with a quick-mount system on a 3/8″ or 1/4″ thread. Together with the panning module and travel it forms a multi-axis motorized head…
232 € with VAT
191.74 € without VAT
Availability
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Noxon Tilting Module adds a second camera rotation axis to the Mod Slider – vertical tilting. A stainless steel frame carries a high-accuracy stepper motor with forty speeds, it can rotate beyond 360° and the camera attaches with a quick-mount system on a 3/8″ or 1/4″ thread. Together with the panning module and travel it forms a multi-axis motorized head on one cable.
A second axis for creative angles
The tilting module mounts on the panning module. To balance the camera precisely over the tilt axis there is the adjustment plate, included in the Animator and Ultimate kits.
Beyond 360°40 speeds3/8″ and 1/4″775 g
Travelling, panning and tilting at once
Three axes of movement from one controller open up shots that cannot be repeated by hand.
Stainless steel frame
A rigid structure for repeatable frame-by-frame moves.
Camera balance
With the adjustment plate you shift the camera to the centre of the tilt axis.
Tilting module with camera
The tilting module on the Mod Slider panning module with a camera and the follow focus module.
More information
About the product
The tilting module is an accessory for the Noxon Mod Slider that adds tilting to your filming setup. It allows precise control of the vertical camera angle and widens the range of creative moves achievable with the Mod Slider.
The module is made of quality materials – aluminium and stainless steel – ensuring durability and smooth, consistent movement during shooting. It works together with travelling, panning and controlled focusing, suits dynamic angles and creative compositions and adds another layer of versatility to a Mod Slider setup.
PACKAGE CONTENT
- Tilting module with connection cable
SPECIFICATIONS
- Rotation: beyond 360°
- Rotation speeds: 40 speeds
- Thread: 3/8″ or 1/4″ (above or below the module)
- Motors: high-accuracy stepper motor
- Material: stainless steel frame
- Weight: 775 g
- Connection: single cable to the slider control unit
- Compatibility: Noxon Mod Slider
