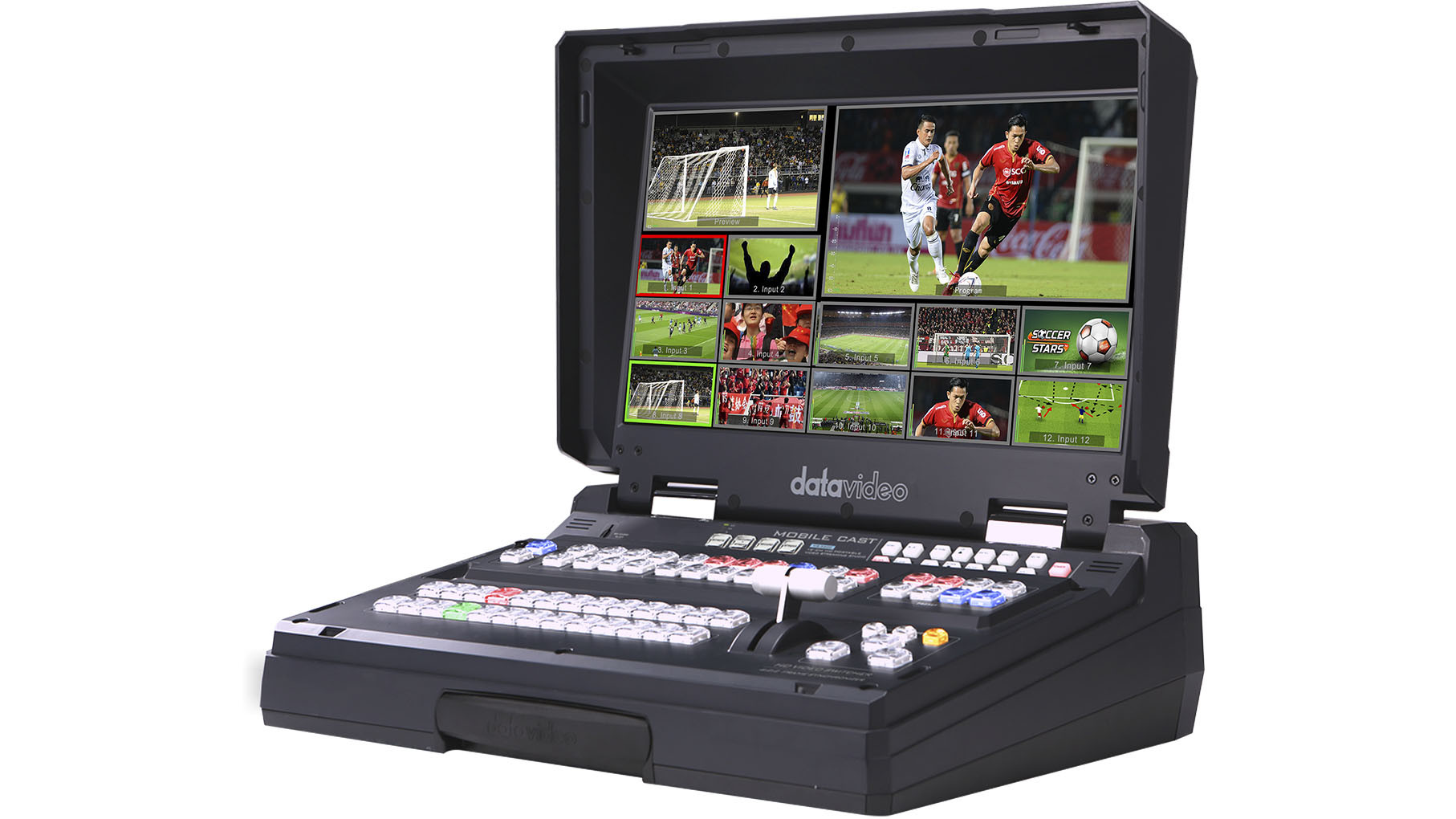

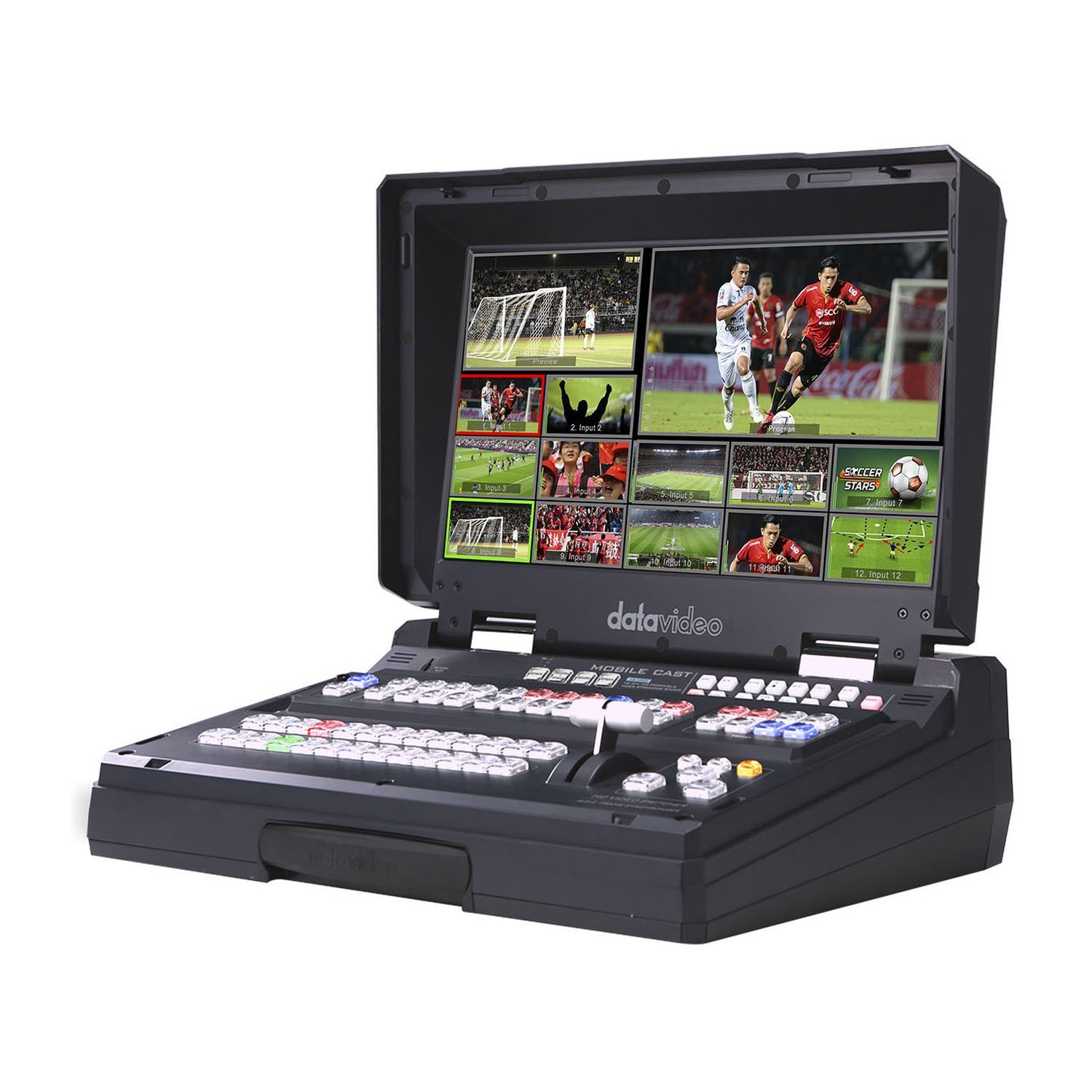

Datavideo HS-3200 Portable Production Studio
SKU: 2200-2070
The Datavideo HS-3200 is a portable, case-style production studio that combines a 12-channel HD switcher, a 17.3-inch Full HD multiview monitor, an H.264 streaming encoder and SD-card recording. Connect up to eight SDI and four HDMI sources, route balanced audio through XLR inputs and outputs, then switch, stream and record from one unit. Per-input scaling,…
9 749 € with VAT
8 057.02 € without VAT
Availability
14-30 days
Top accessories for Datavideo HS-3200 Portable Production Studio
Datavideo DAC-70 Up/Down/Cross Converter
The Datavideo DAC-70 is a standalone external video scaler, allowing the conversion
729 €
Backordered 1 pcs
Datavideo CB-68 70 m 2-in-1 Cable (4.5C HD-SDI/CAT 6)
The 70 m Datavideo CB-68 hybrid cable carries 3G/HD/SD-SDI video up to 1080p alongside
1 089 €
14-30 days
Datavideo TPC-700P Touch Panel Controller with PoE
The Datavideo TPC-700P is a 7-inch touch-panel controller with PoE for direct operation
1 279 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Datavideo HS-3200 is a portable, case-style production studio that combines a 12-channel HD switcher, a 17.3-inch Full HD multiview monitor, an H.264 streaming encoder and SD-card recording. Connect up to eight SDI and four HDMI sources, route balanced audio through XLR inputs and outputs, then switch, stream and record from one unit. Per-input scaling, up to eight picture-in-picture windows, keying tools and flexible outputs help build a professional live-production workflow without separate monitoring, streaming and recording appliances. The HS-3200 is suited to sports and esports, concerts, seminars, corporate events and mobile broadcast production.
PORTABLE LIVE PRODUCTION IN ONE CASE
FROM CAMERA INPUTS TO A FINISHED STREAM
The HS-3200 combines video switching, multiview monitoring, streaming and recording in one portable unit. Bring a production workspace to the venue, connect video and audio sources, and run the live show on site.
12 INPUTS, 9 OUTPUTS AND SCALING
Eight SDI and four HDMI inputs accept up to 12 repeatable, routable sources. A built-in scaler on every input converts different formats for Full HD production. The output layout includes five SDI and four HDMI connections; one HDMI output is assignable to different production signals while the other three provide program video.
The integrated 17.3-inch, 1920 × 1080 monitor displays a customizable multiview, so you can monitor the production directly at the workstation.
SWITCH, STREAM AND RECORD
The built-in H.264/AVC encoder streams using common protocols including RTMP/RTMPS, HLS and SRT, with a configurable bit rate up to 10 Mbps. At the same time, you can record MP4 files to an SD card. Four balanced analogue XLR inputs and two XLR outputs complement embedded audio; audio delay can be calibrated by up to 16 frames.
Production tools include four upstream keyers, two downstream keyers, eight PiP windows (four through keyers and four through Flex Source), two logos, static and animated graphics, DVE transitions and stingers. Flex Source adds a compositing layer and supports saved user presets.
FOR MOBILE EVENTS AND LIVE BROADCASTS
The reinforced plastic case makes it easier to transport a complete production system between venues. The HS-3200 is designed for sports and esports, concerts, seminars, corporate productions and other live events where a quick setup and on-site program control are useful.
For a standalone switcher without the integrated monitor and case, Datavideo offers the related SE-3200 configuration.
FLEXIBLE CONTROL FOR MULTI-CAMERA PRODUCTION
Any of the 12 inputs can be assigned through the crosspoint routing. Four upstream keys support chroma, linear and luma keying as well as picture-in-picture; two downstream keys support linear or luma keying. PiP windows can be adjusted for ratio, position and size. Transitions include WIPE, MIX, DVE, CUT and stinger; 32 wipe patterns let you adjust border width and colour softness.
The unit supports two static or animated logos with configurable position and size, frame-store use of input sources, Tri-Level or Black Burst reference synchronisation, and red/green tally outputs. Two user presets can be recalled quickly. Free CG-200 software lets you use a computer's HDMI output as an interface for title graphics.
PACKAGE CONTENT
- 1× Datavideo HS-3200 portable production studio
- 1× 12 V DC switching power adapter with AC cord
SPECIFICATIONS
- Type: Portable Full HD video switcher with integrated monitor, streaming and recording
- Video standard: Full HD
- Video formats: 1080p, 1080i and 720p at 50 / 59.94 / 60 Hz

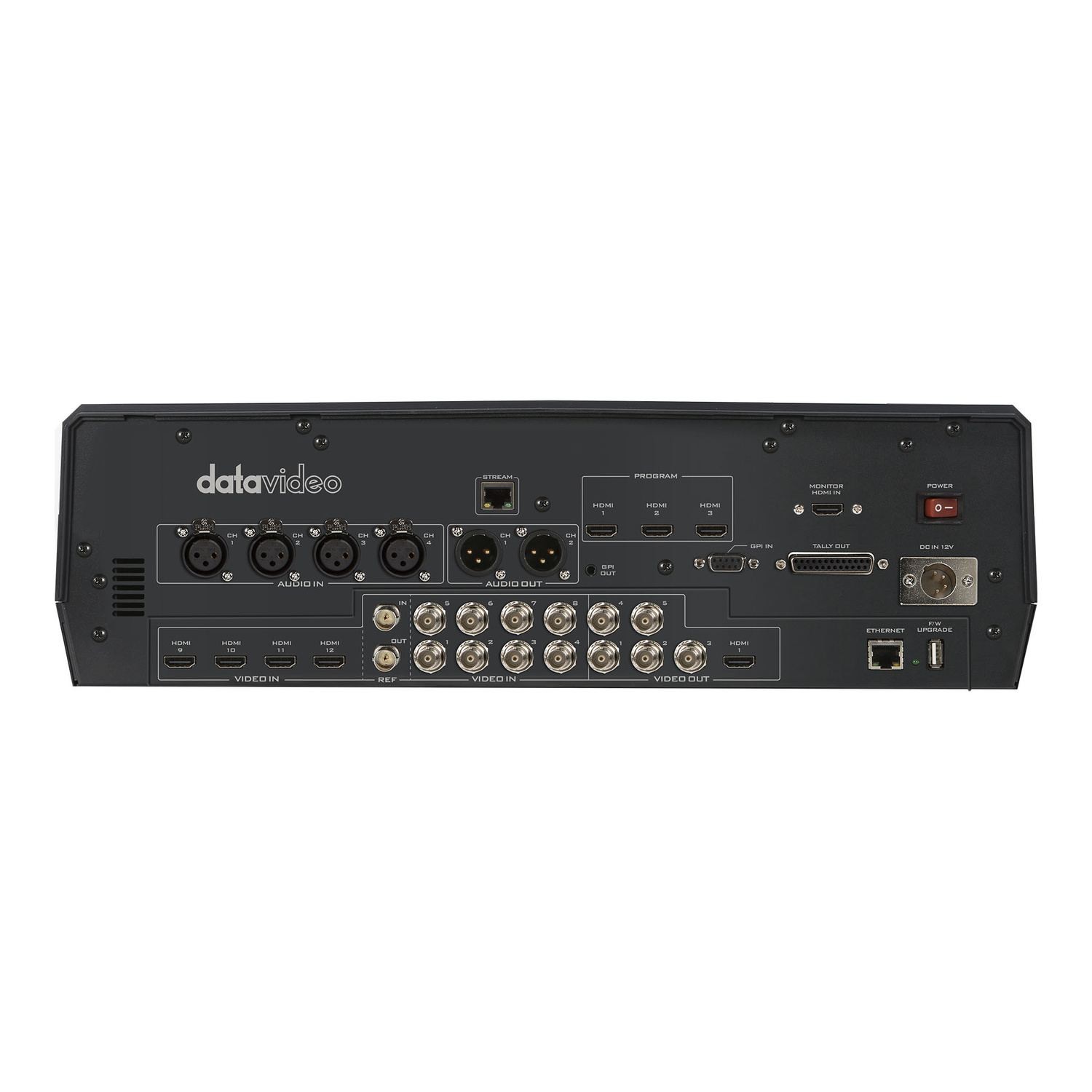

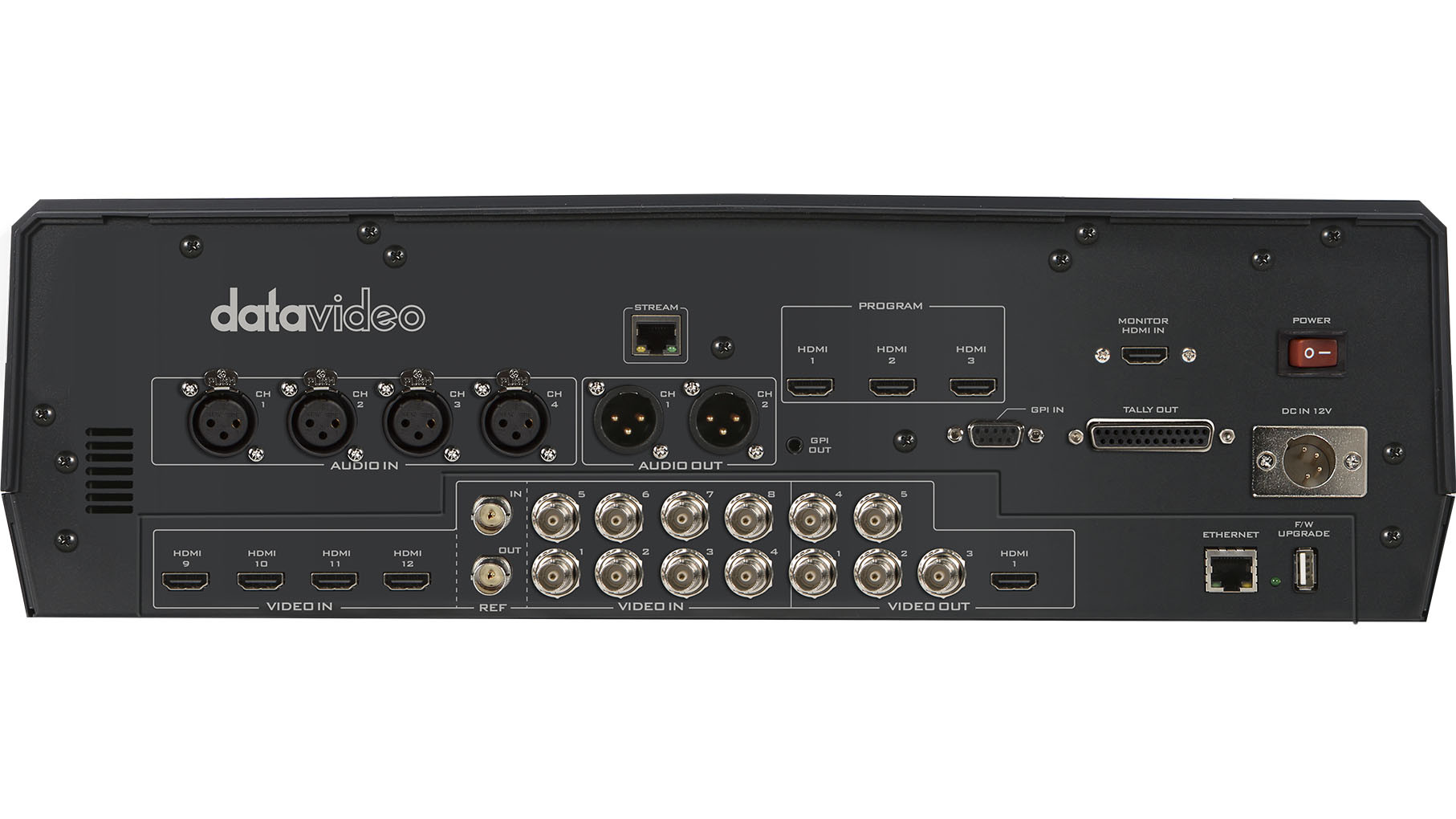

- Video inputs: 8× SDI and 4× HDMI; all 12 inputs routable
- Video outputs: 5× SDI and 4× HDMI
- HDMI outputs: 1× assignable (Multiview, PGM, PVW, Clean PGM/PVW, inputs, STILL, Flex Source), 3× PGM
- Computer graphics: up to 4 sources via HDMI
- Scaler: built-in up/down scaler on each input
- Monitor: 17.3-inch TFT LED, 1920 × 1080
- PiP and keying: 8× PiP, 4× USK, 2× DSK
- Logo insertion: 2 static or animated logos
- Audio inputs: 4× balanced analogue XLR
- Audio outputs: 2× balanced analogue XLR
- Audio delay: up to 16 frames
- Streaming: H.264/AVC up to 10 Mbps; TS, RTSP, RTMP/RTMPS, HLS and SRT
- Streaming audio: AAC-LC, 48 kHz / 16 bit, 32–384 kbps
- Recording: MP4 to SD card
- Dimensions: 455 × 355 × 134 mm
- Weight: 8.1 kg
- Power: 12 V DC, 11 A
- Operating temperature: 0–40 °C
