Datavideo SE-3200 12-Channel Full HD Video Switcher
SKU: 2200-3030
The Datavideo SE-3200 is a 12-channel Full HD live production switcher for studios, events and outside broadcast vans. Connect eight SDI and four HDMI sources, then route the program, preview, multiview and other signals to six assignable SDI and three assignable HDMI outputs. A separate control panel gives operators direct access to source switching, transitions,…
7 079 € with VAT
5 850.41 € without VAT
Availability
14-30 days
Top accessories for Datavideo SE-3200 12-Channel Full HD Video Switcher
Canare L-5.5CUHD BNC (M) / BNC (M) 5 m, BLK
Assembled SDI cable, Canare L-5.5CUHD, 5 m long, terminated with BNC (M) and BNC
31 €
In stock > 5 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
Canare HDMI Cable 2 m
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs
Canare L-5.5CUHD BNC (M) / BNC (M) 20 m, BLK
Assembled SDI cable, Canare L-5.5CUHD, 20 m long, terminated with BNC (M) and BNC
84 €
In stock 4 pcs
Datavideo CB-68 70 m 2-in-1 Cable (4.5C HD-SDI/CAT 6)
The 70 m Datavideo CB-68 hybrid cable carries 3G/HD/SD-SDI video up to 1080p alongside
1 089 €
14-30 days
Datavideo TPC-700P Touch Panel Controller with PoE
The Datavideo TPC-700P is a 7-inch touch-panel controller with PoE for direct operation
1 279 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Datavideo SE-3200 is a 12-channel Full HD live production switcher for studios, events and outside broadcast vans. Connect eight SDI and four HDMI sources, then route the program, preview, multiview and other signals to six assignable SDI and three assignable HDMI outputs. A separate control panel gives operators direct access to source switching, transitions, keyers and graphics.
12-channel Full HD video switcher
12 sources for live production

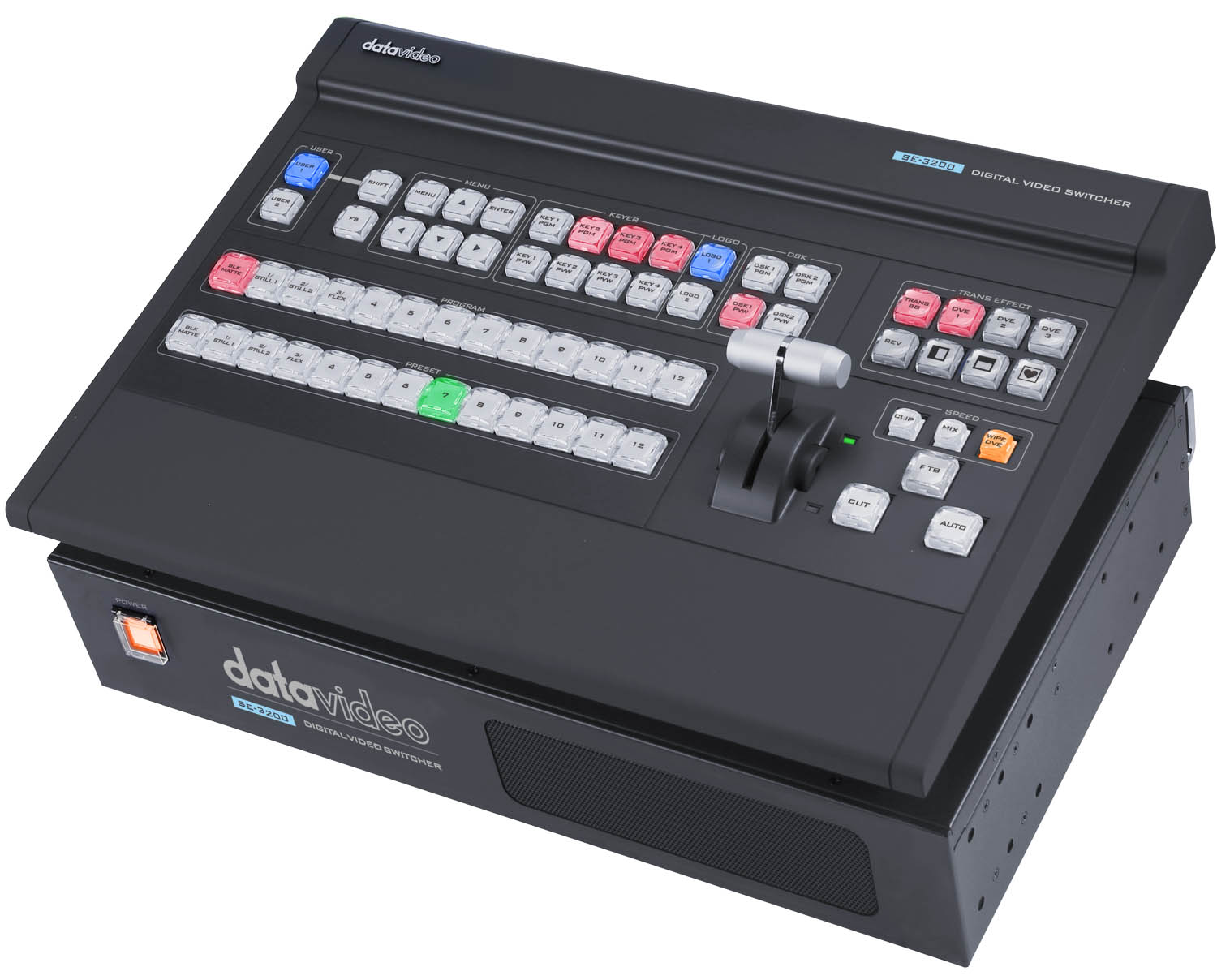

The SE-3200 connects 12 Full HD sources (8× SDI and 4× HDMI) to a separate control panel. Route program, preview and multiview to six SDI and three HDMI outputs. The main unit installs in a 2RU rack.
Control sources, keyers and transitions

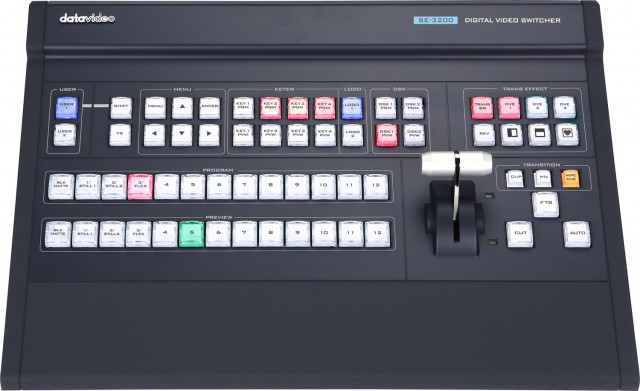

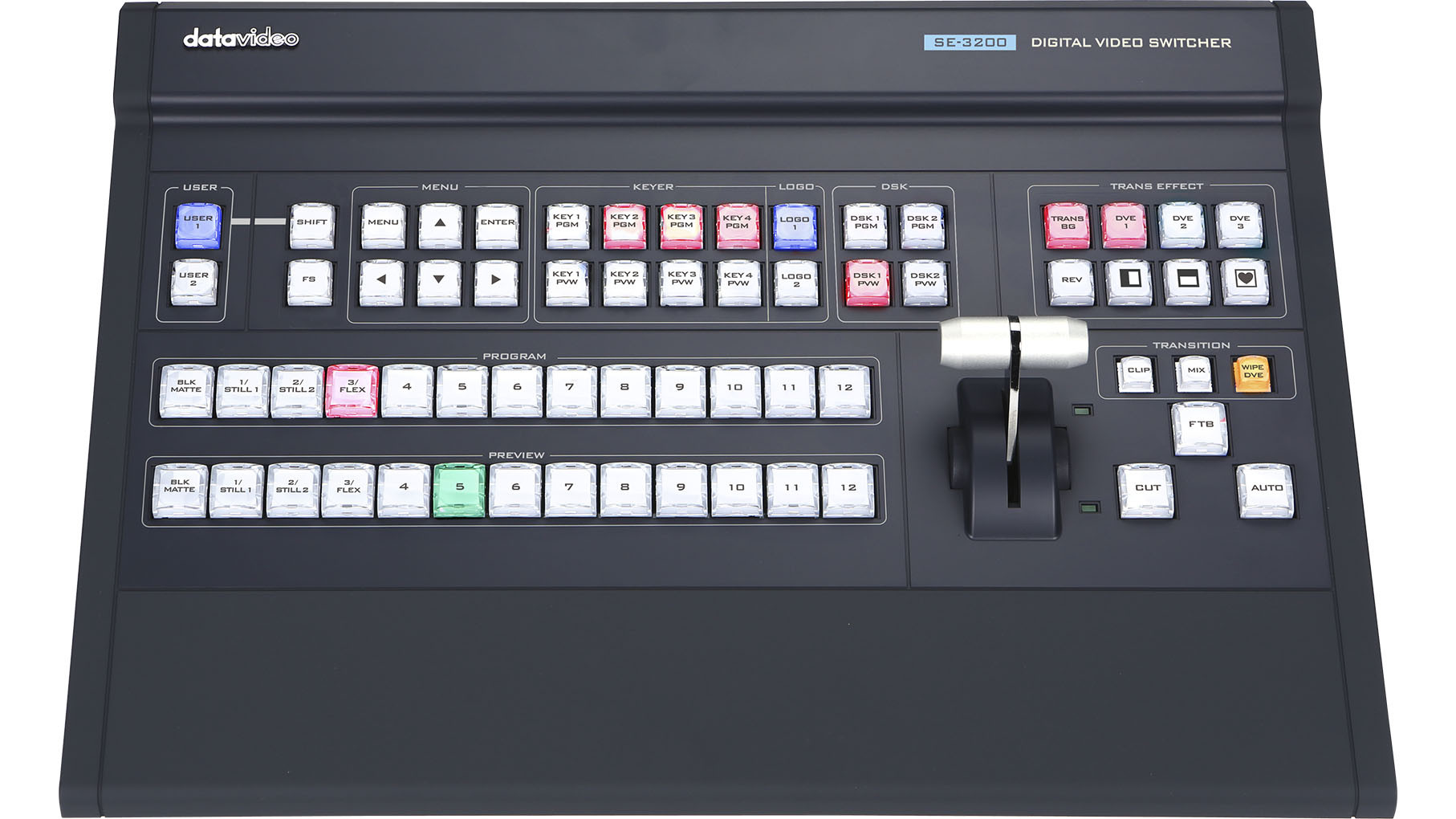

The panel provides program/preview buttons for all 12 inputs, a T-bar, CUT/AUTO and direct access to four upstream and two downstream keyers. Chroma, linear and luma keying, picture-in-picture, two logos, still storage, DVE/WIPE and nine stinger transitions help operators build layered pictures during a live production.
Connect video, audio and sync

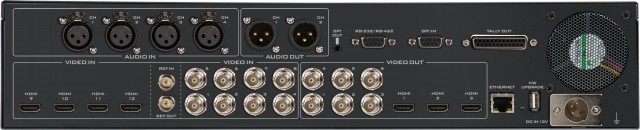

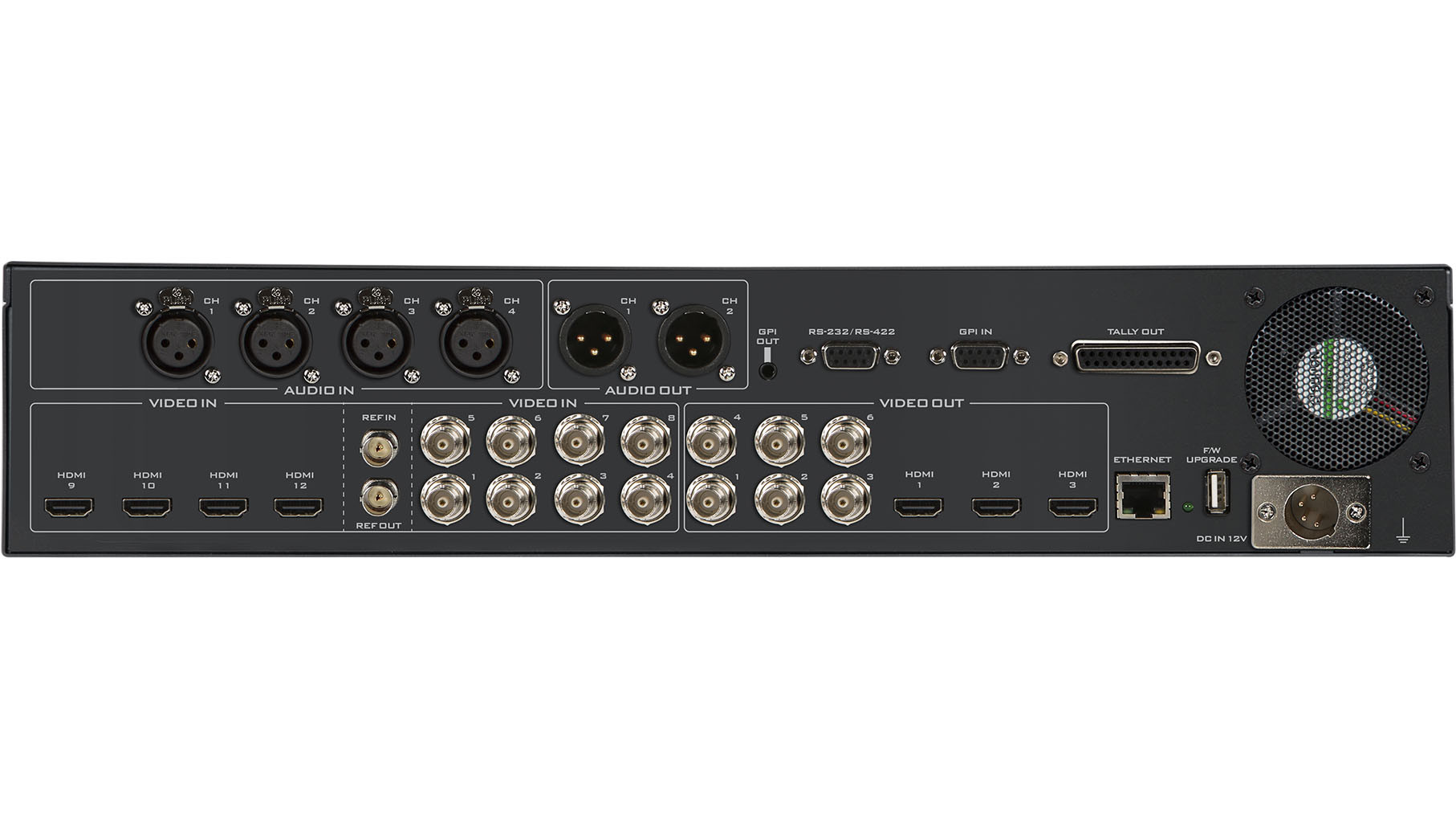

The rear panel provides 8× 3G-SDI and 4× HDMI inputs, 6× SDI and 3× HDMI outputs, four balanced XLR inputs and two XLR outputs. Scaling helps combine supported HD signals; Tri-Level, Black Burst, Ethernet, RS-232/RS-422 and dual-color tally support studio and mobile installations.
PACKAGE CONTENT
- 1× Datavideo SE-3200 main unit
- 1× SE-3200 control board
- 2× 12 V DC power adapters
- 1× AC power cable
- 1× DB9P-to-DB9P cable
- 12× screws
- 2× 2U rack ears
SPECIFICATIONS
- Switcher type: 12-channel Full HD digital video switcher
- Video formats: 1080p, 1080i and 720p at 50/59.94/60 Hz
- Inputs: 8× 3G-SDI and 4× HDMI
- Assignable outputs: 6× SDI and 3× HDMI
- Down-converted output: 1× SDI
- Input scaling: up- and down-conversion on each input
- Keyers: 4 upstream keyers and 2 downstream keyers

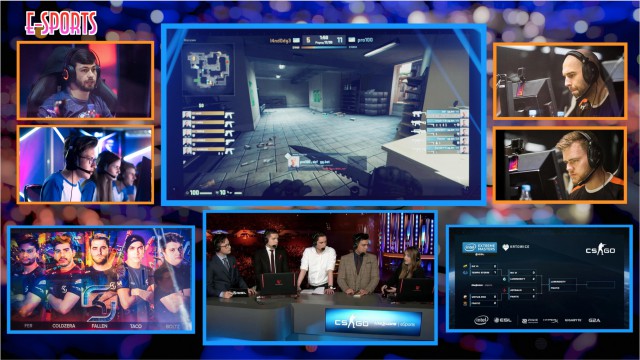

- Picture-in-picture: up to 8 windows, including 4 Flex sources
- Still store: more than 500 still images
- Audio input: 4× balanced XLR
- Audio output: 2× balanced XLR
- Reference synchronization: Tri-Level and Black Burst
- Tally: dual-color output, D-sub 25-pin
- Control: Ethernet, RS-232 and RS-422
- Mounting: 2RU rack-mount main unit; separate control board
- Dimensions: 433 × 312 × 76 mm and 432 × 252 × 88 mm (per manufacturer listing)
- Weight: 4 kg
- Power: 12 V DC, 69 W
- Operating temperature: 0 to 40 °C
WE RECOMMEND
The Datavideo SE-3200 has eight 3G-SDI inputs and four HDMI inputs. Match cables to the required connections; the TPC-700P adds a compatible touch controller, while the CB-68 supports longer studio runs.
HDMI TYPE A CABLES – HDMI Type A cables for connecting sources or monitors; choose the length to suit equipment placement.
BNC SDI CABLES – BNC-to-BNC cables for SDI signals; 5 m and 20 m options suit different installation distances.
CONTROL AND HYBRID CONNECTION – The Datavideo touch panel is compatible with the 3200 series. CB-68 connects SE/HS-3200 using SDI and CAT 6.
Parameters
| Manufacturer: | Datavideo |
| Category: | Switchers |
Main parameters
| Number of inputs | 12 |
| Switcher inputs | HDMI · 3G-SDI |
| Switcher outputs | HDMI · 3G SDI |
| Scaler on inputs | Yes |
| Resolution | HD |
| Features | Virtual studio · Subtitler · DSK · AUX · Chroma Key · Audio mixing · Multiviewer |
| Control panel | Yes |
