Lilliput Q7 Pro 7" HDR and LUT Monitor with HDMI/SDI Conversion
SKU: Q7 PRO
The Lilliput Q7 Pro 7″ HDR and LUT monitor is a broadcast monitor for professional camera and video applications. It offers 1920 × 1200 resolution, 500 cd/m² brightness and a 1000:1 contrast ratio. The 3G-SDI and HDMI inputs have loop-through outputs, and thanks to cross conversion the HDMI connector can output either the HDMI input signal or a signal converted…
609 € with VAT
503.31 € without VAT
Personal pickup within 90 minutes
Shipment day: Today
Shipment day: Today
In stock 2 pcs
Praha 2 pcs
Praha 2 pcs
Top accessories for Lilliput Q7 Pro 7" HDR and LUT Monitor with HDMI/SDI Conversion
SmallRig NP-F970 Battery and Charger Kit 3823
Two NP-F970 batteries (7800 mAh) with a dual charger. A full decoding chip keeps
82 €
In stock > 5 pcs
SmallRig Camera Battery with USB-C Charging for Canon LP-E6P 5295
The SmallRig LP-E6P USB-C Battery (2600mAh) is a rechargeable lithium-ion battery
106 €
In stock > 5 pcs
Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs
Atomos twisted cable Micro HDMI (refracted) - Mini HDMI
Atomos PRO HDMI spiral cable - more designs to choose from
28 €
To be sent 3 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput Q7 Pro 7″ HDR and LUT monitor is a broadcast monitor for professional camera and video applications. It offers 1920 × 1200 resolution, 500 cd/m² brightness and a 1000:1 contrast ratio. The 3G-SDI and HDMI inputs have loop-through outputs, and thanks to cross conversion the HDMI connector can output either the HDMI input signal or a signal converted from SDI – and vice versa.
7" monitor with HDR, 3D LUT and SDI ↔ HDMI conversion

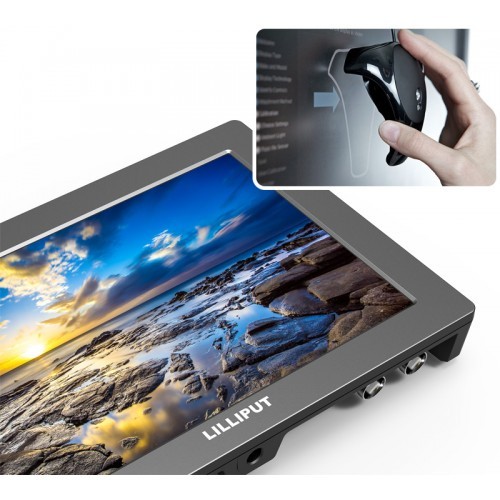

The Q7 Pro shows log footage through a LUT, converts SDI to HDMI and back, and can be calibrated in ColourSpace CMS. It mounts on a camera via a hot shoe mount or on a stand via VESA 75 mm.
7" 1920 × 1200HDR and 3D LUTSDI ↔ HDMI conversion500 cd/m²NP-F and LP-E6
Log footage under control
Built-in LUTs turn the camera’s log curve into a viewable image and HDR reveals detail in highlights and shadows. Cross conversion between SDI and HDMI also saves a separate converter on set.
Accurate color
Selectable color spaces and calibration in ColourSpace CMS by Light Illusion.
Anamorphic de-squeeze
2×, 1.5× and 1.33× de-squeeze for anamorphic lenses.
17 assist functions
Waveform, vectorscope, YRGB column, false color, timecode and more.
F1 and F2
Two user buttons for quick access to your most-used functions.
More information
Color, HDR and assist functions

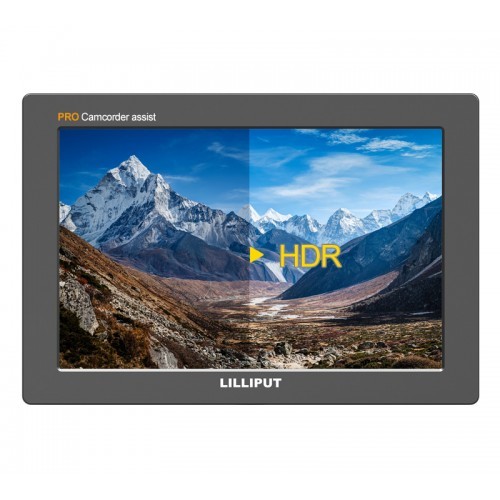

The Q7 Pro features an adjustable color space (native, SMPTE-C, Rec.709 and EBU) and accurate color calibration for a clean, vivid image. HDR reproduces a wide dynamic range of luminosity so lighter and darker details are displayed more clearly; with HDR off you can select a suitable gamma mode. The built-in 3D LUT includes eight default and six user log curves, and your own .cube files load from a USB flash drive.

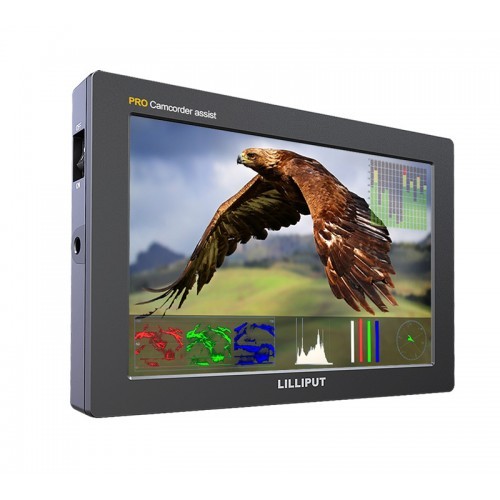

The monitor offers a range of assist functions for photography and filmmaking: color space, HDR, timecode, YRGB column, pixel zoom, vectorscope, waveform, audio level meter, focus peaking, false color, histogram, exposure, check field, color bars and image flip. User-definable F1 and F2 buttons act as shortcuts to assist functions, and the 75 mm VESA mount together with the 1/4"-20 hot shoe mount let you attach the Q7 Pro to a DSLR or camcorder.
PACKAGE CONTENT
- 1× Lilliput monitor Q7 Pro
- 1× 12 V DC power adapter
- 1× sunshade
- 1× HDMI A/C cable (HDMI – mini HDMI)
- 1× hot shoe ball mount
- 1× VESA battery plate
- 1× battery plate
- 1× VESA mounting plate
- 1× user manual
SPECIFICATIONS
- Brand: Lilliput
- Model: Q7 Pro
- Display: 7" LCD
- Resolution: 1920 × 1200
- Aspect ratio: 16:10
- Brightness: 500 cd/m²
- Contrast: 1000:1
- Viewing angle: 170°/170° (H/V)
- HDR: ST2084 300/1000/10000, HLG
- Log formats: S-Log, S-Log2, S-Log3
- LUT: 3D LUT (.cube format)
- Anamorphic de-squeeze: 2×, 1.5×, 1.33×
- Calibration: ColourSpace CMS (PRO/LTE) by Light Illusion supported, calibration to Rec.709 with optional probe

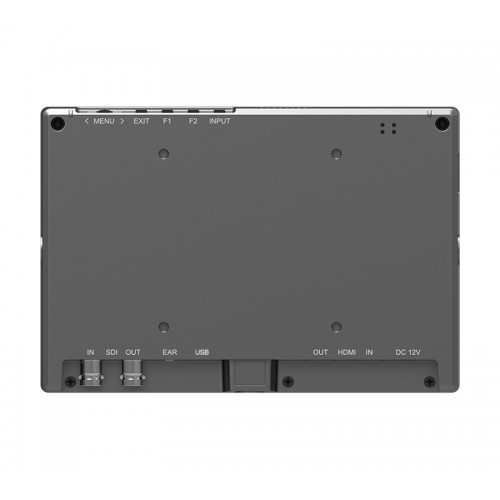

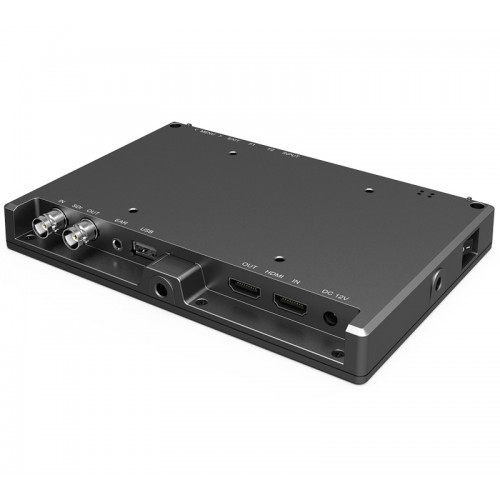

- Inputs: 1× 3G-SDI, 1× HDMI 1.4
- Loop outputs: 1× 3G-SDI, 1× HDMI 1.4; SDI ↔ HDMI cross conversion
- HDMI formats: 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- SDI formats: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- Audio: SDI (12 ch, 24-bit), HDMI (2 ch, 24-bit), 3.5 mm headphones, speaker
- Assist functions: color space selection, 3D LUT, HDR, timecode, YRGB column, pixel zoom, vectorscope, waveform, audio level meter, focus peaking, false color, histogram, exposure (zebra), check field, color bars, image flip, pixel to pixel
- Power: DC input 7–24 V, Sony NP-F or Canon LP-E6 (interchangeable plates)
- Power consumption: ≤ 12 W
- Operating temperature: 0 to 50 °C
- Storage temperature: −20 to 60 °C
- Mounting: VESA 75 mm and 1/4" hot shoe mount
- Controls: user buttons F1 and F2

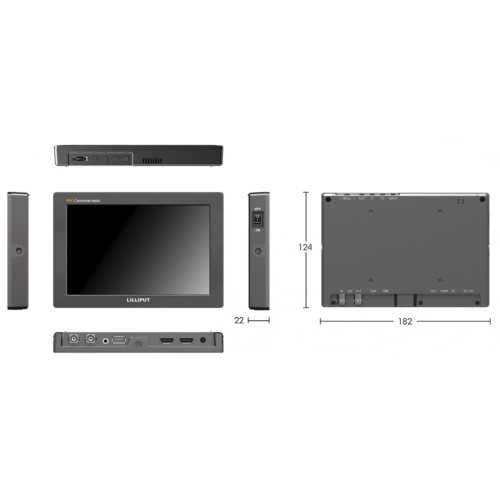

- Dimensions (L × W × D): 182 × 124 × 22 mm
- Weight: 405 g
WE RECOMMEND
The following accessories go with the Lilliput Q7 Pro 7" HDR and LUT Monitor with HDMI/SDI Conversion.
Sony NP-F batteries
Canon LP-E6 batteries
HDMI cables
SDI cables
Parameters
| Manufacturer: | Lilliput |
| Category: | Camera monitors |
Main parameters
| Video outputs | HDMI 1.4 · 3G-SDI |
| Display aspect ratio | 16:10 |
| Size | 7" |
| Monitor inputs | HDMI · SDI · 3G-SDI · HDMI 1.4 |
| Luminosity | 500cd/m2 |
| Panel resolution | 1920x1200 |
| For monitor | On-camera / field video production monitor |
| Monitor power supply | Sony NP-F · LP-E6 · DC 7-24V |
Other parameters
| Mounting interface | 1/4″-20 thread |
| Weight | 405g |
| Dimensions (W × H × D) | 182x124x22mm |
| Viewing angle (horizontal × vertical) | 170x170° |
| Touchscreen display | No |
| Display type | LCD |
| Tally | No |
| Other features | HDR · 3D LUT correction · Vectorscope |
| SDR/HDR | SDR / HDR |
| Power supply type | batteries · power supply |
| High Brightness | No |
| Battery type | Canon LP-E · Sony NP-F |
| Supported LOG | Sony SLog3 · Sony SLog2 |
