Portkeys Leye SDI

LEYE SDI is an upgraded version of LEYE, adding integrated Canon E6 battery plate, which can be powered by Canon E6 battery or power bank.

More information

609.84 € with VAT 504 € without VAT
-+
Availability
on request
Product description

Product description

LEYE SDI is an upgraded version of LEYE, adding integrated Canon E6 battery plate, which can be powered by Canon E6 battery or power bank.

  • 2.4″ Screen size LCD EVF with 1440×900 effective resolution, 8bit Color Depth, 1100:1 Contrast, 450nit Brightness.
  • Wearing glasses to watch barrier-free. The sponge mask prevents direct sunlight from burning the LCD screen.
  • +8D~-3D Adjustable diopters. It is suitable for users with different eyesight.
  • 3D LUT, Peaking, Luma waveform, Zebra, Histogram, Audio meters, Guides, Cross hair, False color, Grids, Underscan, H/V Delay, Anamorphic, Sharpness, Check field, Contrast, Backlight, Brightness, Chroma, Color temperature, Tint, Osd flip, Display flip, Image crop, Battery voltage checking, Customized peaking range, Waveform optional detect data before or after loading 3D LUT.

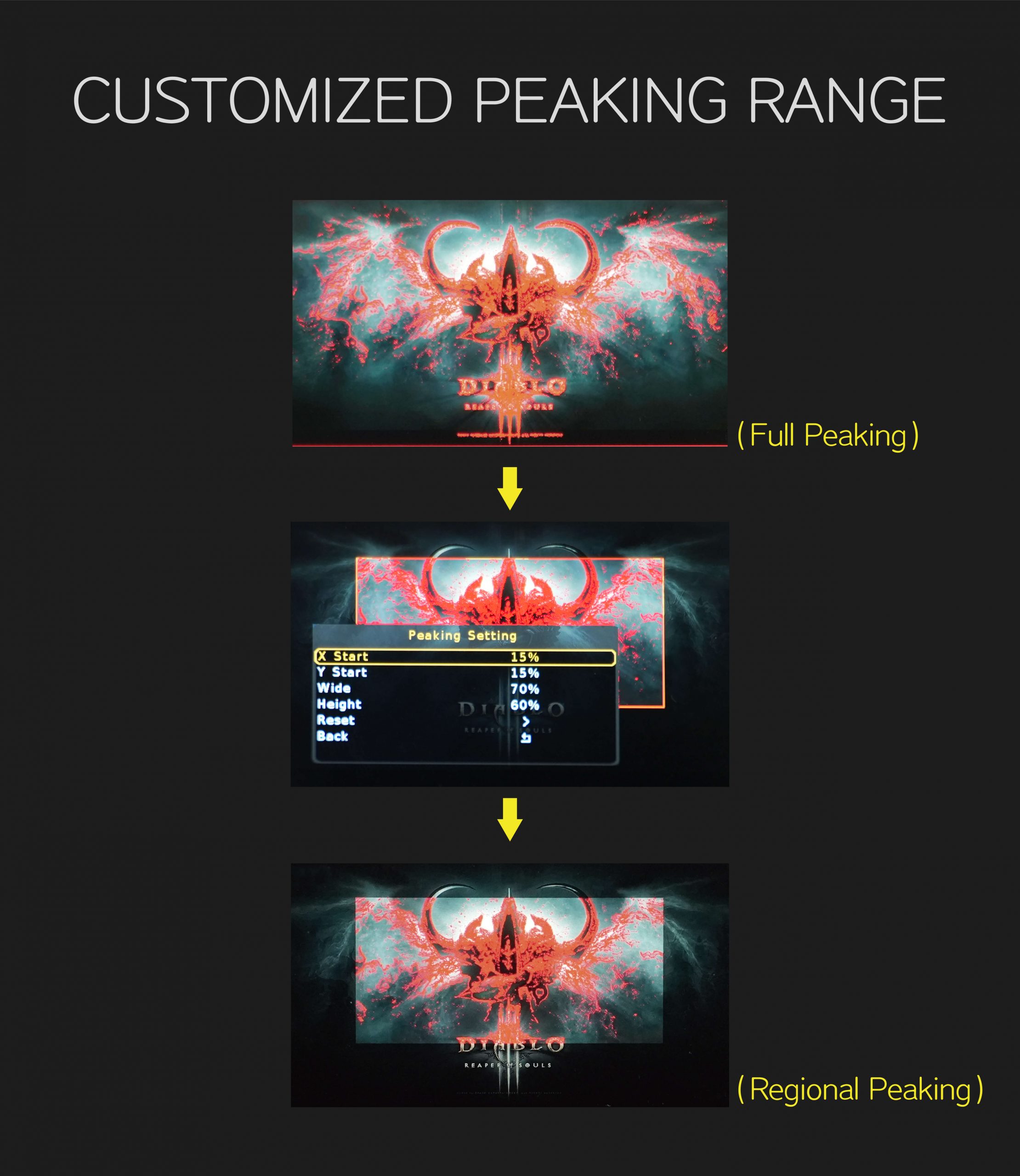

leye sdi 1 scaled

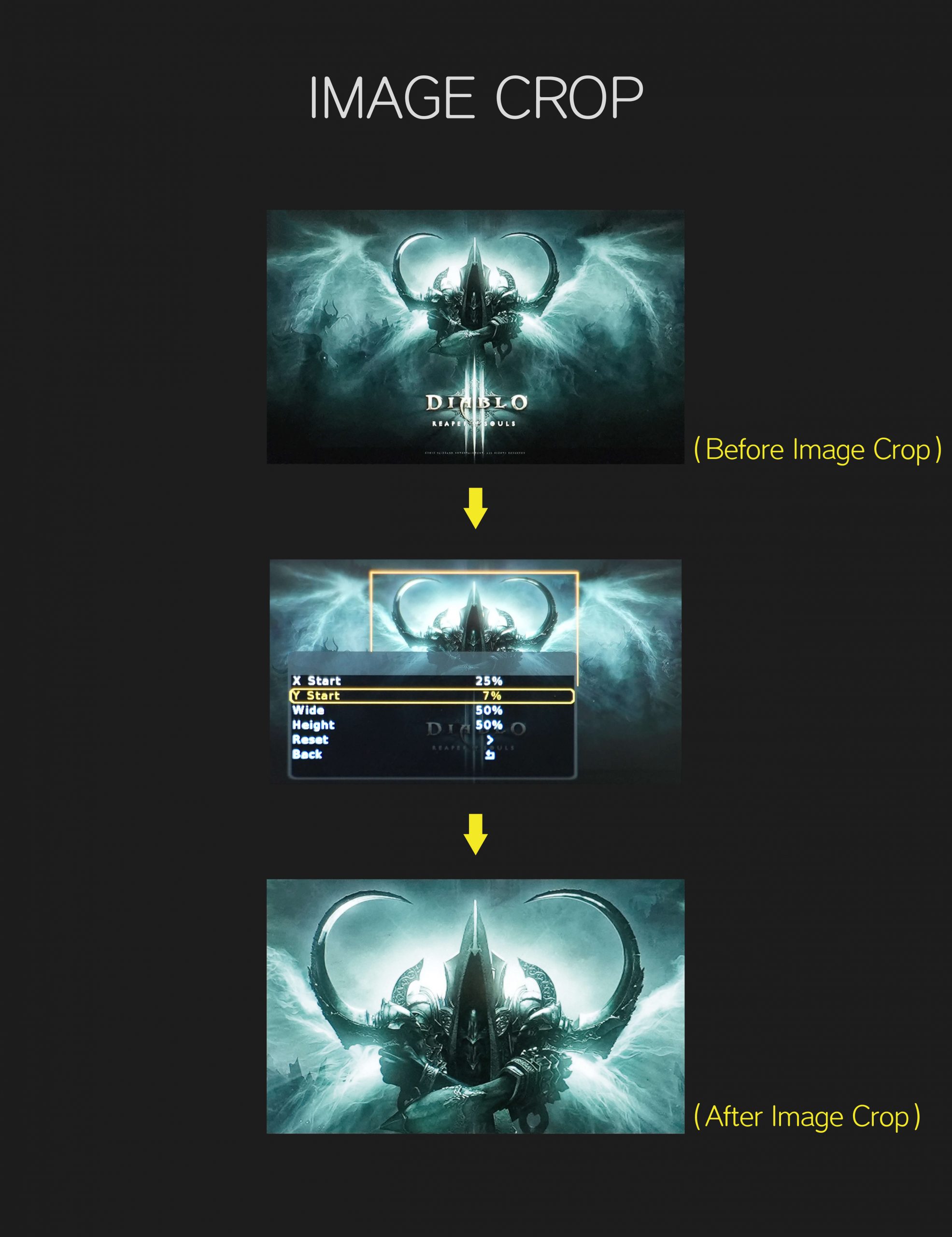

leye sdi 2 scaled

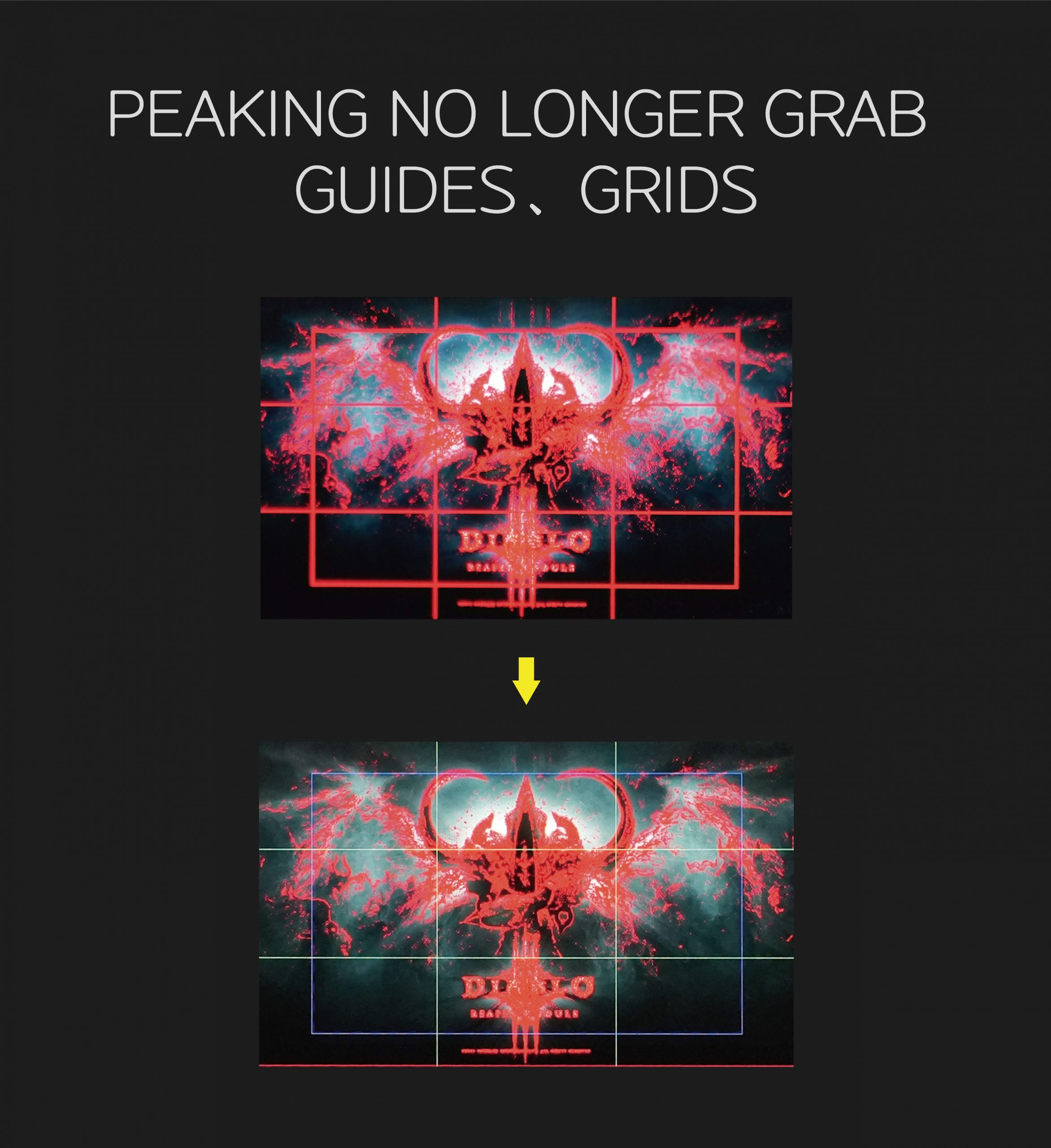

leye sdi 3 scaled

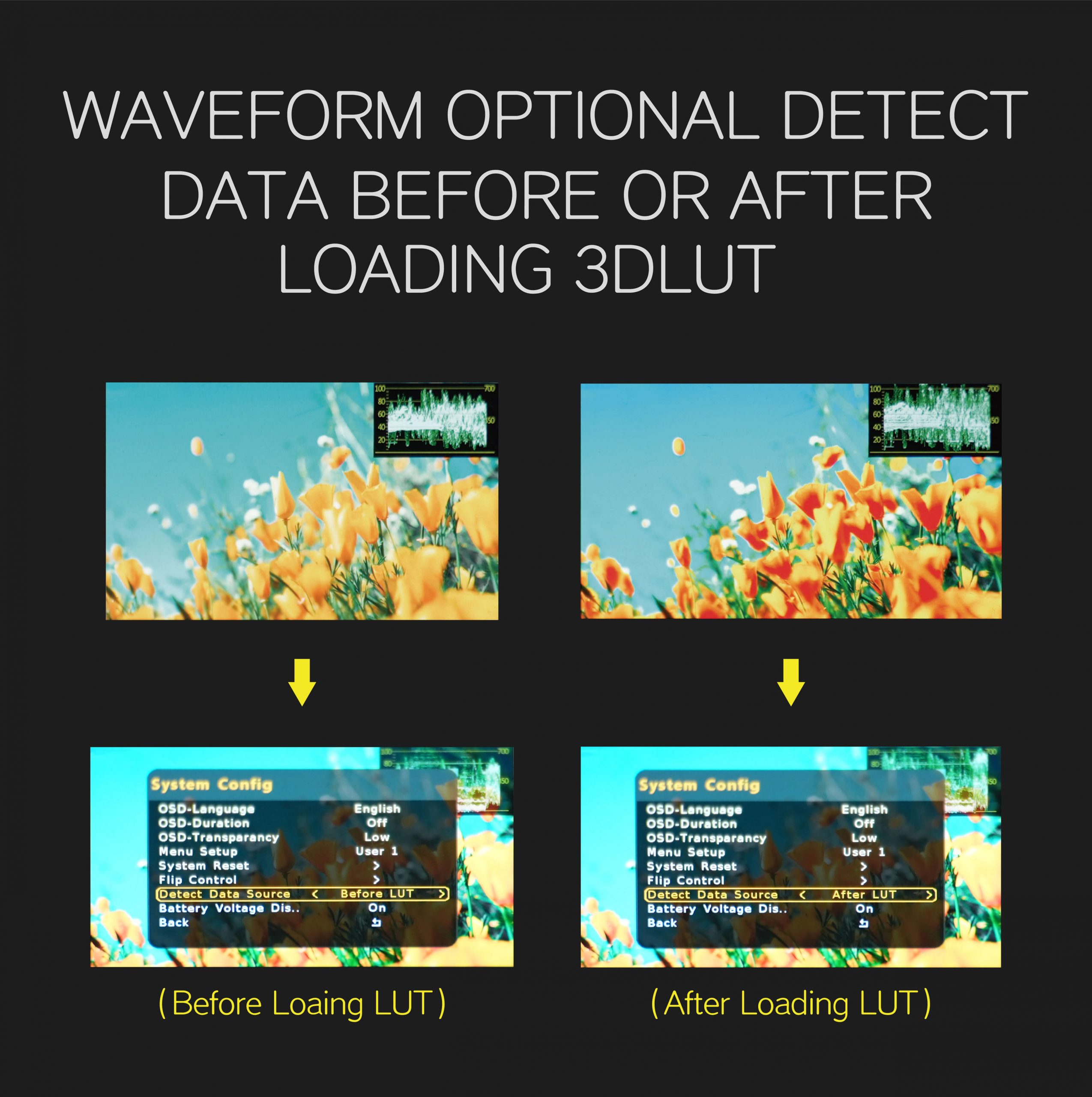

leye sdi 4 scaled

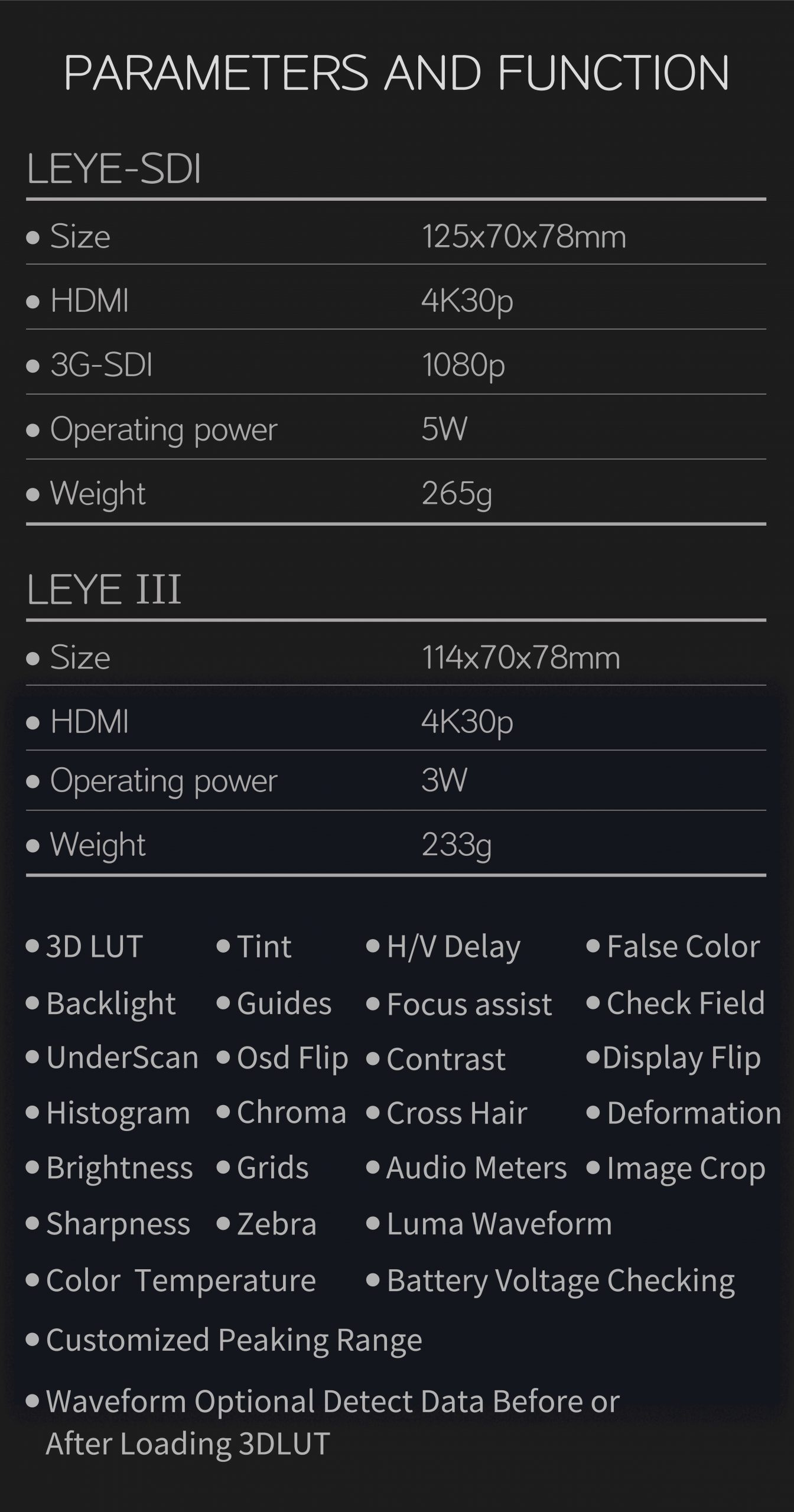

leye sdi 5 scaled

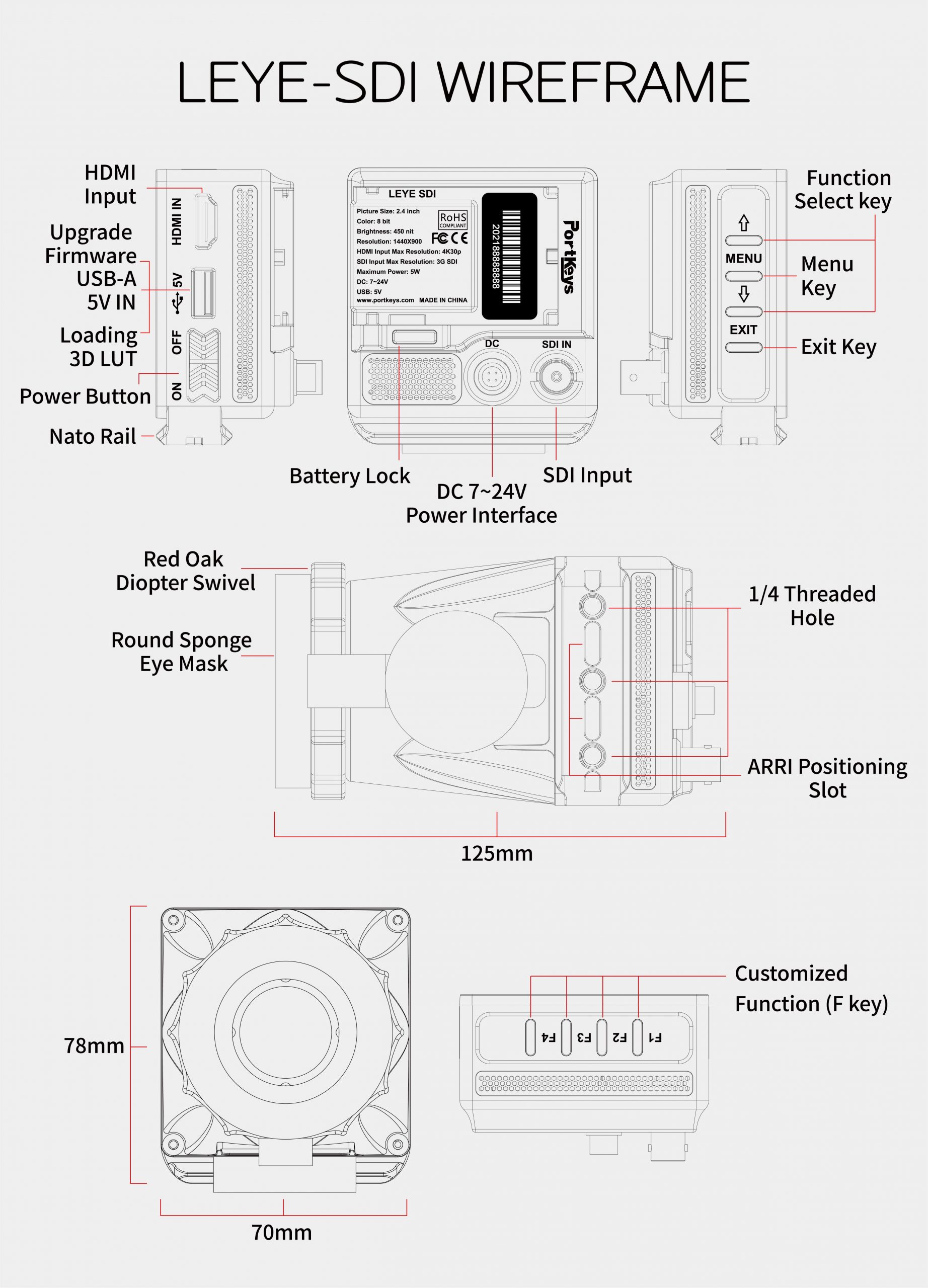

leye sdi 6 scaled

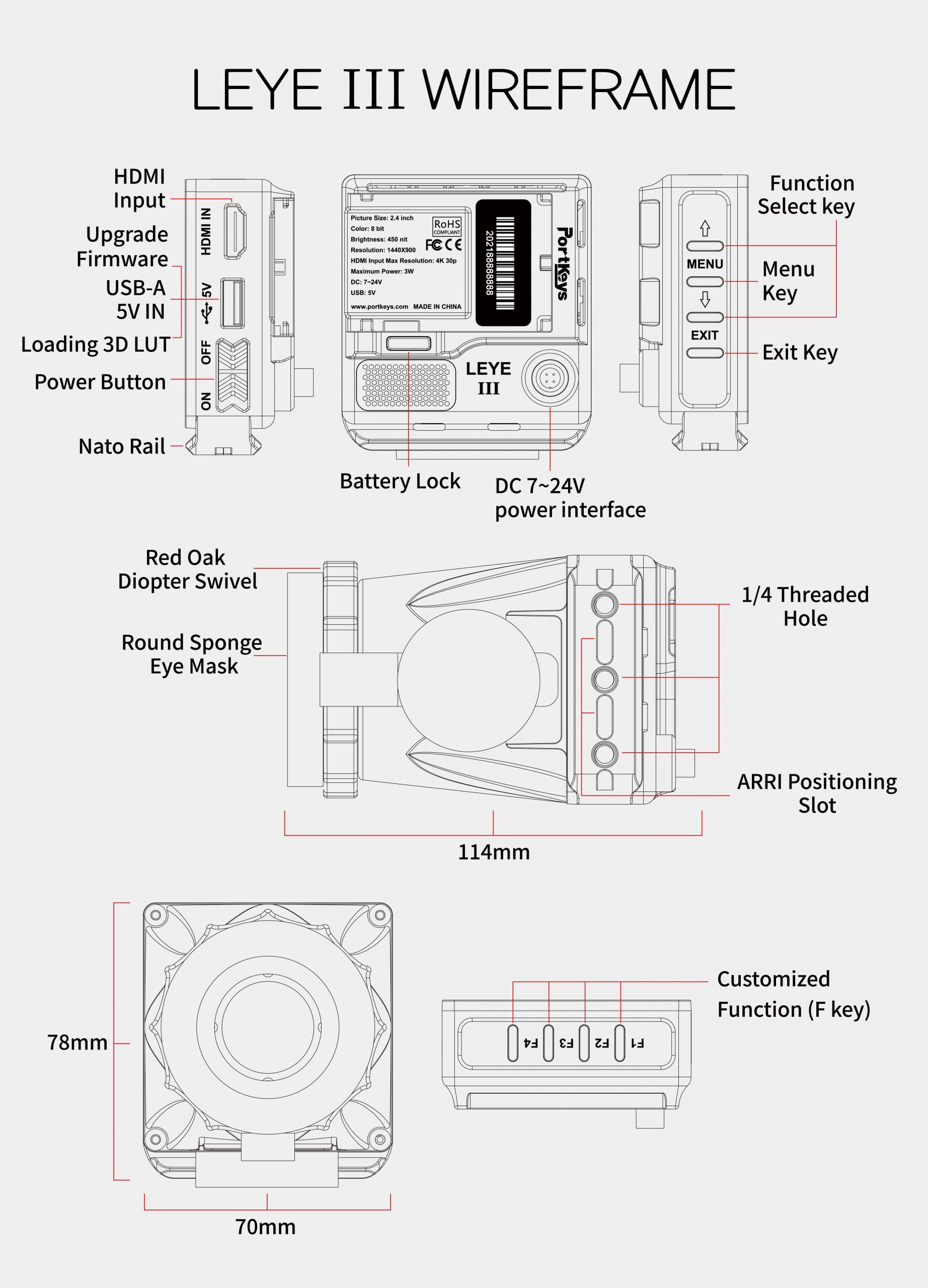

leye sdi 7 scaled

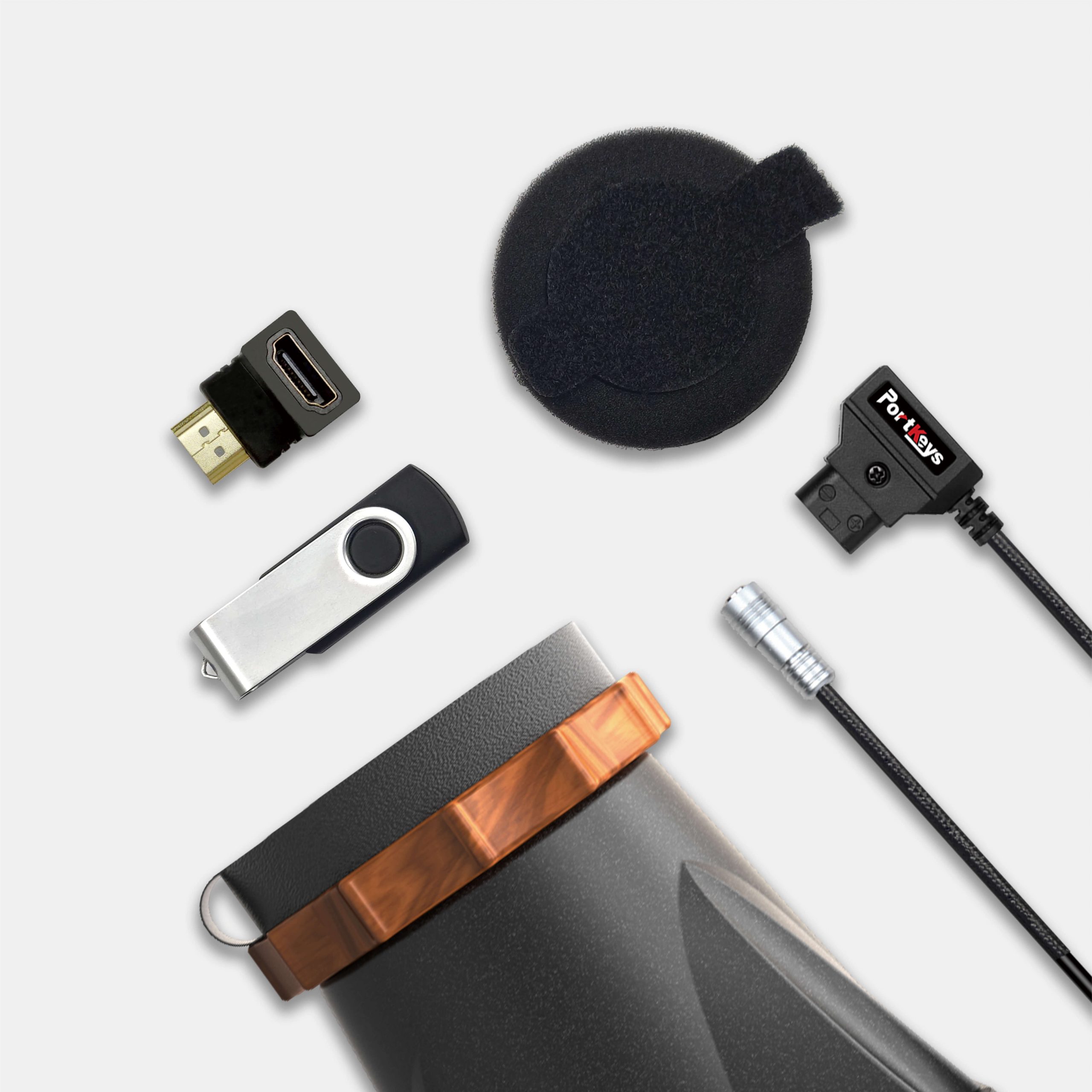

leye sdi 8 scaled

Parameters

Parameters

Manufacturer: PortKeys
Category: EVF (Electronic View Finder)

Main parameters

Size2.4"
Monitor inputsHDMI
Monitor inputs4K HDMI
Panel resolution1440x900
