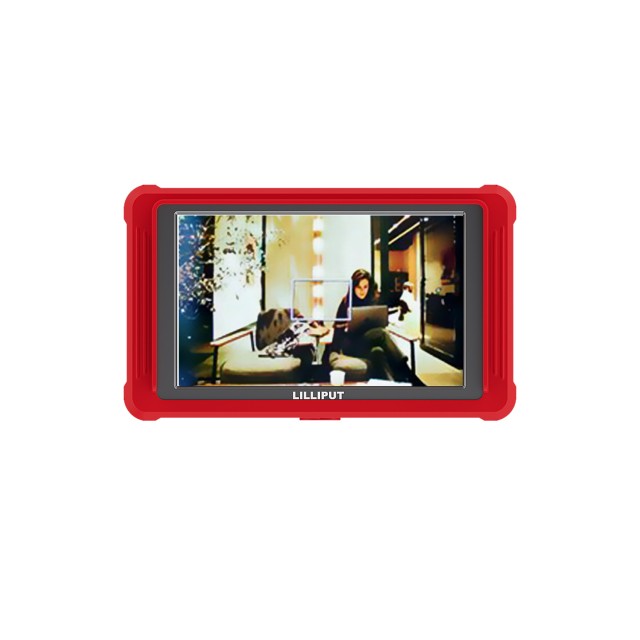

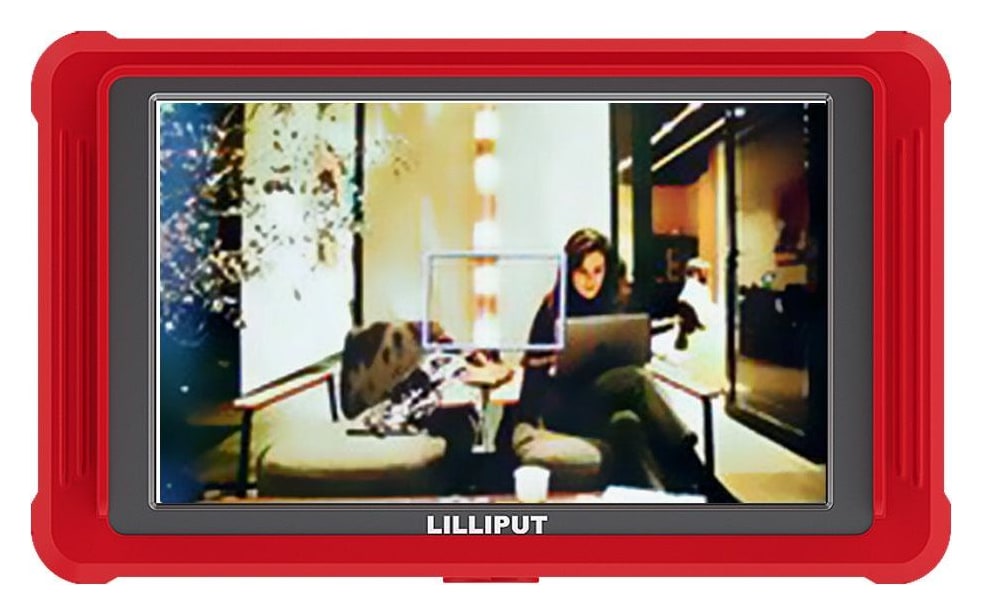

Lilliput FS5 5.4" HDMI 2.0/3G-SDI On-Camera Monitor

The Lilliput FS5 5.4″ HDMI 2.0/3G-SDI on-camera monitor is a top-of-the-range small monitor designed for the portable 4K shooter. It has a 1920 × 1200 resolution and displays up to 4K60 via the HDMI 2.0 input and up to 1080p60 via the 3G-SDI input. HDMI and 3G-SDI loop-through outputs feed an additional preview. The FS5 suits most needs for a portable, reliable 5.4″ monitoring solution.

5.4" monitor with HDMI 2.0 and 3G-SDI

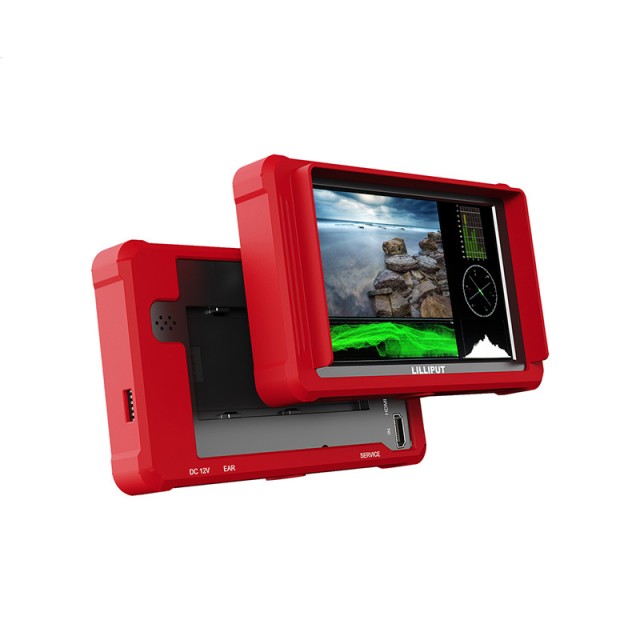

In its red silicone case the FS5 weighs 295 g, takes 4K60 over HDMI 2.0 and 1080p60 over SDI and covers 88% of DCI-P3. It operates from −20 °C.

5.4" LTPS 1920 × 1200HDMI 2.0 up to 4K603G-SDI in and out600 cd/m²295 g

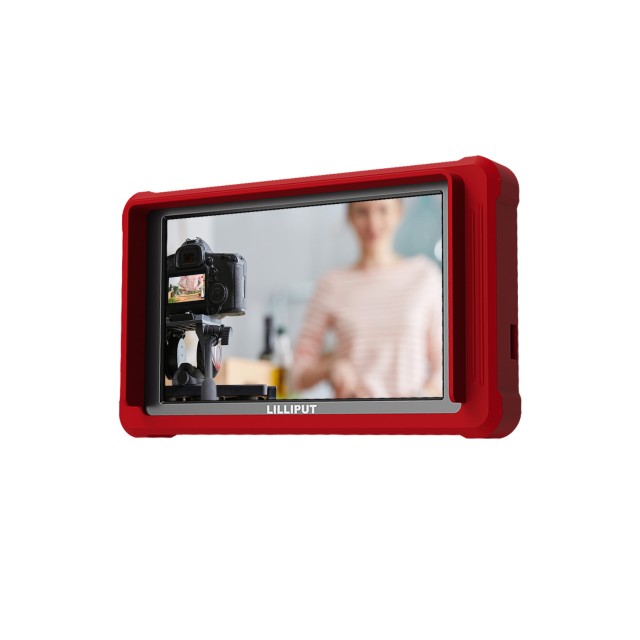

A small monitor for HDMI and SDI cameras

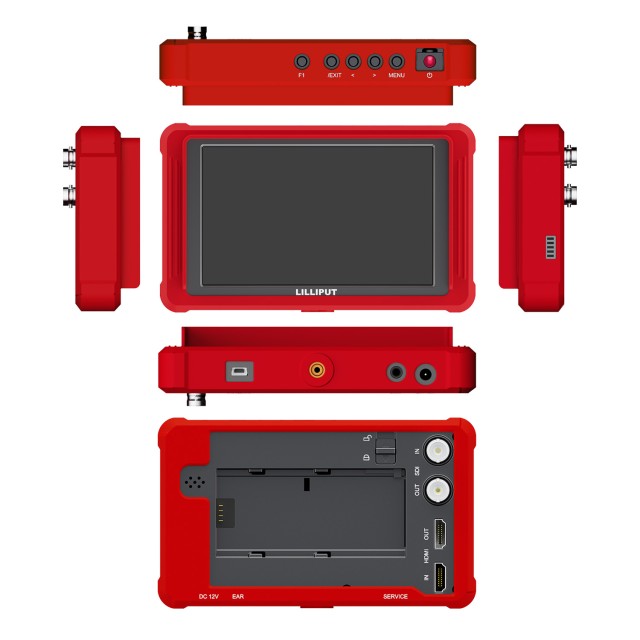

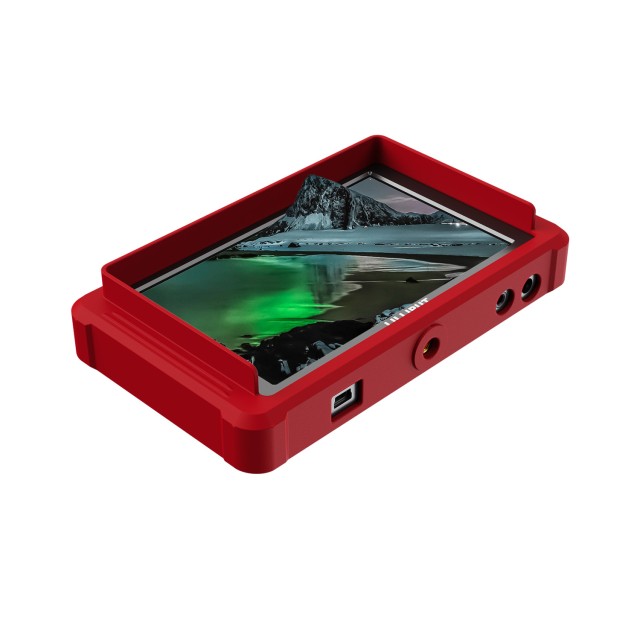

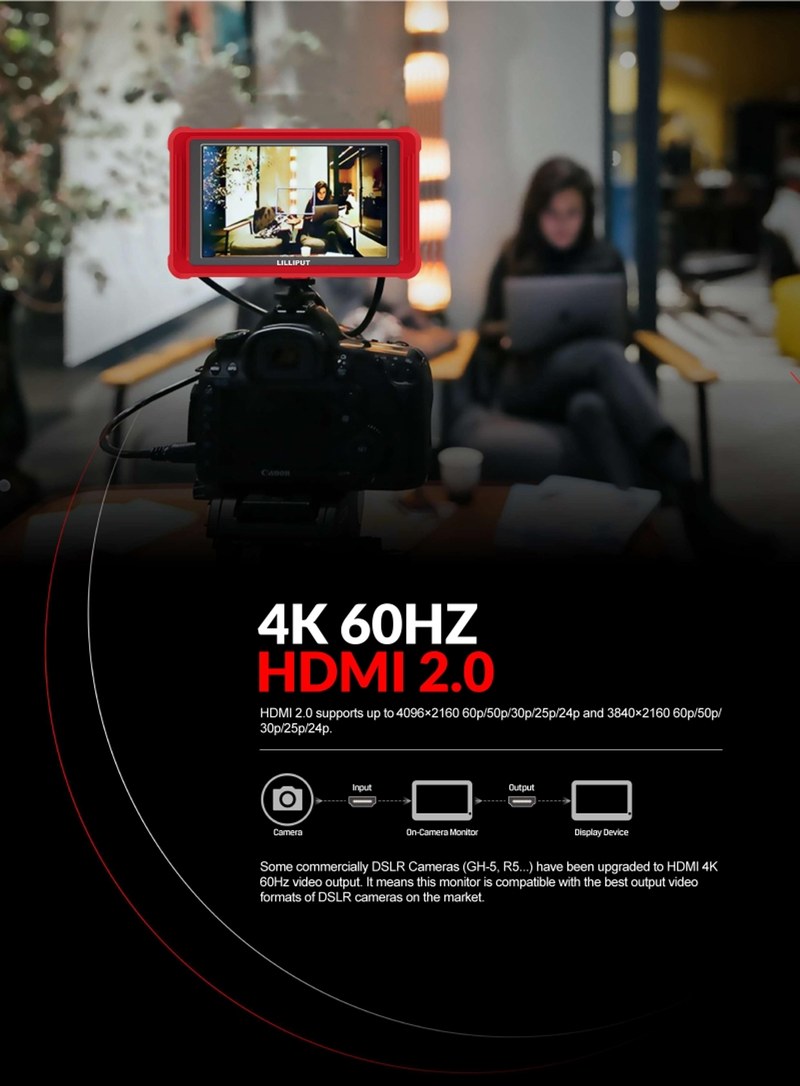

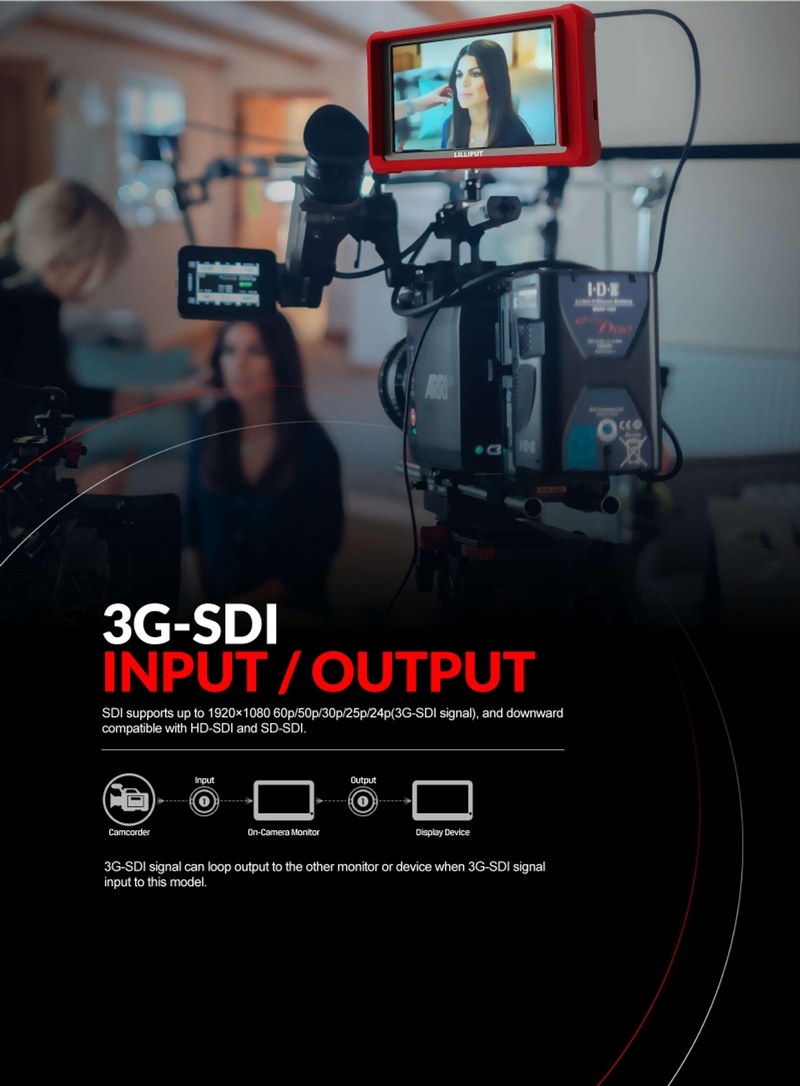

For a small 5" monitor the FS5 is exceptionally well equipped: HDMI 2.0 for cameras with 4K60 output, 3G-SDI for camcorders and loop-through of both signals. The silicone case protects the body in the field.

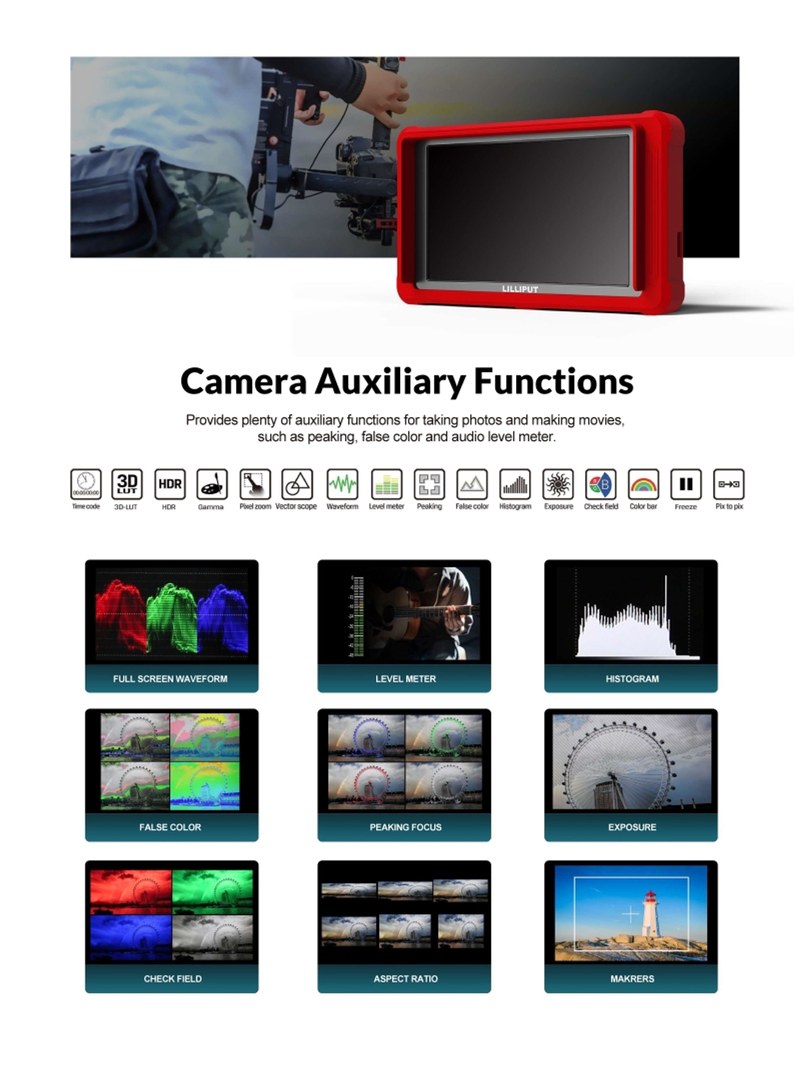

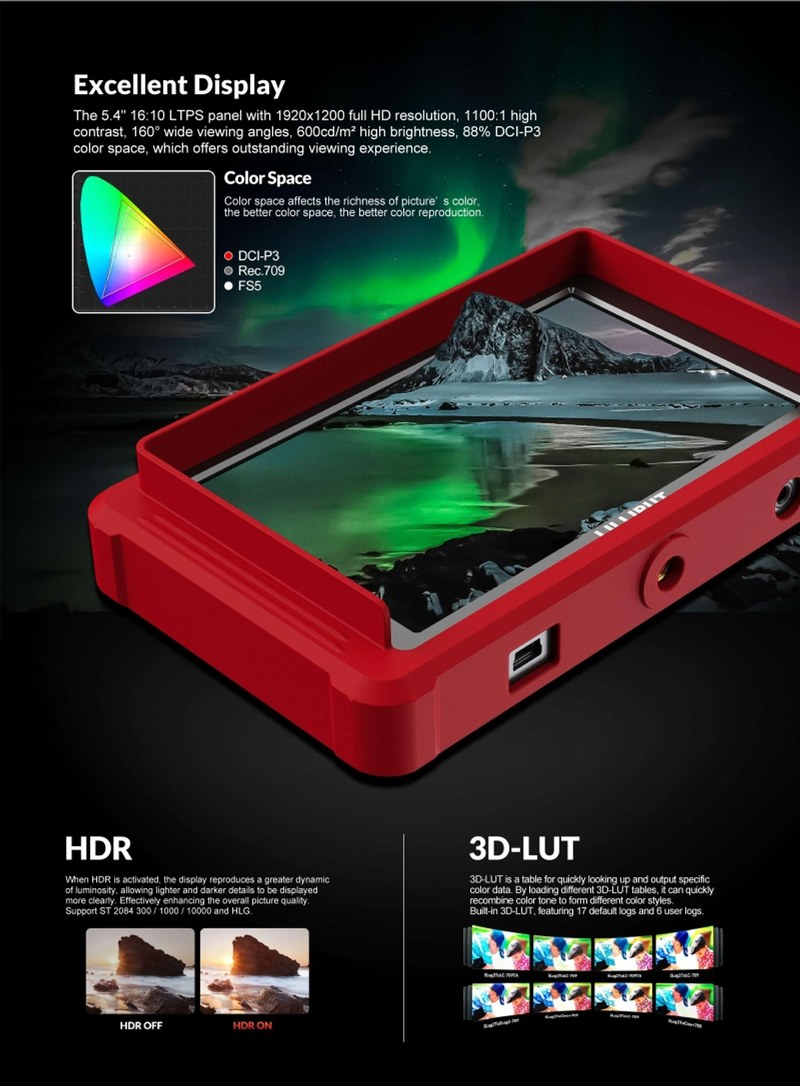

HDR and 3D LUT

ST2084 300/1000/10000 and HLG, 17 default and 6 user log curves.

88% DCI-P3 color

LTPS panel with 1100:1 contrast and a 160° viewing angle.

Cold-ready

Operating temperature −20 to 50 °C, storage from −30 °C.

NP-F and LP-E6

Plates for both batteries included; DC 7–24 V power too.
