Hollyland Mars M1 Enhanced Dual 5.5" Wireless Transceiving Monitors

Experience enhanced wireless monitoring with the Mars M1 Enhanced Dual Kit, featuring two versatile wireless monitors in one comprehensive package. These 5.5″ touchscreen displays integrate transmitter, receiver, and monitoring functions into a single body, providing precise monitoring with accurate color calibration and Rec.709 color gamut. With an impressive…

More information

1 069 € with VAT 883.47 € without VAT
-+
Personal pickup: 09. 12. from 09:00
Shipment day: 09. 12.
In stock 2 pcs
Praha 2 pcs
SKU:
HL-Mars M1 Enhanced Kit
Add to Compare Price history
Product description ARTICLES

Product description

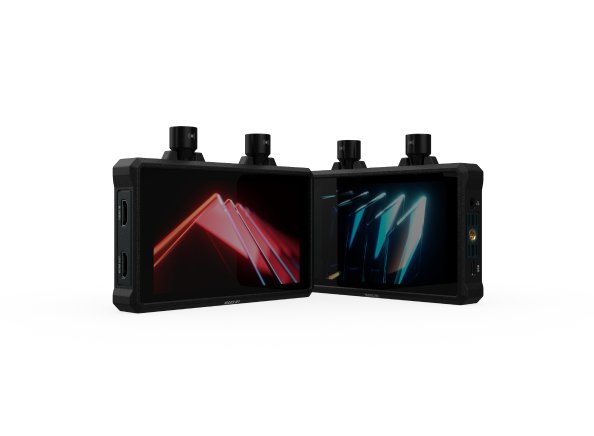

Experience enhanced wireless monitoring with the Mars M1 Enhanced Dual Kit, featuring two versatile wireless monitors in one comprehensive package. These 5.5″ touchscreen displays integrate transmitter, receiver, and monitoring functions into a single body, providing precise monitoring with accurate color calibration and Rec.709 color gamut. With an impressive line-of-sight range of up to 150m and a low latency of approximately 0.08 seconds, these monitors ensure seamless monitoring without noticeable lag. The dual kit offers expanded capabilities and compatibility with Hollyland Mars 4K, 300 Pro, and 400 Pro products, providing a powerful and flexible solution for your monitoring needs. The HollyView app for iOS/Android enhances convenience, allowing you to watch videos using your smartphone or tablet. Elevate your monitoring experience with the Mars M1 Enhanced Dual Kit.

The Mars M1 Enhanced Wireless Receiver/Transmitter/Monitor is a powerful and comprehensive solution for all your monitoring needs. Because it is an all-in-one device that integrates transmitter, receiver and monitor functions into a single solution, you can easily switch between transmitter and receiver modes in its menu. In addition, a single Mars M1 Enhanced transmitter can be seamlessly connected to up to two receivers or four mobile apps. The device is designed to work easily with Mars Pro and Mars 4K series video transmission systems.

The Mars M1 Enhanced is a high-end monitor with excellent color accuracy. With a highly responsive 5.5″ LCD touchscreen and brightness up to 1000 cd/m2, it is ideal for indoor and outdoor use. The monitor undergoes a colour calibration process during manufacture for maximum colour accuracy. In addition, you can fine-tune the RGB components through resetting to achieve color balance for your specific needs.

The Mars M1 Enhanced uses the HollyOS operating system offering a comprehensive set of advanced monitoring tools. And with support for decimal frame rates, the Mars M1 Enhanced also supports HDMI 4K/30fps input and output for expanded connectivity and compatibility. The SDI input also provides extensive connectivity options to meet the ever-widening range of professional video production needs.

The Mars M1 Enhanced is equipped with an intelligent channel scanning feature to help determine which channels are busy and which can be safely selected, ensuring stable, interference-free connections. It comes with newly designed compact antennas that save you time by eliminating the need for repeated disassembly and reassembly. It weighs approximately 400g and is manufactured with a high impact resistant body shell to ensure maximum durability and protection even in harsh working environments.

  • Inputs: HDMI 1.4b (female type A), 3G-SDI (female BNC)
  • Outputs: HDMI 1.4b (Loop Out) (female type A)
  • Antennas: 2x RP-SMA, male
  • Power Input: 2mm socket
  • Power Output: 2mm socket
  • Headphone: 3.5mm TRS
  • USB-C (USB-2.0 OTG)
  • Display: 5.5″ touch
  • Resolution: 1920x1080, 403 ppi, 16:9
  • Brightness: 1000 cd/m2
  • Contrast: 1000:1
  • Input voltage: DC IN 7-16V 2.5A (nominal 12V), NP-F battery 6.8V-8.4V
  • Output Voltage: 8.4V= ±5%
  • Power consumption: <16 W
  • Net weight: approx. 400 g without external antennas
  • Dimensions: 152x96x40 mm without external antennas
  • Input resolution: HDMI IN: 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29.97/30/50/59.94/60 Hz, 3840x2160p23.98/24/25/29.97/30 Hz, 4096x2160p23.98/24/25/29.97/30 Hz; SDI IN: 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60 Hz (3G-SDI level A), 1080p50/59.94/60 Hz (3G-SDI level B).
  • Output resolution: HDMI Loop Out (HDMI IN): 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29.97/30/50/59.94/60 Hz, 3840x2160p23.98/24/25/29.97/30 Hz, 4096x2160p23.98/24/25/29.97/30 Hz; HDMI Loop Out (SDI IN): 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29. 97/30/50/59.94/60 Hz; Note: When the device is connected to a Mars 4K transmitter in receiver mode and the HDMI video input resolution of the Mars 4K transmitter is 3840x2160p24/25/30 Hz, the HDMI video output resolution is 1920x1080p24/25/30 Hz.
  • Operating frequencies: 5.150-5.250 GHz, 5.250-5.350 GHz, 5.470-5.725 GHz, 5.725-5.850 GHz.
  • H.264 codec
  • Bit rate: 12 Mbps
  • Transmit power: ≤ 21+/-1.5 dBm
  • Transmission delay: approximately 0.08 s (test data when transmitting a 1080p60 signal in a lab environment)
  • Range (line-of-sight): up to 150 m in an undisturbed outdoor environment
  • Bandwidth: 20 MHz
  • Audio format: 8x audio channels for HDMI 1.4b
  • Operating temperature: -10 to 60 C

ARTICLES

Parameters

Parameters

Manufacturer: Hollyland
Category: Wireless video transmission

Main parameters

Size5.5"
Monitor inputsHDMI
Monitor inputsSDI
Input wireless videoHDMI
Monitor inputs3G-SDI
Monitor power supplySony NP-F
Luminosity1000cd/m2
Panel resolution1920x1080
