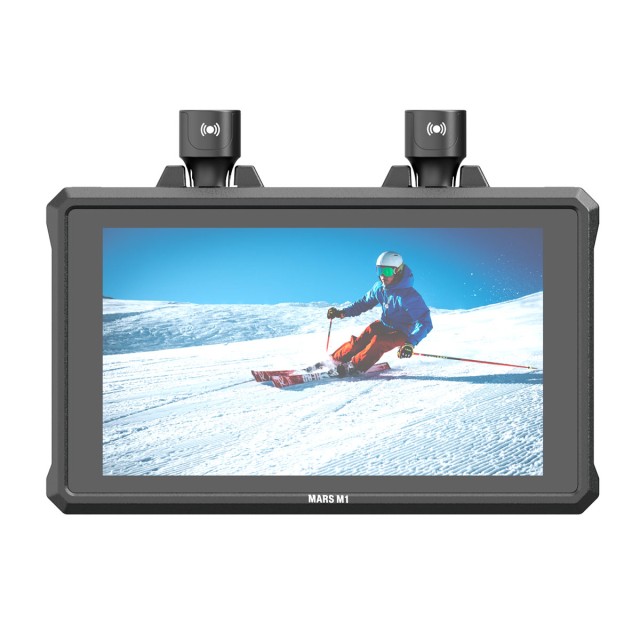

Hollyland Mars M1

Mars M1 is a 5.5" Touch LCD monitor with support of 1080p60 wireless video transmission with a range of 150 m (LOS). The Mars M1 functions as an all-in-one transmitter, receiver, and monitor solution compatible with Mars Pro and Mars 4K series! It is equipped with SDI and HDMI inputs (HDMI supports up to 4K/30 fps), and HDMI output.

More information

640.02 € with VAT 528.94 € without VAT
-+
Personal pickup: 06. 02. from 09:00
Shipment day: 06. 02.
In stock > 5 pcs
Praha > 5 pcs, Bratislava 2 pcs
Product description

Product description

Mars M1 is a 5.5" Touch LCD monitor with support of 1080p60 wireless video transmission with a range of 150 m (LOS). The Mars M1 functions as an all-in-one transmitter, receiver, and monitor solution compatible with Mars Pro and Mars 4K series! It is equipped with SDI and HDMI inputs (HDMI supports up to 4K/30 fps), and HDMI output.

TX, RX, and Monitor - All in One
The Mars M1 functions as an all-in-one transmitter, receiver, and monitor solution. You can switch to the state of the transmitter or receiver on the monitoring screen. The Mars M1 can be used together with the Mars Pro and 4K series to reduce the number of devices required for a more efficient shooting experience.

5.5" Touch LCD
The Mars M1 is designed with a 5.5" touch LCD featuring up to 1,000 nits of brightness. With professional color calibration performed during manufacturing, each screen is set up with 6500K as the default color temperature, and multiple-level color temperature adjustments are available. The screen supports the Rec. 709 color gamut for excellent color rendition. Five selectable 3D LUT presets are available for transferring colors to the monitor (LUT files are stored on a USB-C flash drive). The Mars M1 also featuree a variety of auxiliary functions, such as 4x zoom, focus assist, exposure assist, and waveform display, which increases shooting efficiency.

150m 4K transmission
The Mars M1 achieves an incredible LOS range of 150m and ultra-low latency of 0.08s! It supports 4K/30fps HDMI input and output for expanded connectivity and compatibility. The SDI provides expanded frame rate flexibility for both broadcast and production frame rate (decimal-point frame rate) standards and compatibility through production and postproduction. Channel assignment options allow for interference-free transmission. A stable connection is possible automatically upon startup. Smart channel scan helps determine which ones are occupied and selectable.

Optional Accessories
The Mars M1 optional accessories are designed to enhance your shooting experience. The rosewood handle supports a one-handed grip. The wristband and halter strap allow you to hold the monitor with one hand and also secure it around your shoulder. The lens hood option greatly enhances the color saturation and lens protection.

SPECIFICATIONS


  • TX, RX, and Monitor—All in One
  • 5.5" Touch LCD 1920x1080
  • Brightness 1000 cd/m2, 1000:1 Contrast Ratio
  • SDI and HDMI In, HDMI Out
  • 3D LUTs
  • 150m LOS Range with 80 ms Latency
  • 4K/30fps Support (HDMI)
Parameters

Parameters

Manufacturer: Hollyland
Category: Wireless video transmission

Main parameters

Latency0,08s
Input wireless videoSDI
Input wireless videoHDMI
Monitor power supplySony NP-F
Size5.5"
Monitor inputsHDMI
Monitor inputsSDI

Other parameters

Other featuresTouchscreen
Other featuresResilient
Other features3D LUT correction
Other featuresWireless
