VariZoom VZ-M5 KIT ( VZM5K ) 5 inch HDMI monitor

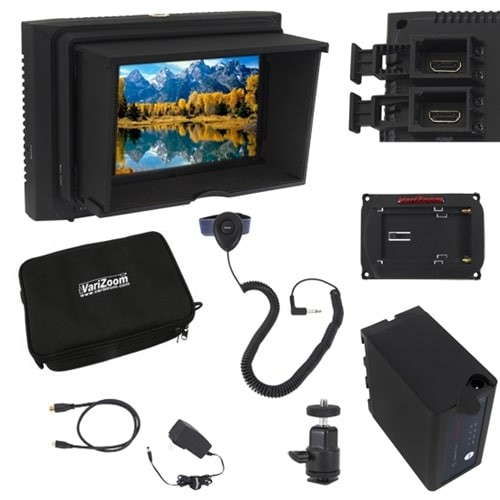

The VariZoom VZ-M5 Kit (VZM5K) is a complete 5-inch HDMI monitoring solution for professional video productions. This deluxe kit includes the ultra-sharp VZM5 monitor, collapsible sunhood, high-capacity Sony L series battery, charger, swivel shoe mount, HDMI cable locks, remote zoom button for focus assist, AC adapter, two HDMI cables, and a soft carrying case—everything needed for reliable, accurate monitoring on set.

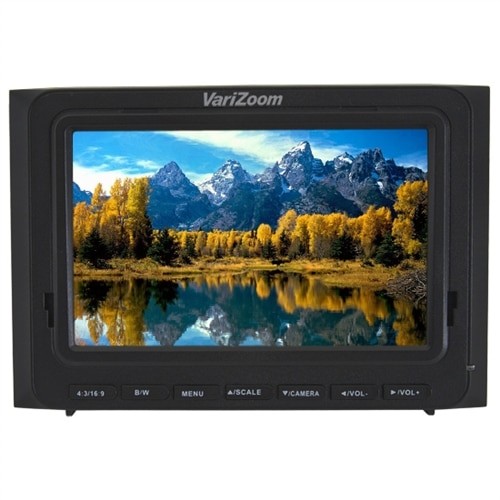

The VariZoom VZ-M5 Kit (VZM5K) delivers a professional monitoring experience in a compact, portable package. The 5-inch VZM5 monitor provides crisp, accurate video representation with HDMI loop-through, DSLR scaling, auto aspect ratio detection, and advanced focus assist functions such as pixel-to-pixel zoom and peaking. Its LED backlight offers 500 cd/m² brightness, 800:1 contrast, and a 10ms response time for clear outdoor viewing.

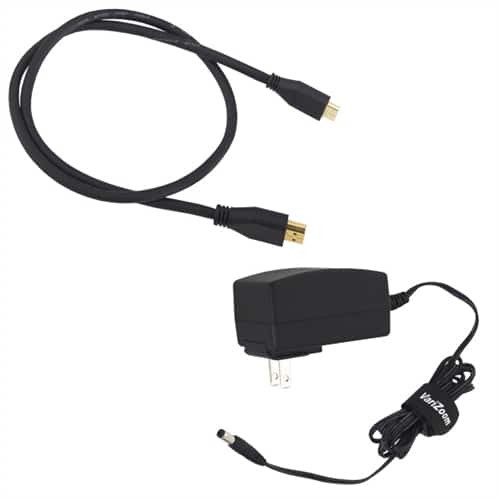

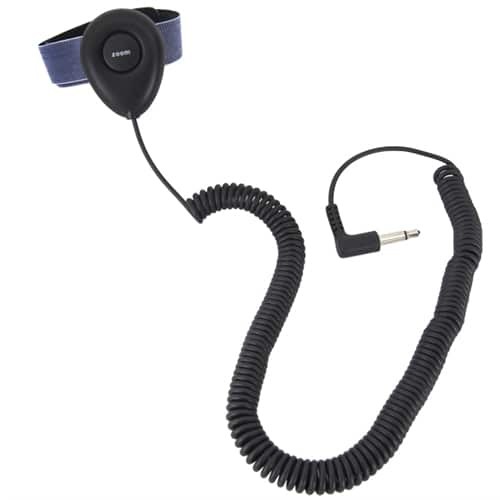

Included in this kit are all accessories required for versatile field or studio use: a collapsible sunhood/screen protector, a high-capacity 47Wh Sony L series battery with up to 6 hours of runtime, compact charger, pre-mounted battery plate, HDMI cable locks to secure connections, swivel shoe mount, remote zoom button for focus assist, AC adapter, and two HDMI cables (standard-to-standard and standard-to-mini). The soft carrying case keeps all components protected and organized for transport.

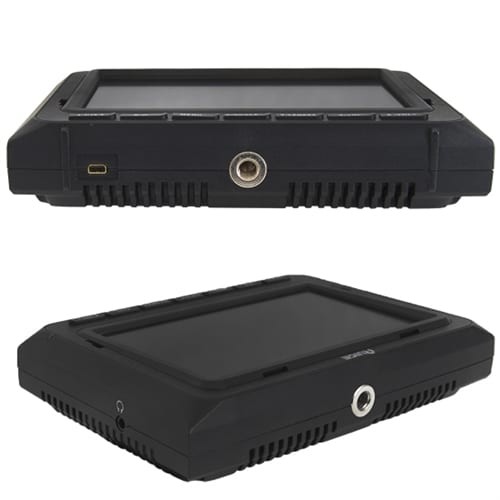

The VZM5 monitor supports 1080p and 720p signals, 480i/p, 576i/p, and is HDCP compliant. Adjustable settings include brightness, contrast, saturation, sharpness, color temperature presets (D65/D93), safety area markers, centerline and 4:3 markers, underscan/overscan modes, monochrome mode, and image flip for inverted mounting. Audio monitoring is available via the 3.5mm headphone output, while dual ¼”-20 mounts on top and bottom provide flexible mounting options.

Key Features:

• 5-inch HDMI monitor with 800 × 480 native resolution

• High brightness 500 cd/m² and 800:1 contrast ratio

• Full HD support: 1080p, 720p, 480i/p, 576i/p

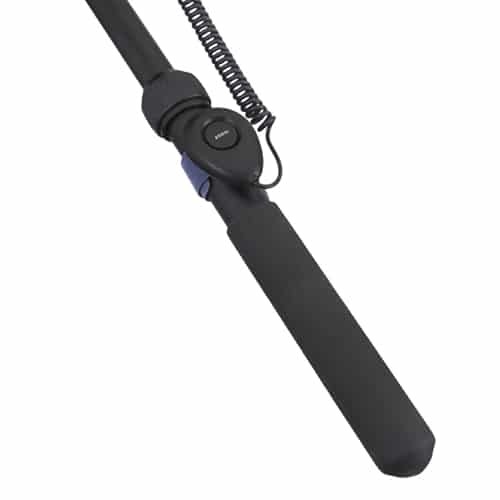

• Pixel-to-pixel zoom and peaking for precise focus assist

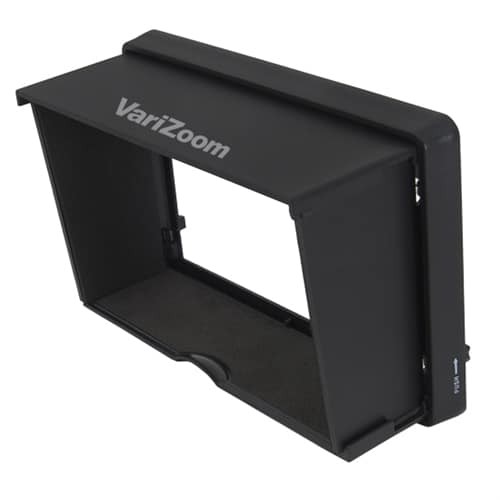

• Collapsible sunhood for outdoor viewing and screen protection

• Sony L series battery system (47Wh) for up to 6 hours runtime

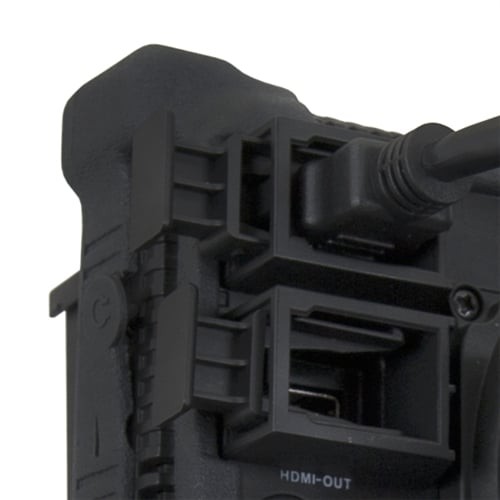

• HDMI input/output with secure cable locks

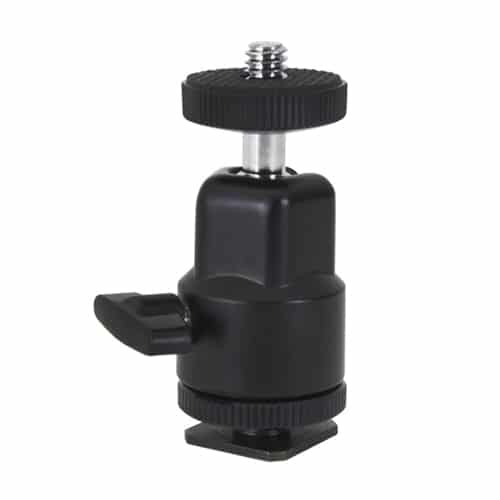

• Swivel shoe mount and ¼”-20 top/bottom mounting points

• Adjustable image settings: brightness, contrast, saturation, sharpness, color temperature

• Safety markers, underscan/overscan, centerline, and 4:3 area markers

• AC adapter and compact charger included

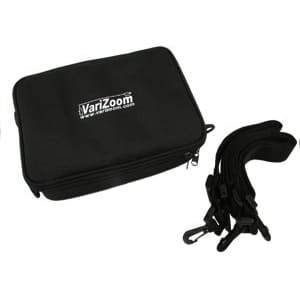

• Soft carrying case for all accessories
