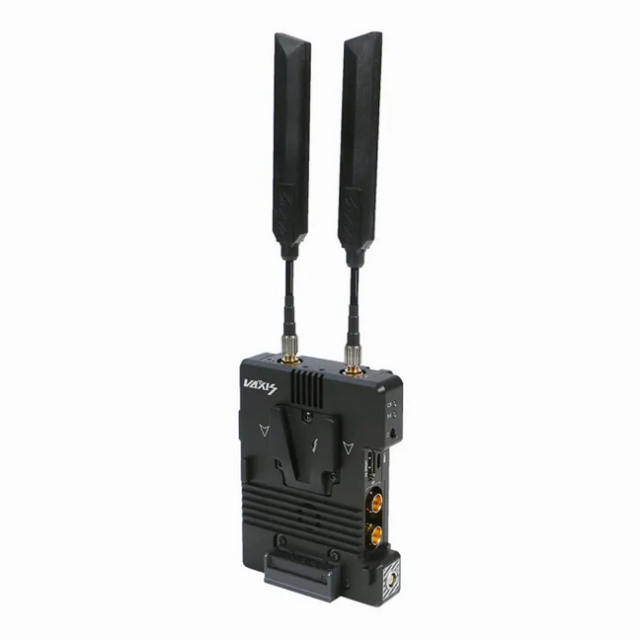

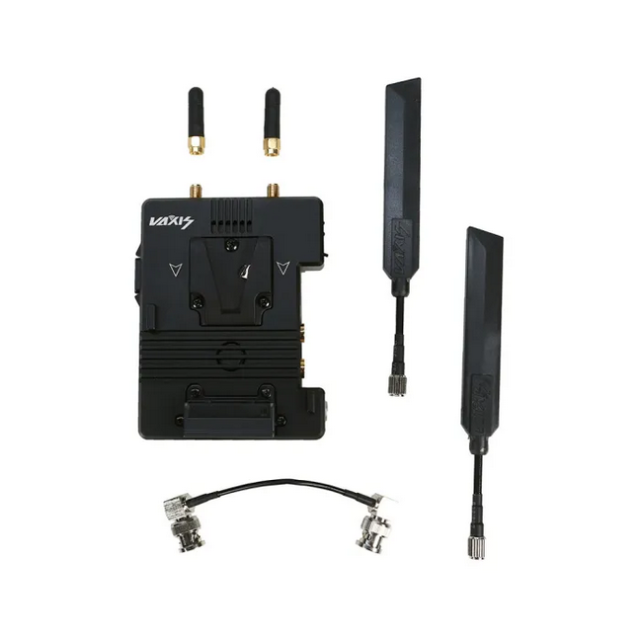

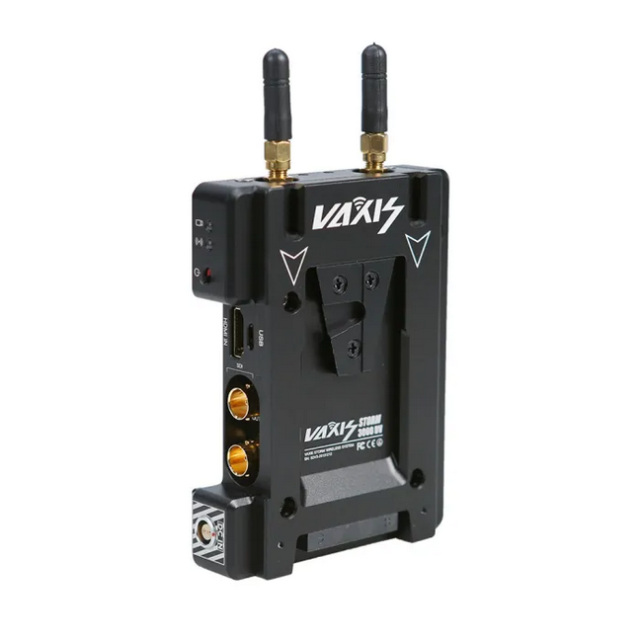

Vaxis Storm 3000 DV TX (Transmitter)

The Vaxis Storm 3000 DV transmitter with two pass-through V-Mount plates powers itself and the camera from one battery. Uncompressed 1080p60 with under 1 ms latency up to 3000 ft, 3G-SDI and HDMI inputs and SDI loop.

Storm 3000 DV is the Storm 3000 transmitter with two V-Mount plates: one takes the battery, the other mounts it straight onto a V-Mount camera or device, and power passes through. It sends the image uncompressed up to 3000 ft (914 m) with under 1 ms of delay and has a 2-pin LEMO input for external power.

A transmitter with V-Mount pass-through

Storm 3000 DV wireless transmitter – camera and transmitter run from a single V-Mount battery.

Up to 3000 ft rangeUnder 1 ms latencyDual V-MountSDI and HDMI inputs3G-SDI loop out

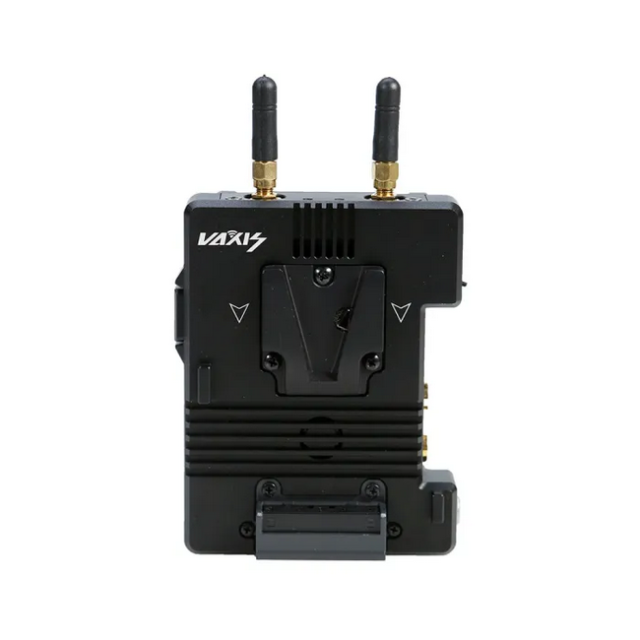

Two V-Mount plates

The transmitter sits between camera and battery and powers both from one source. No extra cable and no separate battery for the transmitter.

Camera connections

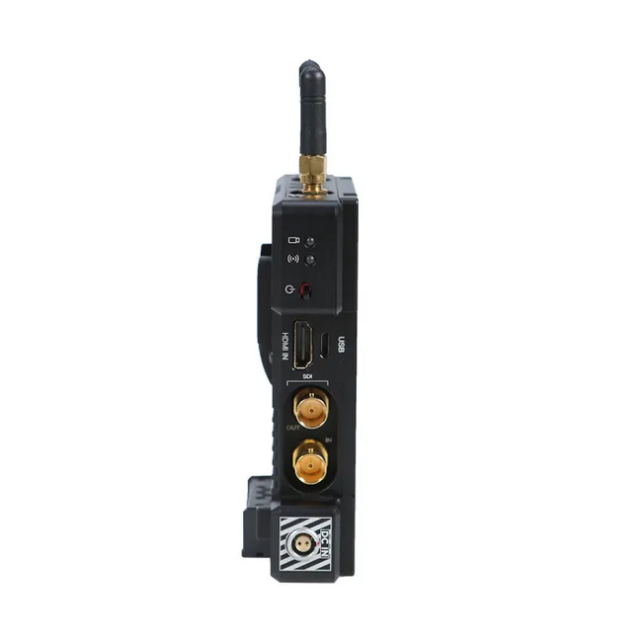

3G-SDI and HDMI inputs and an SDI loop output for an on-camera monitor. It carries timecode and metadata and supports ARRI ALEXA Mini instant playback.

One battery for the whole rig

Pass-through V-Mount plates simplify the camera build: one battery instead of two plus a cable. Meanwhile the transmitter sends a full-quality image without compression and practically without delay.

Multicast

One transmitter for several Storm 3000 receivers.

Encryption

Digital encryption protects the link from eavesdropping.

Active cooling

Smart cooling and a bright display in a metal body.

1/4″-20 mount

Thread for mounting on a rig, arm or cage.

1000 metres of range. The more robust signal loses far less image quality at extreme distance, so Storm 3000 handles a football stadium or a big production.
