STORM 3000 KIT, 1TX 1RXV MOUNT

Vaxis Storm 3000 sends uncompressed 1080p60 with zero latency up to 1 km. Kit with transmitter and V-Mount receiver, SDI and HDMI inputs, SDI loop output, AES encryption and a waterproof case with 8 Blade antennas.

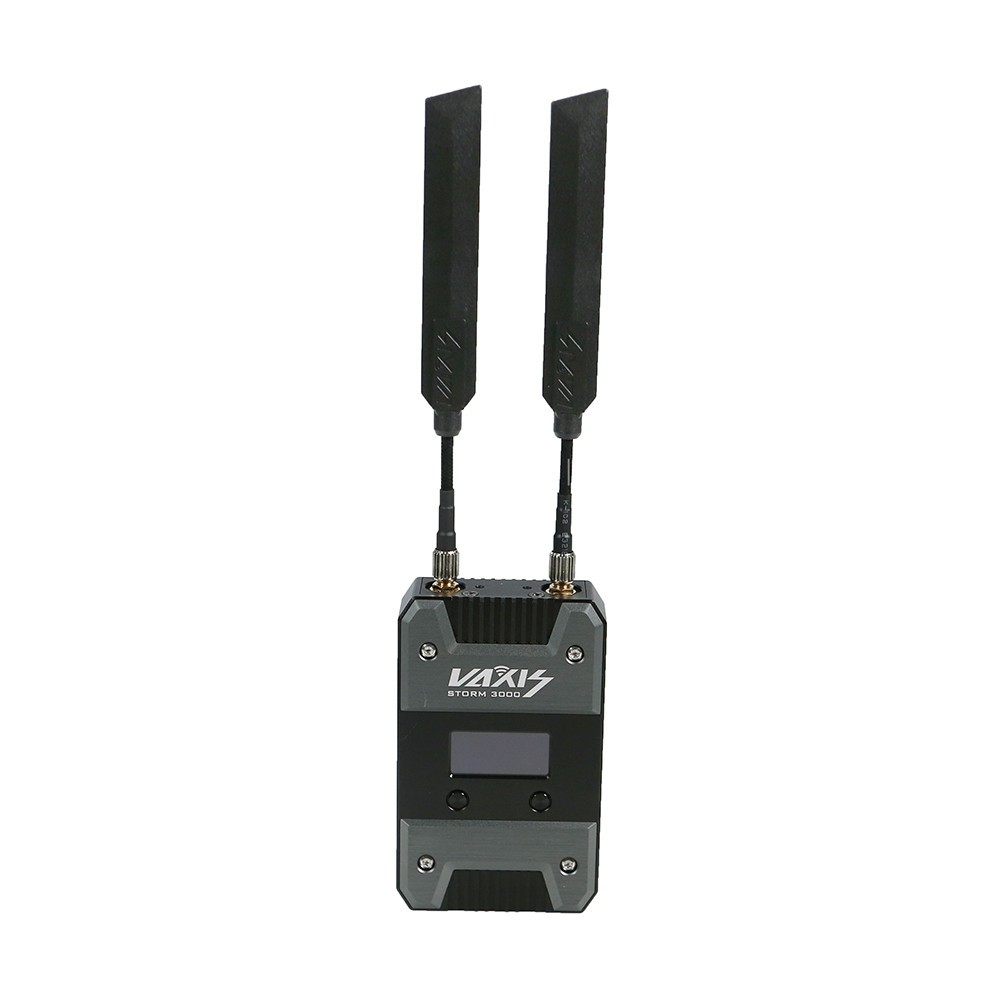

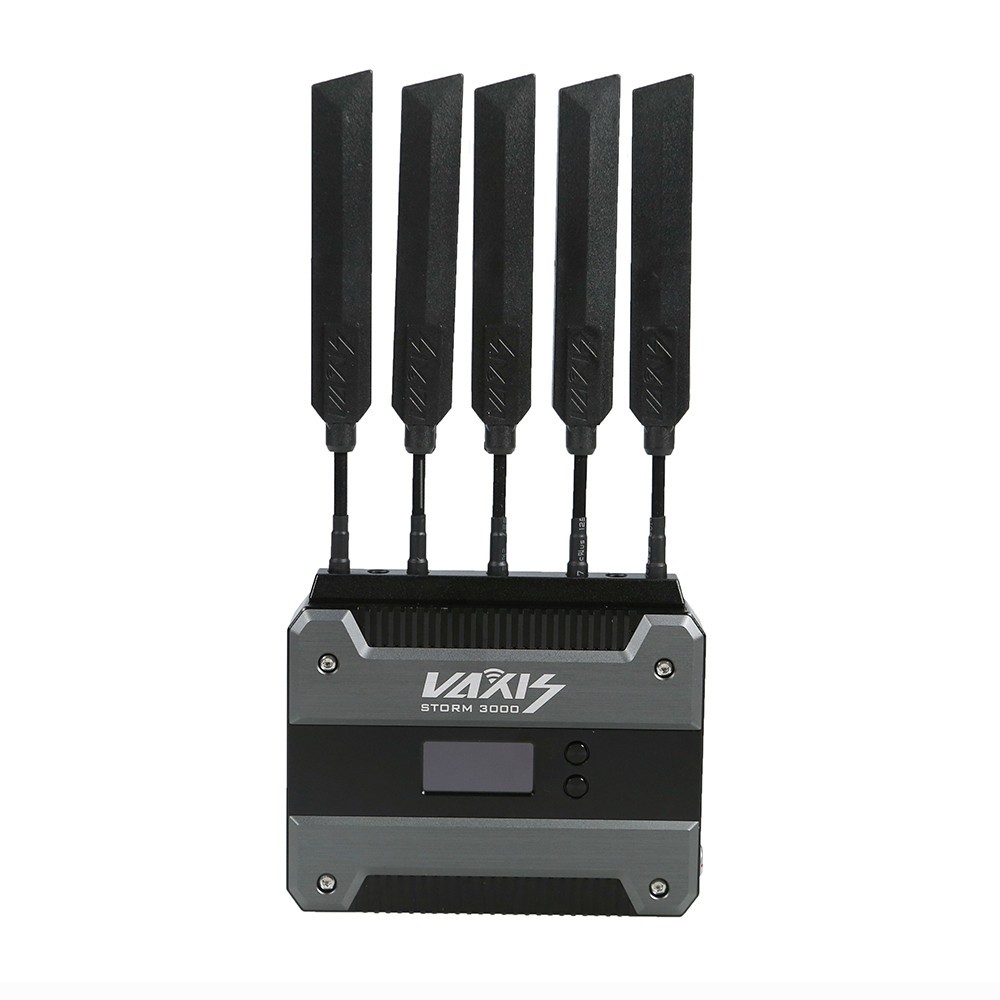

Storm 3000 is a professional wireless video link for large productions, sports and live broadcast. The transmitter takes the camera signal over 3G-SDI or HDMI, and the receiver with integrated V-Mount plate outputs it on two SDI and one HDMI – uncompressed and with under 1 ms of delay.

A kilometre with no cable and no delay

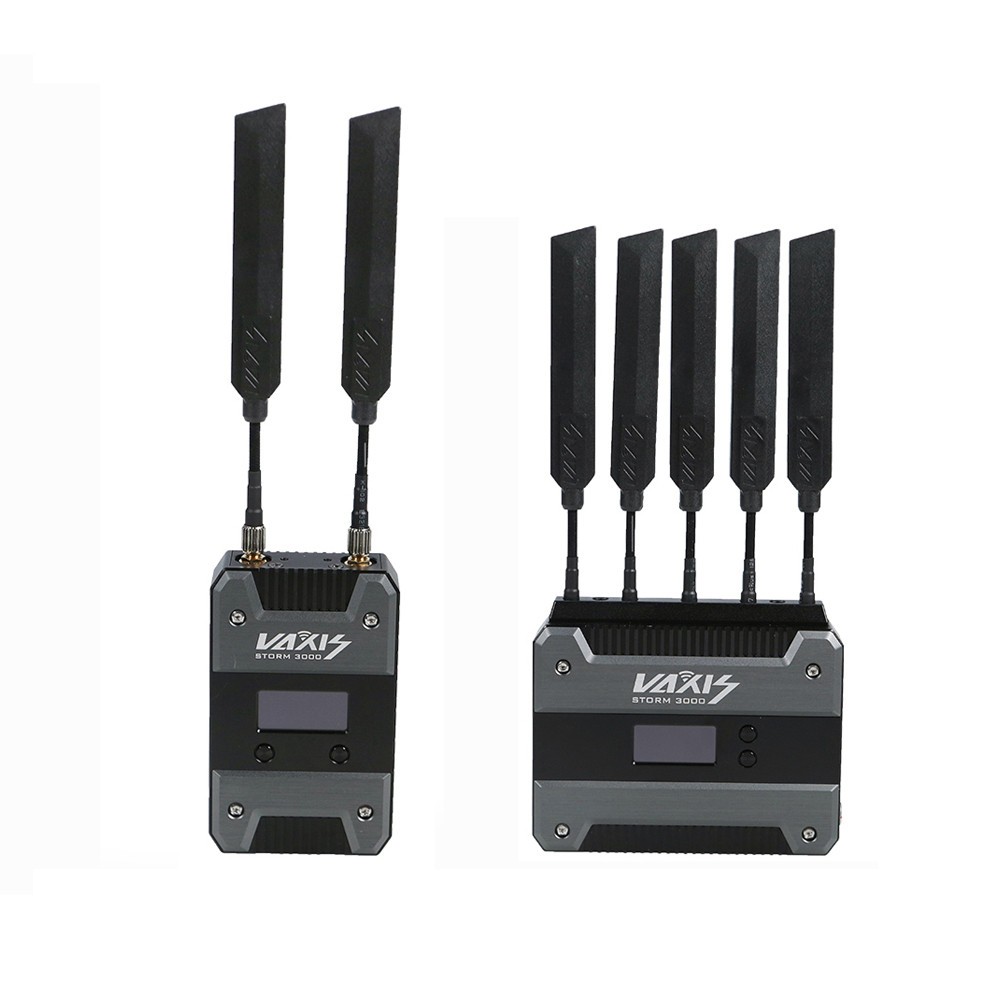

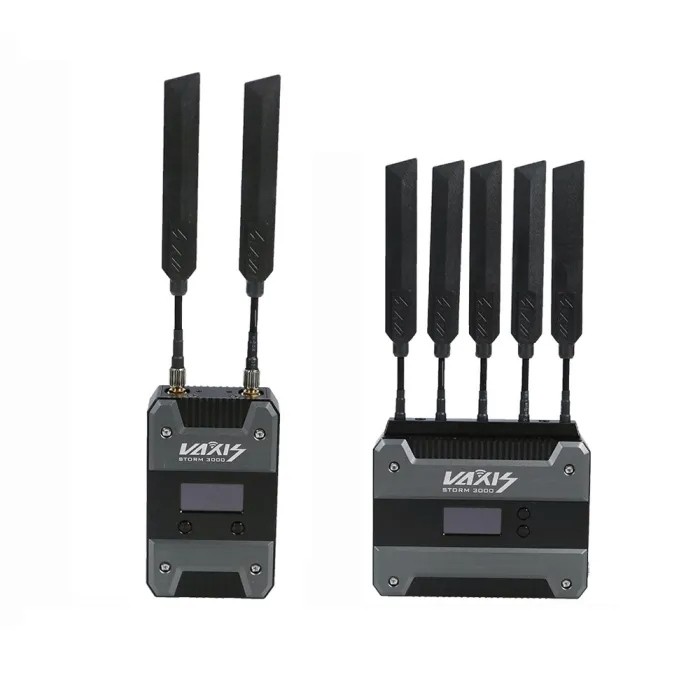

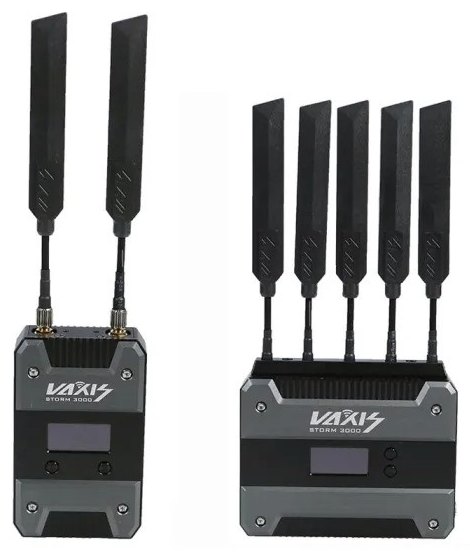

Storm 3000 transmitter and receiver kit with a V-Mount battery plate on the receiver, flight case and eight Blade antennas.

Up to 1000 m rangeUnder 1 ms latencyUncompressed 1080p60AES 128 encryptionV-Mount receiver

Professional mode

The new mode cuts one more frame of delay compared with regular operation. Focus puller and director see the image practically at the same moment as the camera.

Rugged construction

Recessed ports protect the connectors from knocks and the antenna cover extends antenna life. The battery plate is built into the receiver body.

All in one case

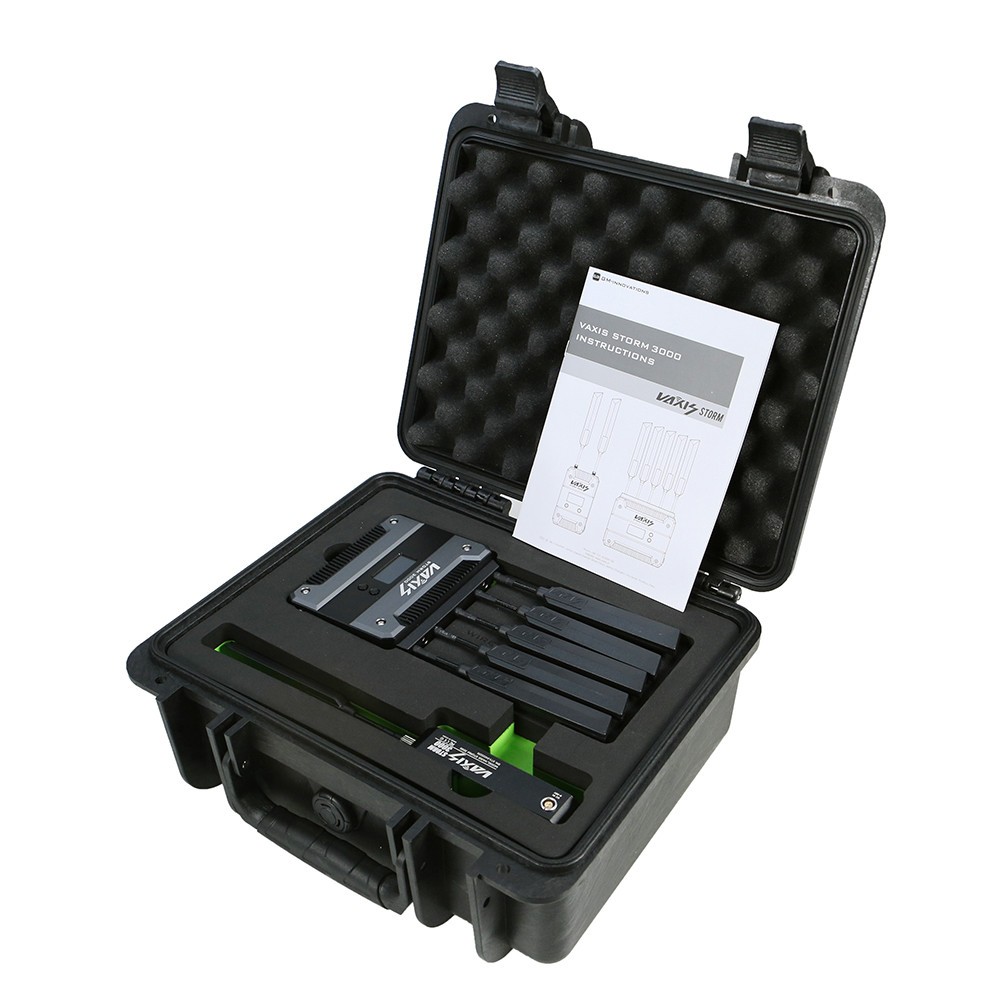

The kit ships in a waterproof case with eight Blade antennas, a 7″ magic arm, two power cables and an SDI cable.

Just like a cable

Uncompressed transmission with zero latency means the monitor shows exactly what the camera sees, at the same moment. Focusing, lighting and directing can go wireless without compromise.

Multicast

One transmitter feeds any number of receivers on the same channel.

Active cooling

A 35 mm fan keeps both units running through long, hot shooting days.

Wide power input

6–36 V via 2-pin LEMO, plus a V-Mount battery on the receiver.

Smaller body

The receiver is 40 % and the transmitter 17 % smaller than the previous generation.

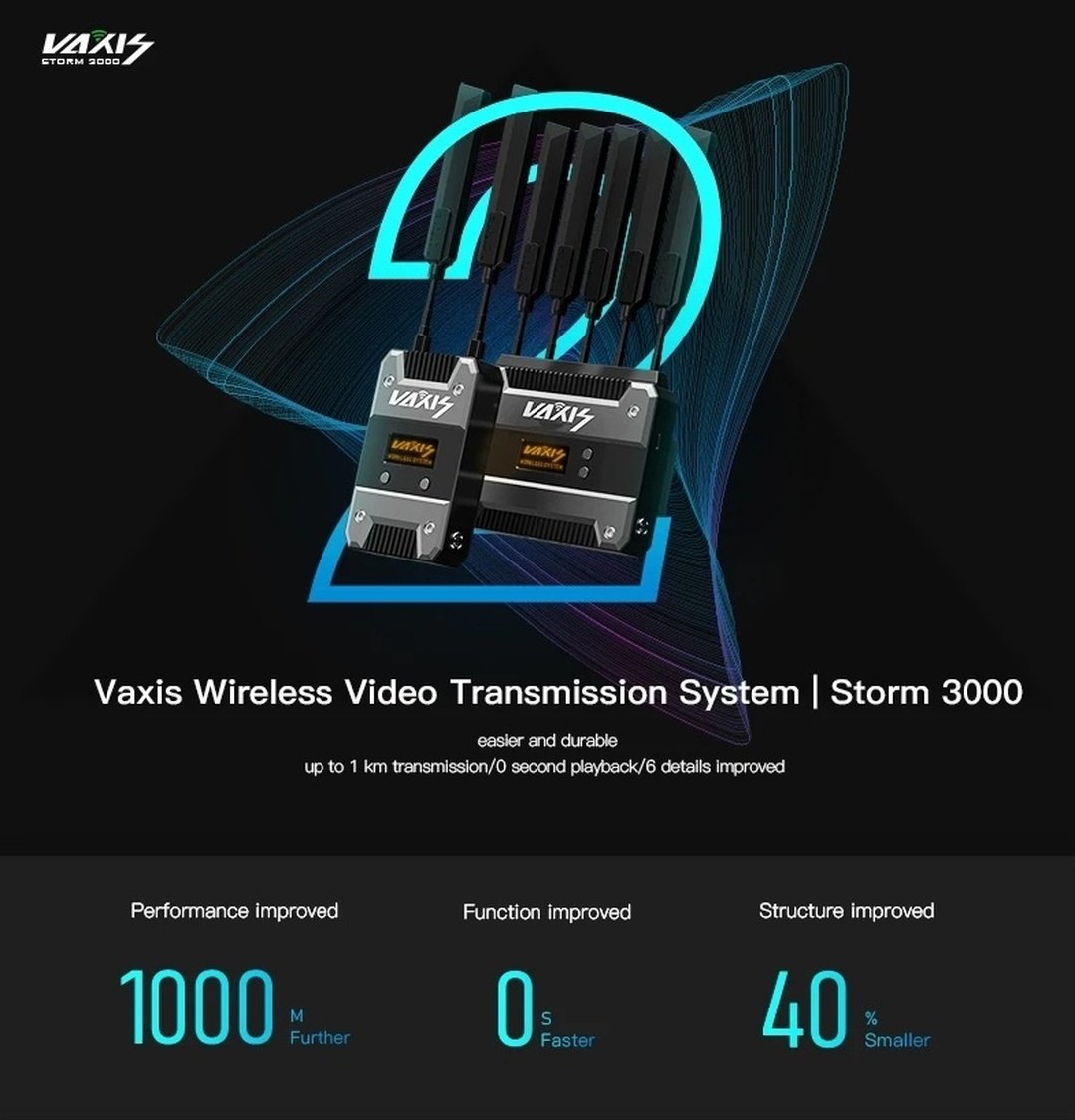

Storm 3000 at a glance. Up to 1 km range, zero-delay playback and six improvements over the previous generation – better performance, functions and structure.

1000 metres of range. The more robust signal loses far less image quality at extreme distance, so Storm 3000 handles a football stadium or a big production.

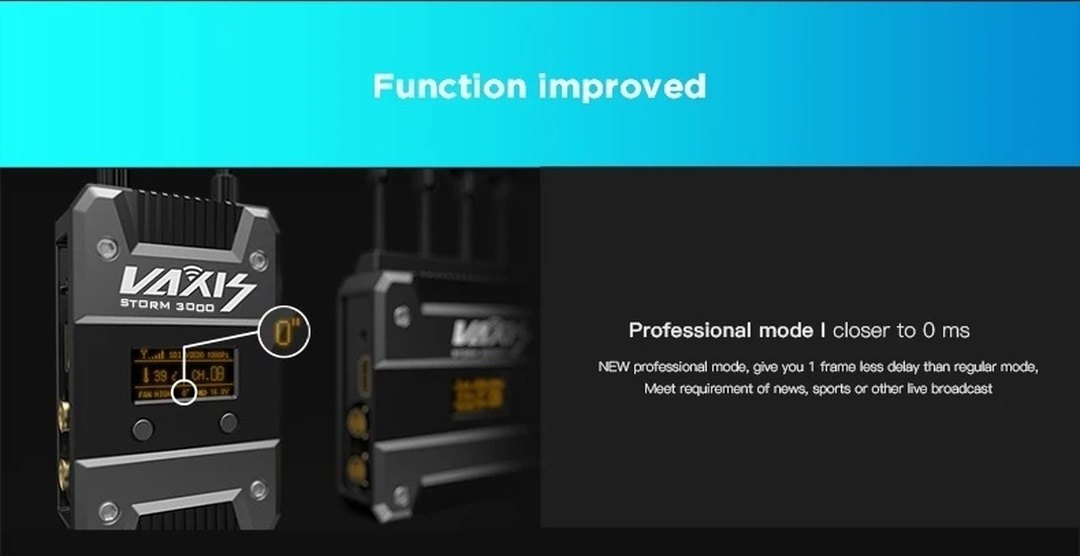

Professional mode. One frame less delay than in regular mode – for news, sports and other live broadcasts.

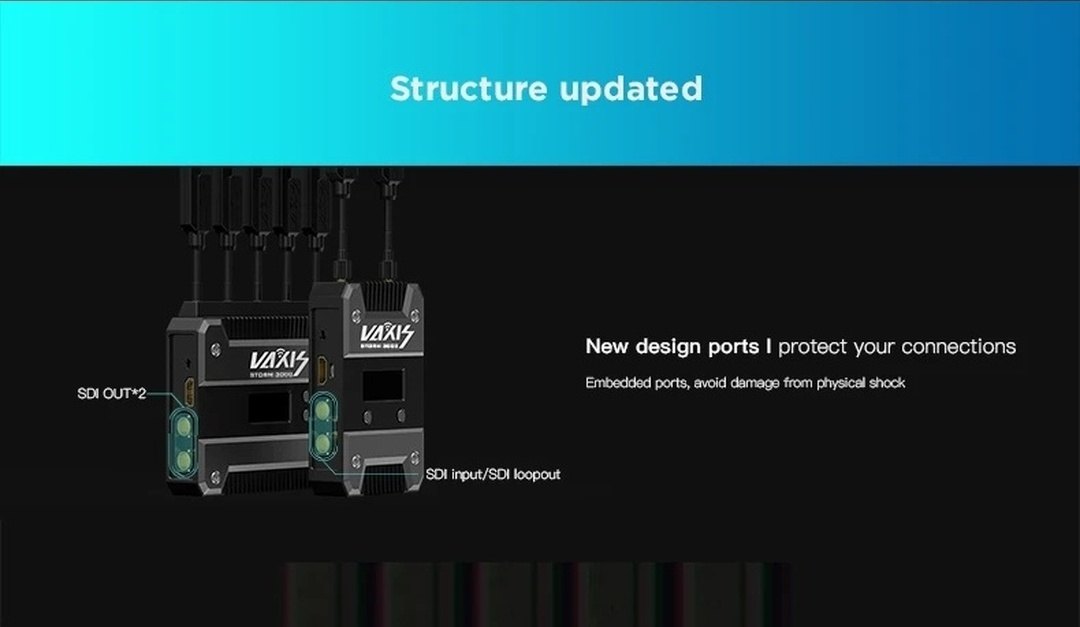

Protected ports. The receiver has two SDI outputs, the transmitter an SDI input and loop output; recessed connectors withstand knocks.

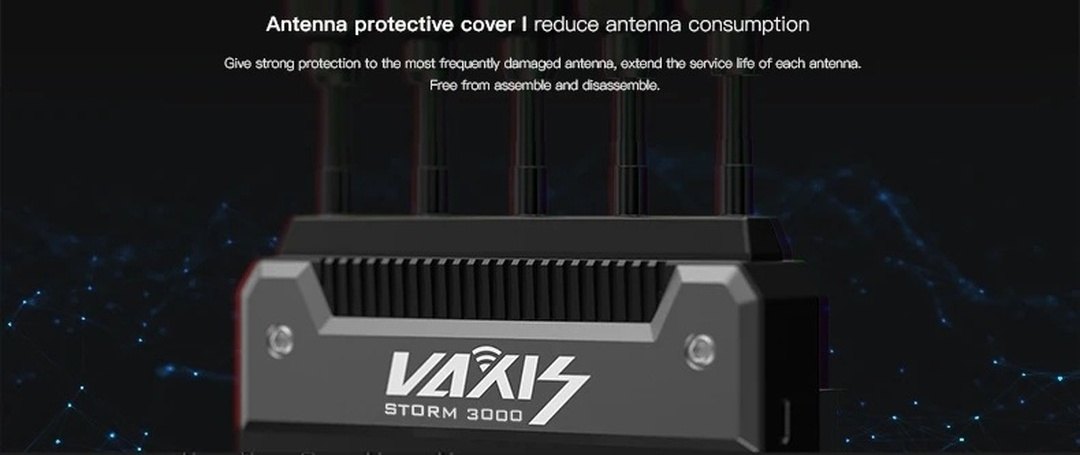

Antenna cover. Protects the most frequently damaged part of the system and extends the life of every antenna, with nothing to assemble.

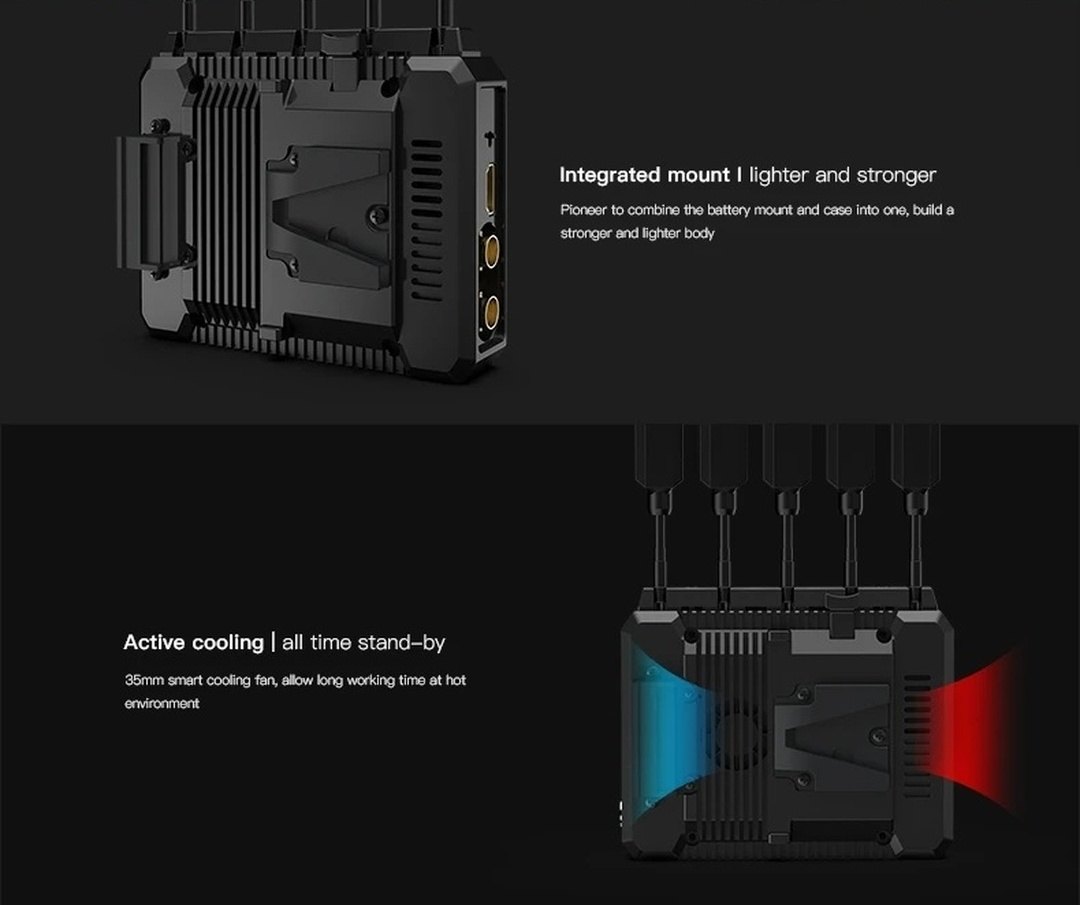

Integrated mount and cooling. The V-Mount battery plate is part of the receiver body, and a smart 35 mm fan allows long operation even in the heat.

Stronger and smaller. The receiver is 40 % smaller, the transmitter 17 %, and the integrated mount makes the structure stiffer.

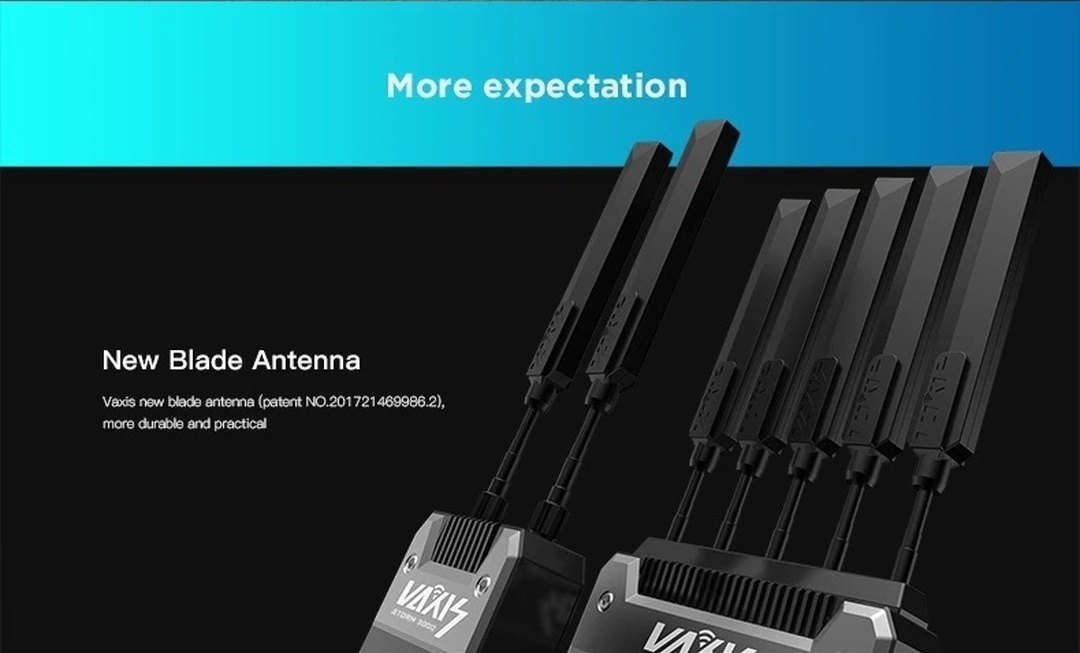

Blade antennas. The new patented antennas are more durable and practical; the kit includes eight of them.

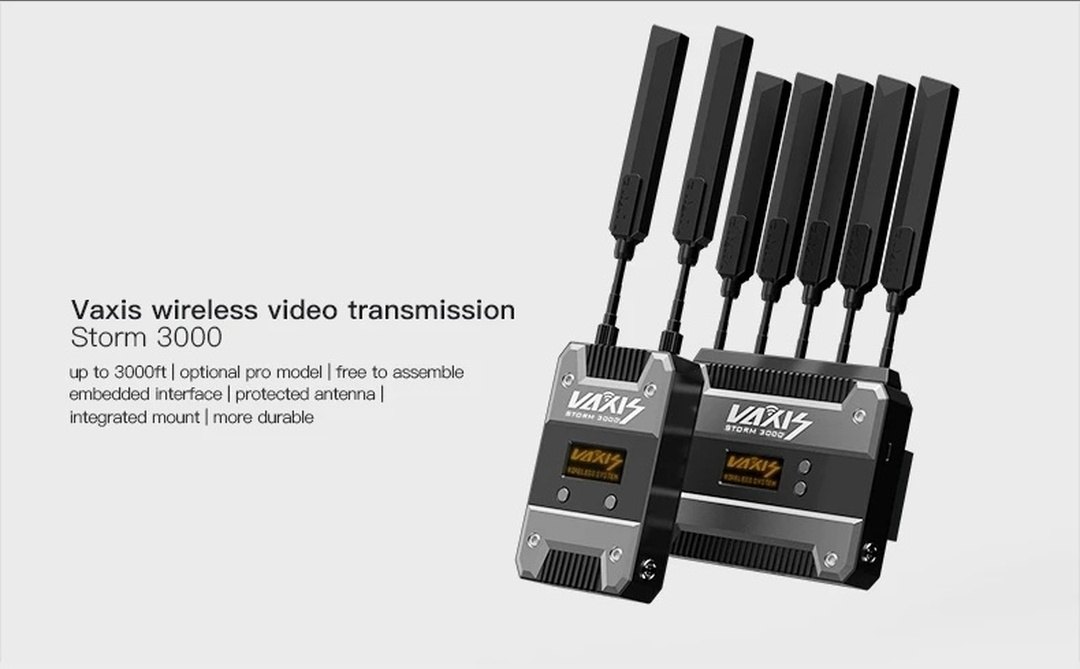

Summary. Up to 3000 ft range, professional mode, recessed ports, protected antennas and an integrated mount.

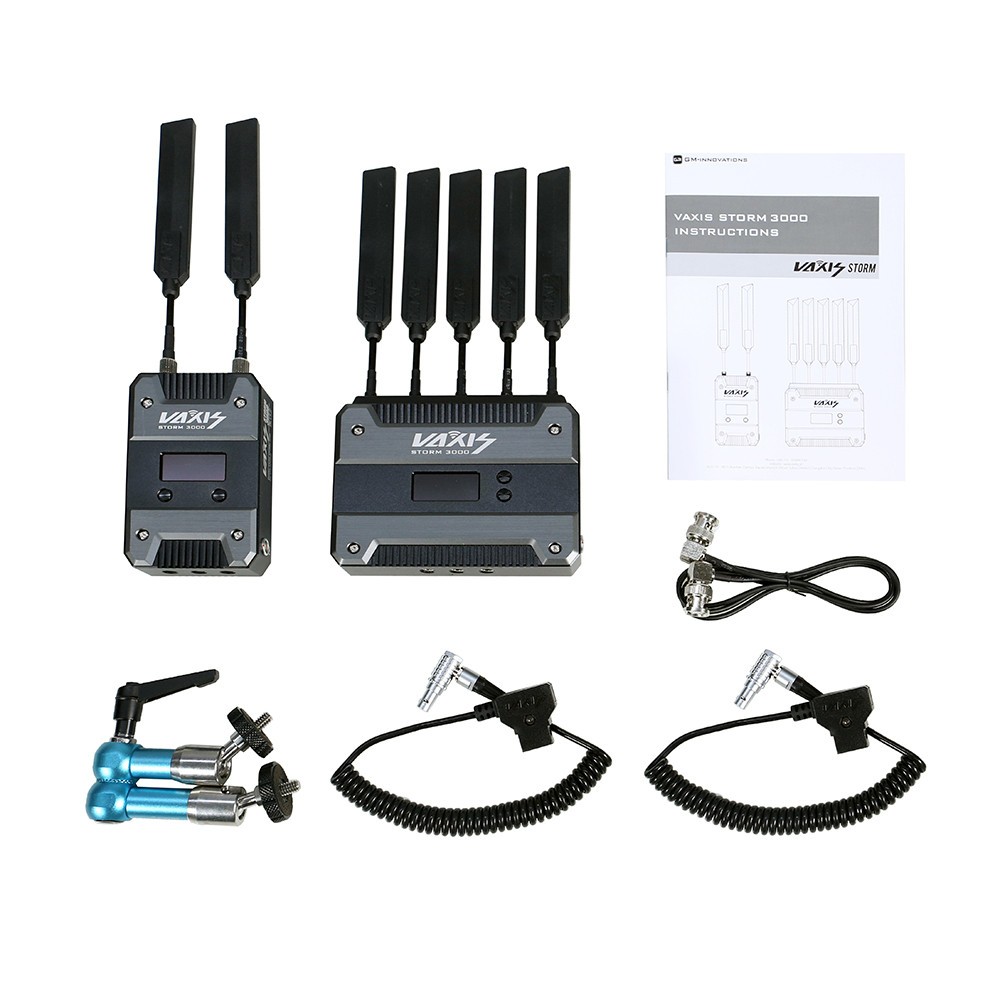

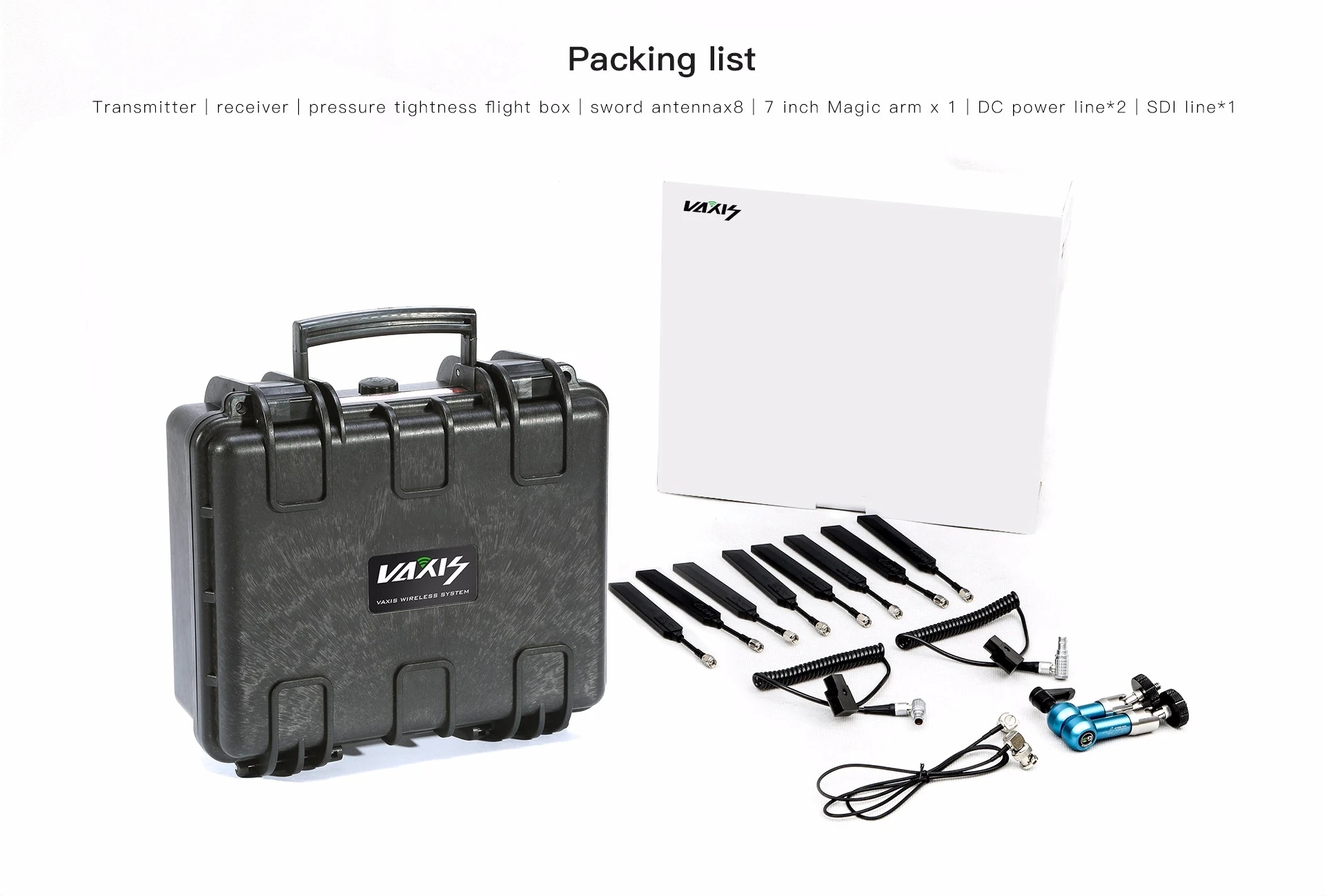

What is in the box. Transmitter, receiver, waterproof case, 8 Blade antennas, 7″ magic arm, 2 power cables and an SDI cable.
