VAXIS STORM 3000 DG TX

  • Free transport
SKU: VS19-3000DG-T02

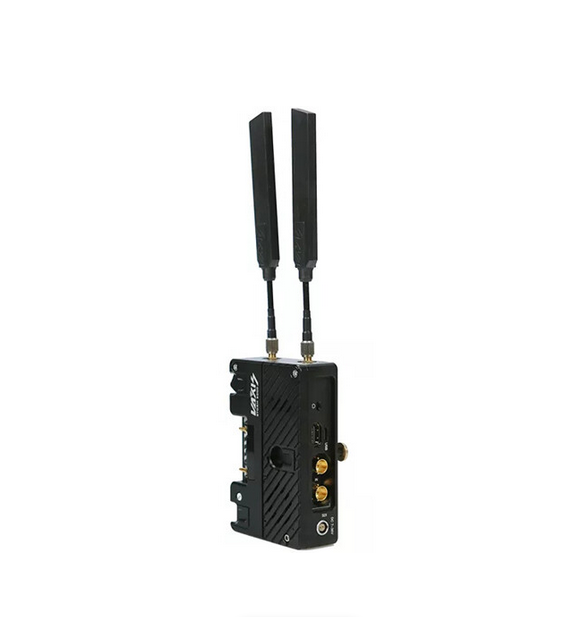

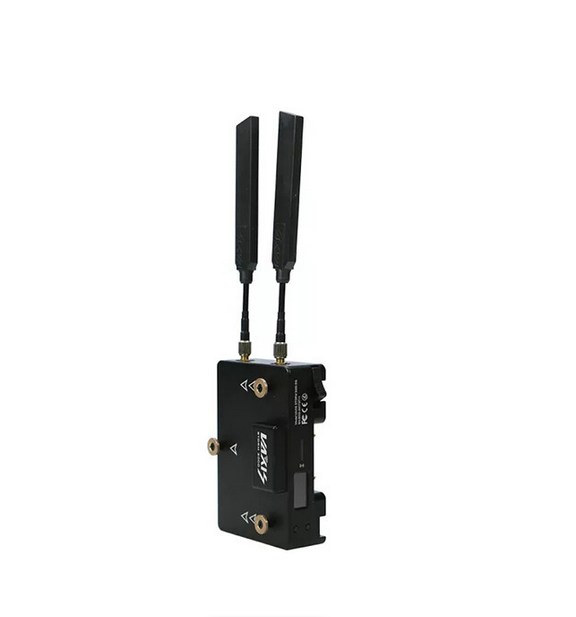

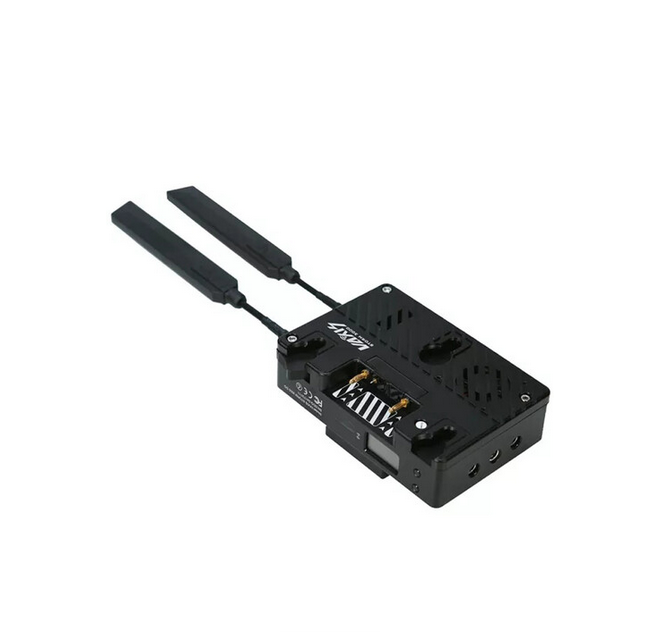

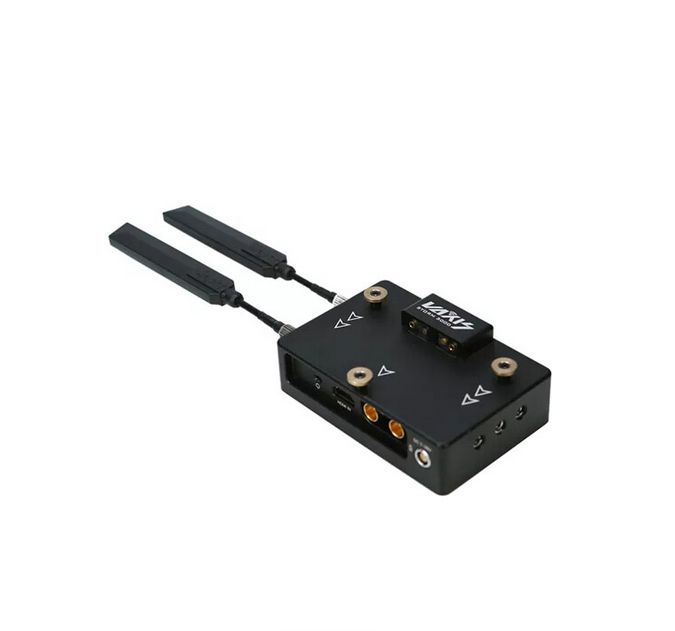

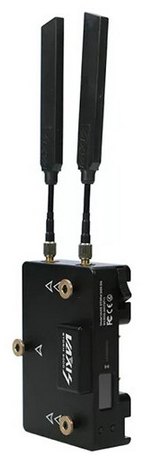

The Vaxis Storm 3000 DG transmitter with two pass-through Gold Mount plates powers itself and the camera from one battery. Uncompressed 1080p60 with under 1 ms latency up to 3000 ft, 3G-SDI and HDMI inputs and SDI loop.

More information

4 299 € with VAT 3 552.89 € without VAT
Add to Compare Price history
Availability
on request
SKU:
VS19-3000DG-T02
Add to Compare Price history

STORM 3000 KIT, 1TX 1RXV MOUNT

6 249 €without VAT 5 164.46 €

Top accessories for VAXIS STORM 3000 DG TX

Vaxis MUSHROOM ANTENNA

Vaxis Mushroom antennas (2 pcs) for the 5 GHz band, 5150–5850 MHz, with a return
17 €
on request

Vaxis RADAR SHORT ANTENNA

Vaxis Radar Short antennas (2 pcs) for the 5 GHz band, 5150–5850 MHz, with 3 dBi
17 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Vaxis Storm 3000 DG transmitter with two pass-through Gold Mount plates powers itself and the camera from one battery. Uncompressed 1080p60 with under 1 ms latency up to 3000 ft, 3G-SDI and HDMI inputs and SDI loop.

Storm 3000 DG is the Storm 3000 transmitter with two Gold Mount plates: one takes the battery, the other mounts it straight onto a Gold Mount camera or device, and power passes through. It sends the image uncompressed up to 3000 ft (914 m) with under 1 ms of delay and has a 2-pin LEMO input for external power.

A transmitter with Gold Mount pass-through

Storm 3000 DG wireless transmitter – camera and transmitter run from a single Gold Mount battery.

Up to 3000 ft rangeUnder 1 ms latencyDual Gold MountSDI and HDMI inputs3G-SDI loop out

Two Gold Mount plates

The transmitter sits between camera and battery and powers both from one source. No extra cable and no separate battery for the transmitter.

Camera connections

3G-SDI and HDMI inputs and an SDI loop output for an on-camera monitor. It carries timecode and metadata and supports ARRI ALEXA Mini instant playback.

One battery for the whole rig

Pass-through Gold Mount plates simplify the camera build: one battery instead of two plus a cable. Meanwhile the transmitter sends a full-quality image without compression and practically without delay.

Multicast

One transmitter for several Storm 3000 receivers.

Encryption

Digital encryption protects the link from eavesdropping.

Active cooling

Smart cooling and a bright display in a metal body.

1/4″-20 mount

Thread for mounting on a rig, arm or cage.

1000 metres of range. The more robust signal loses far less image quality at extreme distance, so Storm 3000 handles a football stadium or a big production.

1000 metres of range

PACKAGE CONTENT

  • Storm 3000 DG transmitter ×1
  • Power cable ×1
  • Blade antenna ×2

SPECIFICATIONS

  • Brand: Vaxis
  • Model: Storm 3000 DG TX, VS19-3000DG-T02
  • Type: wireless video transmitter
  • Range: up to 3000 ft / 914 m (line of sight)
  • Latency: under 1 ms
  • Resolution: up to 1080p60 uncompressed
  • Video inputs: 1× 3G-SDI, 1× HDMI
  • Video output: 1× 3G-SDI loop
  • Band: 5 GHz
  • Power: 2× pass-through Gold Mount plate, 2-pin LEMO
  • Other: encryption, timecode and metadata, multicast
  • Mounting: 1/4″-20 thread

WE RECOMMEND

The Vaxis Storm 3000 DG TX is a professional wireless transmitter with zero latency and an integrated Gold Mount system, designed for the most demanding film productions. For secure mounting on a camera rig and to achieve top-quality video within the Vaxis ecosystem, we recommend the following compatible accessories.

Mounting Accessories - Sturdy arms for stable attachment of the transmitter to professional camera rigs.

Vaxis VFX Optical Filters (4x5.65") - Professional filters for matte boxes that complement a camera setup equipped with a Vaxis transmitter.

Vaxis VFX Optical Filters (95mm) - Circular filters compatible with professional lenses within the Vaxis production chain.

Parameters

Parameters

Manufacturer: Vaxis
Category: Wireless video transmission

Main parameters

Latency0 ms
InputHDMI
