Vaxis STORM 3000 DG RX

+2
  • Free transport
SKU: VS19-3000DG-R02

The Vaxis Storm 3000 DG receiver with a Gold Mount plate receives uncompressed 1080p60 with zero latency from up to 3000 ft. Two 3G-SDI outputs and HDMI, 4-channel audio, 20 channels at 5 GHz, AES 128 encryption and timecode.

More information

4 299 € with VAT 3 552.89 € without VAT
Add to Compare Price history
Availability
on request
SKU:
VS19-3000DG-R02
Add to Compare Price history

STORM 3000 KIT, 1TX 1RXV MOUNT

6 249 €without VAT 5 164.46 €

Top accessories for Vaxis STORM 3000 DG RX

Vaxis MUSHROOM ANTENNA

Vaxis Mushroom antennas (2 pcs) for the 5 GHz band, 5150–5850 MHz, with a return
17 €
on request

Vaxis RADAR SHORT ANTENNA

Vaxis Radar Short antennas (2 pcs) for the 5 GHz band, 5150–5850 MHz, with 3 dBi
17 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Vaxis Storm 3000 DG receiver with a Gold Mount plate receives uncompressed 1080p60 with zero latency from up to 3000 ft. Two 3G-SDI outputs and HDMI, 4-channel audio, 20 channels at 5 GHz, AES 128 encryption and timecode.

Storm 3000 DG RX is a receiver for any Storm 3000 transmitter – add another monitoring position or replace the receiver in a kit. It outputs the image uncompressed on two 3G-SDI and one HDMI 1.3, powered by its integrated Gold Mount plate or 7–36 V via 2-pin LEMO.

Another monitor, no cable

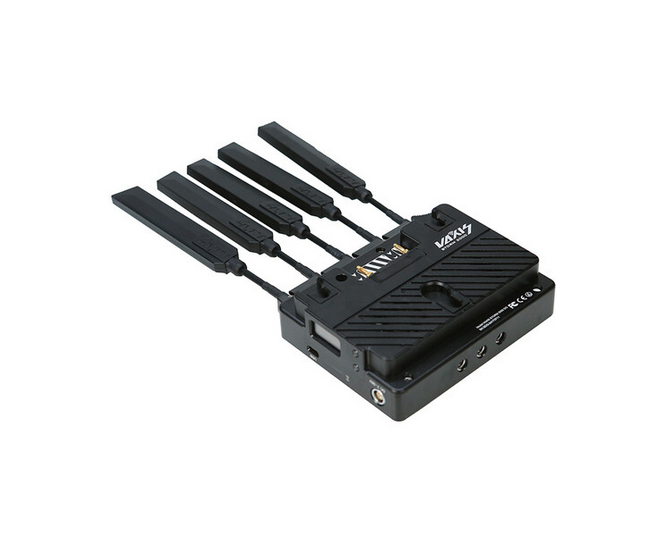

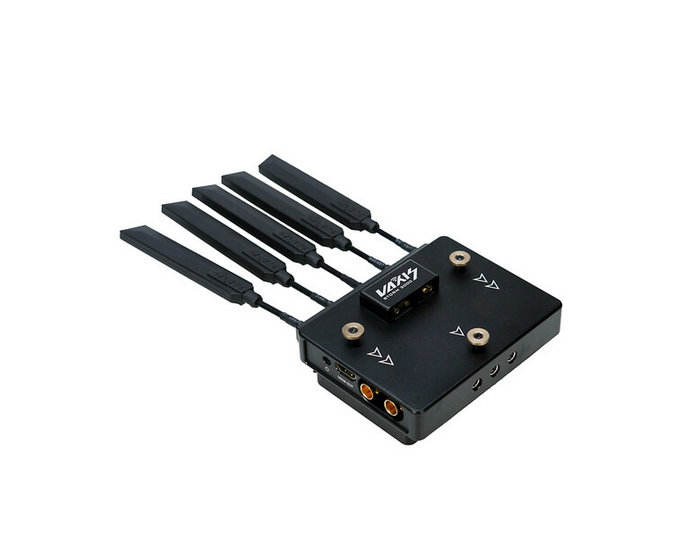

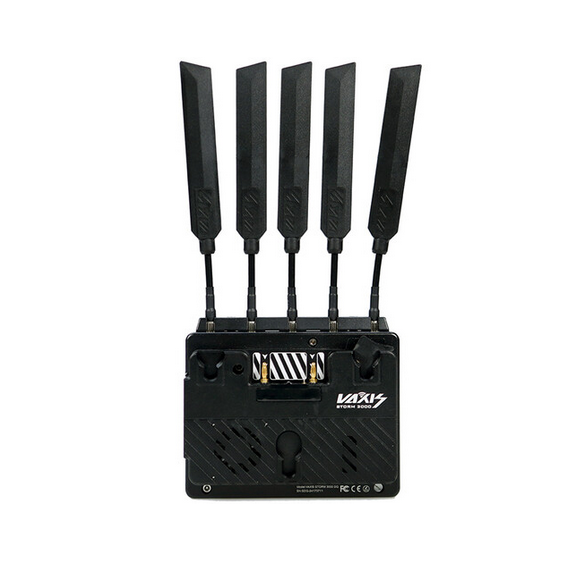

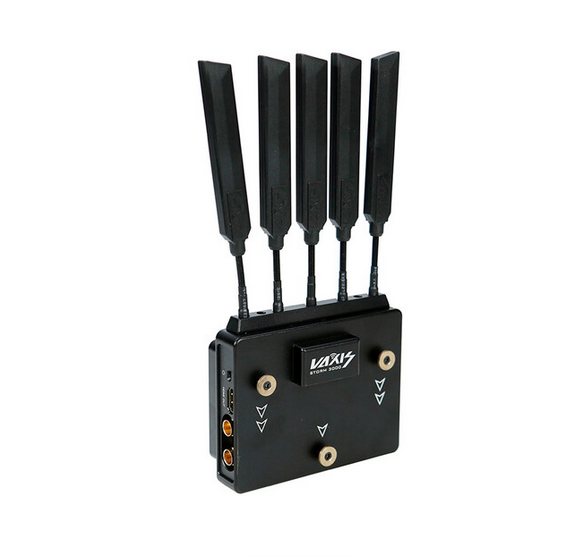

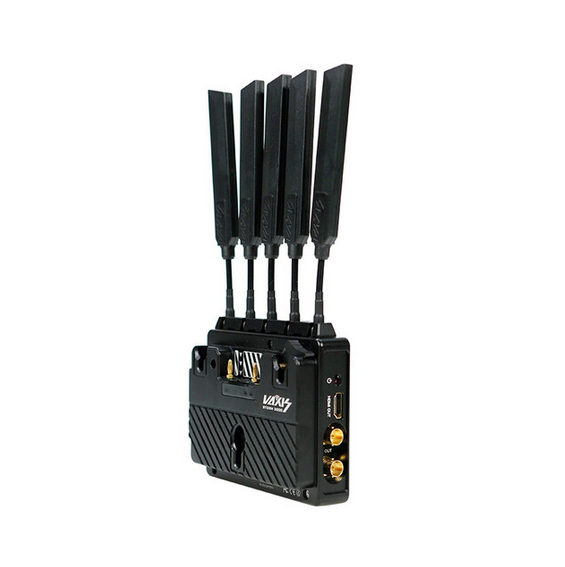

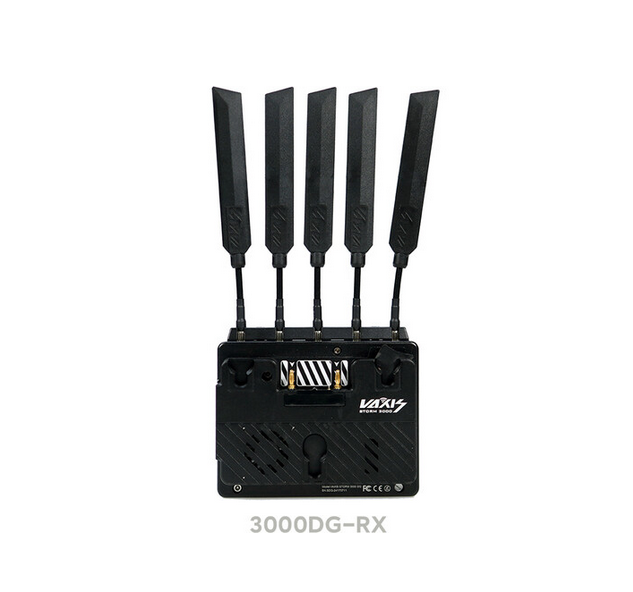

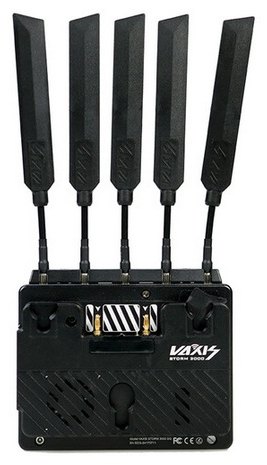

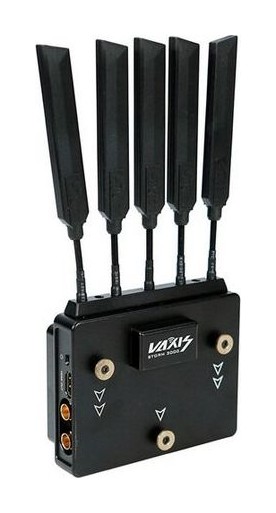

Storm 3000 DG receiver with a Gold Mount plate, five antenna connectors and SDI and HDMI outputs.

Up to 3000 ft rangeZero latency2× 3G-SDI + HDMIGold Mount plateAES 128 encryption

Outputs for the whole chain

Two 3G-SDI outputs and HDMI 1.3 serve a monitor, a recorder and further distribution. Embedded SDI audio has 4 channels.

Channel selection

Twenty 40 MHz channels in the 5.1–5.9 GHz band and an LED display showing status and channel make interference-free operation easy.

Built for multiple receivers

Thanks to multicast, one Storm 3000 transmitter can feed several receivers at once. Every additional DG RX means another monitor for the focus puller, director or client.

Power

Gold Mount plate or 7–36 V via 2-pin LEMO, max. 6 W.

Antennas

Five RP-SMA connectors for stable reception.

Timecode

Timecode support from the transmitter.

1/4″-20 mount

Thread on the bottom of the metal body.

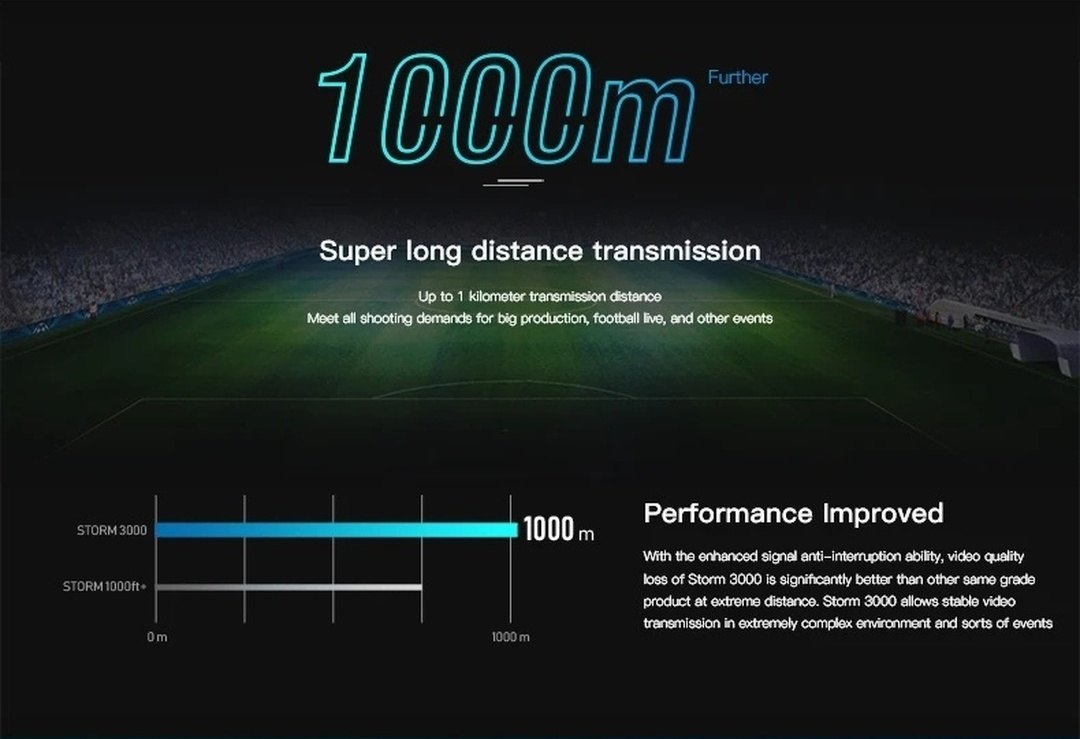

1000 metres of range. The more robust signal loses far less image quality at extreme distance, so Storm 3000 handles a football stadium or a big production.

1000 metres of range

PACKAGE CONTENT

  • Storm 3000 DG receiver with Gold Mount plate ×1

SPECIFICATIONS

  • Brand: Vaxis
  • Model: Storm 3000 DG RX, VS19-3000DG-R02
  • Type: wireless video receiver
  • Range: up to 3000 ft / 914 m (line of sight)
  • Latency: 0 ms
  • Formats: 1080p23.98–60, 1080i50/60, 720p50/60, 576i, 480i
  • Video outputs: 2× 3G-SDI (BNC), 1× HDMI 1.3
  • Audio: 4 channels embedded in SDI
  • Channels: 20, 40 MHz wide, 5.1–5.9 GHz
  • Encryption: AES 128-bit
  • Sensitivity: −75 dBm
  • Antennas: 5× RP-SMA
  • Power: Gold Mount plate, 7–36 V via 2-pin LEMO, max. 6 W
  • Mounting: 1× 1/4″-20 thread
  • Dimensions: 135 × 92 × 27 mm (without antennas)
  • Weight: 0.41 kg
