Vaxis Storm 3000 DG Kit 1TX, 1 RXDUAL AB MOUNT

+3
  • Free transport
SKU: VS19-3000DG-TR02

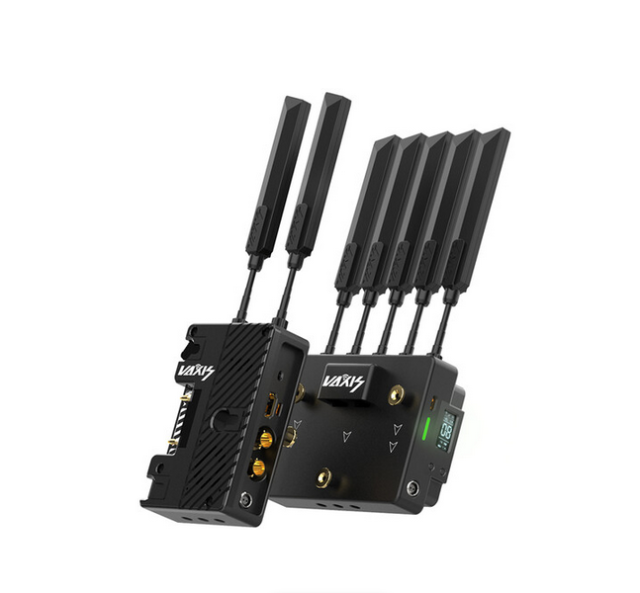

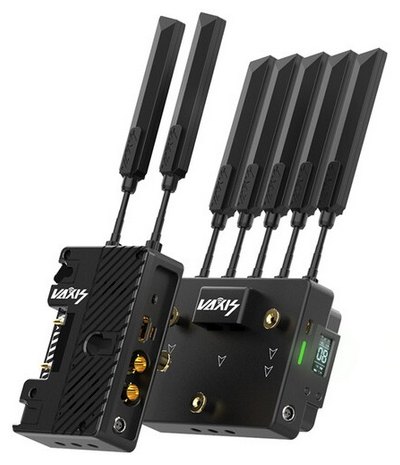

Vaxis Storm 3000 DG kit: a transmitter with two pass-through Gold Mount plates and a receiver with a Gold Mount plate. Uncompressed 1080p60 with under 1 ms latency up to 3000 ft, SDI and HDMI inputs, multicast for more receivers.

More information

7 239 € with VAT 5 982.64 € without VAT
Add to Compare Price history
Availability
on request
SKU:
VS19-3000DG-TR02
Add to Compare Price history

STORM 3000 KIT, 1TX 1RXV MOUNT

6 249 €without VAT 5 164.46 €

Top accessories for Vaxis Storm 3000 DG Kit 1TX, 1 RXDUAL AB MOUNT

Vaxis MUSHROOM ANTENNA

Vaxis Mushroom antennas (2 pcs) for the 5 GHz band, 5150–5850 MHz, with a return
17 €
on request

Vaxis RADAR SHORT ANTENNA

Vaxis Radar Short antennas (2 pcs) for the 5 GHz band, 5150–5850 MHz, with 3 dBi
17 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Vaxis Storm 3000 DG kit: a transmitter with two pass-through Gold Mount plates and a receiver with a Gold Mount plate. Uncompressed 1080p60 with under 1 ms latency up to 3000 ft, SDI and HDMI inputs, multicast for more receivers.

Storm 3000 DG pairs a transmitter that powers itself and the camera from one Gold Mount battery with a receiver running on a Gold Mount battery. The camera image travels over 3G-SDI or HDMI uncompressed up to 3000 ft (914 m), and the receiver outputs it on SDI and HDMI. Thanks to multicast, more receivers can be added at any time.

The whole path from camera to monitor

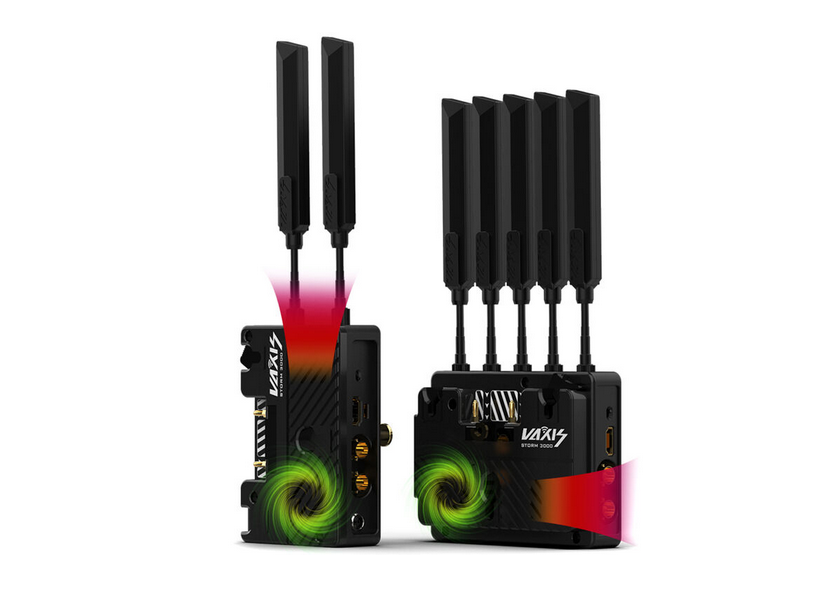

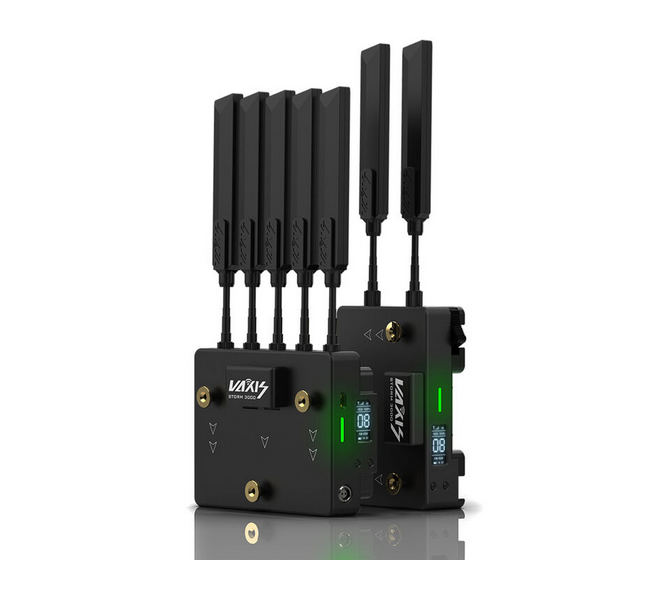

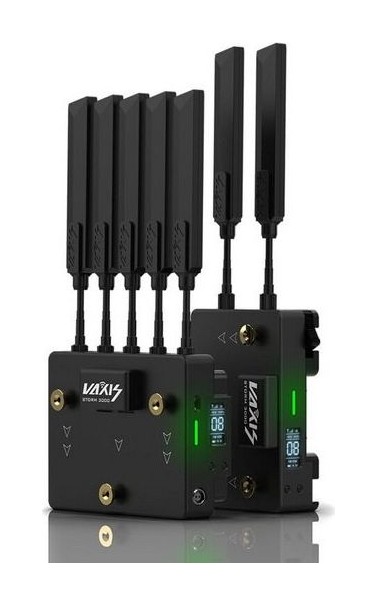

Storm 3000 DG transmitter with Gold Mount pass-through and a receiver with a Gold Mount plate in one kit.

Up to 3000 ft rangeUnder 1 ms latencyUncompressed 1080p60Dual Gold Mount TXGold Mount receiver

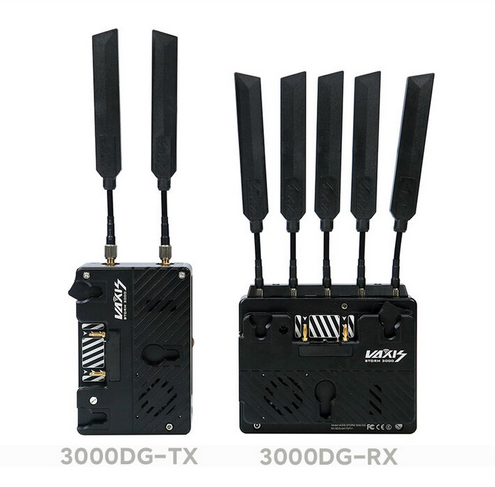

Transmitter with Gold Mount pass-through

The transmitter sits between camera and battery and powers both from one source, with a 2-pin LEMO input for external power.

Receiver for the monitor

The receiver with integrated Gold Mount plate outputs the image on 3G-SDI and HDMI, ready for a monitor or a recorder.

Big scenes without cables

Uncompressed transmission over 3000 ft handles large multi-camera productions. The optional Storm 5G channel scanner shows free channels even in a crowded RF environment.

Multicast

One transmitter for an unlimited number of receivers.

Encryption

Digital encryption protects the link from eavesdropping.

5 GHz band

Licence-free operation with channel selection.

Timecode

Timecode and metadata pass-through from the camera.

1000 metres of range. The more robust signal loses far less image quality at extreme distance, so Storm 3000 handles a football stadium or a big production.

1000 metres of range

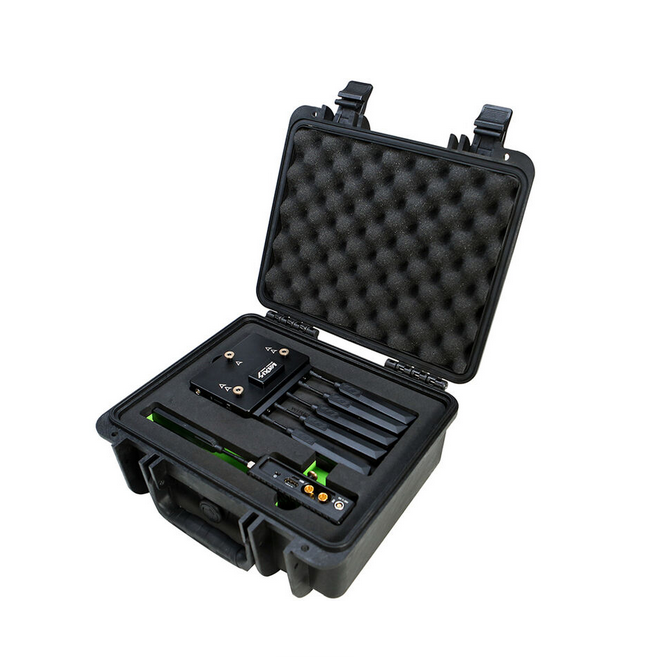

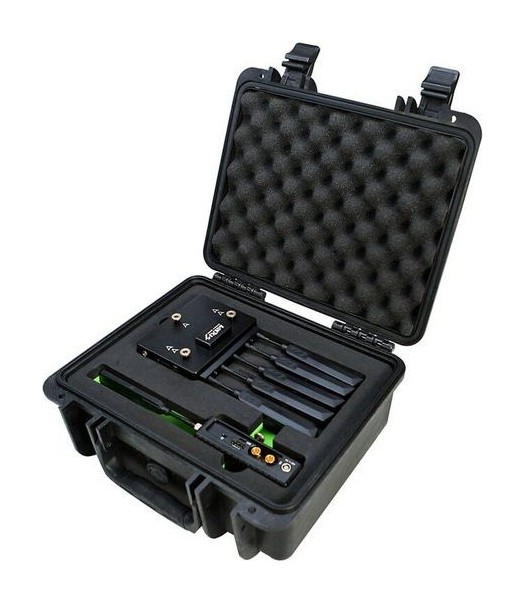

PACKAGE CONTENT

  • Storm 3000 DG transmitter ×1
  • Storm 3000 receiver with Gold Mount plate ×1

SPECIFICATIONS

  • Brand: Vaxis
  • Model: Storm 3000 DG Kit 1TX 1RX, VS19-3000DG-TR02
  • Range: up to 3000 ft / 914 m (line of sight)
  • Latency: under 1 ms
  • Resolution: up to 1080p60 uncompressed
  • Transmitter video: 3G-SDI in, HDMI in, 3G-SDI loop out
  • Receiver video: 3G-SDI and HDMI outputs
  • Transmitter power: 2× pass-through Gold Mount plate, 2-pin LEMO
  • Receiver power: integrated Gold Mount plate
  • Band: 5 GHz
  • Multicast: unlimited receivers

WE RECOMMEND

The Vaxis Storm 3000 DG Kit is a state-of-the-art solution for wireless transmission of uncompressed video, offering an extremely long range and support for Gold Mount batteries. For optimal results in professional production, we recommend supplementing the kit with precision filters from the Vaxis VFX series and sturdy mounting arms for flexible placement of the transmitter on the camera rig.

Optical Filters (4x5.65") - Professional filters for matte boxes that complement the camera chain when using wireless transmission.

Circular Filters (95mm) - High-quality 95mm filters compatible with film lenses in production setups.

Mounting Accessories - Components for secure and stable mounting of a transmitter or receiver to a monitor or camera.

Parameters

Parameters

Manufacturer: Vaxis
Category: Wireless video transmission

Main parameters

InputSDI · HDMI
