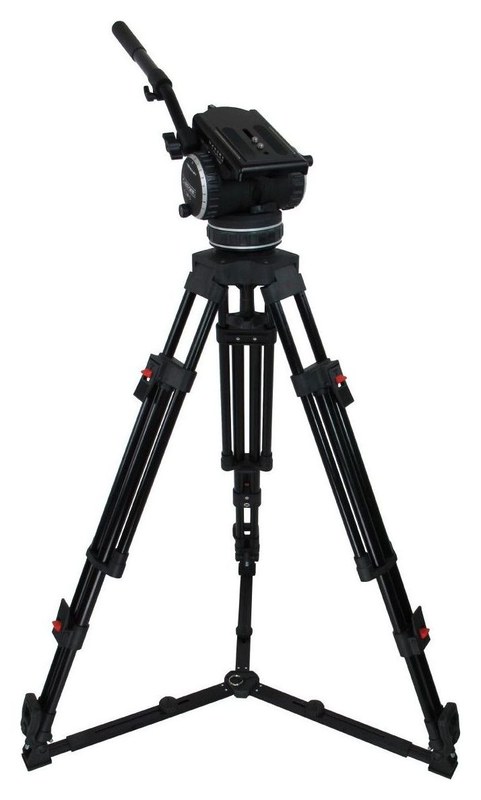

Cartoni C20S EFP 2-St ALU System GS

The Cartoni C20S system combines the C20S fluid head with a 2-stage aluminium EFP 2st. Alu 100 tripod and a ground spreader. It carries cameras from 7 to 35 kg and the complete system weighs 13 kg. It is built for EFP configurations where stability and precisely repeatable settings matter. The head sits on a 100 mm bowl and has an illuminated bubble level and a telescopic pan bar.

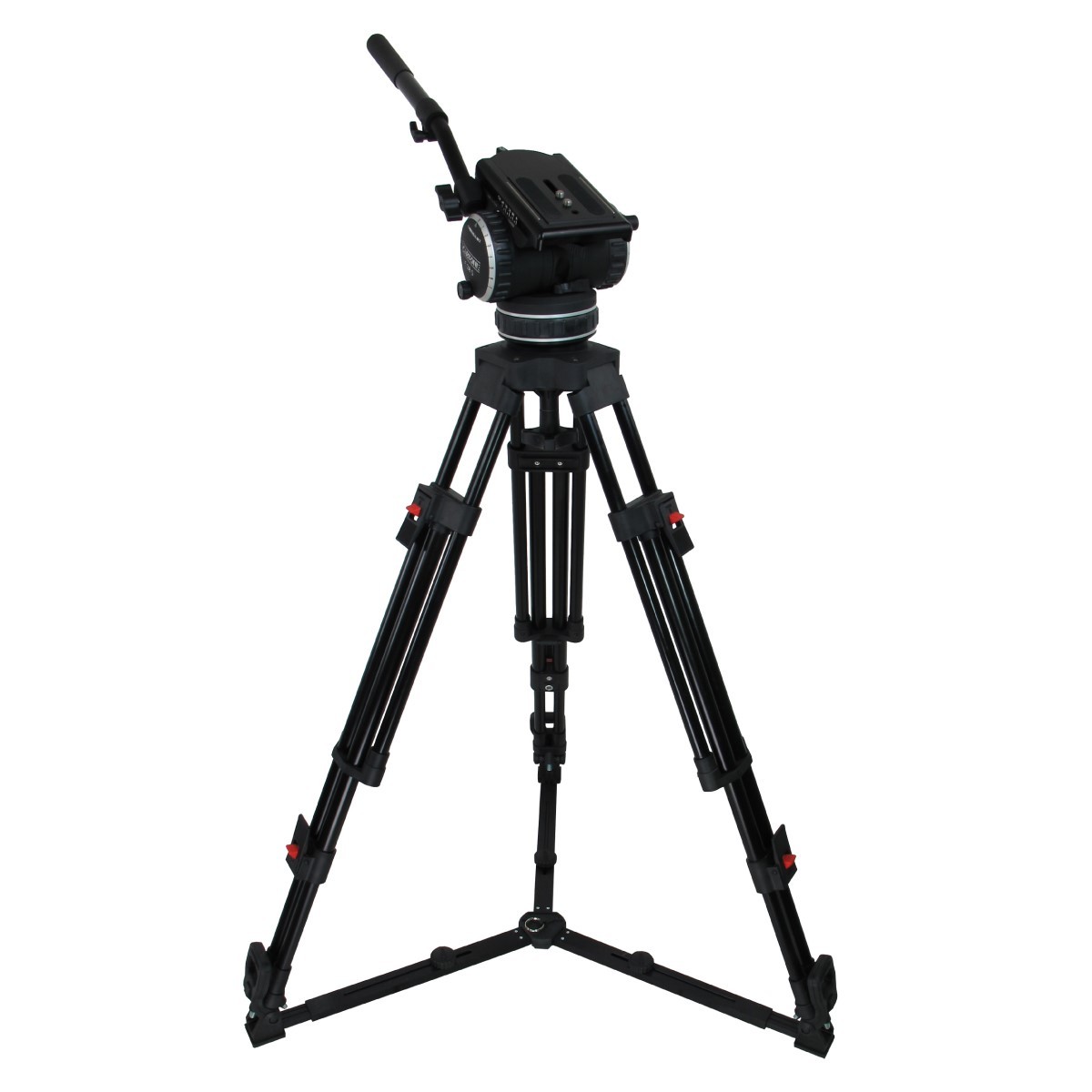

C20S on the EFP 2st. Alu 100 tripod

The C20S fluid head has three award-winning fluid damping modules; drag is selected in 7 precisely repeatable steps, and in position 0 the head moves freely.

7–35 kg100 mm bowlheight 67–172 cmweight 13 kg2-stage aluminium

Drag and counterbalance in 7 steps

Counterbalance is engaged with an easy-grip selector in 7 progressive steps plus 0; drag also has 7 steps and free-wheeling. Every setting can be repeated exactly.

7 to 35 kg

A wide range of cameras for EFP set-ups.

±65° tilt

Operation from −40 to +60 °C and an illuminated bubble level.

Two leg stages

Aluminium EFP tripod with a 100 mm bowl and an 80 kg capacity.

Ground spreader

Links the tripod legs at floor level and holds their spread.

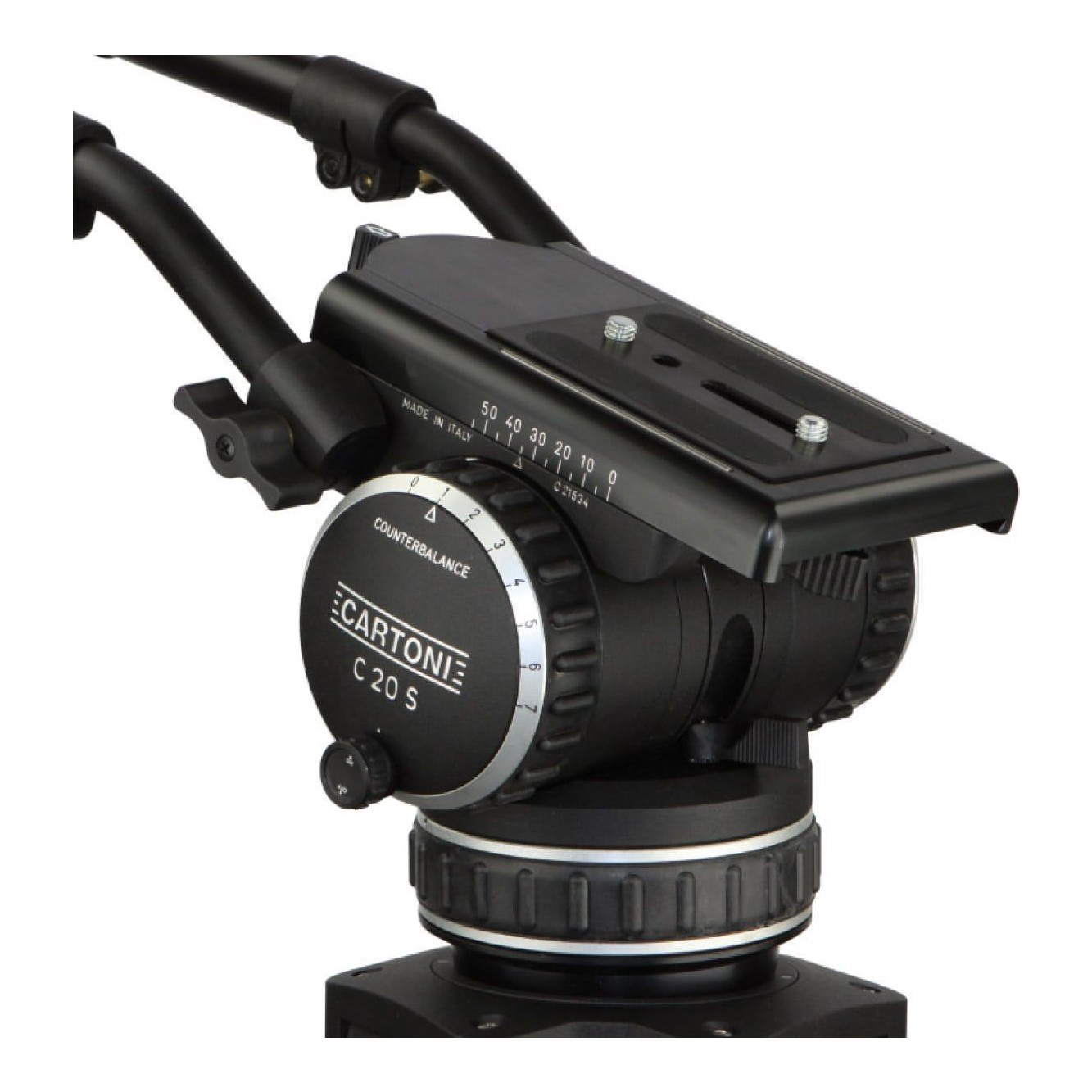

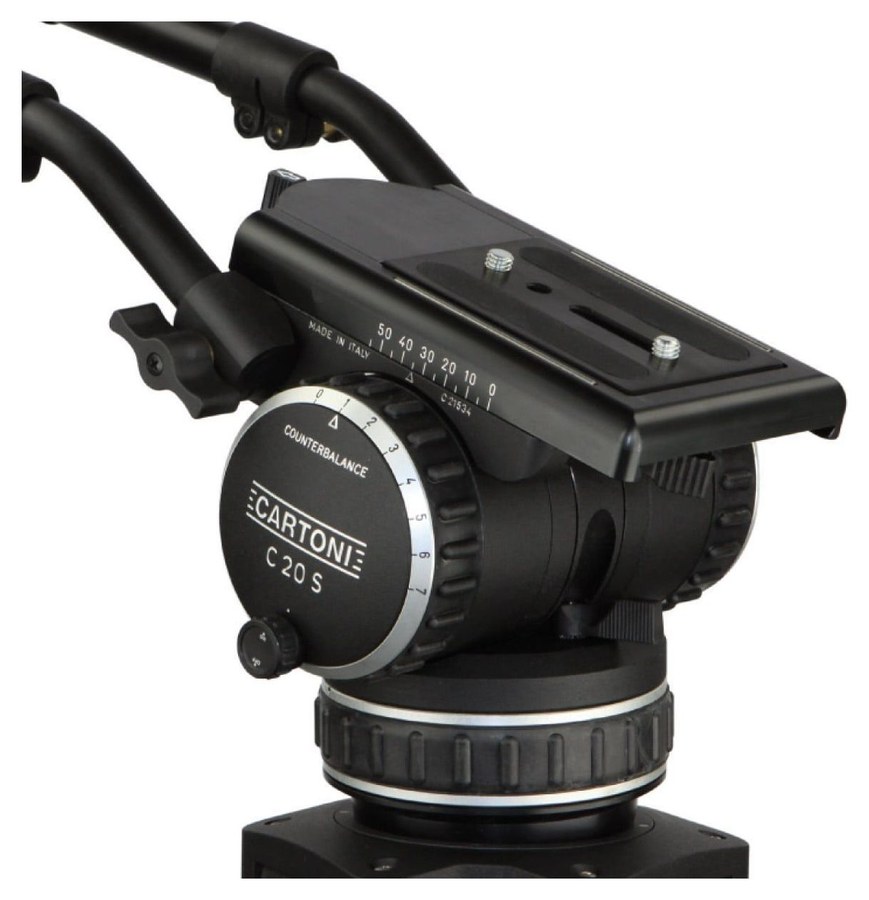

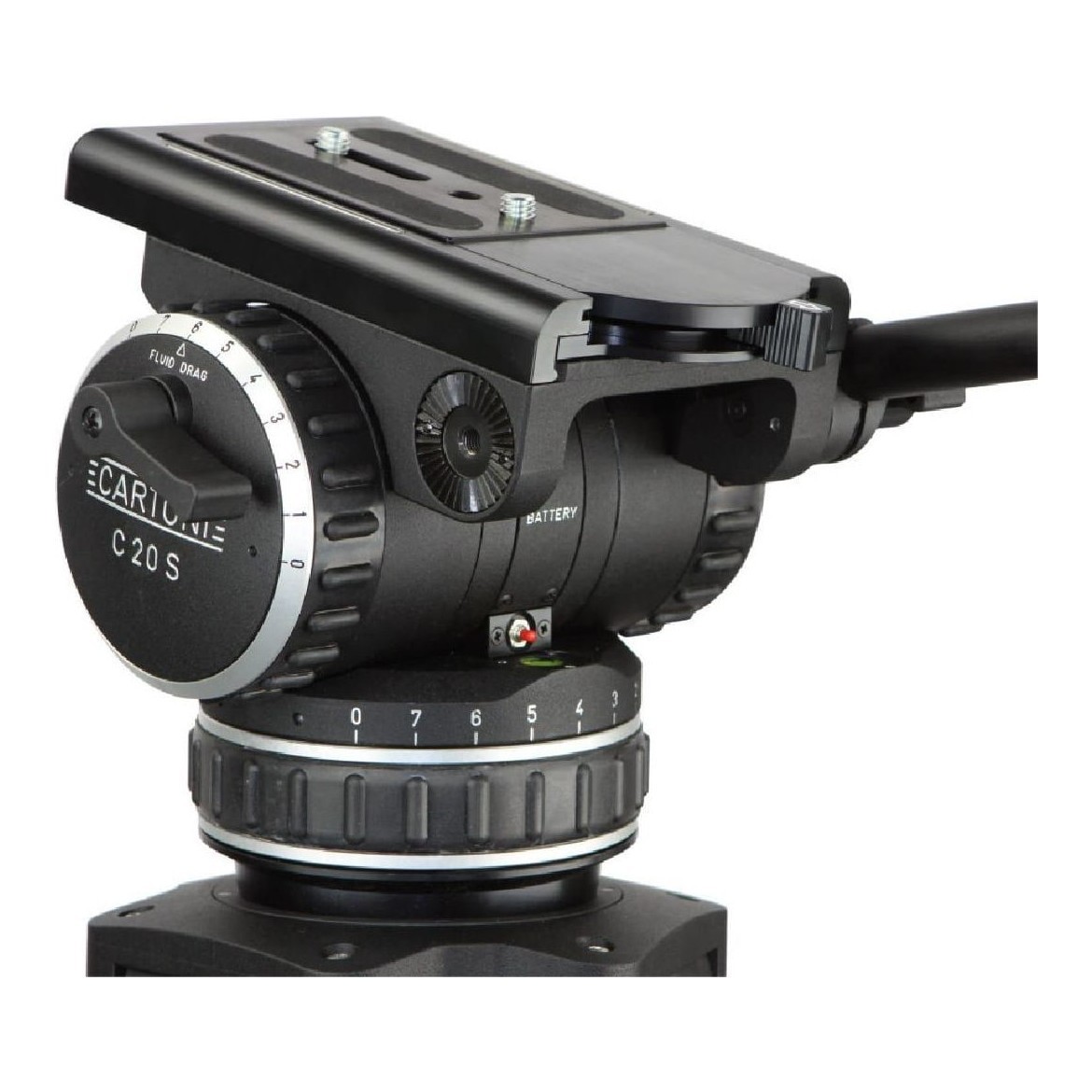

C20S fluid head

100 mm bowl, illuminated bubble level and telescopic pan bar; the head itself weighs 6.5 kg.

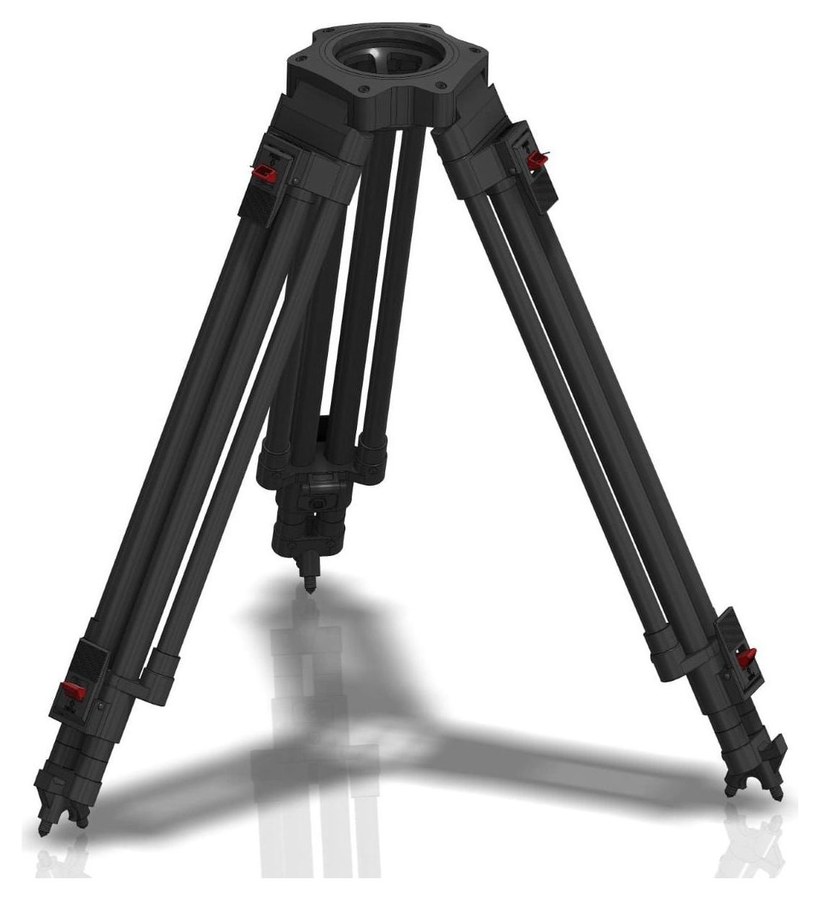

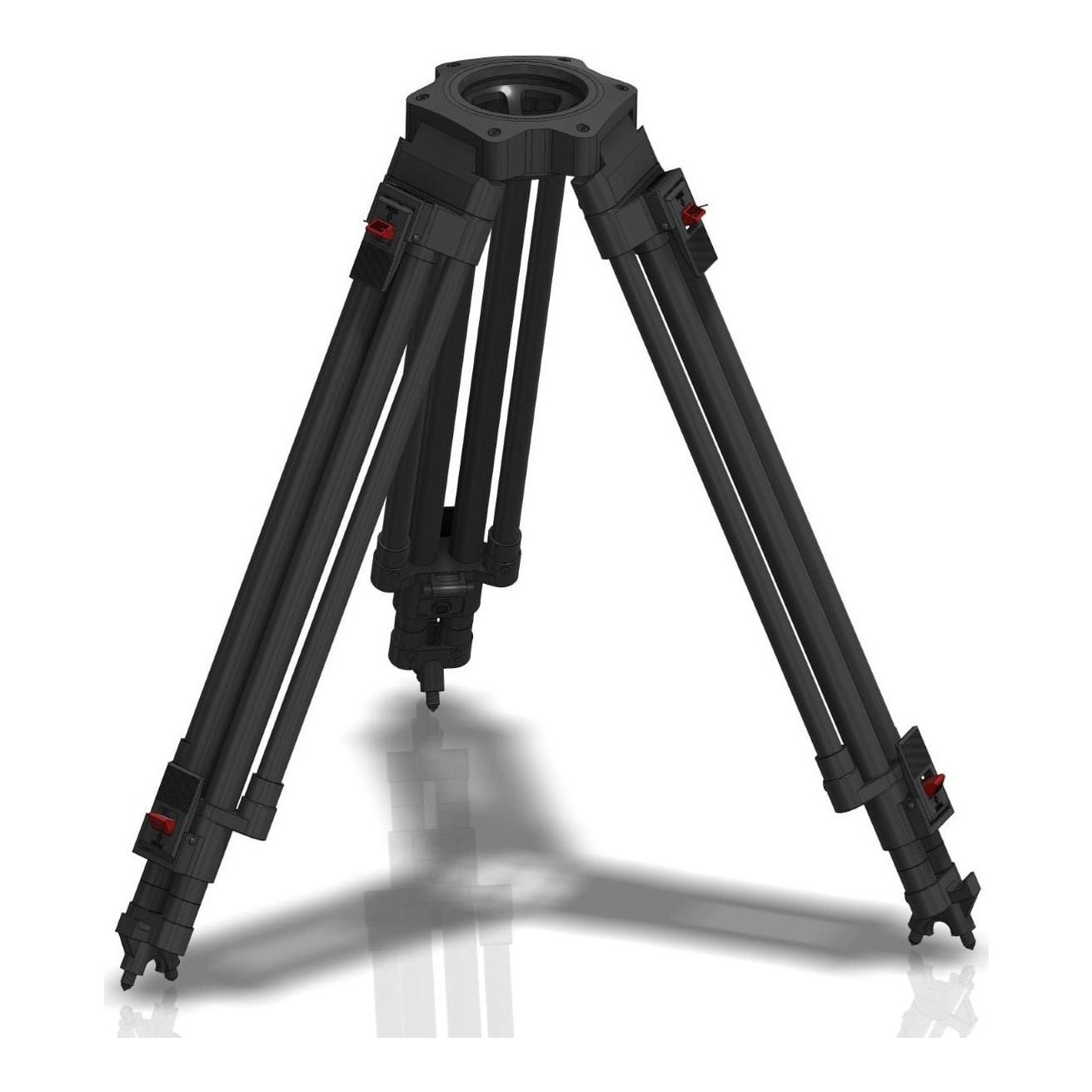

EFP 2st. Alu 100 tripod

Two-stage legs reach both low and high; elastic washers and a self-adjusting steel connection virtually eliminate torque.

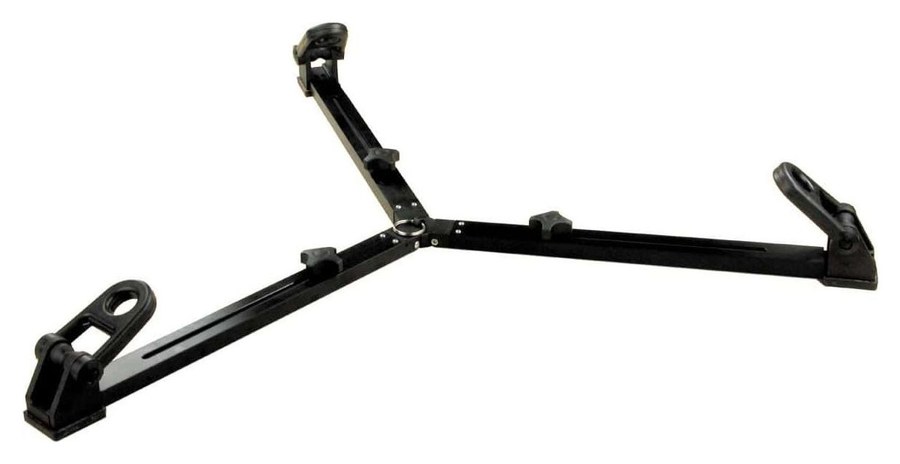

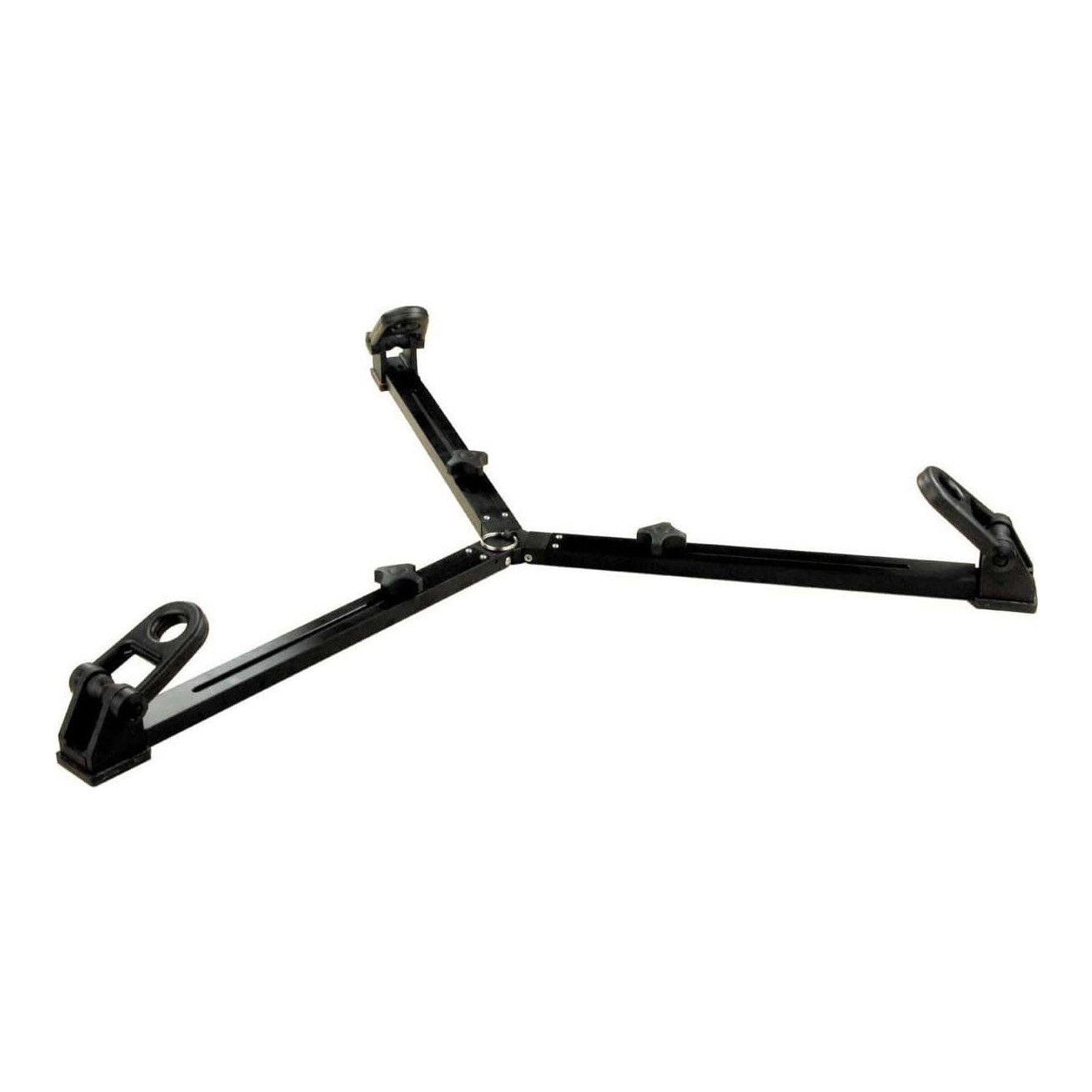

Ground spreader

The standard Cartoni ground spreader for Red Lock, SDS and EFP tripods connects to the ball foot couplings of the legs.

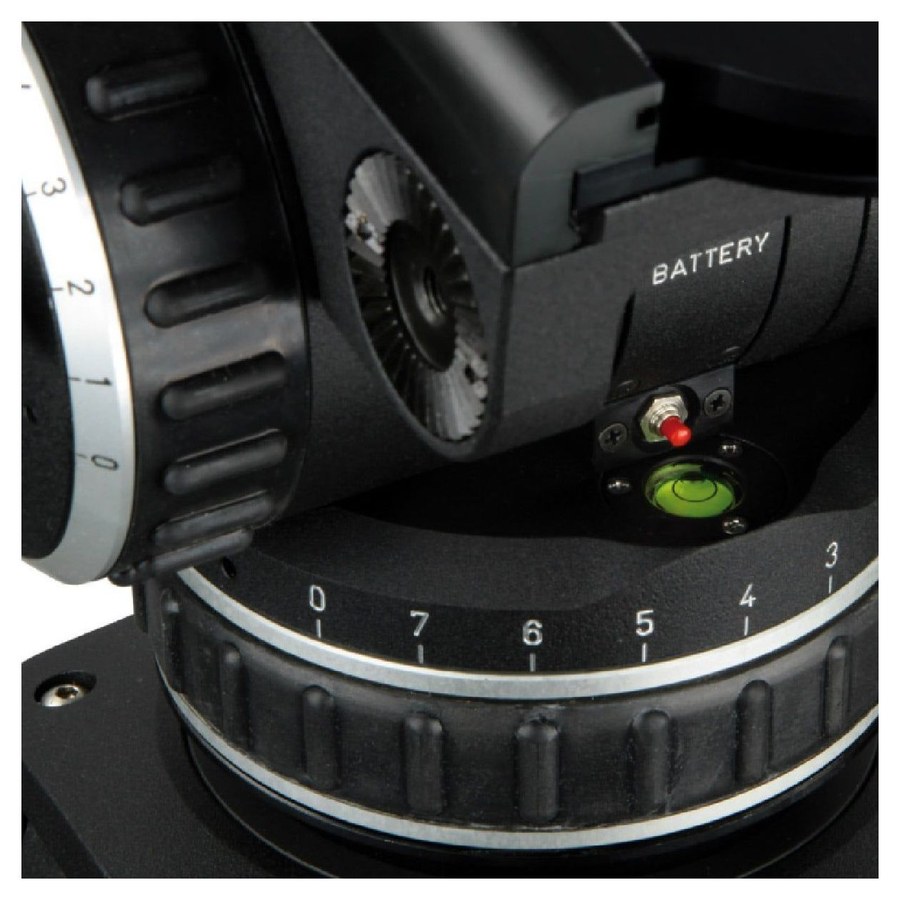

Scale 0–7

The counterbalance and drag selectors have 7 steps and a 0 position for free-wheeling; the setting is easy to read.
