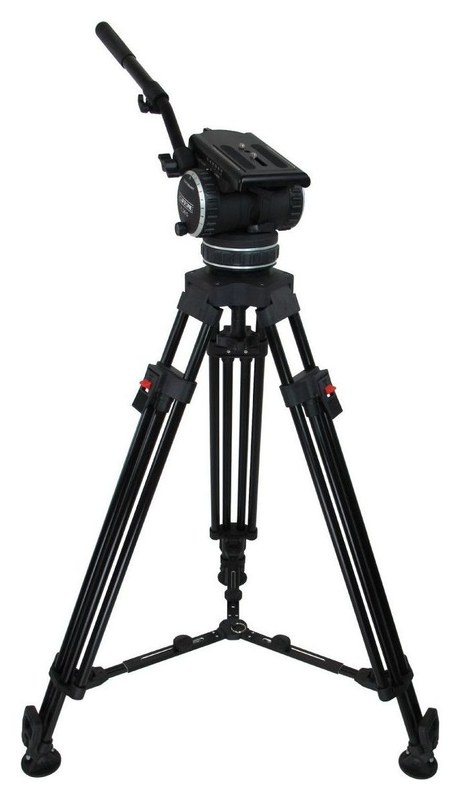

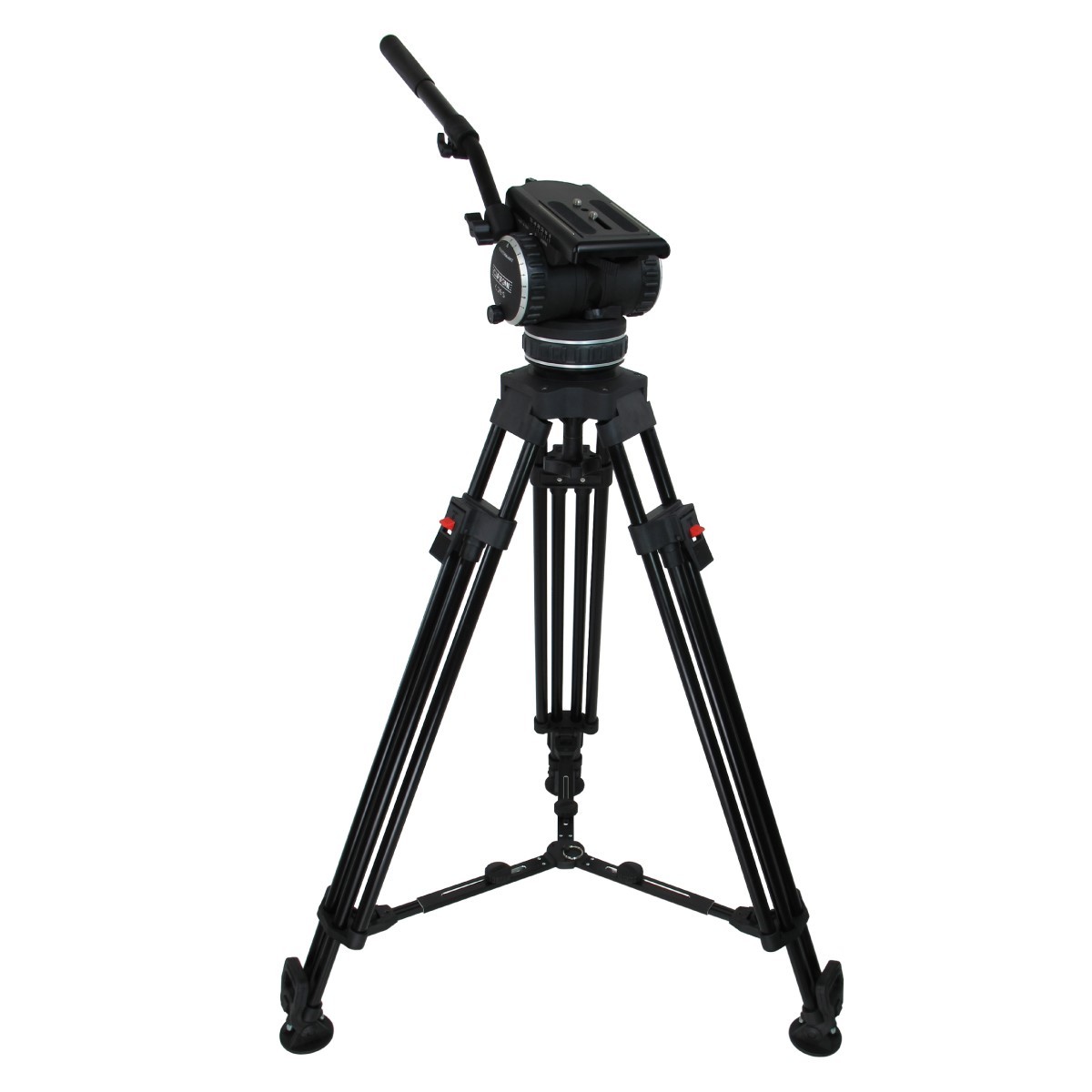

Cartoni C20S EFP CF System MS

The Cartoni C20S system combines the C20S fluid head with a 1-stage carbon fibre EFP Carbon 100 tripod and a mid-level spreader. It carries cameras from 7 to 35 kg and the complete system weighs 11.7 kg. It is built for EFP configurations where stability and precisely repeatable settings matter. The head sits on a 100 mm bowl and has an illuminated bubble level and a telescopic pan bar.

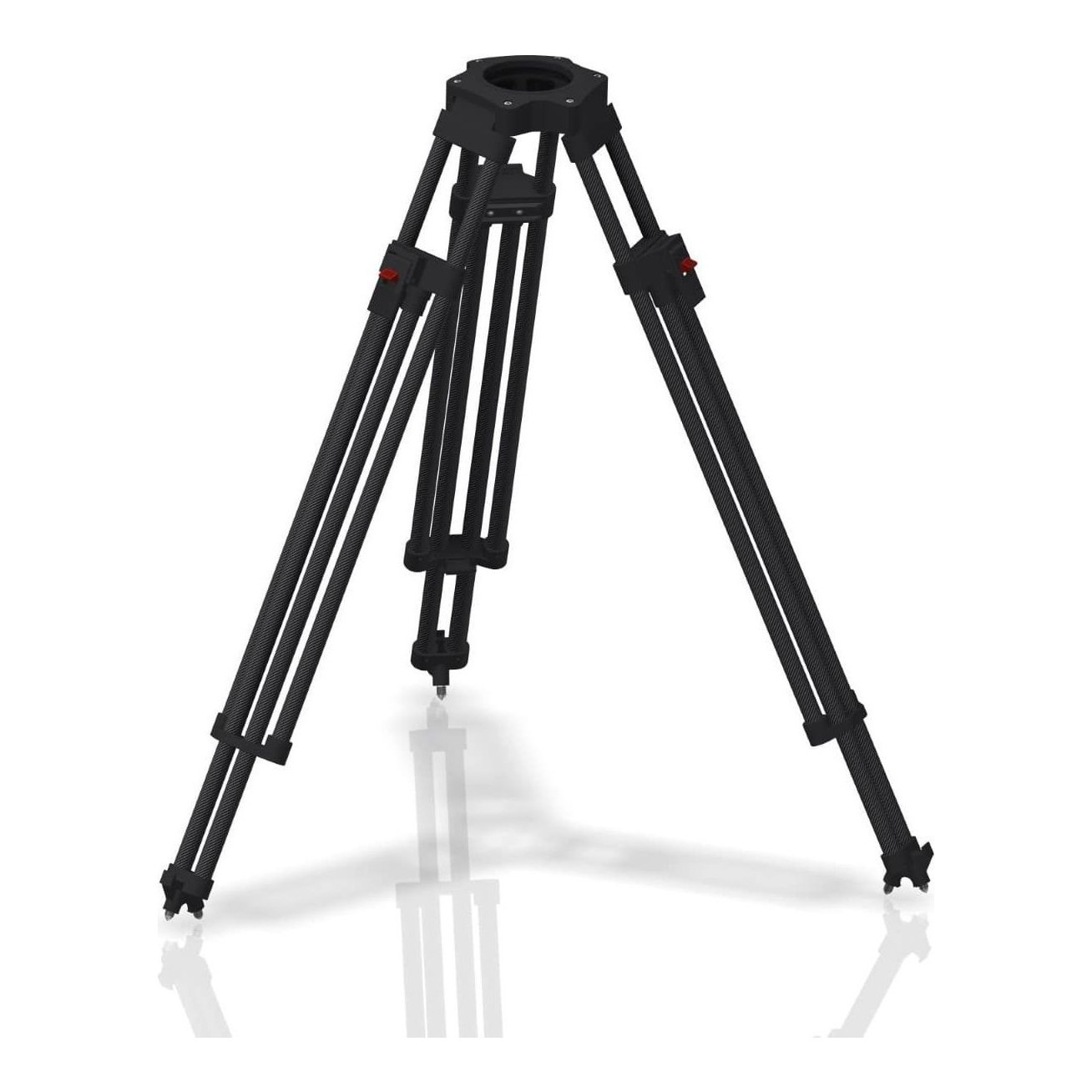

C20S on the EFP Carbon 100 tripod

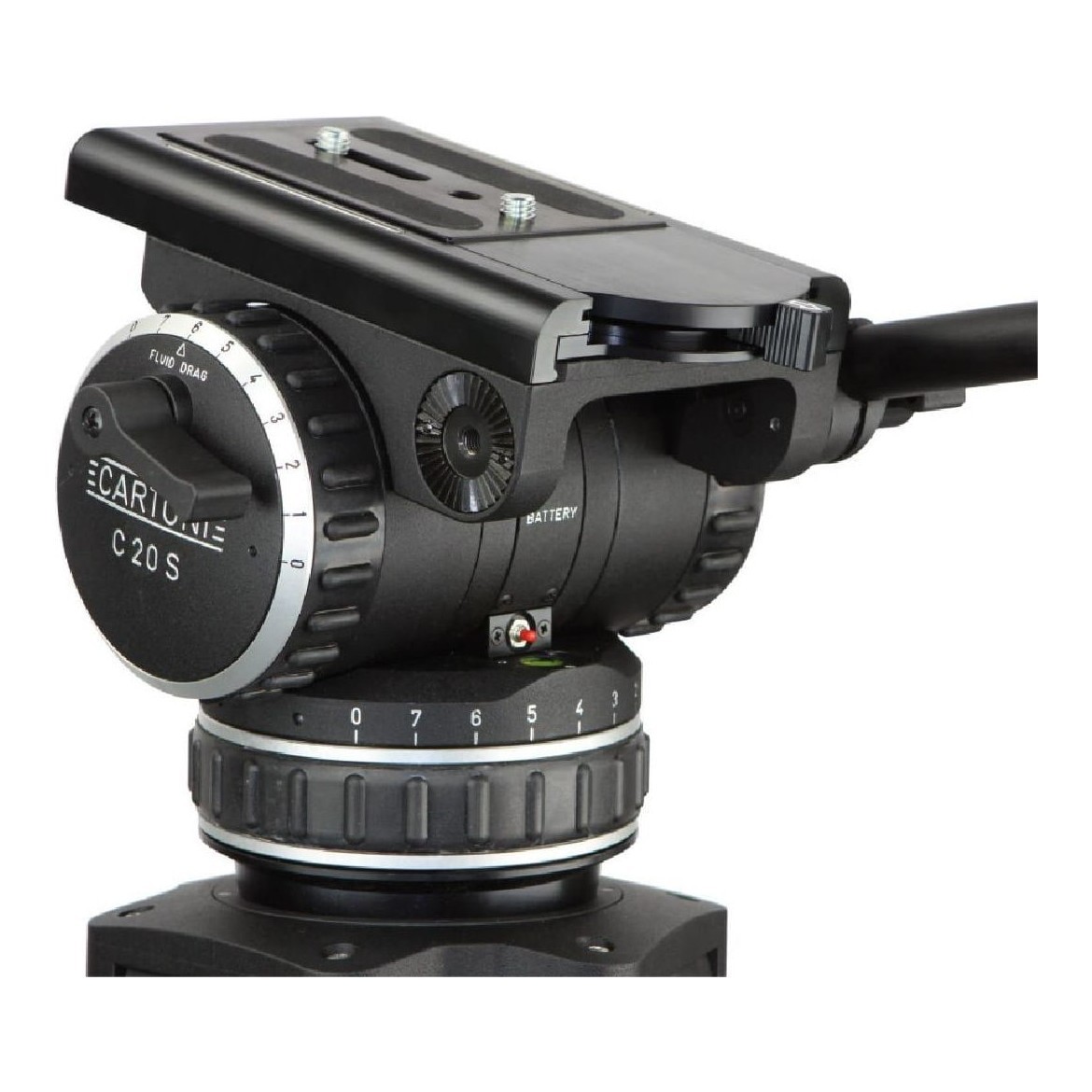

The C20S fluid head has three award-winning fluid damping modules; drag is selected in 7 precisely repeatable steps, and in position 0 the head moves freely.

7–35 kg100 mm bowlheight 93–157 cmweight 11.7 kg1-stage carbon fibre

Drag and counterbalance in 7 steps

Counterbalance is engaged with an easy-grip selector in 7 progressive steps plus 0; drag also has 7 steps and free-wheeling. Every setting can be repeated exactly.

7 to 35 kg

A wide range of cameras for EFP set-ups.

±65° tilt

Operation from −40 to +60 °C and an illuminated bubble level.

Lightweight carbon

Carbon fibre EFP tripod with a 100 mm bowl and an 80 kg capacity.

Mid-level spreader

Spreader at mid-leg height; the tripod stands on pivoting rubber feet.

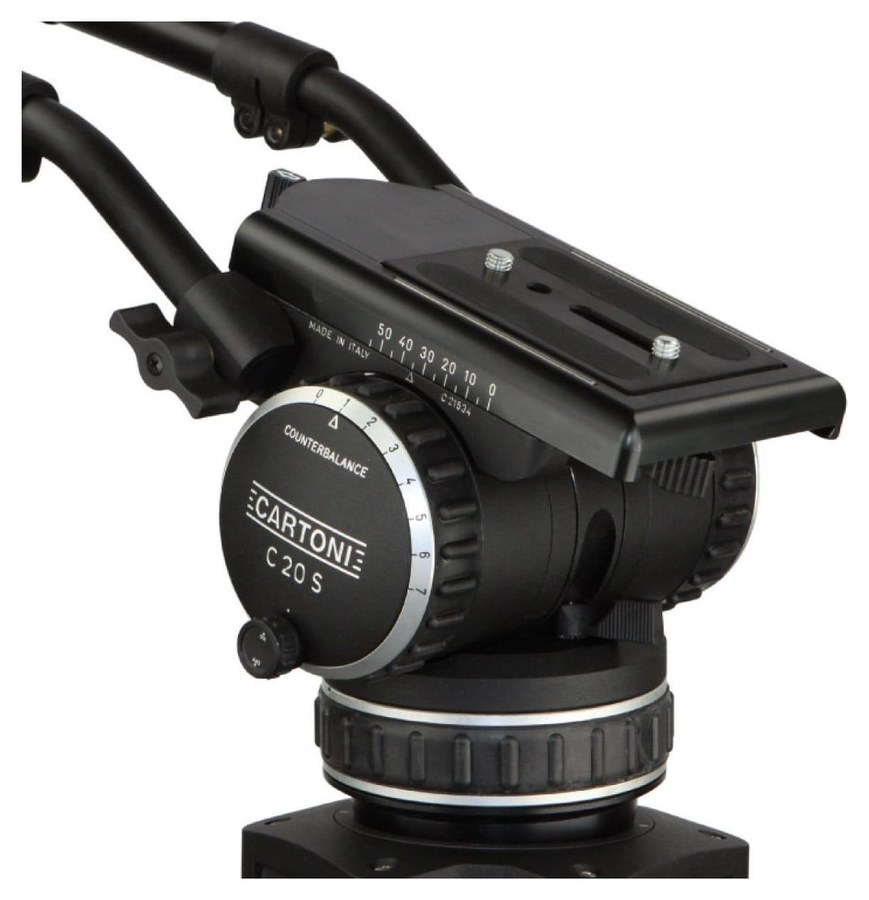

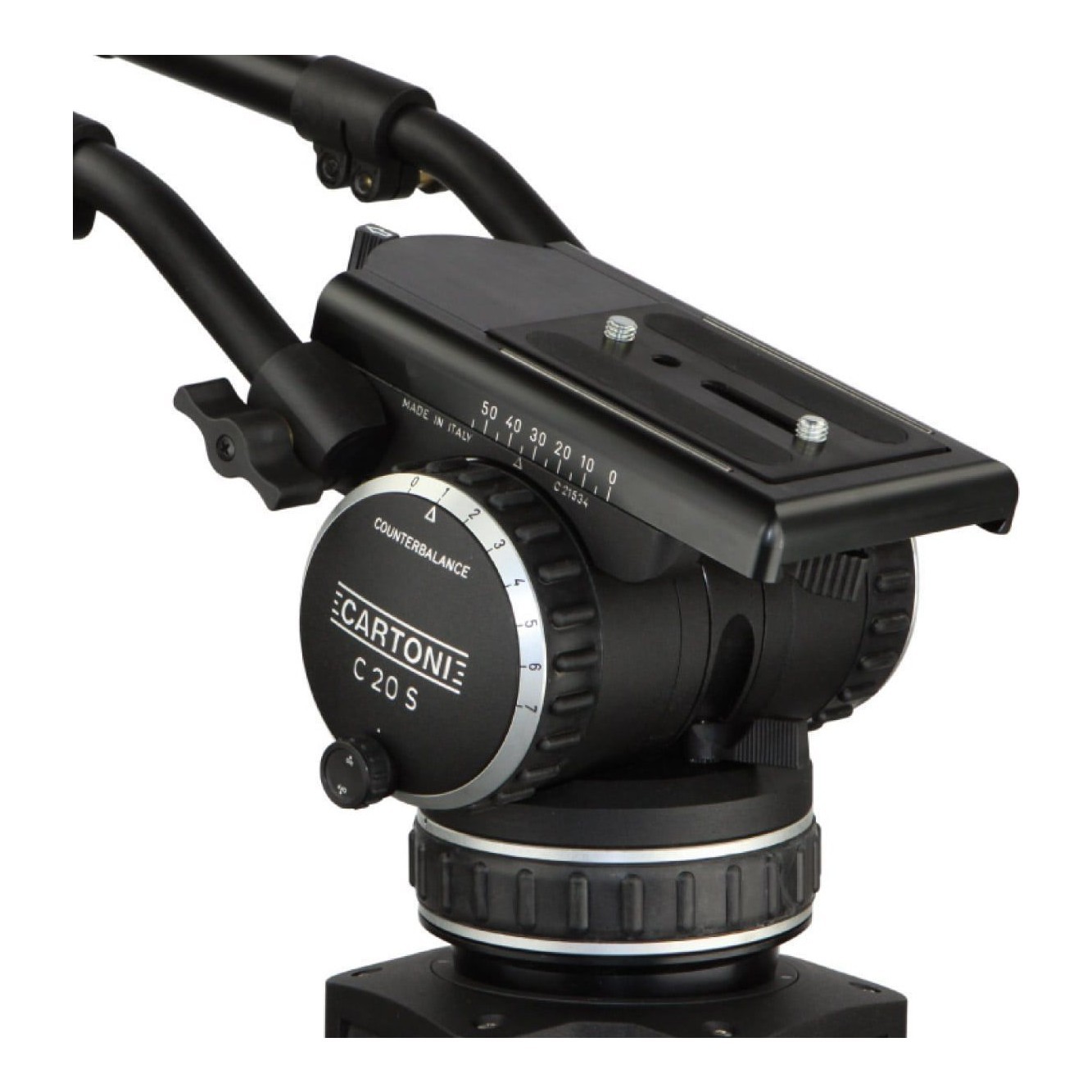

C20S fluid head

100 mm bowl, illuminated bubble level and telescopic pan bar; the head itself weighs 6.5 kg.

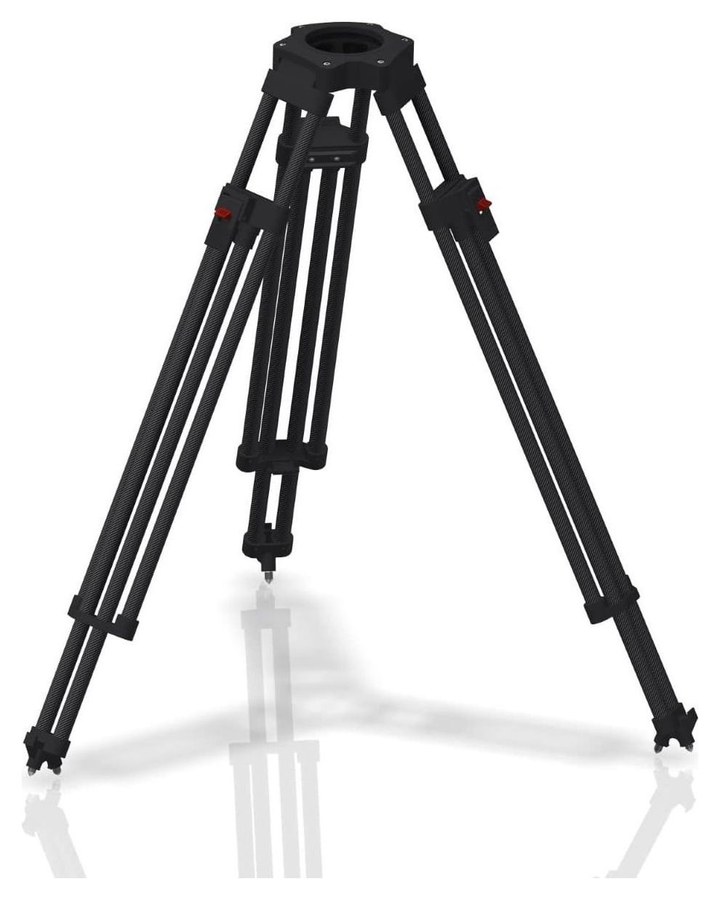

EFP Carbon 100 tripod

Carbon fibre legs, elastic washers and a self-adjusting steel connection virtually eliminate torque; height is set with fast clamps with a safety lock.

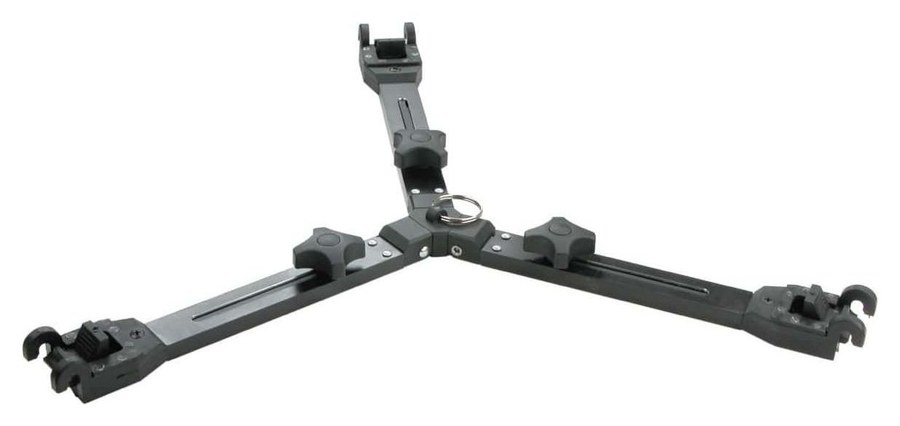

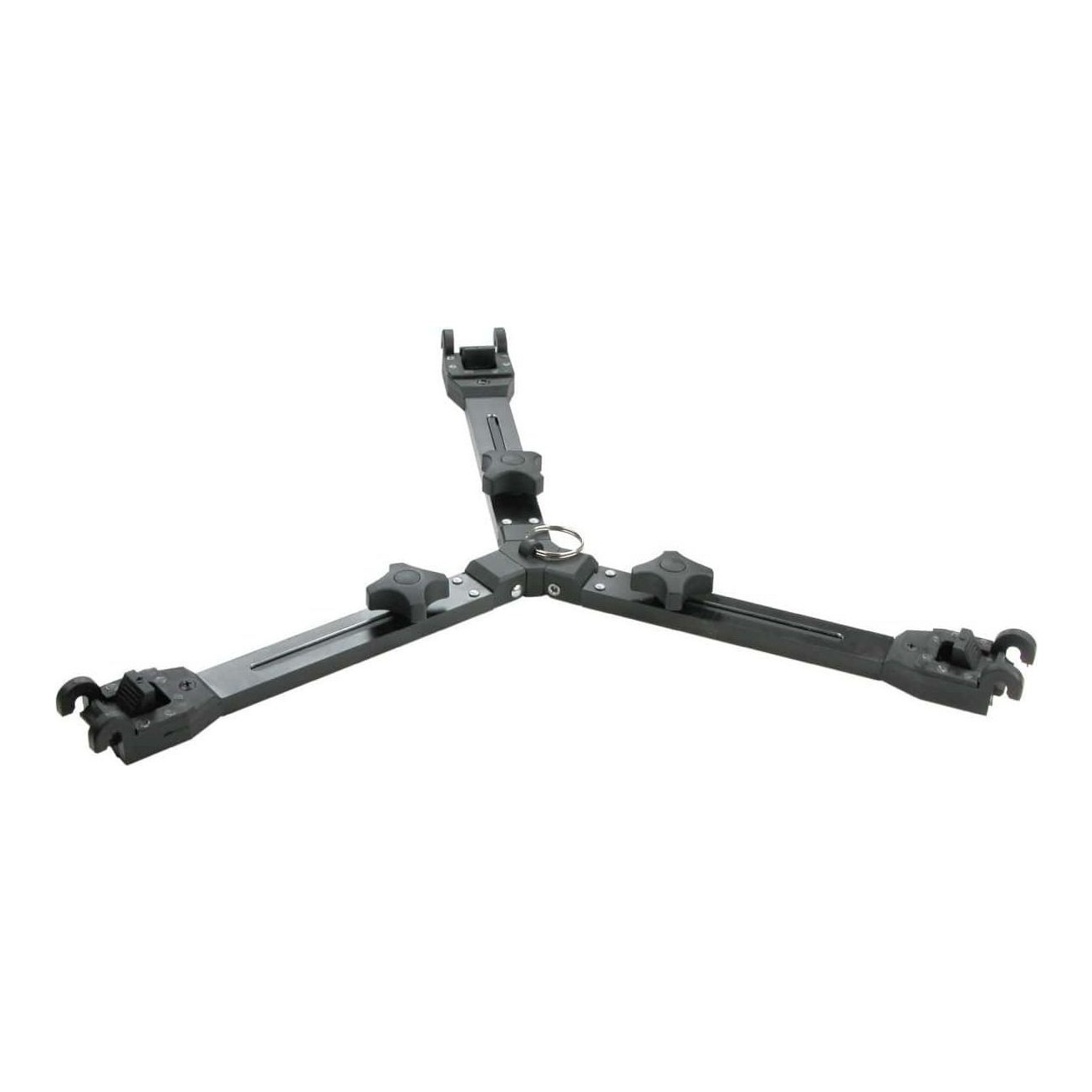

Mid-level spreader

Aluminium quick release mid-level spreader for 1-stage EFP tripods; with it the tripod stands on pivoting rubber feet.

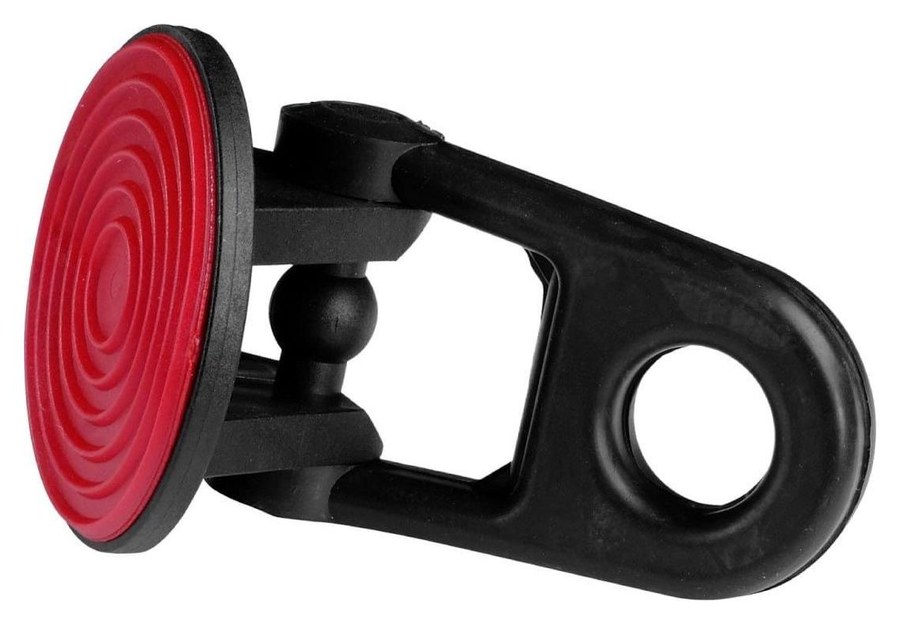

Pivoting rubber feet

High-resistance, extra-stable pivoting feet that a tripod with a mid-level spreader requires.
