Cartoni C20S EFP 2-St CF System GS
SKU: K713-2CG

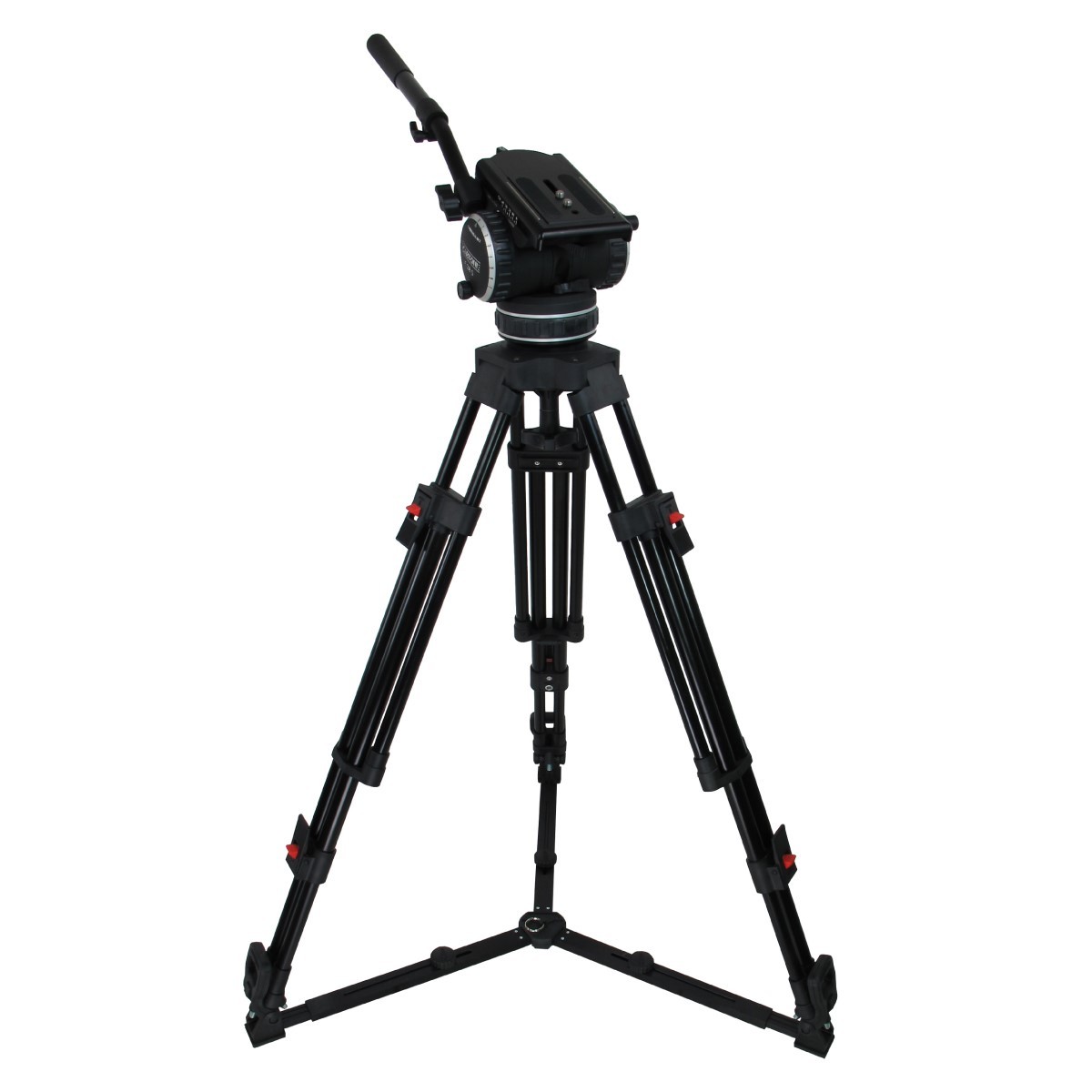

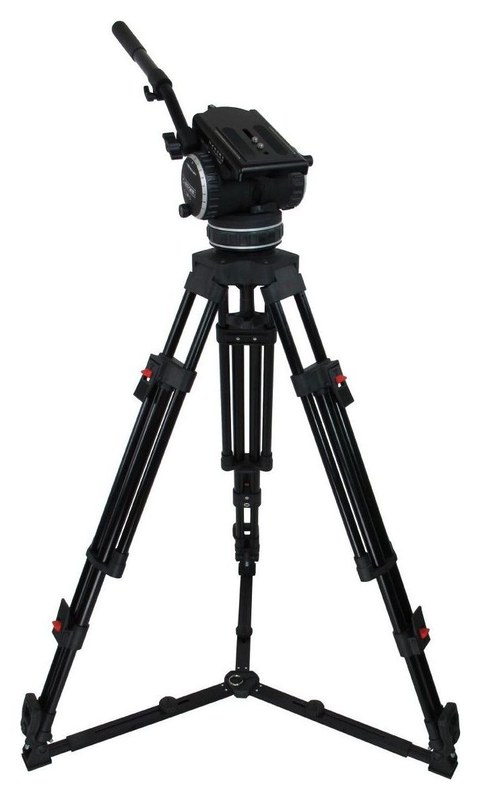

The Cartoni C20S system combines the C20S fluid head with a 2-stage carbon fibre EFP 2st. Carbon 100 tripod and a ground spreader. It carries cameras from 7 to 35 kg, the working height is 67–172 cm and the complete system weighs 12.8 kg. It is built for EFP configurations where stability and precisely repeatable settings matter.
9 869 € with VAT
8 156.2 € without VAT
Availability
14-30 days
Cartoni C20S EFP ALU System GS
8 749 €without VAT 7 230.58 €
Cartoni C20S EFP CF System MS
9 409 €without VAT 7 776.03 €
Cartoni C20S EFP CF System GS
9 439 €without VAT 7 800.83 €
Cartoni C20S EFP 2-St ALU System MS
9 019 €without VAT 7 453.72 €
Cartoni C20S EFP 2-St ALU System GS
9 049 €without VAT 7 478.51 €
Cartoni C20S EFP 2-St CF System MS
9 839 €without VAT 8 131.41 €Top accessories for Cartoni C20S EFP 2-St CF System GS
Cartoni AT877 Pivoting Rubber Foot with Hook Eye for Red Lock and SDS
The Cartoni AT877 pivoting rubber foot is a highly resistant, extra stable foot for
94 €
In stock 2 pcs
Cartoni D834 Standard Dolly
The Cartoni D834 is an aluminum dolly for Red Lock, SDS and EFP tripods. Each wheel
1 089 €
In stock 1 pcs
Cartoni AH869 Pedestal Adapter for Focus 18 and Focus 22 on P20
The Cartoni AH869 adapter puts a Focus 18 or Focus 22 fluid head on the P20 pedestal.
338 €
In stock 1 pcs
Cartoni S731/SQR Quick Release Short Mid-Level Spreader
The Cartoni S731/SQR is an aluminum mid-level spreader for 2-stage ENG, EFP and DSLR/UHD
166 €
14-30 days
Cartoni D844/A Standard 100 Extendable Dolly
The Cartoni D844/A is an aluminum dolly with extendable legs for Red Lock, SDS and
999 €
on request
Cartoni D844 Standard 100 Dolly
The Cartoni D844 is an aluminum dolly for Red Lock, SDS and EFP tripods. Its single
829 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Cartoni C20S system combines the C20S fluid head with a 2-stage carbon fibre EFP 2st. Carbon 100 tripod and a ground spreader. It carries cameras from 7 to 35 kg, the working height is 67–172 cm and the complete system weighs 12.8 kg. It is built for EFP configurations where stability and precisely repeatable settings matter.
C20S on the EFP 2st. Carbon 100 tripod
The C20S fluid head has three award-winning fluid damping modules; drag is selected in 7 precisely repeatable steps, and in position 0 the head moves freely.
7–35 kg100 mm bowlheight 67–172 cmweight 12.8 kg2-stage carbon fibre
Drag and counterbalance in 7 steps
Counterbalance is engaged with an easy-grip selector in 7 progressive steps plus 0; drag also has 7 steps and free-wheeling. Every setting can be repeated exactly.
7 to 35 kg
A wide range of cameras for EFP set-ups.
±65° tilt
Operation from −40 to +60 °C and an illuminated bubble level.

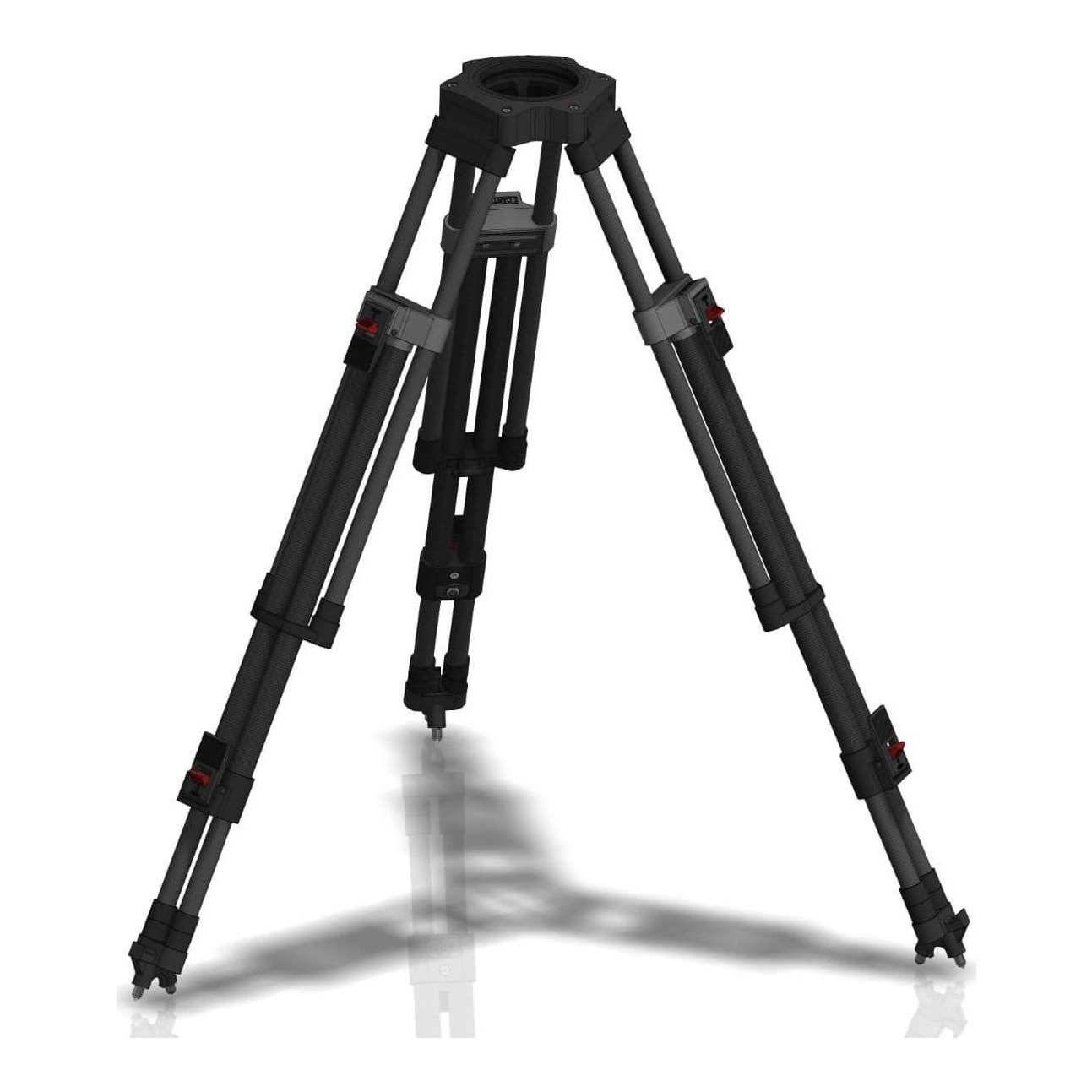

Two stages in carbon
Carbon fibre EFP tripod with a 100 mm bowl and an 80 kg capacity.

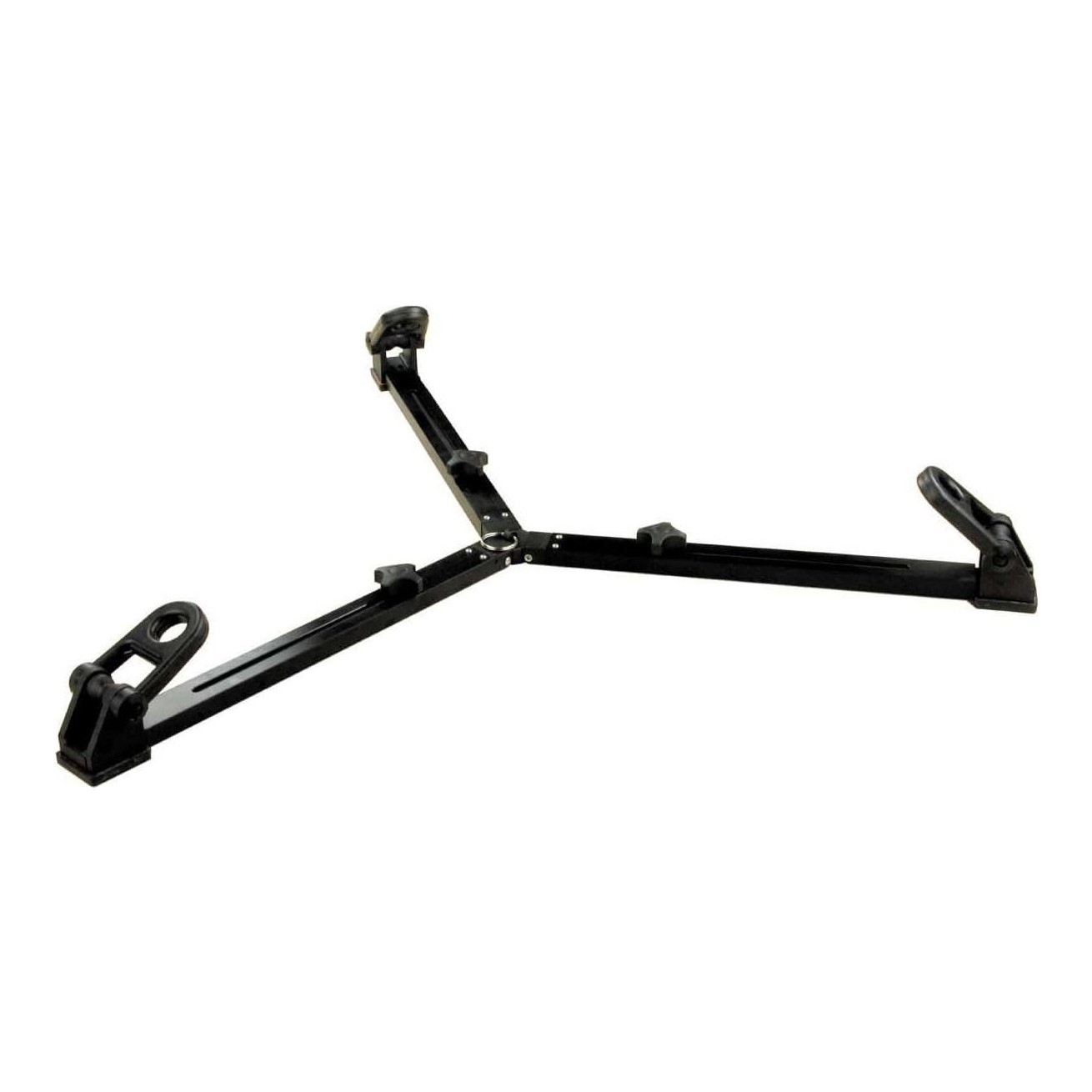

Ground spreader
Links the tripod legs at floor level and holds their spread.

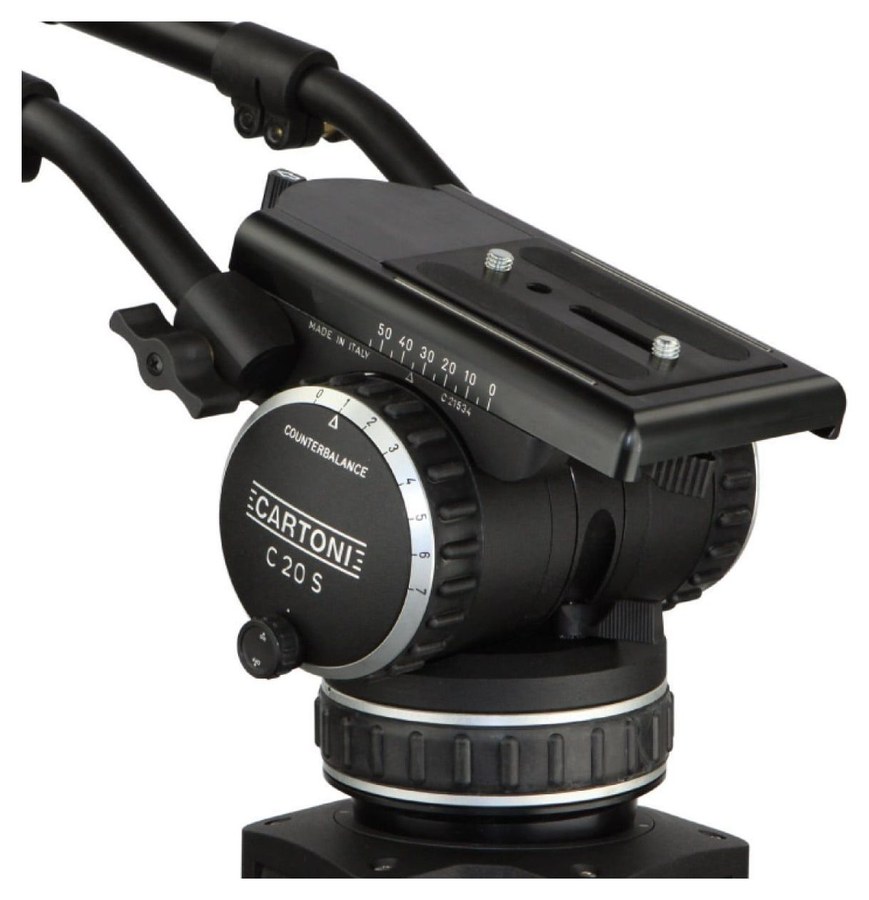

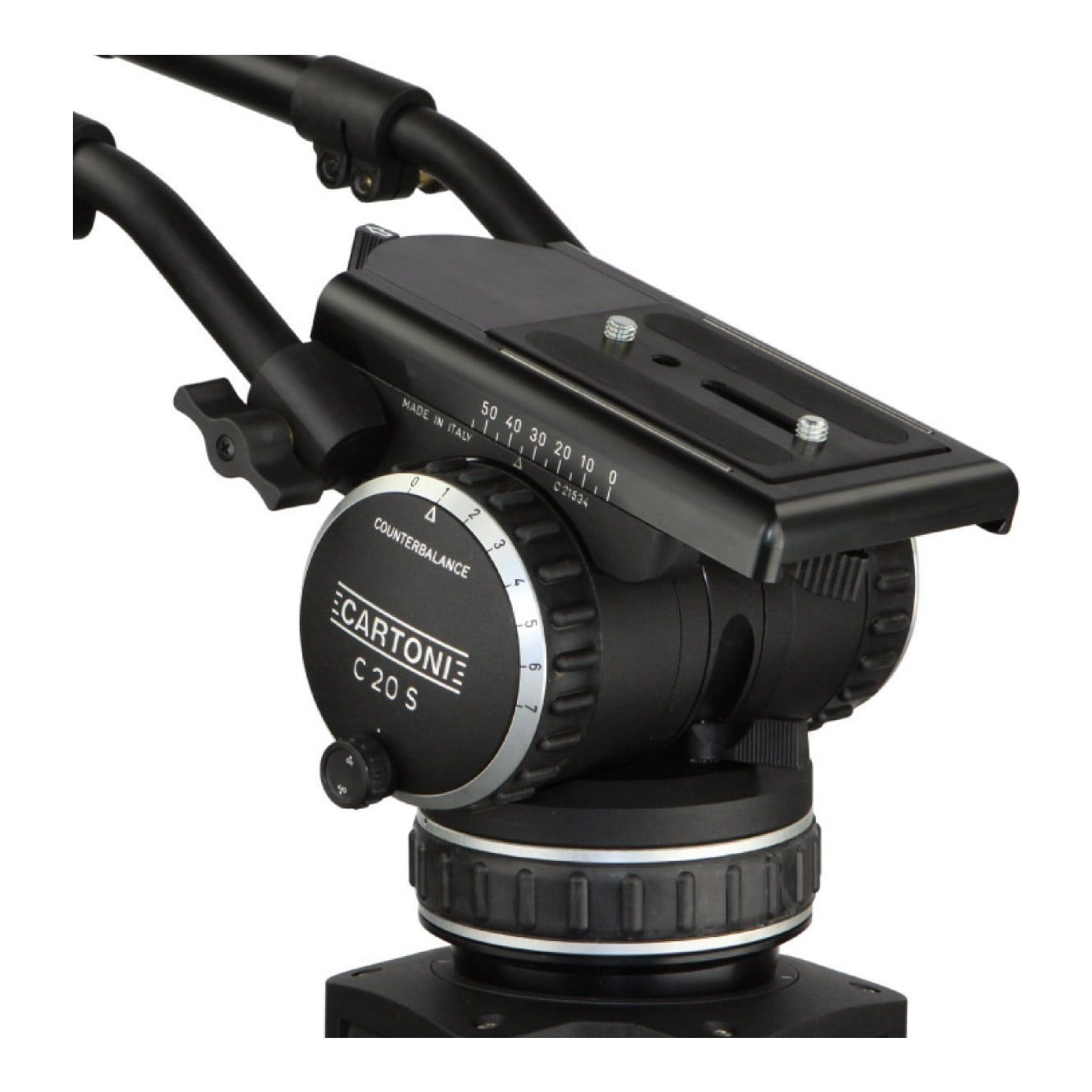

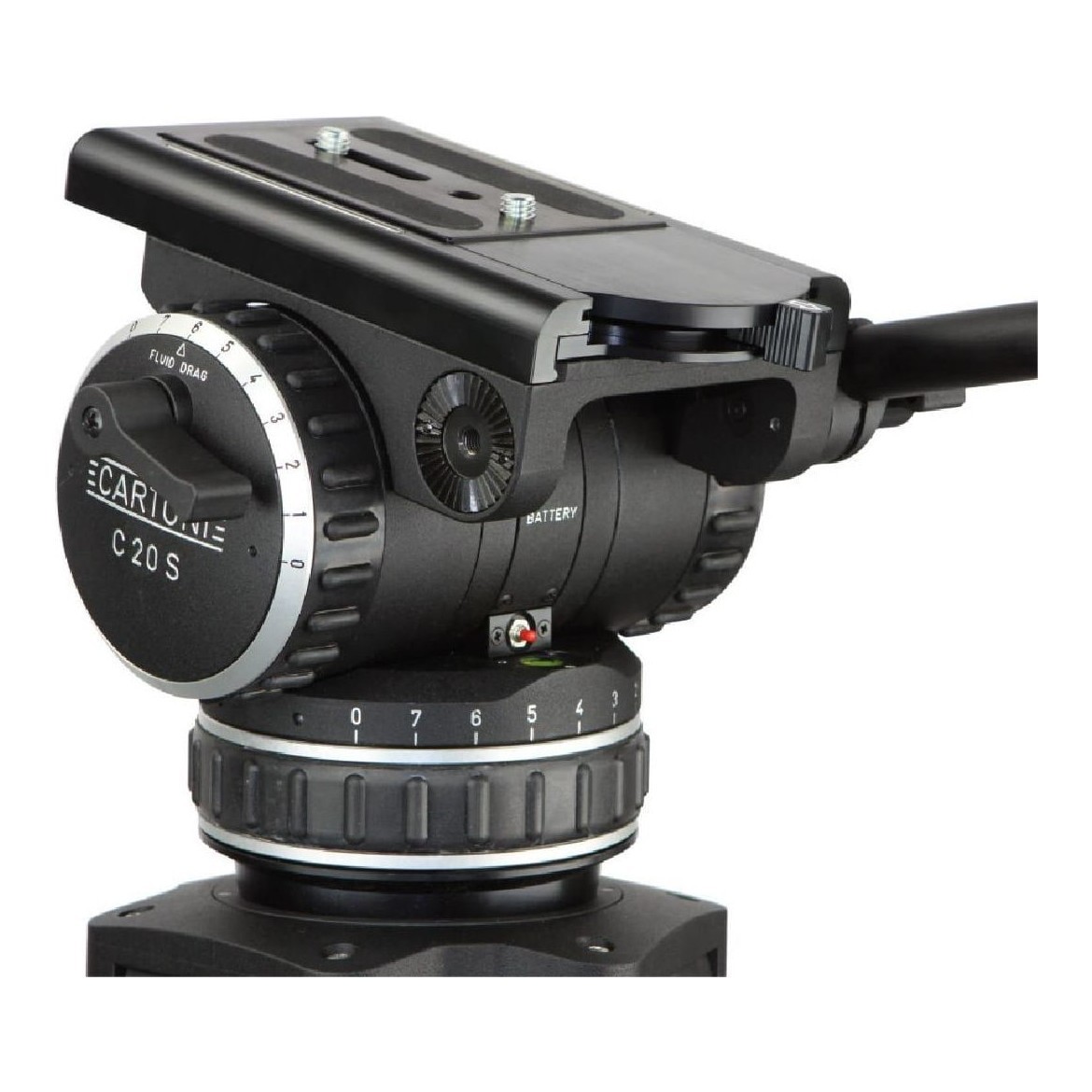

C20S fluid head
100 mm bowl, illuminated bubble level and telescopic pan bar; the head itself weighs 6.5 kg.

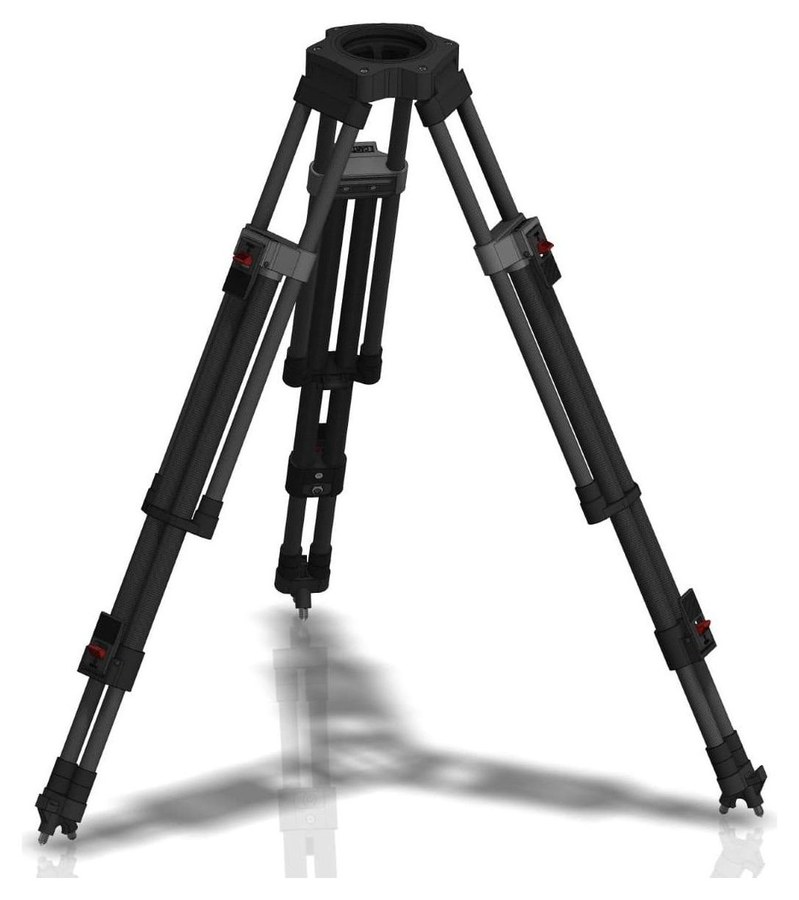

EFP 2st. Carbon 100 tripod
Two-stage carbon fibre legs, elastic washers and a self-adjusting steel connection virtually eliminate torque even with heavy drag.

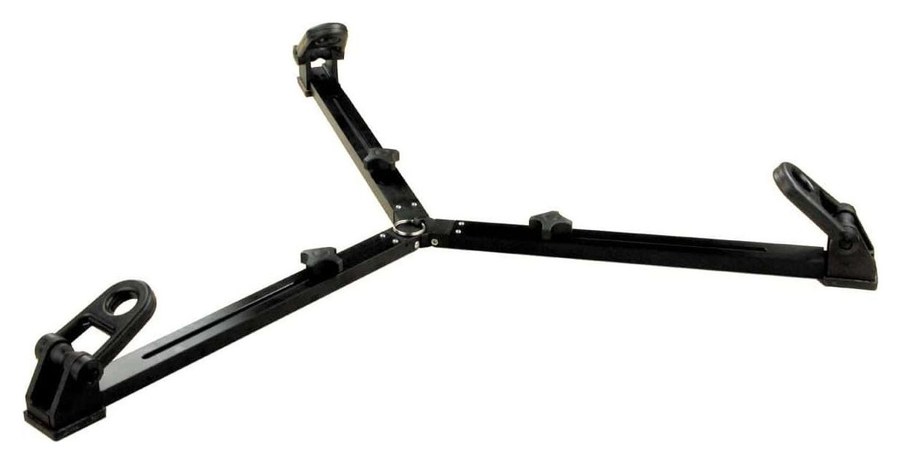

Ground spreader
The standard Cartoni ground spreader for Red Lock, SDS and EFP tripods connects to the ball foot couplings of the legs.

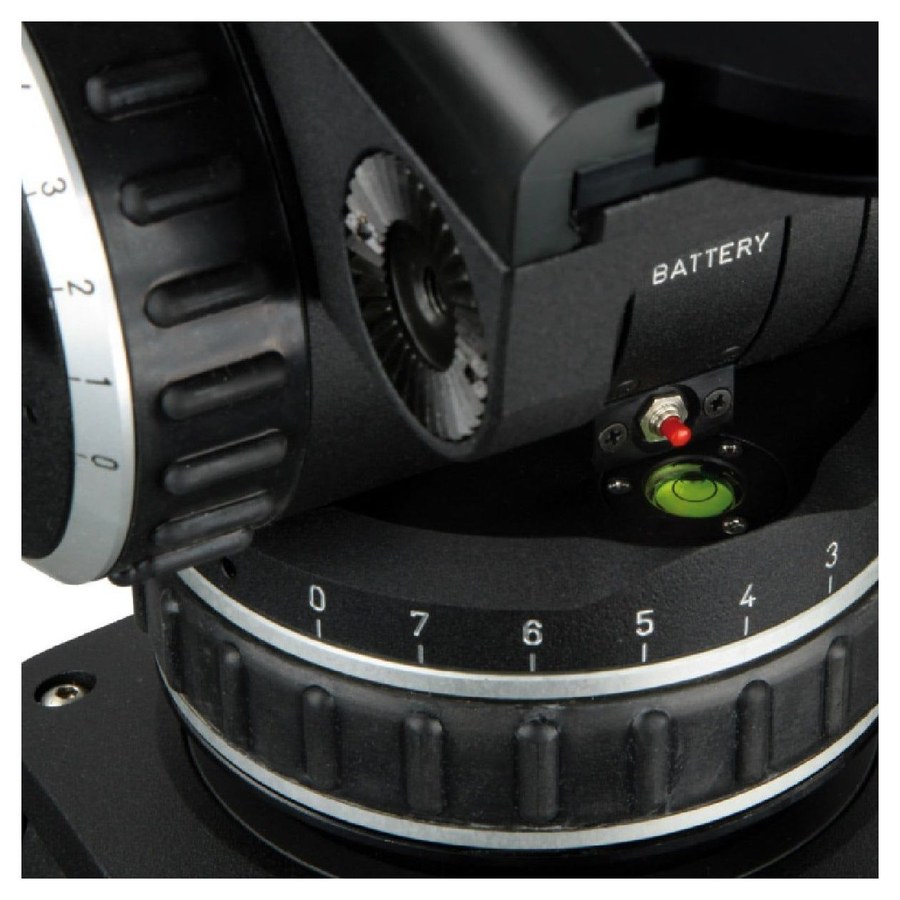

Scale 0–7
The counterbalance and drag selectors have 7 steps and a 0 position for free-wheeling; the setting is easy to read.
PACKAGE CONTENT
- C20S fluid head (H513) with telescopic pan bar, camera plate and tie-down knob
- EFP 2st. Carbon 100 tripod, 2-stage, carbon fibre (T723/2C)
- Ground spreader (S832)
SPECIFICATIONS
- Payload: 7–35 kg
- System weight: 12.8 kg
- Working height (ground to camera plate): 67–172 cm
- Head mount: 100 mm bowl
- Fluid drag: 7 steps + 0
- Counterbalance: 7 steps + 0
- Tilt range: ±65°
- Operating temperature: −40 to +60 °C
- Head: Cartoni C20S (H513)
- Head weight: 6.5 kg
- Tripod: EFP 2st. Carbon 100 (T723/2C), 2-stage, carbon fibre
- Tripod capacity: 80 kg
- Spreader: ground (S832)
- Manufacturer code: K713-2CG
WE RECOMMEND
We recommend these Cartoni accessories for the Cartoni C20S EFP 2-St CF System GS:
- Cartoni Quick Release Mid-level Spreader short (S731/SQR)
- Cartoni AT877 Pivoting Rubber Foot with Hook Eye for Red Lock and SDS
- Cartoni Standard Dolly 100mm single wheel for Red lock - SDS
- Cartoni Standard Dolly (D834)
- Cartoni Standard Dolly 100mm single wheel, extendable
- Cartoni AH869 Pedestal Adapter for Focus 18 and Focus 22 on P20
Parameters
| Manufacturer: | Cartoni |
| Category: | Tripods |
Main parameters
| Minimum height | 67cm |
| Active counterbalance positions | 7 |
| Counterbalance off setting | Yes |
| Pan bar included | Yes |
| Illuminated bubble level | Yes |
| Tripod head included | Yes |
| Material | Carbon fibre |
| Type | Fluid head · Video tripod |
| Weight | 12.8kg |
| Bowl size | 100 |
| Spreader type | Ground-level |
| Max height | 172cm |
| Tripod payload | 80kg |
