VAXIS STORM 3000 DV Kit 1TX,1RXDual V mount TX

  • Free transport
  • LAST PIECE
SKU: VS19-3000DV-TR01

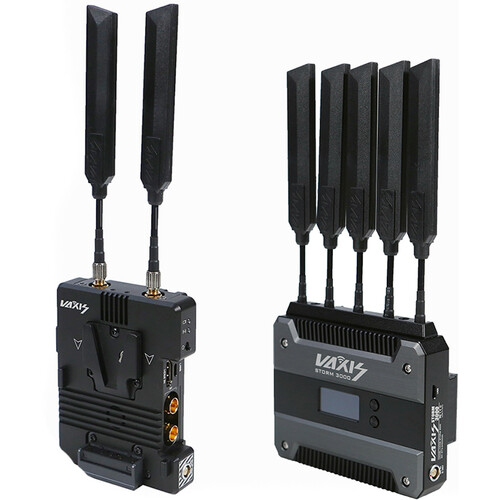

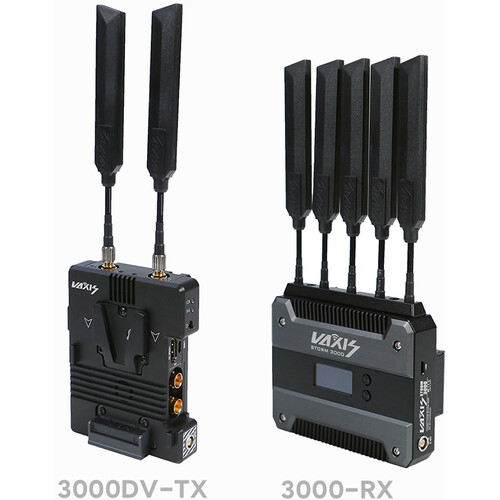

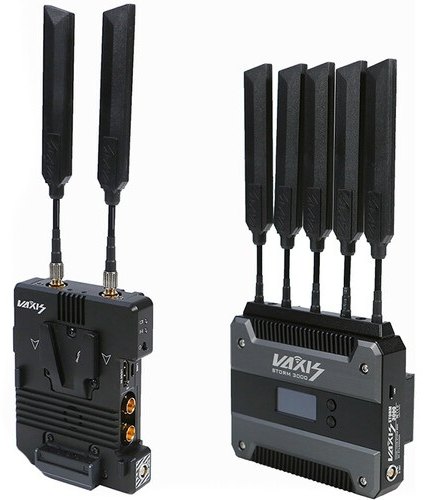

Vaxis Storm 3000 DV kit: a transmitter with two pass-through V-Mount plates and a receiver with a V-Mount plate. Uncompressed 1080p60 with under 1 ms latency up to 3000 ft, SDI and HDMI inputs, multicast for more receivers.

More information

6 579 € with VAT 5 437.19 € without VAT
Add to Compare Price history
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs
SKU:
VS19-3000DV-TR01
Add to Compare Price history

STORM 3000 KIT, 1TX 1RXV MOUNT

6 249 €without VAT 5 164.46 €

Top accessories for VAXIS STORM 3000 DV Kit 1TX,1RXDual V mount TX

Vaxis MUSHROOM ANTENNA

Vaxis Mushroom antennas (2 pcs) for the 5 GHz band, 5150–5850 MHz, with a return
17 €
on request

Vaxis RADAR SHORT ANTENNA

Vaxis Radar Short antennas (2 pcs) for the 5 GHz band, 5150–5850 MHz, with 3 dBi
17 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Vaxis Storm 3000 DV kit: a transmitter with two pass-through V-Mount plates and a receiver with a V-Mount plate. Uncompressed 1080p60 with under 1 ms latency up to 3000 ft, SDI and HDMI inputs, multicast for more receivers.

Storm 3000 DV pairs a transmitter that powers itself and the camera from one V-Mount battery with a receiver running on a V-Mount battery. The camera image travels over 3G-SDI or HDMI uncompressed up to 3000 ft (914 m), and the receiver outputs it on SDI and HDMI. Thanks to multicast, more receivers can be added at any time.

The whole path from camera to monitor

Storm 3000 DV transmitter with V-Mount pass-through and a receiver with a V-Mount plate in one kit.

Up to 3000 ft rangeUnder 1 ms latencyUncompressed 1080p60Dual V-Mount TXV-Mount receiver

Transmitter with V-Mount pass-through

The transmitter sits between camera and battery and powers both from one source, with a 2-pin LEMO input for external power.

Receiver for the monitor

The receiver with integrated V-Mount plate outputs the image on 3G-SDI and HDMI, ready for a monitor or a recorder.

Big scenes without cables

Uncompressed transmission over 3000 ft handles large multi-camera productions. The optional Storm 5G channel scanner shows free channels even in a crowded RF environment.

Multicast

One transmitter for an unlimited number of receivers.

Encryption

Digital encryption protects the link from eavesdropping.

5 GHz band

Licence-free operation with channel selection.

Timecode

Timecode and metadata pass-through from the camera.

1000 metres of range. The more robust signal loses far less image quality at extreme distance, so Storm 3000 handles a football stadium or a big production.

1000 metres of range

PACKAGE CONTENT

  • Storm 3000 DV transmitter ×1
  • Storm 3000 receiver with V-Mount plate ×1

SPECIFICATIONS

  • Brand: Vaxis
  • Model: Storm 3000 DV Kit 1TX 1RX, VS19-3000DV-TR01
  • Range: up to 3000 ft / 914 m (line of sight)
  • Latency: under 1 ms
  • Resolution: up to 1080p60 uncompressed
  • Transmitter video: 3G-SDI in, HDMI in, 3G-SDI loop out
  • Receiver video: 3G-SDI and HDMI outputs
  • Transmitter power: 2× pass-through V-Mount plate, 2-pin LEMO
  • Receiver power: integrated V-Mount plate
  • Band: 5 GHz
  • Multicast: unlimited receivers

WE RECOMMEND

The VAXIS STORM 3000 DV Kit is a state-of-the-art wireless video transmission system with integrated V-mount power and a range of up to 900 meters. To maximize its use in professional production, it is recommended to supplement it with high-quality optical filters for the camera and sturdy mounting hardware for secure attachment of both the transmitter and receiver.

Optical Filters (4x5.65") - Professional filters for matte boxes designed for cameras equipped with a wireless transmitter.

Optical Filters (95mm) - Circular filters compatible with modern film lenses for achieving specific visual effects.

Mounting and Power Supply - Accessories for secure component mounting and additional power cables.

Parameters

Parameters

Manufacturer: Vaxis
Category: Wireless video transmission
ACCESSORIES (2)

ACCESSORIES (2)

Vaxis MUSHROOM ANTENNA

Vaxis Mushroom antennas (2 pcs) for the 5 GHz band, 5150–5850 MHz, with a return
17 €
on request

Vaxis RADAR SHORT ANTENNA

Vaxis Radar Short antennas (2 pcs) for the 5 GHz band, 5150–5850 MHz, with 3 dBi
17 €
on request
Alternative (1)

Alternative (1)

STORM 3000 KIT, 1TX 1RXV MOUNT

  • Free transport
Vaxis Storm 3000 sends uncompressed 1080p60 with zero latency up to 1 km. Kit with
6 249 €
on request
