Libec LX-ePed PRO

Libec LX-ePed PRO is a motorized base specifically designed for PTZ cameras. It is an advanced model of the LX-ePed 2 / LX-ePed 2 Studio with greater load capacity, reduced noise during movements and high rigidity that can be used even under extreme shooting conditions. The supplied T-bar with five AP-X adapters carries up to five PTZ cameras, raised 400 mm by the column.

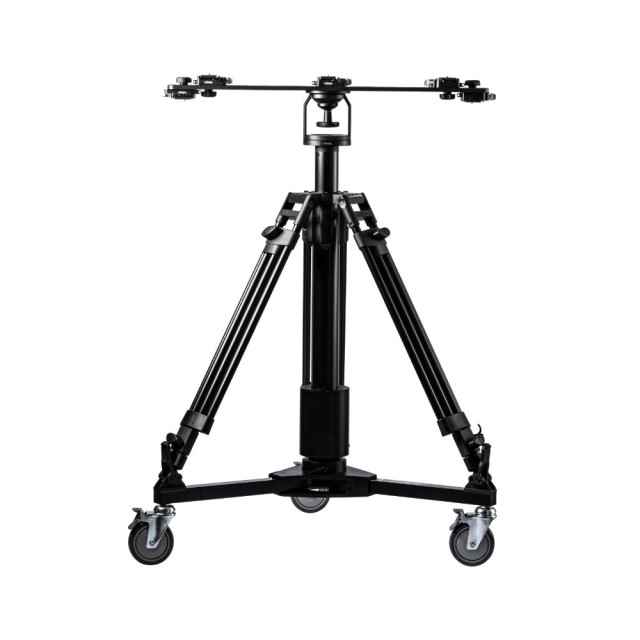

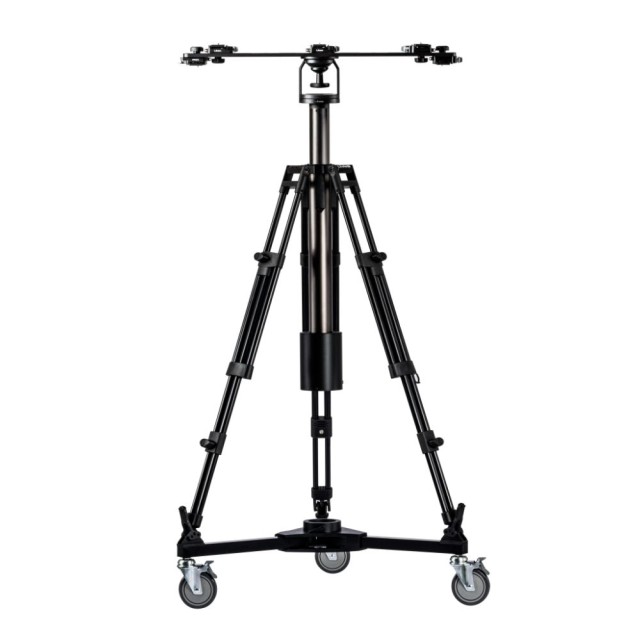

The Libec LX-ePed PRO is an electric pedestal with a dolly for PTZ cameras and rigs up to 30 kg. It stands on the heavy-duty T103RB aluminium tripod with the DL-8RB dolly, its motorised column raises the load by 400 mm and the system adjusts from 121.5 to 270.5 cm. The supplied T-bar takes up to five PTZ cameras.

A pedestal for PTZ rigs up to 30 kg

Motorised column with 400 mm elevation, T103RB tripod on a DL-8RB dolly and a T-bar with five AP-X adapters.

30 kg payload400 mm elevationHeight 121.5–270.5 cmUp to 5 PTZ cameras3 height presetsQuiet motor

Height as a fourth axis

The controller adds elevation to the pan, tilt and zoom of a PTZ camera. The column starts and stops smoothly, so height changes can be used on shot.

Three presets at a touch

The wired controller stores up to three heights, and the column speed is set continuously by tilting the lever. It is powered from the pedestal, so no batteries or charger are needed.

Packs into a case

The main unit separates from the dolly and every part folds. The unit alone weighs 15 kg and fits in the optional RC-80 case.

Three times the payload of the LX-ePed 2

The LX-ePed PRO carries a PTZ camera with a prompter, five PTZ cameras at once or a REMO30 remote head with a handheld camera. Its quiet motor makes it a fit for concerts and anywhere noise matters.

Complete kit

A T-bar, five AP-X adapters and the BL-100F adapter come in the box.

IP and serial control

With the optional MPC-1, control it from a PTZ controller or the LX-ePed PC APP.

V-mount power

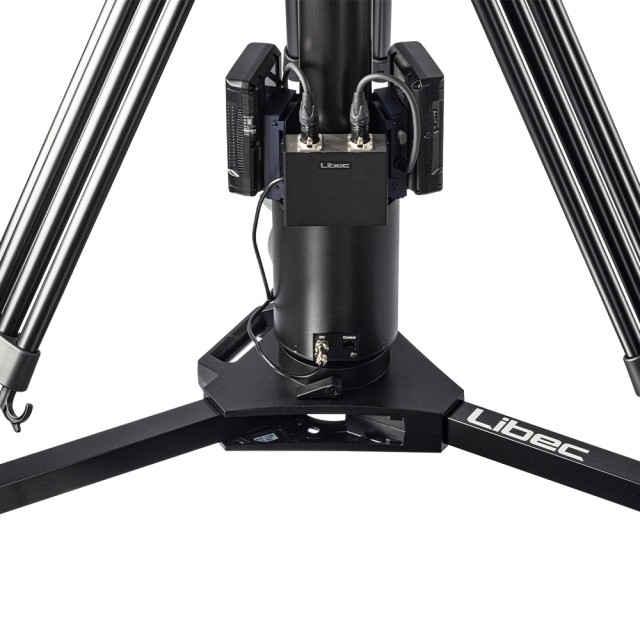

The optional VM-24V powers the pedestal from two V-mount batteries.

Foot control

The optional FPR-2 foot pedal keeps your hands free for the PTZ camera.

With a load capacity of 30 kg , this robust electric base can support configurations such as a PTZ camera with prompter, a combination of five PTZ cameras or a "REMO30" remote head combined with a handheld camera. This quiet electric base is also a great solution for music concerts and other filming locations where minimal noise is required. Using the optional multi-protocol converter"MPC-1", the LX-ePed PRO can be connected and controlled by PTZ controllers and the original application, the LX-ePed PC APP, which offers a variety of optional settings.

Smart quick release adapter. Included in the package is a smart quick release adapter "AP-X" that allows you to attach/detach your camera more securely, easily and quickly. To prevent the attached PTZ camera from falling, the adapter is equipped with a hole for attaching a safety rope.

IP connection and serial communication. Using the multi-protocol converter "MPC-1", this new model can work with PTZ controllers and the original LX-ePed PC APP, which allows for precise setup. This unique feature enhances the accessibility of the electrical base.

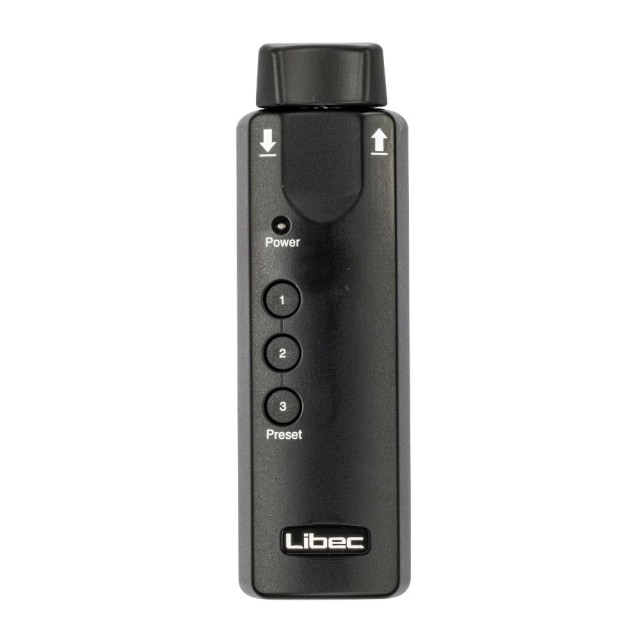

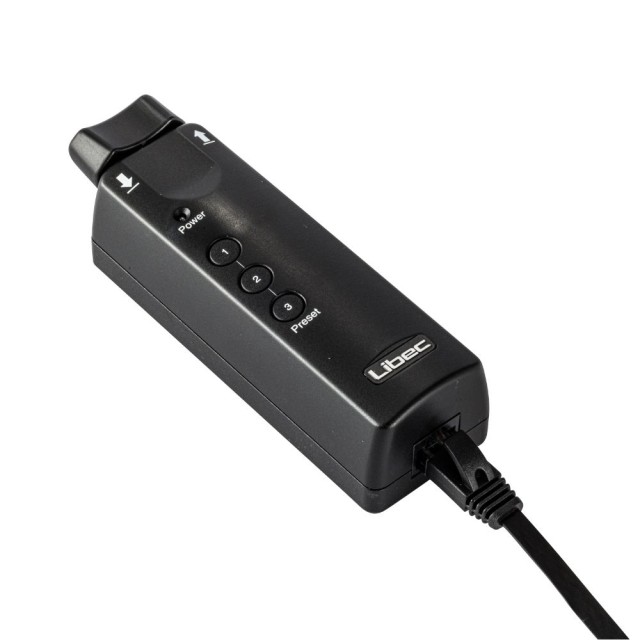

Remote control. The new remote control can store up to three preset positions, making it easy to adjust the height. The remote control adds a lifting element to the pan, tilt and zoom functions. This will provide multiple "viewing angles" and make setup easier.

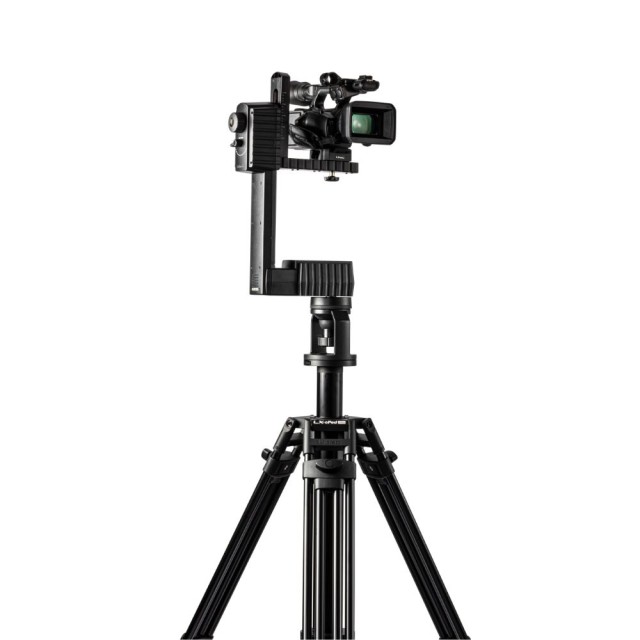

High load capacity of 30 kg. With the LX-ePed PRO's load capacity being three times that of the LX-ePed 2, this rugged electric pedestal can support configurations such as a PTZ camera with prompter, a combination of five PTZ cameras, or a "REMO30" remote head combined with a handheld camera.

High rigidity. The robust aluminium tripod "T103RB" with a maximum diameter of 24 mm and the heavy-duty tripod wheels (dolly) "DL-8RB" make the LX-ePed PRO significantly stable and rigid.

Noiseless design. The LX-ePed PRO uses a high-quality motor unit with significantly reduced noise. This makes this electric base ideal for music concerts and other filming locations where minimal noise is required.

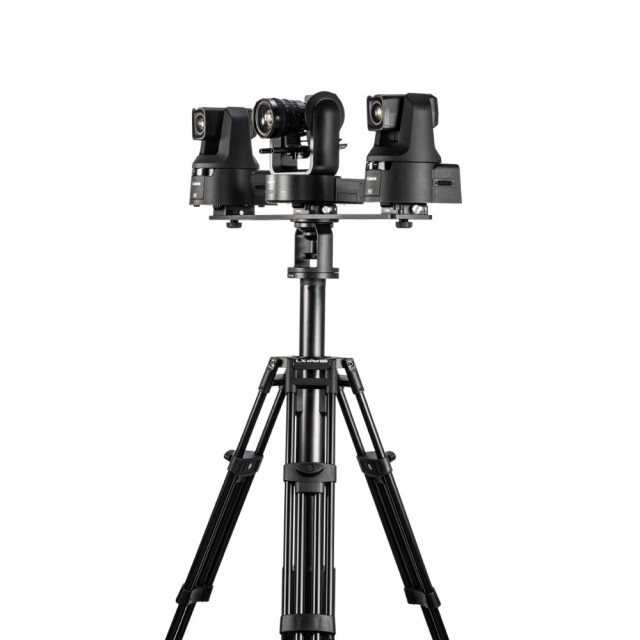

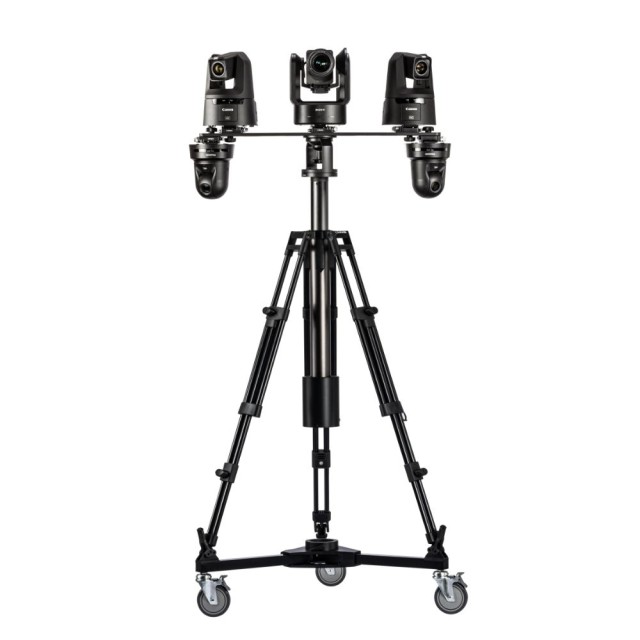

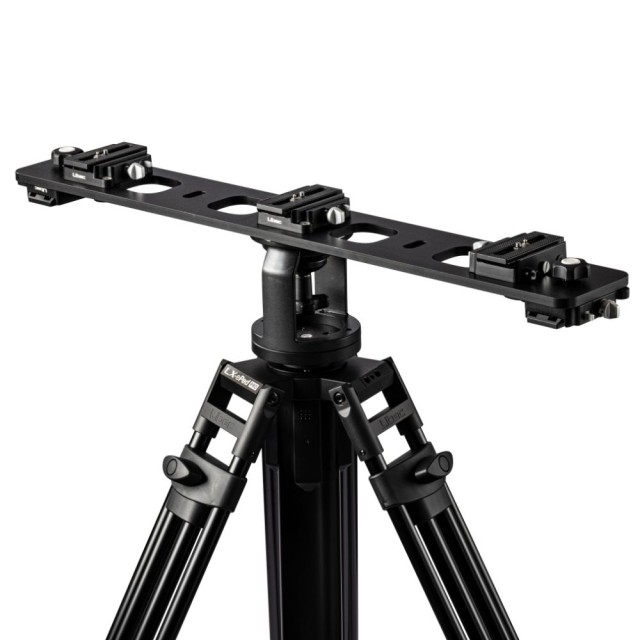

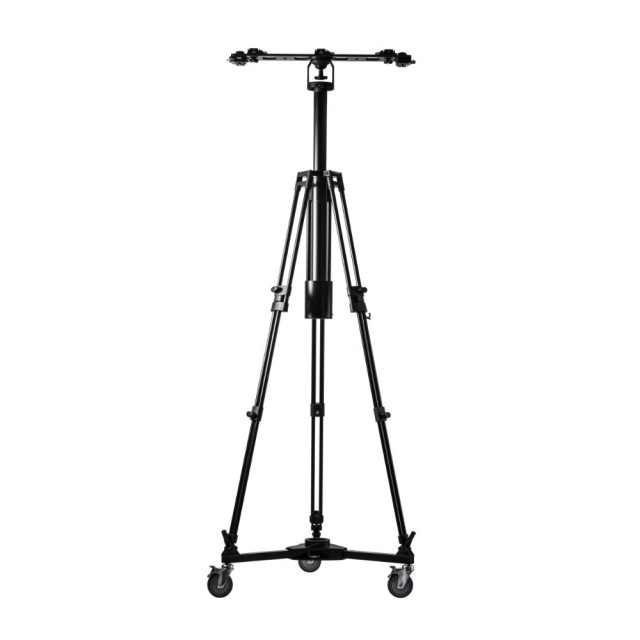

Up to five PTZ cameras can be accommodated. With the included T-bar equipped with five "AP-X" adapters, five PTZ cameras can be placed on it simultaneously. Users can place three PTZ cameras on the top of the T-bar and two PTZ cameras on the bottom.

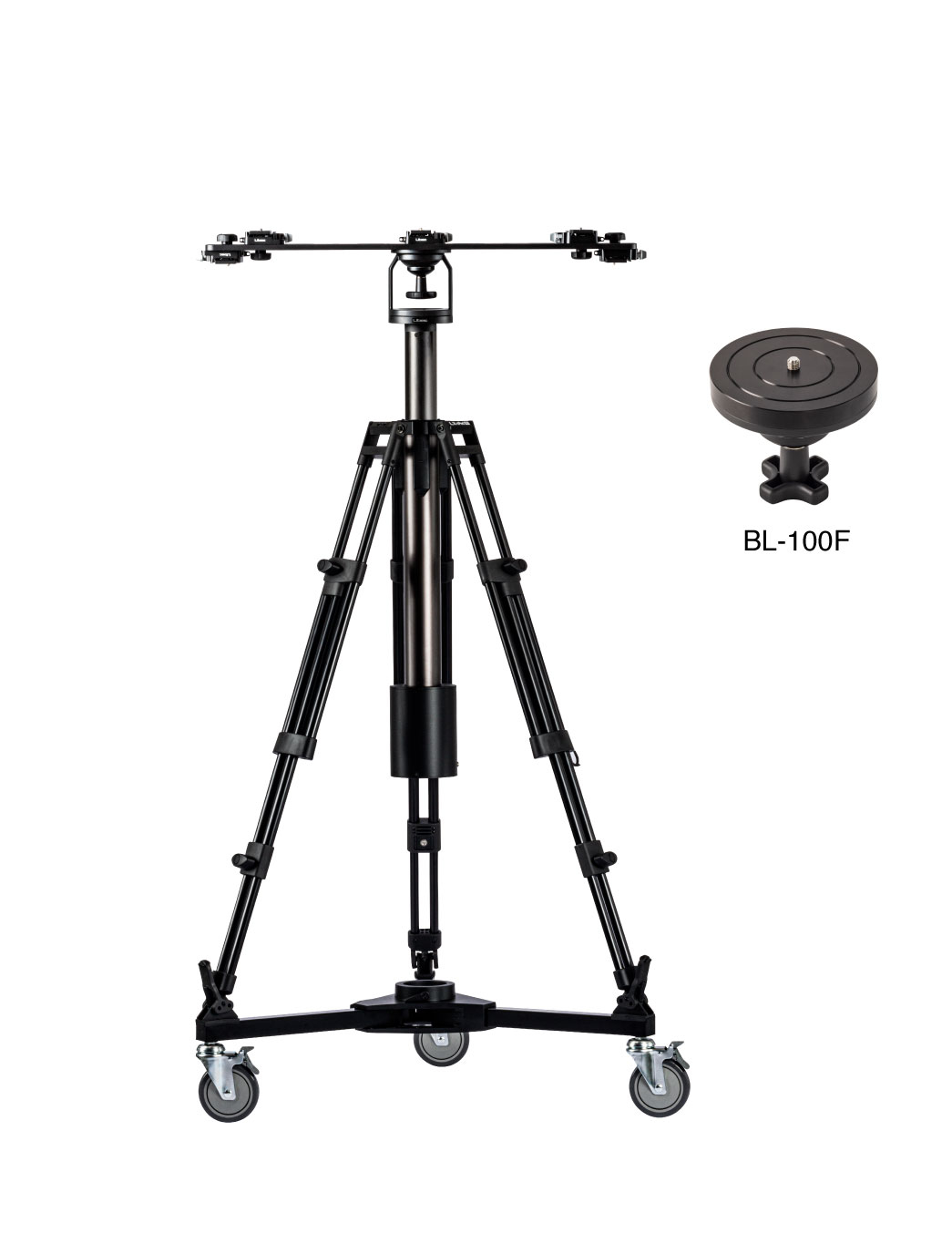

The complete set. The LX-ePed PRO includes the T-bar, five "AP-X" adapters and the "BL-100F" adapter, reducing the need to purchase additional accessories. As a complete kit, this rugged electric stand can play an important role in your filming.

Smooth and precise movements. The original post mechanism minimizes wobble and spin when the base moves up/down. In addition, the column is mechanically controlled with precision, allowing for smooth starting and stopping movements, making these electric bases ideal for "on shot" scenes.

Continuous speed adjustment. The speed of the top column can be adjusted by tilting the control lever. Slow motion mode allows fine tuning of the settings.

Highly reliable cable connection system. The LX-ePed 2 does not use Wi-Fi or Bluetooth, allowing users to focus on shooting without worrying about interference from radio waves. In addition, the controller is powered through the main part of the electrical base, so no additional power source or charger is needed.

Compatible with flat base with 1/4" and 3/8" screw holes. Includes "AP-X" adapter with 1/4" screw and "BL-100F" adapter with 3/8" screw. These adapters support not only PTZ cameras, but also a wide range of devices equipped with 1/4" or 3/8" threads that can now be mounted on the LX-ePed 2 PRO.

Compatibility with video heads. By removing the "BL-100F" component of the adapter, a video head with a 100mm ball base can be mounted on the LX-ePed PRO. In addition, by using the optional "AD-75" adapter, a video head with a 75mm ball base can also be mounted.

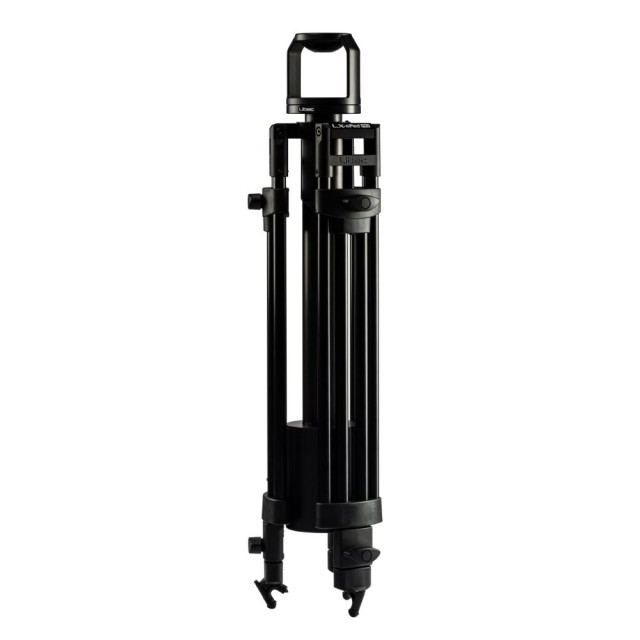

Compact design. The main unit can be detached from the tripod casters for easy transportation, and all components are collapsible. This compact unit can be stored in the optional RC-80 tripod case.

High angle shots. Dynamic high-angle shots can be achieved with a maximum height of 270 cm.

User friendly port for accessories. The accessory port, which has a 1/4" and 3/8" screw hole, is located on two of the three sides of the tripod base.

Safety design. With safety in mind, the power pole is carefully designed to prevent users from injuring their fingers.

Built-in spirit level. For easy adjustment, a spirit level is built into the base of the head mounting platform.
