Libec VM-12V (napájecí adaptér V-Mount pro LX-ePed)

Optional power adapter allowing power to Libec LX-ePed/ LX-ePed Studio, Libec LX-ePed 2/ LX-ePed 2 Studio and MPC-1 motorised bases using V-Mount batteries (battery not included). The kit consists of a battery adapter, a 1.96 m conversion cable and a fixing strap that holds it on the pedestal; the output is 12 V / 5 A and the adapter weighs 0.28 kg.

The Libec VM-12V is a V-mount battery adapter that lets the LX-ePed, LX-ePed Studio, LX-ePed 2 and LX-ePed 2 Studio electric pedestals and the MPC-1 converter run without an outlet. The kit consists of a battery adapter, a conversion cable and a fixing strap, with a 12 V / 5 A output.

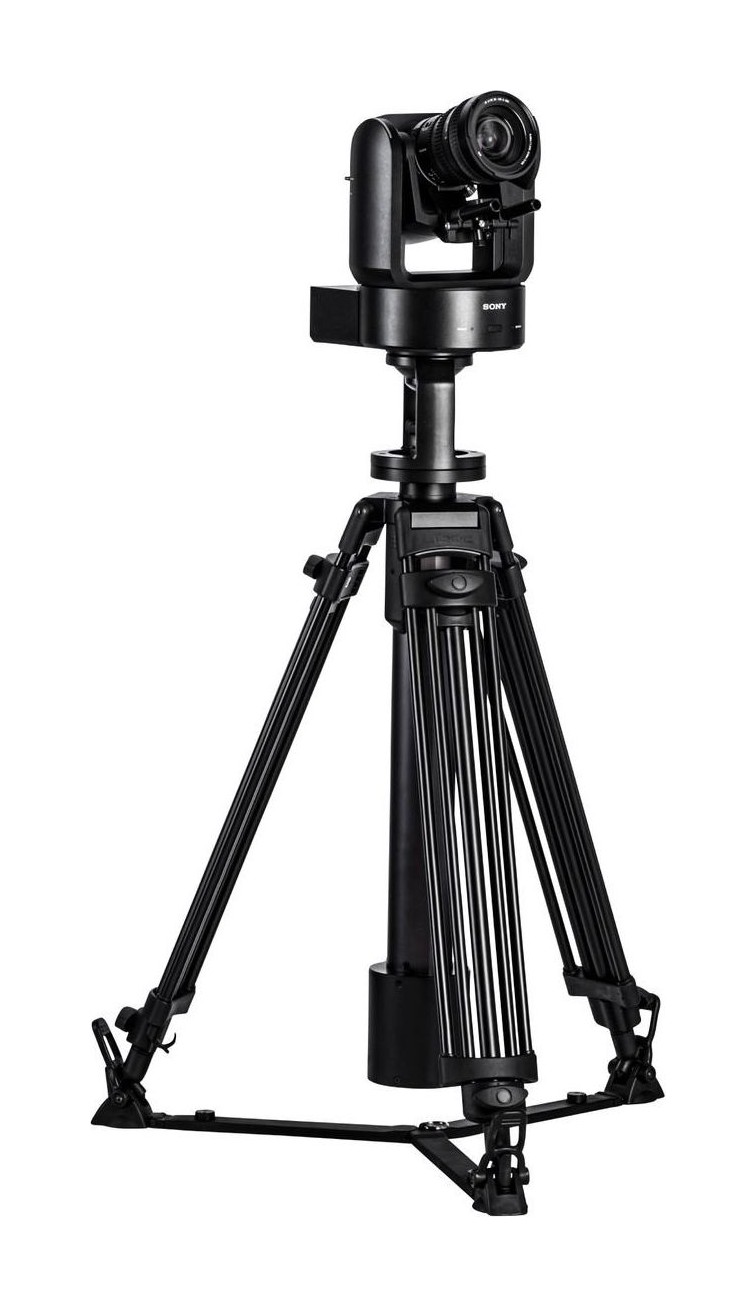

The LX-ePed on battery power

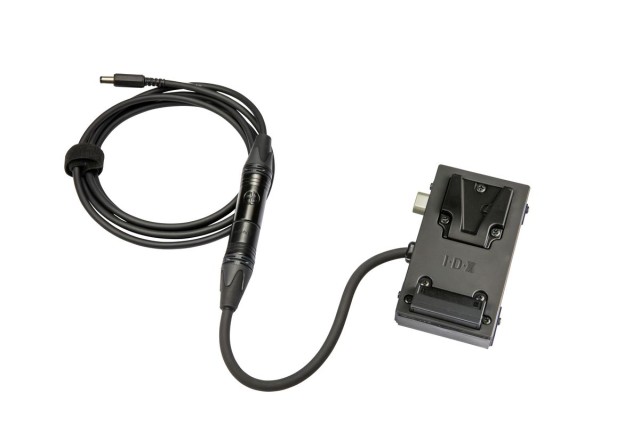

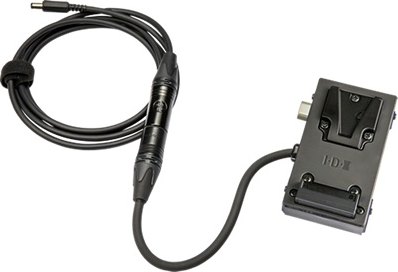

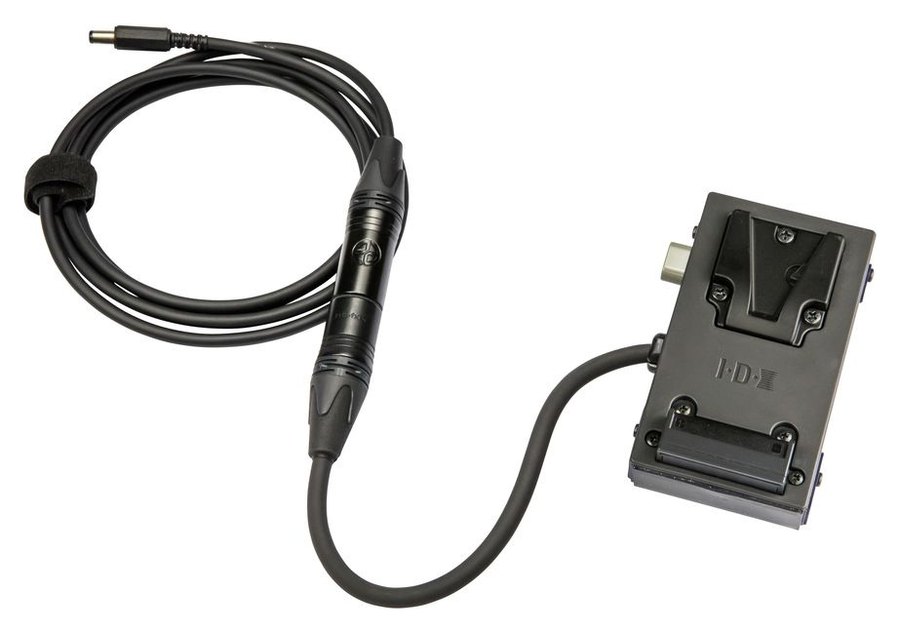

A V-mount adapter with a 1.96 m conversion cable and a fixing strap, 12 V / 5 A output.

V-mount battery12 V / 5 A outputLX-ePed and LX-ePed 2Also powers MPC-1Adapter 0.28 kg1.96 m cable

A pedestal without an outlet

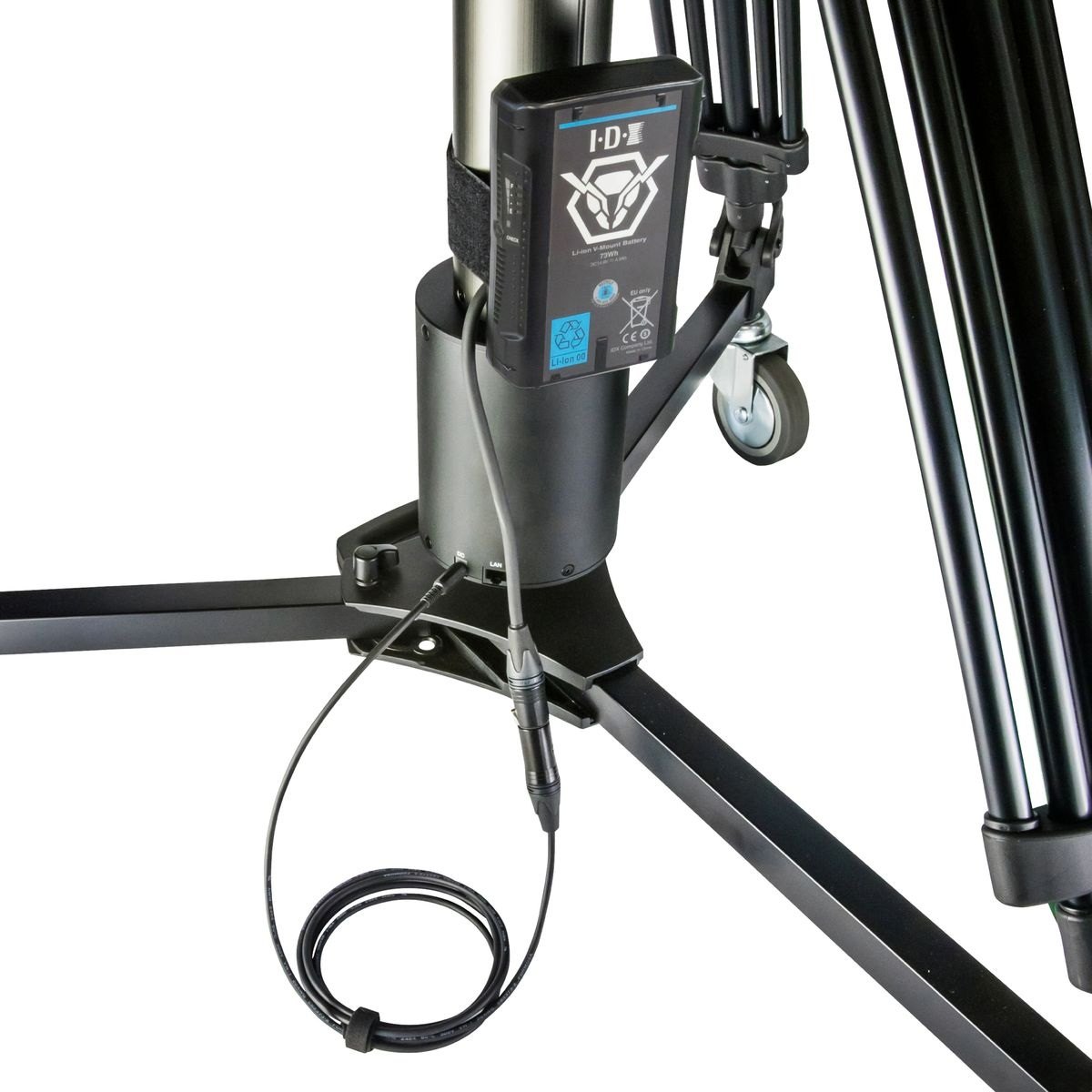

The adapter with a V-mount battery straps directly to the pedestal. The electric column then works in a hall or outdoors with no mains power.

For both LX-ePed generations

The VM-12V powers the original LX-ePed and LX-ePed Studio as well as the newer LX-ePed 2 and LX-ePed 2 Studio. The LX-ePed PRO uses the VM-24V.

Powers the MPC-1 too

The same adapter also powers the MPC-1 multi-protocol converter for IP and serial control of the pedestal.

One battery, full mobility

The VM-12V removes the mains cable from the pedestal. All it takes is one standard V-mount battery, which you likely already use with your cameras.

12 V / 5 A output

Voltage and current match the needs of the LX-ePed and MPC-1.

Light adapter

The V-mount battery adapter weighs 0.28 kg.

Cable lengths

Adapter cable 0.21 m, conversion cable 1.96 m, strap 0.35 m.

Operating temperature

−10 to +40 °C at humidity below 80 %.

V-mount battery power. With the optional VM-12V the LX-ePed can be powered by a single V-mount battery, so the electric pedestal can be operated at any location.
