SmallHD Cine 5

Cine 5 is lightweight, compact, and offers 2000 nits brightness for full visibility even in direct sunlight. Optional camera-control functionality (software license and cable sold separately) allows users to start, stop, record, and more from the convenience of their Cine 5. Experience all your favorite PageOS 5 tools, functions, and settings pages on this…

More information

1 934.79 € 1 891.56 € with VAT 1 563.27 € without VAT
-+
Availability
new product, yet unavailable
Product description SPECIFICATIONS

Product description

Cine 5 is lightweight, compact, and offers 2000 nits brightness for full visibility even in direct sunlight. Optional camera-control functionality (software license and cable sold separately) allows users to start, stop, record, and more from the convenience of their Cine 5. Experience all your favorite PageOS 5 tools, functions, and settings pages on this field-ready 5-inch monitor.

1080p resolution ensures a clear look at your production, while 10-bit color processing offers excellent color accuracy. The added joystick and back button allow you to use this smart monitor in nearly all conditions, even on cold days when taking off your gloves is not an option.

Cine 5 is designed for high-end camera use -- with bright imagery, optional Camera Control, and 2-pin locking power input -- making it ideal for First ACs, Camera Operators, and DPs. Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED DSMC2, KOMODO, and V-RAPTOR camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more.

SPECIFICATIONS

  • Field-ready, 5-inch monitor with 2000nits of brightness and joystick control
  • Display: 5-inch Touchscreen, 1920x1080, 440 PPI
  • Input: 1x 3G-SDI [IN], 1x HDMI 2.0 (4Kp30) [IN],
  • Output: 1x 3G-SDI [IN/OUT], 1x HDMI 2.0 (4Kp30) [OUT], 1x 3.5mm Stereo Headphone Jack
  • Power Input: 2-pin Locking Power Input (10-34V DC, 1.6A)

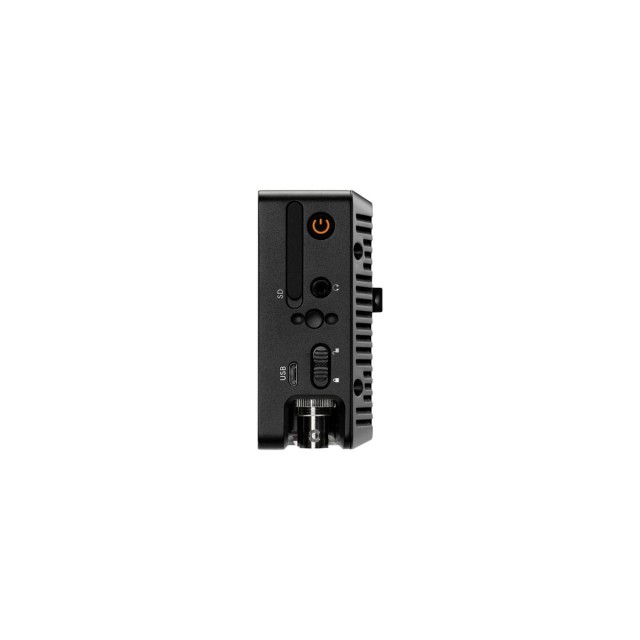

  • Data I/O: 1x SD Card Slot, 1x Micro USB, 1x Locking USB
Parameters

Parameters

Manufacturer: SmallHD
Category: Camera monitors

Main parameters

Size5"
Monitor inputsHDMI
Monitor inputs3G-SDI
Luminosity2000cd/m2
Panel resolution1920x1080

Other parameters

High Brightness (NITS)Yes
