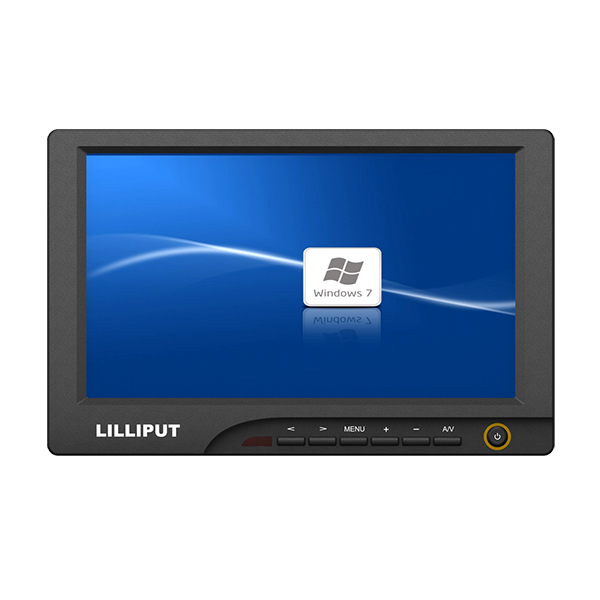

Lilliput 869GL-80NP/C/T - 8" HDMI touchscreen monitor
SKU: 869GL-80NP/C/T
The Lilliput 869GL-80NP/C/T is an 8″ 16:9 widescreen monitor with a 4-wire resistive touch layer, an 800 × 480 panel and HDMI, VGA and two composite inputs. Use a finger or the supplied pen; with VESA 75 mm, a 1/4″ thread and a slot mount it suits checkouts, information kiosks and industrial equipment terminals.
229 € with VAT
189.26 € without VAT
Availability
14-30 days
Top accessories for Lilliput 869GL-80NP/C/T - 8" HDMI touchscreen monitor
PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 3 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
4 pcs in stock at the supplier
Lilliput Shoe Mount adaptor
Lilliput hot shoe adapter with a ball joint for mounting a monitor on a camera. The
15 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput 869GL-80NP/C/T is an 8″ 16:9 widescreen monitor with a 4-wire resistive touch layer, an 800 × 480 panel and HDMI, VGA and two composite inputs. Use a finger or the supplied pen; with VESA 75 mm, a 1/4″ thread and a slot mount it suits checkouts, information kiosks and industrial equipment terminals.
An 8" 16:9 touch monitor for checkouts and kiosks
An 800 × 480 panel, 4-wire resistive touch and HDMI, VGA and 2× AV inputs. Touch connects to the computer through the supplied USB cables.
8" 16:9 800 × 480resistive touchHDMI · VGA · 2× AVVESA 75 + 1/4"12 V DC
Lilliput's only 8" 16:9 model
The widescreen format fits where space is tight yet offers a larger picture – typically at points of sale.
Resistive touch
Responds to a finger, a glove or the supplied pen – for checkouts, interactive media and digital signage.
Complete AV inputs
HDMI/DVI, VGA and composite video: computer, Blu-ray player, CCTV camera or DSLR.
Three mounting options
VESA 75 mm, a 1/4" BSW thread and a vertical slot for the supplied 589 bracket.
−20 to 60 °C
12 V DC power, up to 8 W consumption and a car power adapter in the box.

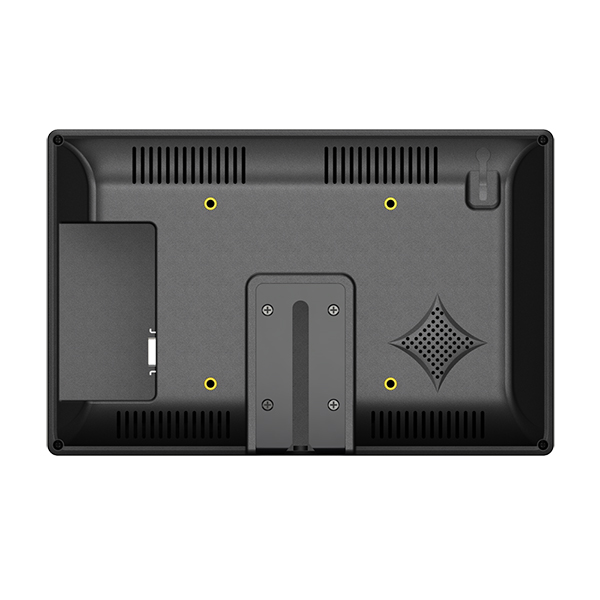

Rear view
VESA 75 mm mounting points, a vertical bracket slot and the built-in speaker.

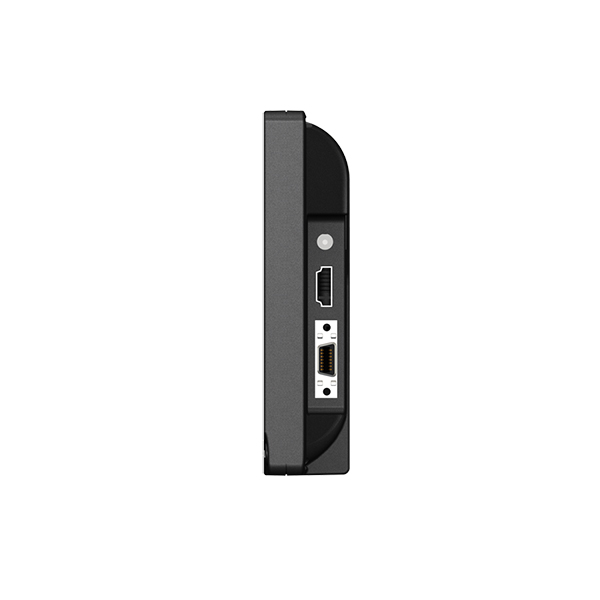

Side connectors
HDMI, VGA and power are on the side of the monitor, the control buttons on the lower edge of the front.
Box contents and optional accessories
More information
About the monitor
The Lilliput 869GL-80NP/C/T is an 8" widescreen TFT LCD monitor with a 4-wire resistive touch panel, designed as a display terminal for industrial equipment. HDMI and AV inputs connect directly to a DVD player as a car entertainment system, and the VGA input connects directly to a PC; YPbPr and DVI inputs are optional.
The 869GL is Lilliput's only eight-inch monitor with a widescreen 16:9 aspect ratio, ideal where space is tight but a larger screen is still needed – points of sale, for example. With VESA 75, a 1/4" BSW thread and a vertical slot mount, there is a mounting option for every application.
PACKAGE CONTENT
- 1× Lilliput 869GL-80NP/C/T monitor
- 12 V DC power adapter
- 589 bracket
- remote control
- HDMI A–A cable with USB for touch
- HDMI–DVI cable with USB for touch
- VGA cable with USB for touch
- SKS cable (14-pin)
- car power adapter
- driver CD
- touch pen
- user manual
SPECIFICATIONS
- Brand: Lilliput
- Model: 869GL-80NP/C/T
- Display: 8" TFT LCD
- Resolution: 800 × 480
- Aspect ratio: 16:9
- Brightness: 450 cd/m²
- Contrast: 300:1
- Viewing angles: 130°/110° (H/V)
- Touch screen: 4-wire resistive
- Inputs: 1× HDMI, 1× VGA, 2× composite (AV)
- HDMI formats: 1080p 50/60, 1080i 50/60, 720p 50/60
- Audio: 1× speaker, 3.5 mm headphone output
- Power input: 12 V DC
- Power consumption: ≤ 8 W
- Operating temperature: −20 to 60 °C
- Storage temperature: −30 to 70 °C
- Mounting: VESA 75 mm, 1/4" BSW thread, vertical slot mount
- Dimensions (W × H × D): 211 × 136 × 30.5 mm
- Weight: 504 g
WE RECOMMEND
Recommended for the Lilliput 869GL-80NP/C/T - 8" HDMI touchscreen monitor monitor:
Cables – a longer HDMI run and a USB-C laptop connection
Mounting – on a stand, an arm or a desk
Parameters
| Manufacturer: | Lilliput |
| Category: | Camera monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 1080p up to 60p · 720p up to 60p |
| Size | 8" |
| Monitor inputs | Composite Video · HDMI · VGA |
| Luminosity | 450cd/m2 |
| Panel resolution | 800x480 |
| Monitor power supply | 12V · Car Power Adapter · DC 12V |
Other parameters
| Other features | Touchscreen |
