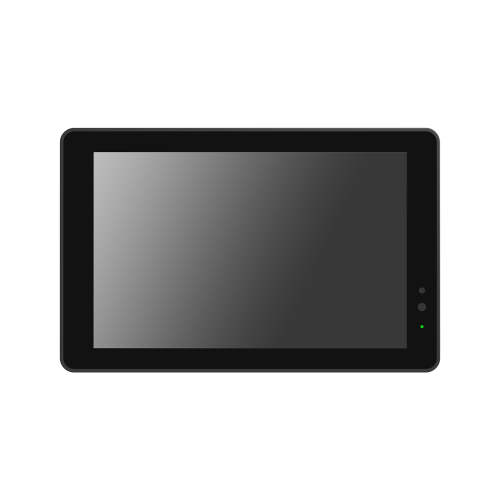

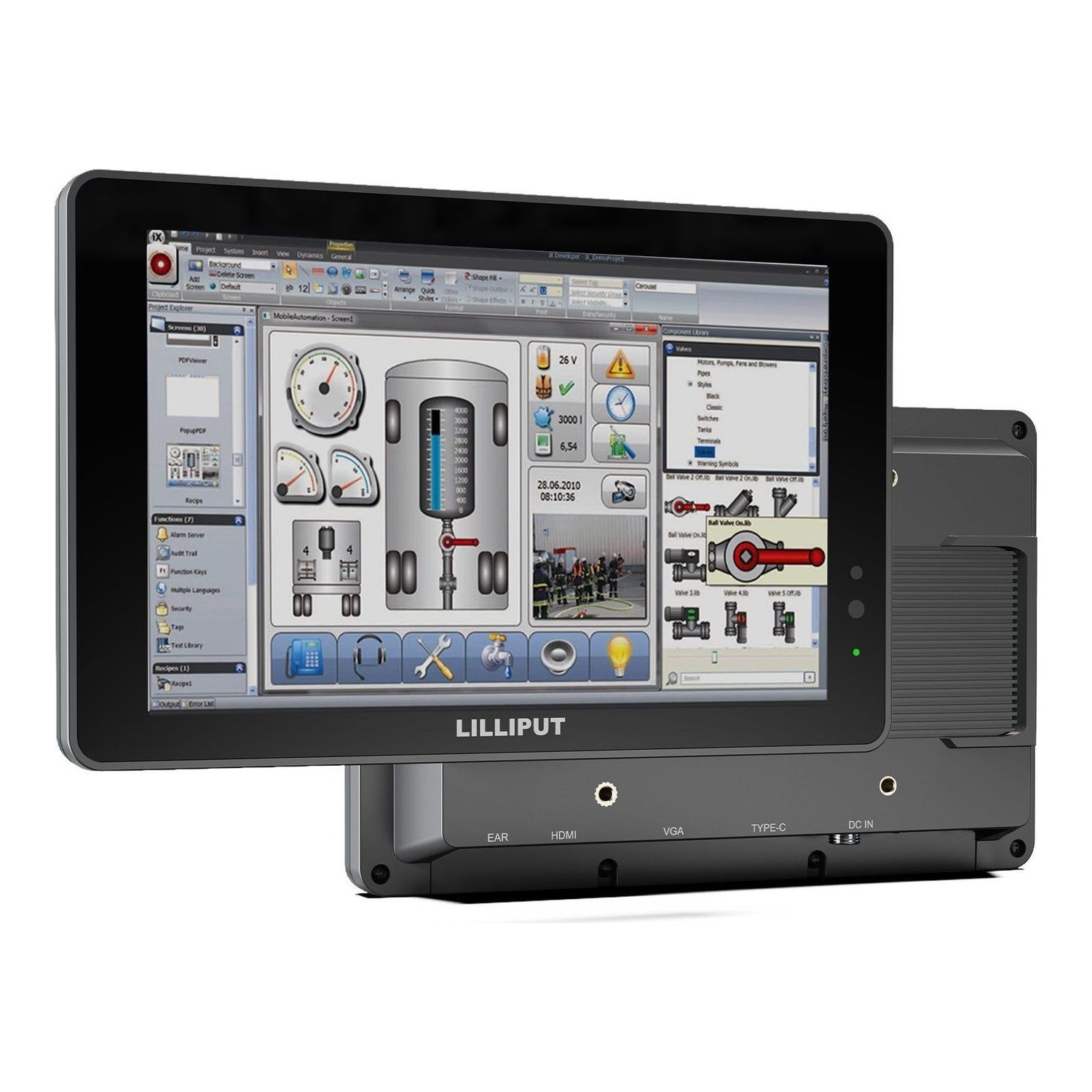

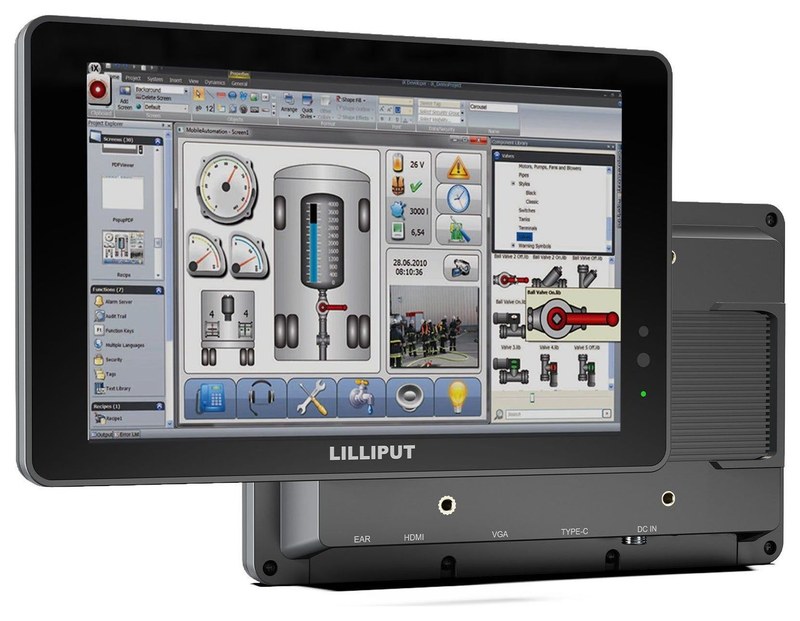

Lilliput 719/T
SKU: 719/T
The Lilliput 719/T is a 7″ industrial touch monitor with a 10-point capacitive layer, 1280 × 800 resolution and 1000 cd/m² brightness. A single USB-C cable carries both video and touch, and HDMI and VGA inputs are on board too. A 9–36 V DC supply and VESA 75 mm mounting make it a natural fit for machines, kiosks and vehicles.
289 € with VAT
238.84 € without VAT
Availability
on request
Top accessories for Lilliput 719/T
PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 4 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
SmallRig Mount Plate for Monitor VESA for Camera Cart 6257
The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
Backordered > 5 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
on request
Product description
ARTICLES
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput 719/T is a 7″ industrial touch monitor with a 10-point capacitive layer, 1280 × 800 resolution and 1000 cd/m² brightness. A single USB-C cable carries both video and touch, and HDMI and VGA inputs are on board too. A 9–36 V DC supply and VESA 75 mm mounting make it a natural fit for machines, kiosks and vehicles.
A 7" touch panel readable in sunlight
A 10-point capacitive touch layer, a 1280 × 800 panel with 1000 cd/m² brightness and a single USB-C cable for video and touch. 9–36 V power input and automatic dimming.
7" 1280 × 80010-point touch1000 cd/m²HDMI · VGA · USB-C9–36 V DC
Readable in direct sunlight
At 1000 cd/m² the screen is several times brighter than a typical office monitor. An ambient light sensor lowers the brightness when it is not needed and saves power.
10-point touch
The PCAP capacitive layer responds even to wet fingers and to rubber, latex or PVC gloves.
50,000 hours
An industrial LCD panel selected for a long life in continuous operation.
9–36 V power input
A wide input range for 12 V and 24 V machine and vehicle systems, with transient immunity to ISO 7637-2.
−20 to 60 °C
Copes with unheated halls and vehicle cabins; storage from −30 to 80 °C.

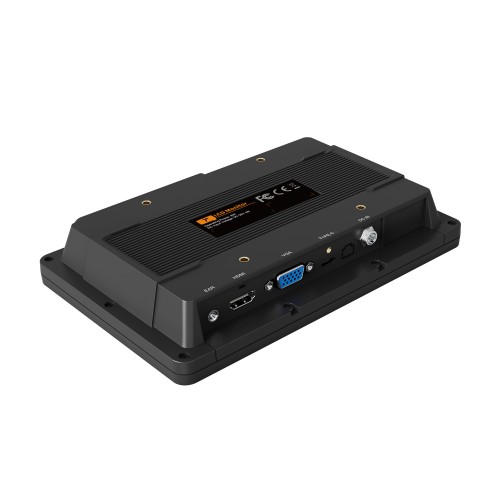

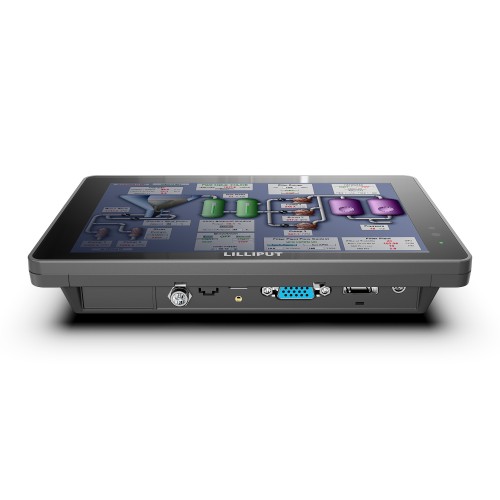

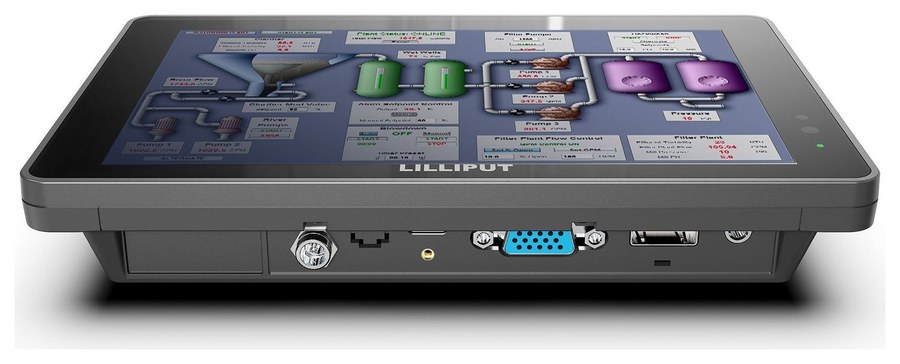

Connectors on the bottom edge
HDMI, VGA, USB-C, the headphone output and the power input exit at the bottom, so cables stay out of the way when the monitor is built into a panel.

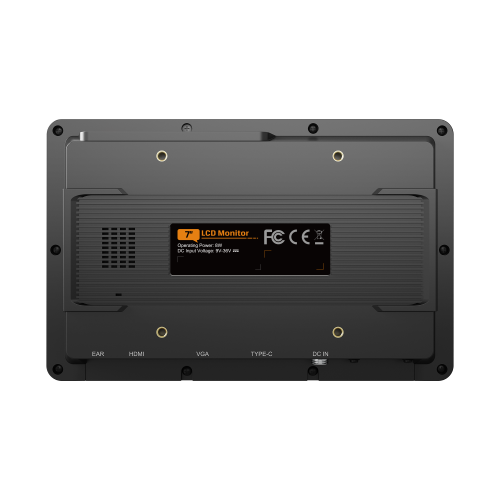

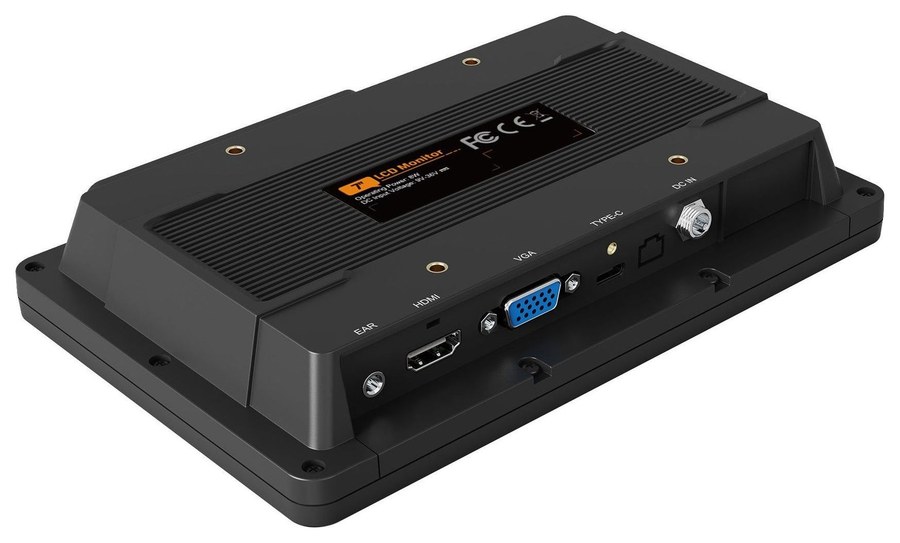

VESA 75 mm mounting
VESA 75 mm mounting points on the back take an arm, wall mount, desk stand or vehicle bracket.

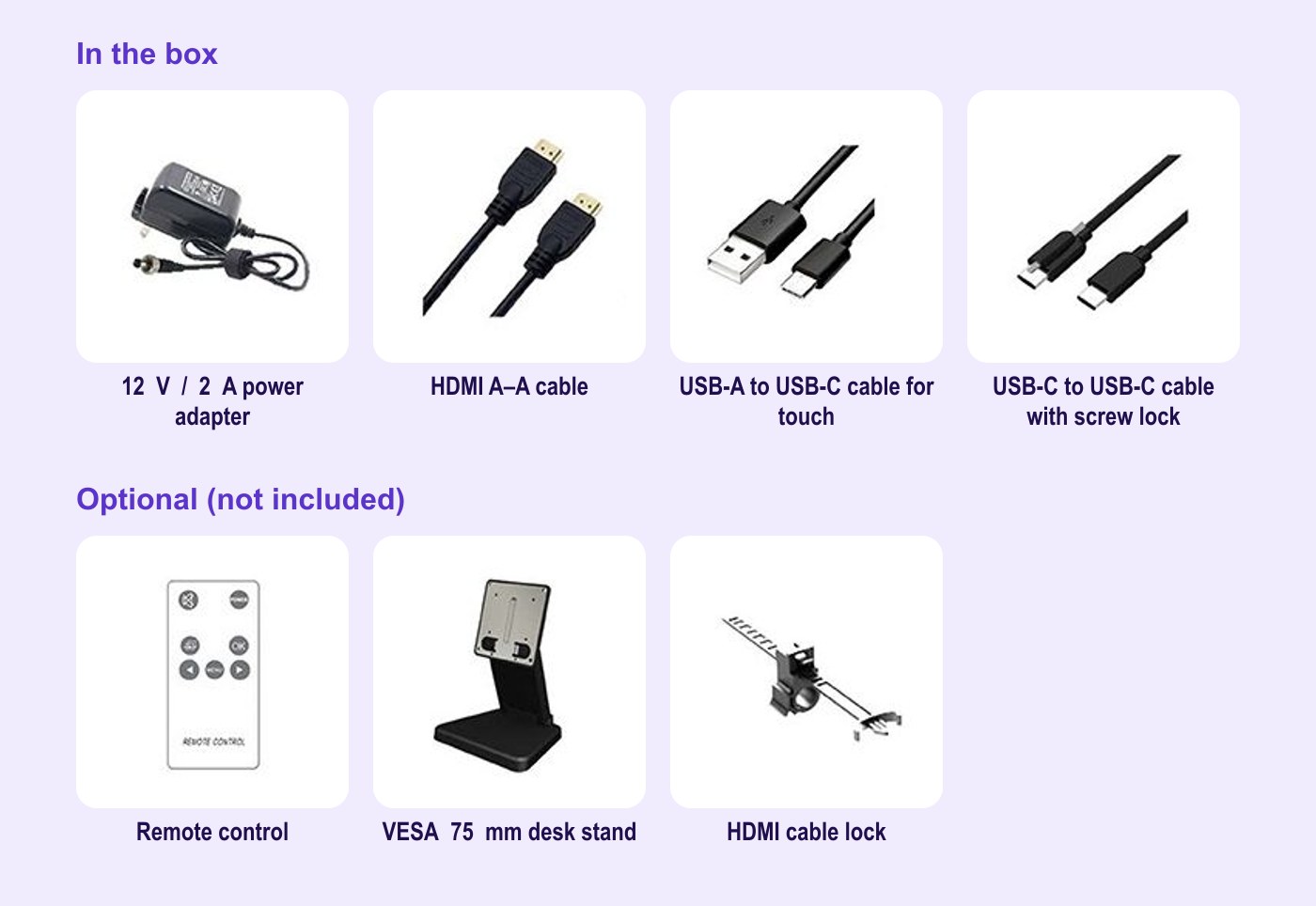

Box contents and optional accessories
More information
About the monitor
The Lilliput 719/T is a robust display designed for demanding working environments. Its 1000 cd/m² brightness and 50,000-hour panel life make it excellent value for long-term operation. Unlike its predecessor, the 619AT, it features a 10-point PCAP capacitive touch screen that connects to the computer over USB and works with Windows 10/11 and other common operating systems with tablet-like ease.
The 719 series is available in a standard desktop/VESA version (this model) and in a version with an IP65 frame for outdoor use. The USB-C port carries both video and touch, HDMI accepts signals up to 2160p30, USB-C up to 2160p60, and the VGA input handles legacy sources up to 1080p. The monitor combines durability, touch control and modern connectivity in one compact body.
PACKAGE CONTENT
- 1× Lilliput 719/T monitor
- 12 V / 2 A power adapter
- HDMI A–A cable
- USB-A to USB-C cable for touch
- USB-C to USB-C cable with screw lock
SPECIFICATIONS
- Brand: Lilliput
- Model: 719/T
- Display: 7" LCD
- Resolution: 1280 × 800
- Aspect ratio: 16:10
- Brightness: 1000 cd/m²
- Contrast: 800:1
- Viewing angles: 170°/170° (H/V)
- Panel life: 50,000 h
- Touch screen: 10-point capacitive (PCAP)
- Inputs: 1× HDMI, 1× VGA, 1× USB-C (video and touch)
- HDMI formats: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- VGA formats: 1080p 24/25/30/50/60, 1080psF 24/25/30, 1080i 50/60, 720p 50/60
- USB-C formats: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- Audio: 1× speaker, audio via HDMI, 3.5 mm headphone output (2 ch, 48 kHz, 24-bit)
- Power input: 9–36 V DC
- Power consumption: ≤ 8.5 W (at 12 V)
- Operating temperature: −20 to 60 °C
- Storage temperature: −30 to 80 °C
- Features: automatic dimming based on ambient light, transient immunity to ISO 7637-2
- Mounting: VESA 75 mm
- Dimensions (W × H × D): 184.5 × 118.8 × 32 mm
- Weight: 410 g
ARTICLES
WE RECOMMEND
Recommended for the Lilliput 719/T monitor:
Cables – a longer HDMI run and a USB-C laptop connection
Mounting – on a stand, an arm or a desk
Parameters
| Manufacturer: | Lilliput |
| Category: | Camera monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p · Ultra HD up to 60p |
| Size | 7" |
| Monitor inputs | HDMI · VGA · USB-C |
| Luminosity | 1000cd/m2 |
| Panel resolution | 1280x800 |
| Monitor power supply | DC 9–36V |
Other parameters
| Other features | Touchscreen |
| High Brightness | Yes |
Blog and news
Date: 10. 05. 2024, Category: Blog

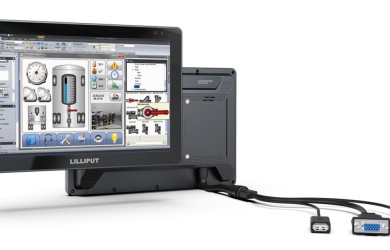

Lilliput Industrial Monitors
