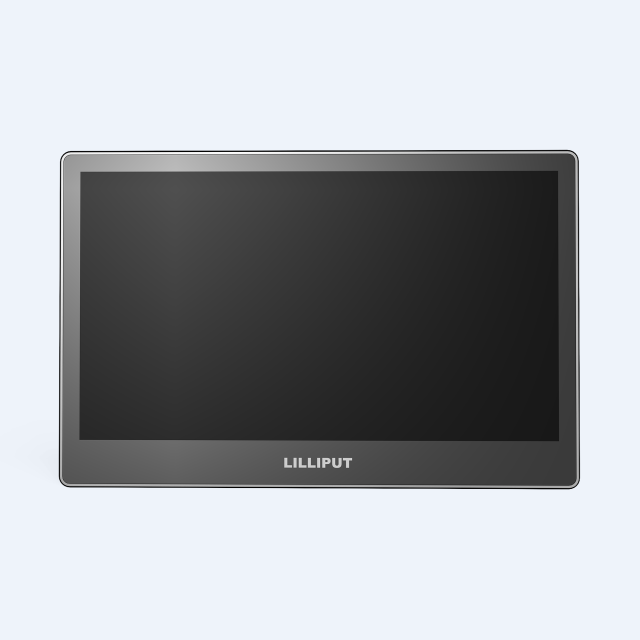

Lilliput FA1330/T
SKU: FA1330/T
The Lilliput FA1330/T is a 13.3″ industrial touch monitor with 1920 × 1080 resolution and a fully laminated display. The 10-point capacitive layer copes with thin gloves and water droplets. HDMI, DisplayPort up to 4K60 and VGA inputs, two speakers, a 7–24 V DC supply and VESA 75 mm mounting – for kiosks, checkouts and HMI.
362 € with VAT
299.17 € without VAT
Availability
on request
Top accessories for Lilliput FA1330/T
SmallRig Mount Plate for Monitor VESA for Camera Cart 6257
The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
In stock > 5 pcs
PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 3 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
4 pcs in stock at the supplier
Product description
ARTICLES
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput FA1330/T is a 13.3″ industrial touch monitor with 1920 × 1080 resolution and a fully laminated display. The 10-point capacitive layer copes with thin gloves and water droplets. HDMI, DisplayPort up to 4K60 and VGA inputs, two speakers, a 7–24 V DC supply and VESA 75 mm mounting – for kiosks, checkouts and HMI.

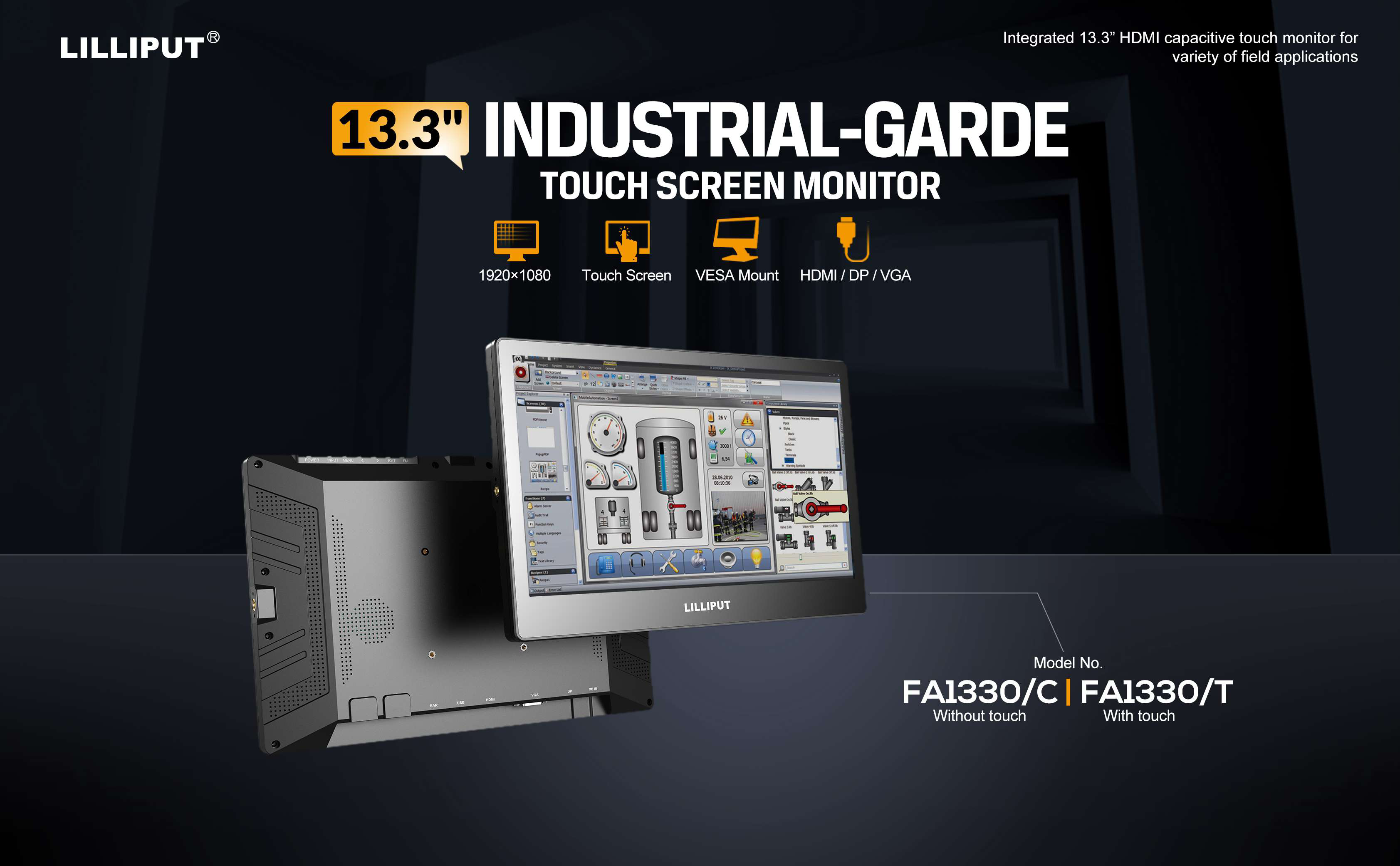

A 13.3" Full HD touch monitor for HMI and kiosks
A fully laminated 1920 × 1080 panel, 10-point capacitive touch and three video inputs including DisplayPort. 7–24 V power input and two speakers.
13.3" 1920 × 108010-point touchHDMI · DP · VGA7–24 V DCVESA 75 mm
Full lamination
The cover glass is bonded to the panel without an air gap, so the screen transmits light better, reflects less of its surroundings and keeps dust out.

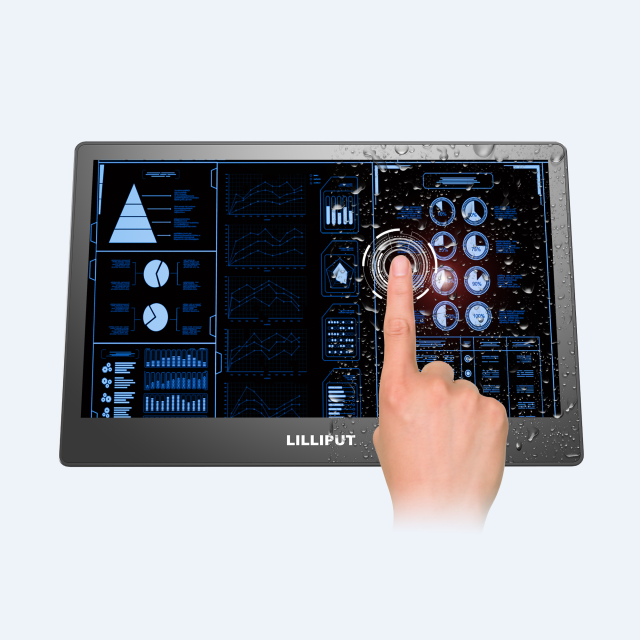

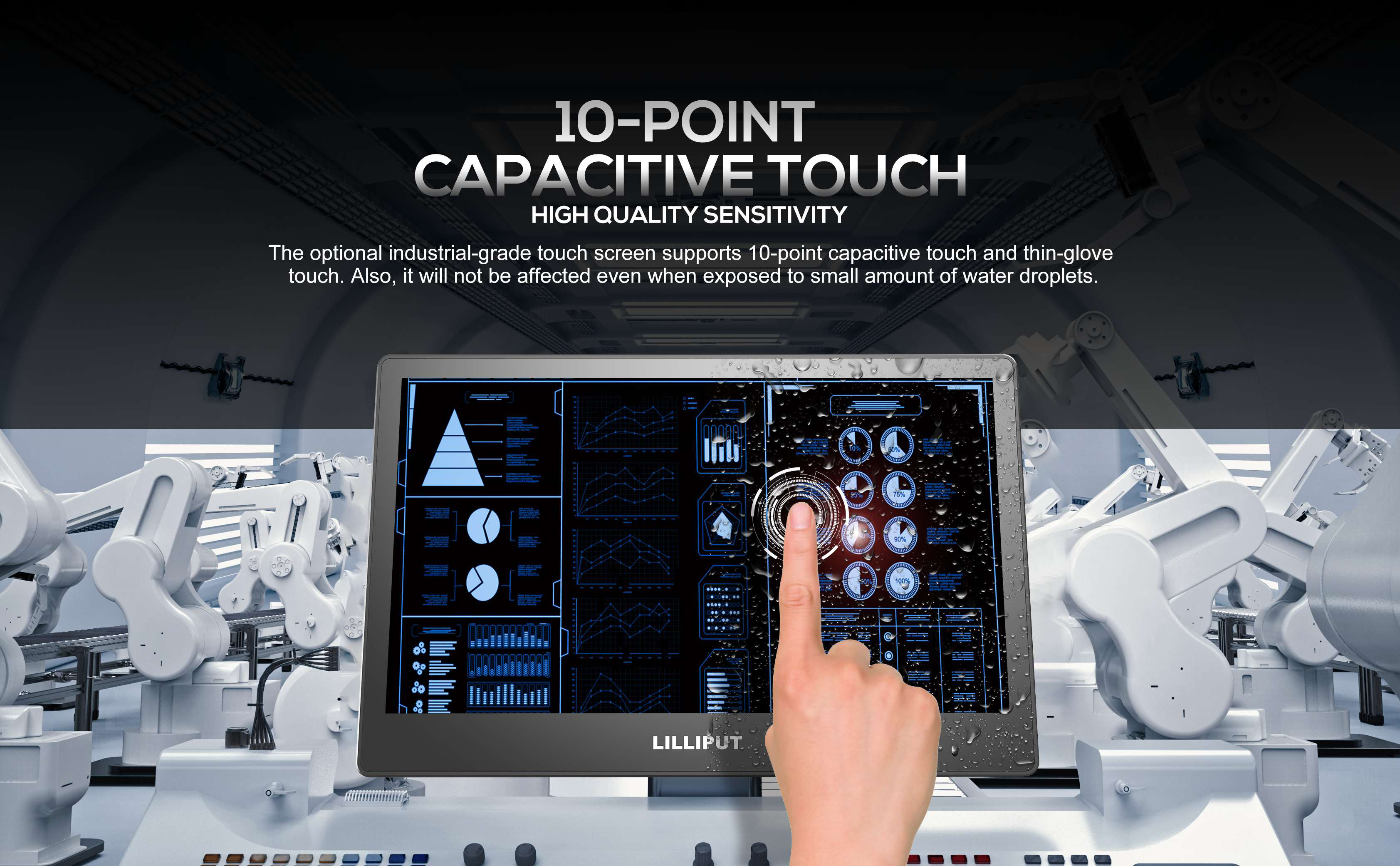

10-point touch
The capacitive layer responds through thin gloves and is not thrown off by a small amount of water droplets.
DisplayPort up to 4K60
DP accepts up to 2160p60, HDMI 2160p30 and VGA 1080p60; the image is scaled to the Full HD panel.
7–24 V power input
A wide input range, up to 12 W consumption and a slim 26.5 mm deep body.

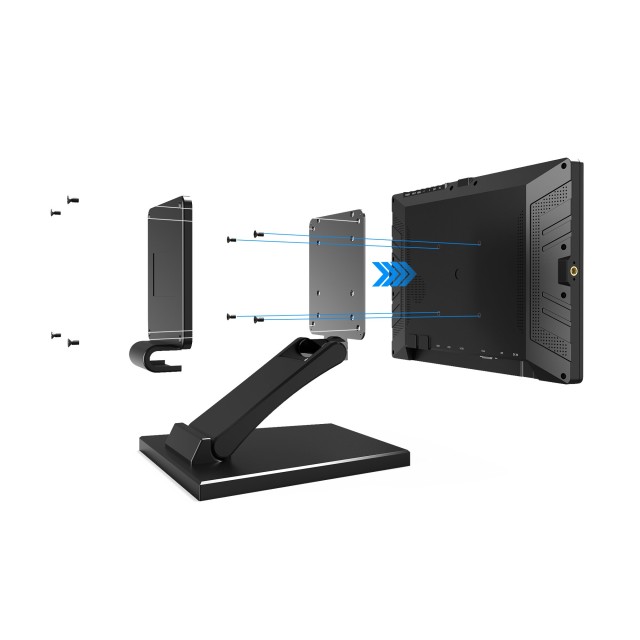

VESA 75 mm and 1/4"
On a stand, an arm or in a console; 1/4" threads on both sides add further integration options.

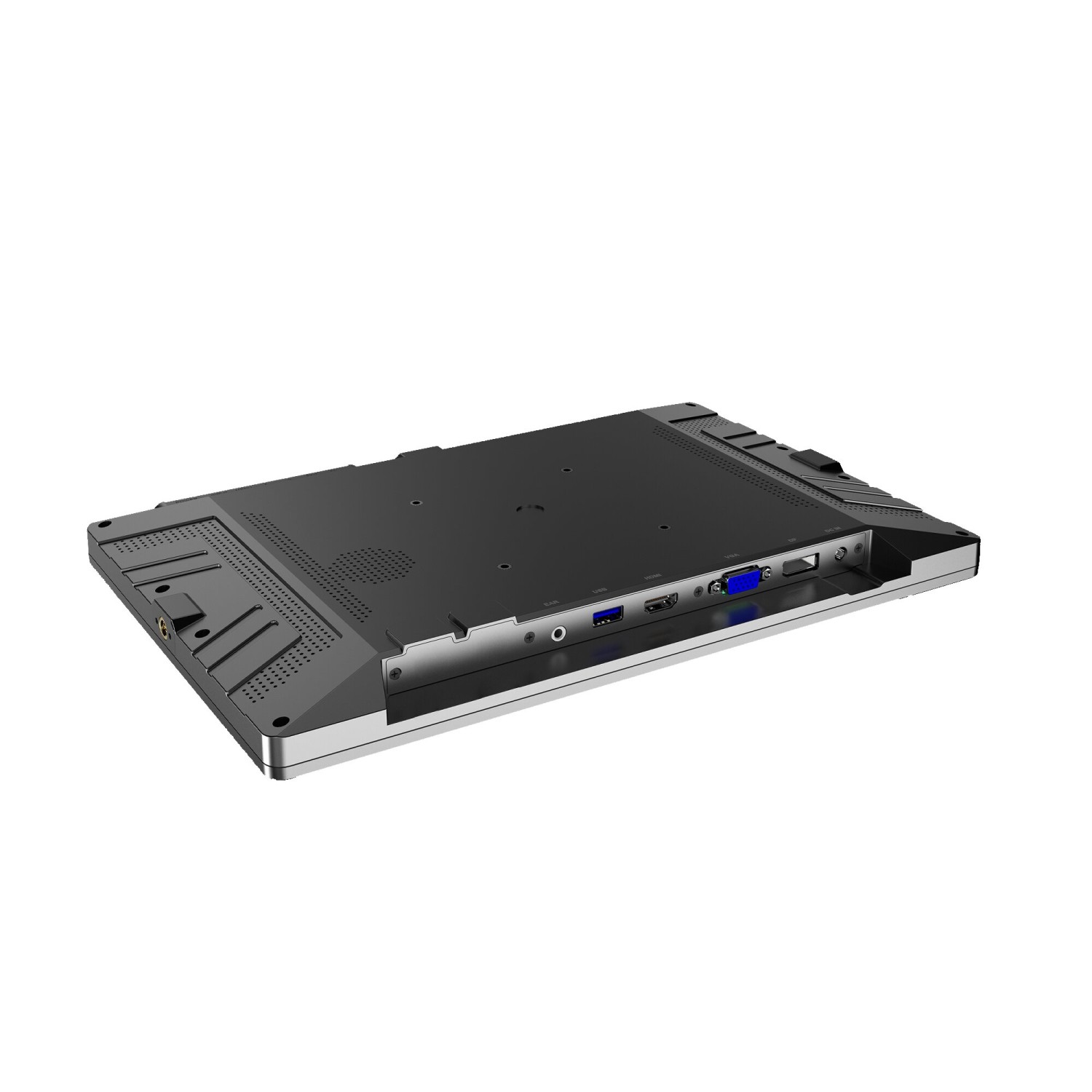

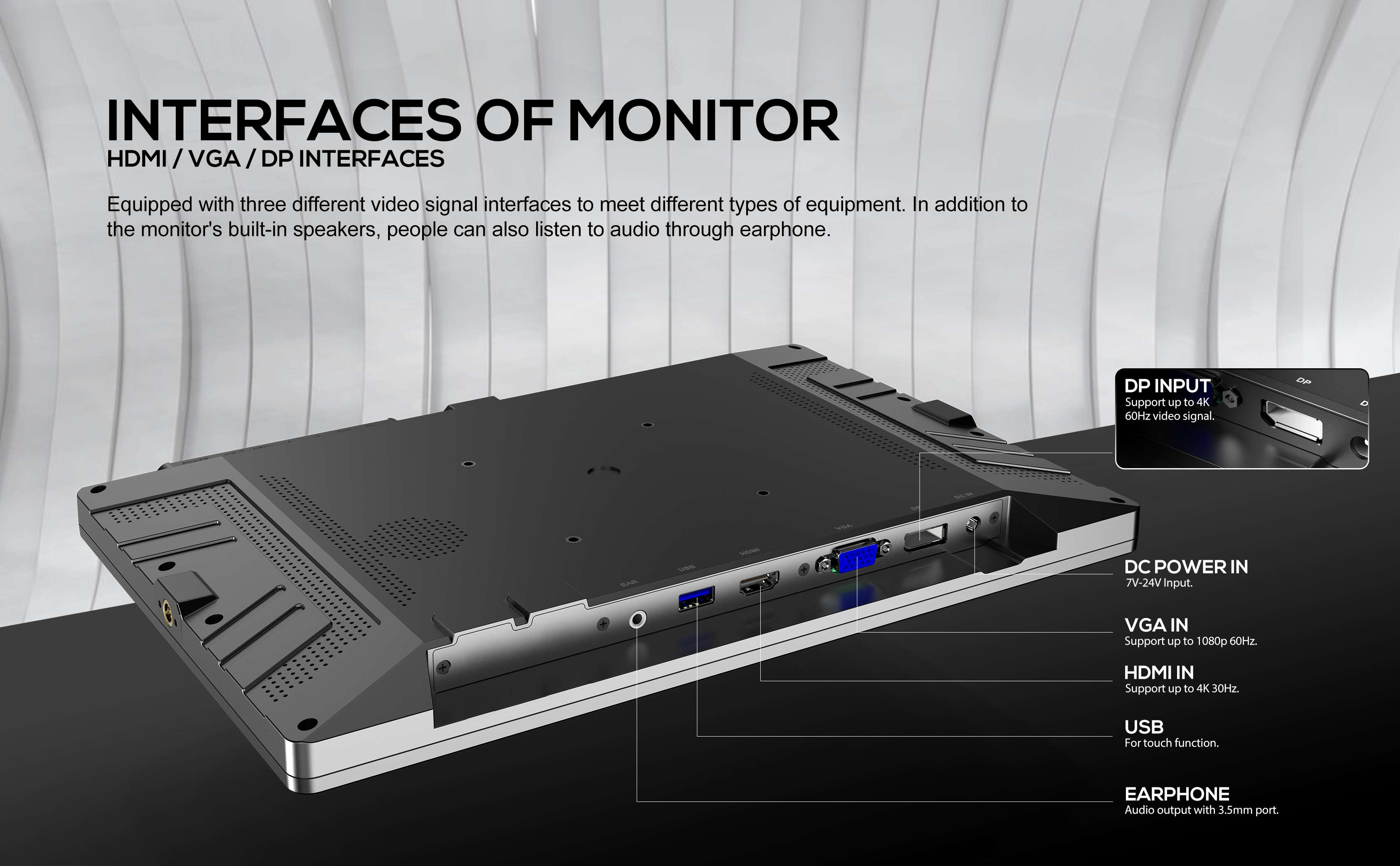

Connectors on the bottom edge
Headphone output, USB, HDMI, VGA, DisplayPort and the 7–24 V power input.

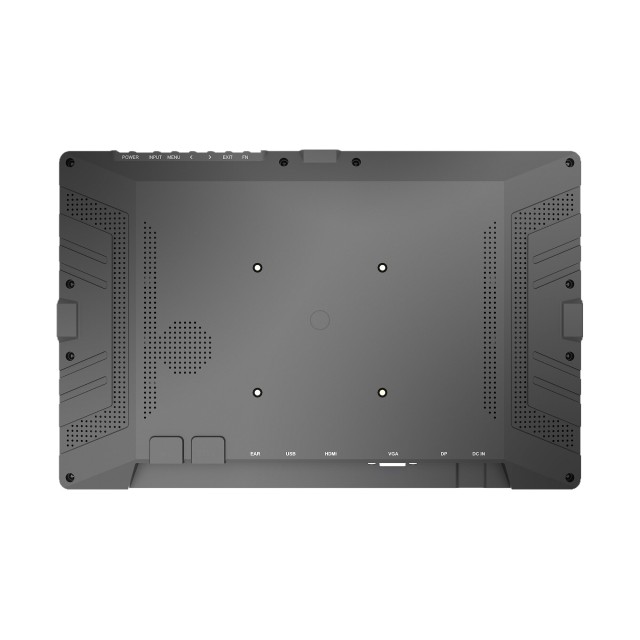

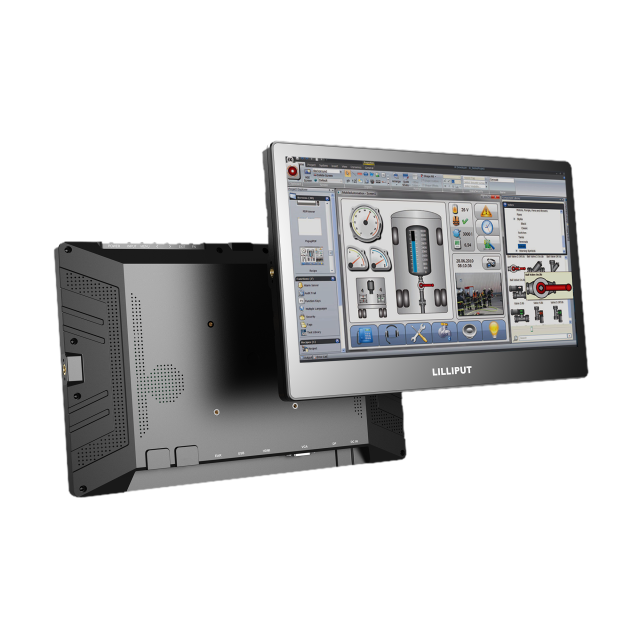

Rear with VESA 75 mm
VESA 75 mm mounting points in the centre of the back and 1/4" threads on the sides.
Box contents and optional accessories
More information
About the monitor
The FA1330/T has a fully laminated 13.3" screen with 1920 × 1080 resolution and capacitive touch. It suits a wide range of industrial and commercial applications such as POI/POS, kiosks, HMI and all kinds of heavy-duty industrial field equipment.
The monitor can be installed in different ways: as a desktop device for control centres, as a built-in unit for control consoles, or as a PC-based visualisation and control solution where the operator panel is separated from the industrial PC or server – as a stand-alone solution or with several control stations in extensive visualisation and control systems.
PACKAGE CONTENT
- 1× Lilliput FA1330/T monitor
- 12 V / 2 A power adapter
- 1.5 m HDMI A–A cable
- 1.5 m USB-A to USB-A cable
- e-manual (card with QR code)
SPECIFICATIONS
- Brand: Lilliput
- Model: FA1330/T
- Display: 13.3" LCD, full lamination
- Resolution: 1920 × 1080
- Aspect ratio: 16:9
- Brightness: 300 cd/m²
- Contrast: 800:1
- Viewing angles: 170°/170° (H/V)
- Touch screen: 10-point capacitive (PCAP)
- Inputs: 1× HDMI, 1× DisplayPort, 1× VGA, 1× USB (touch)
- HDMI formats: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- DisplayPort formats: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- VGA formats: 1080p 24/25/30/50/60, 1080psF 24/25/30, 1080i 50/60, 720p 50/60
- Audio: 2× speaker, 3.5 mm headphone output (2 ch, 48 kHz, 24-bit)
- Power input: 7–24 V DC
- Power consumption: ≤ 12 W (at 12 V)
- Operating temperature: 0 to 50 °C
- Storage temperature: −20 to 60 °C
- Mounting: VESA 75 mm, 1/4" threads on both sides
- Dimensions (W × H × D): 320 × 208 × 26.5 mm
- Weight: 1.15 kg
ARTICLES
WE RECOMMEND
Recommended for the Lilliput FA1330/T monitor:
Cables – a longer HDMI run and a USB-C laptop connection

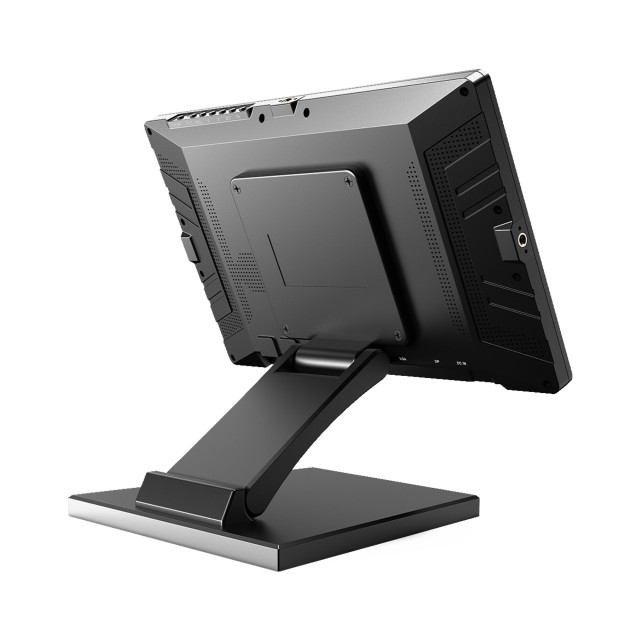

Mounting – on a stand, an arm or a desk
Parameters
| Manufacturer: | Lilliput |
| Category: | Surveillance monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 1080p up to 60p · 720p up to 60p · Ultra HD up to 60p |
| Size | 13.3" |
| Monitor inputs | Display Port · HDMI · VGA |
| Luminosity | 300cd/m2 |
| Panel resolution | 1920x1080 |
| Monitor power supply | DC 7-24V |
Other parameters
| Other features | Touchscreen |
