Lilliput TK1019/T
SKU: TK1019/T
The Lilliput TK1019/T is a 10.1" industrial touch monitor with 1920 × 1200 resolution and 1500 nits brightness, readable even in direct sunlight. It has 10-point capacitive touch, an IP65 front panel, a metal housing, auto dimming and HDMI, VGA and USB-C inputs – a single USB-C cable carries video, touch and power.
387 € with VAT
319.83 € without VAT
Availability
on request
Top accessories for Lilliput TK1019/T
SmallRig Mount Plate for Monitor VESA for Camera Cart 6257
The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
In stock > 5 pcs
PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 3 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
4 pcs in stock at the supplier
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput TK1019/T is a 10.1" industrial touch monitor with 1920 × 1200 resolution and 1500 nits brightness, readable even in direct sunlight. It has 10-point capacitive touch, an IP65 front panel, a metal housing, auto dimming and HDMI, VGA and USB-C inputs – a single USB-C cable carries video, touch and power.
1500-nit touch panel for harsh environments
Build the metal monitor with its IP65 front into a machine panel, kiosk or console. The 1920 × 1200 image stays readable outdoors and the brightness adapts to the surroundings.
10.1" 1920 × 12001500 nitsHDMI · VGA · USB-CIP65 front10-point touch
One USB-C cable for video, touch and power
Over USB-C the monitor receives video from the computer, returns touch control and can also be powered from it. The cable with a screw lock stays in place under vibration, keeping the cabinet wiring simple.
1920 × 1200
10.1" 16:10 panel with 1000:1 contrast and 170° viewing angles.
IP65 front
The front is dust-tight and withstands water jets.
−20 to 70 °C
Runs in frost and in a hot cabinet alike.
12–24 V DC
Wide power input range, max. 19 W.

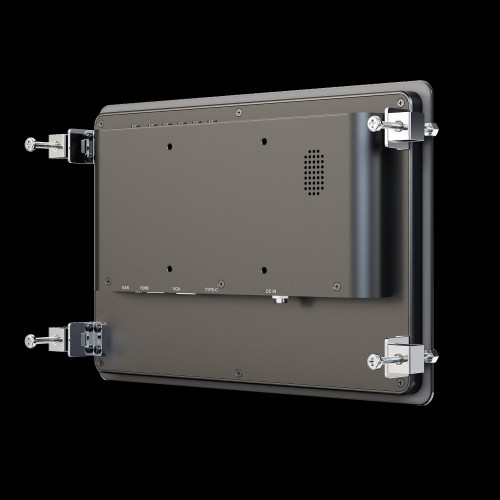

Panel mounting
The fixing screw kit clamps the monitor from behind to a cut-out in a panel or cabinet door.

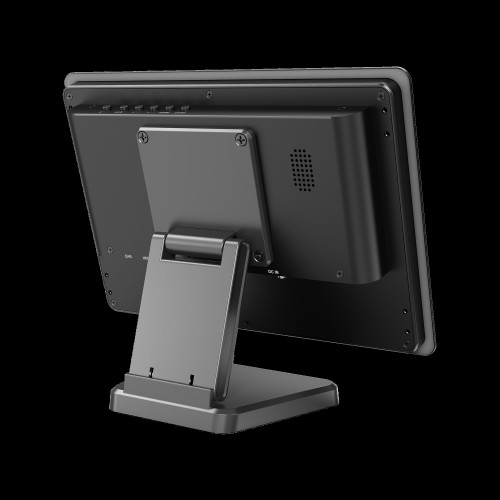

On a desk or ceiling

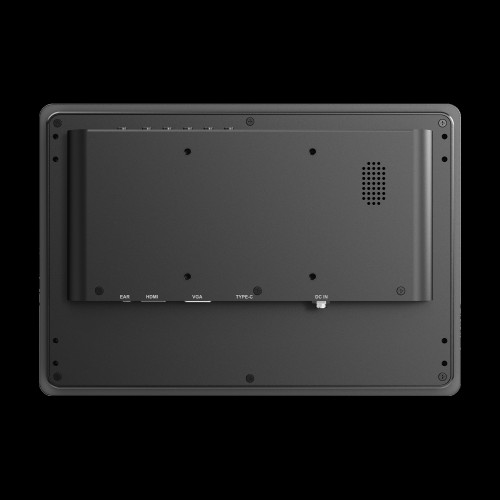

The rear has a VESA 75 mm mount for the optional folding stand or any other bracket.
More information
TK1019/T in practice
The high-brightness 1500 cd/m² display is designed for outdoor industrial and commercial use. The 10-point capacitive touch connects to the computer over USB-C. The USB-C input accepts up to 2160p 60 Hz, HDMI up to 2160p 30 Hz, and VGA serves older sources up to 1080p 60 Hz.
The monitor suits POS systems, kiosks, control centres and home computer setups, combining versatility with durability. The IP65 front panel copes with demanding outdoor conditions.
PACKAGE CONTENT
- Lilliput TK1019/T monitor
- 12 V / 3 A power adapter
- HDMI A–A cable
- USB-C to USB-C cable with screw lock
- USB-A to USB-C cable (for touch)
- Fixing screw kits (2 × 4 pcs)
SPECIFICATIONS
- Model: TK1019/T
- Display: 10.1" LCD, 16:10
- Resolution: 1920 × 1200
- Brightness: 1500 cd/m²
- Contrast: 1000:1
- Viewing angle: 170° / 170° (H/V)
- Backlight life: 50,000 hours
- Touch panel: 10-point capacitive
- Inputs: 1× HDMI, 1× VGA, 1× USB-C (touch, video or power)
- HDMI formats: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- VGA formats: 1080p 24/25/30/50/60, 1080psF 24/25/30, 1080i 50/60, 720p 50/60
- USB-C formats: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- Audio: 1× speaker, HDMI, 3.5 mm headphone output (2ch, 48 kHz, 24 bit)
- Power input: DC 12–24 V
- Power consumption: ≤ 19 W (12 V)
- Protection rating: front panel IP65
- Operating temperature: −20 to 70 °C
- Storage temperature: −30 to 80 °C
- Dimensions (W × H × D): 264 × 183 × 35.6 mm
- Weight: 1.31 kg
- Mounting: panel mounting with screws, VESA 75 mm (folding bracket optional)
- Housing: metal housing
WE RECOMMEND
Recommended for the Lilliput TK1019/T:
Cables – to connect the video source
Mounting – on a stand, an arm or a desk
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 1080p up to 60p · 4K UHD up to 30p · 720p up to 60p |
| Size | 10.1" |
| Monitor inputs | HDMI · USB-C · VGA |
| Luminosity | 1500cd/m2 |
| Panel resolution | 1920x1200 |
| Monitor power supply | DC 12–24 V · USB-C |
Other parameters
| Tally | No |
| Other features | IP65 · Resilient · Touchscreen |
| High Brightness | Yes |
