Lilliput TK1560/T 15.6" industrial touch monitor
SKU: TK1560/T
The Lilliput TK1560/T is a 15.6" Full HD industrial touch monitor with 1000 nits brightness for outdoor and industrial environments. It has a metal housing, an IP64 front panel, 10-point capacitive touch, HDMI (up to 4K 30 Hz), VGA and AV inputs, two speakers, 12–24 V power and VESA 75/100 mm or panel mounting.
439 € with VAT
362.81 € without VAT
Availability
14-30 days
Top accessories for Lilliput TK1560/T 15.6" industrial touch monitor
SmallRig Mount Plate for Monitor VESA for Camera Cart 6257
The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
In stock > 5 pcs
PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 4 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
2 pcs in stock at the supplier
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput TK1560/T is a 15.6" Full HD industrial touch monitor with 1000 nits brightness for outdoor and industrial environments. It has a metal housing, an IP64 front panel, 10-point capacitive touch, HDMI (up to 4K 30 Hz), VGA and AV inputs, two speakers, 12–24 V power and VESA 75/100 mm or panel mounting.
Full HD with 1000 nits

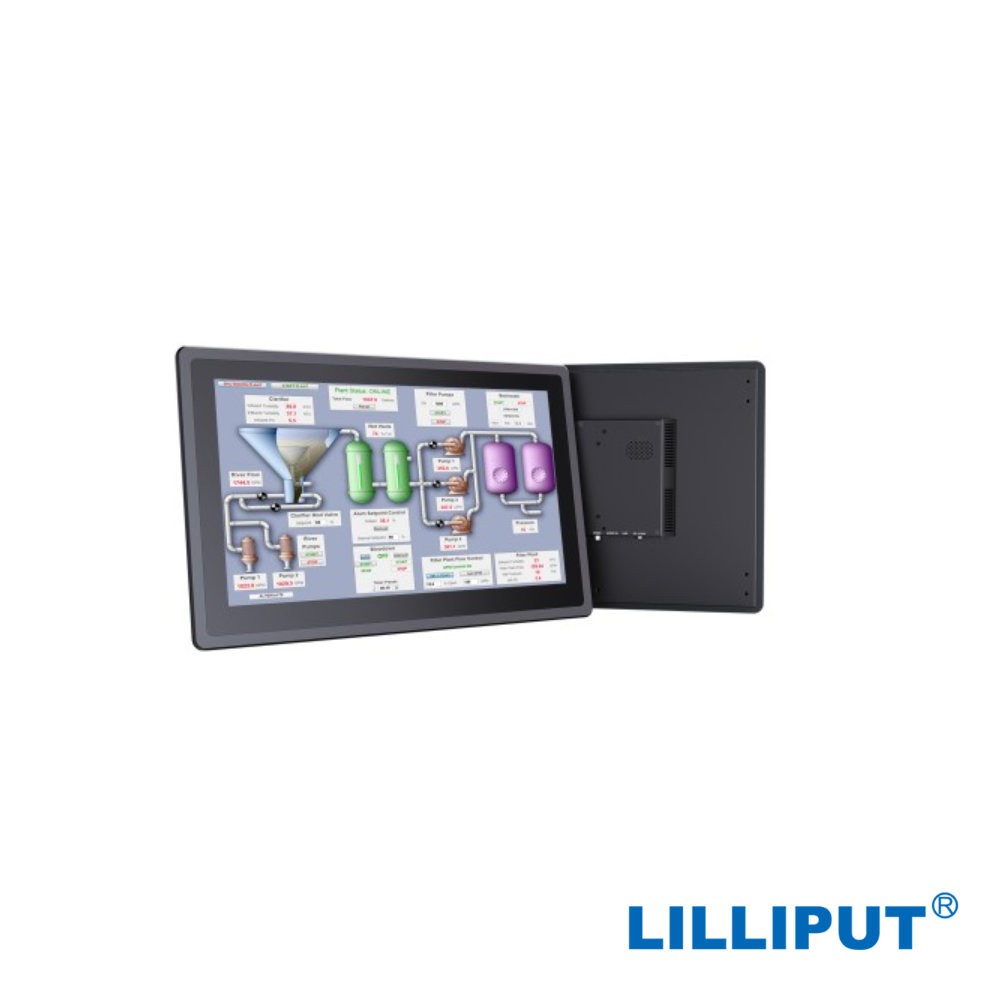

A rugged metal monitor for outdoor vending machines, industrial HMIs and self-service terminals. The IP64 front withstands dust and splashing water.
15.6" 1920 × 10801000 nitsHDMI · VGA · AVIP64 front10-point touch
Interfaces ready for customisation
Besides HDMI, VGA and AV, the mainboard has room for further ports and the sheet-metal connector cover is easy to replace, so the monitor can be adapted to a specific project.
24.5 W
Consumption at 15 V, 12–24 V DC input.
−20 to 60 °C
Works in unheated environments too.

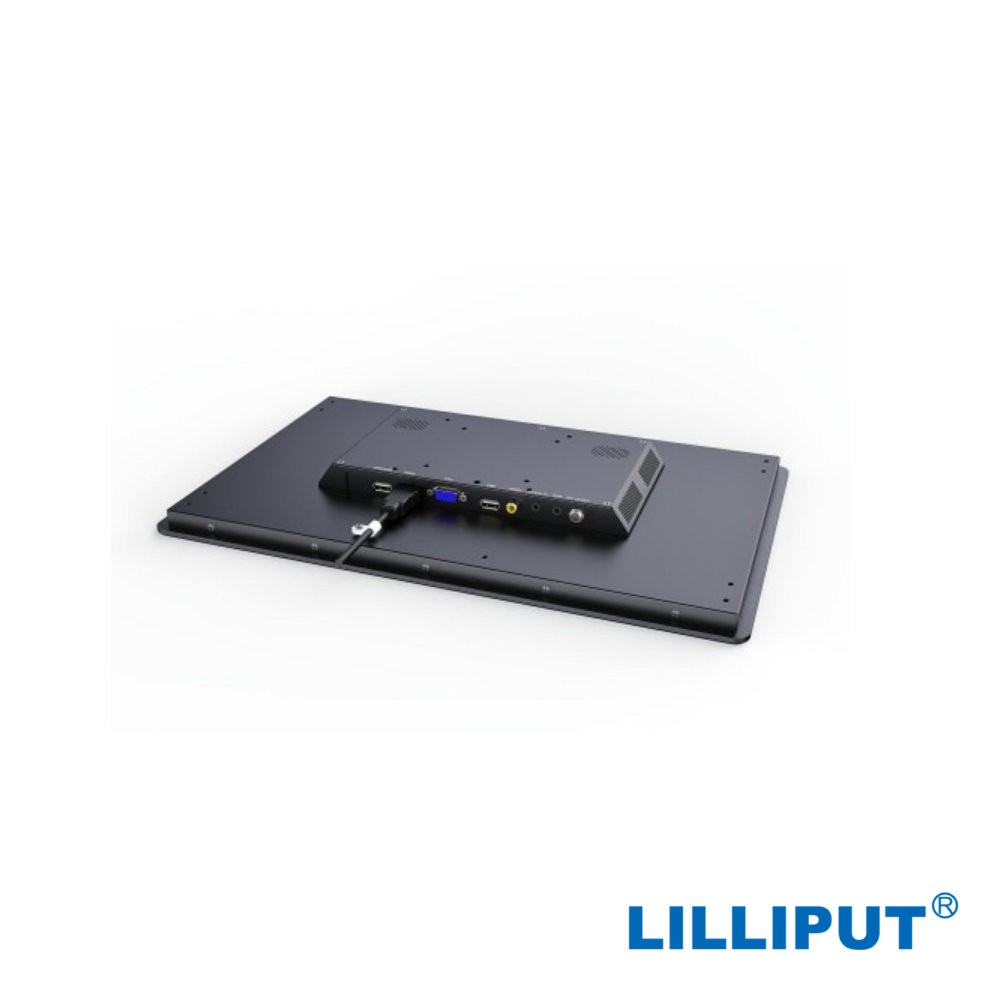

Cable retention
A clamp keeps cables in place under vibration.
VESA 75/100
On an arm, a stand or in a panel.

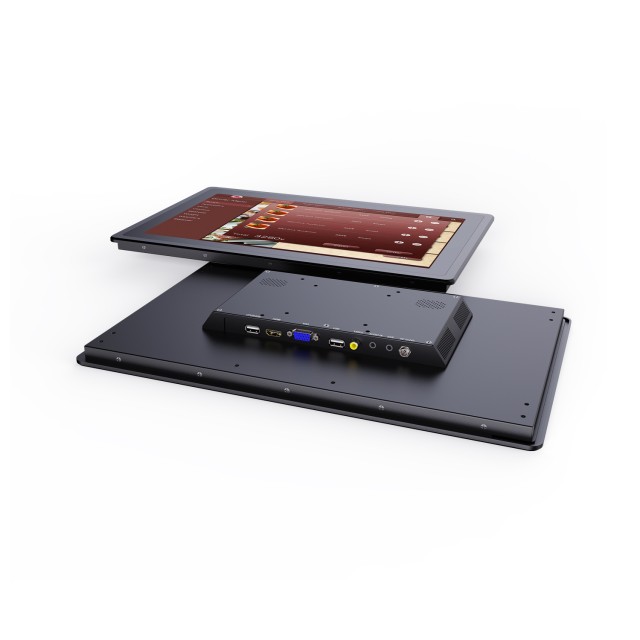

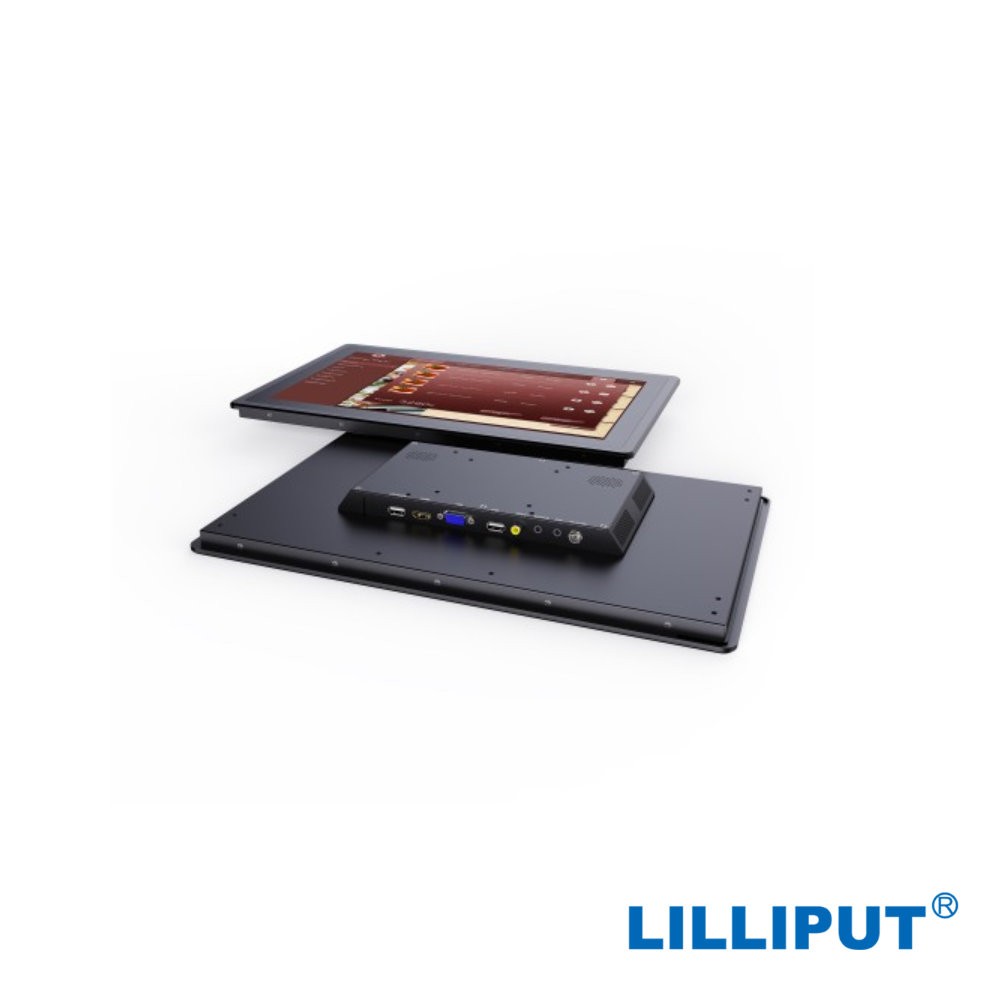

Connectors at the back
The ports sit in the rear electronics box and a clamp keeps the cables from being pulled out.

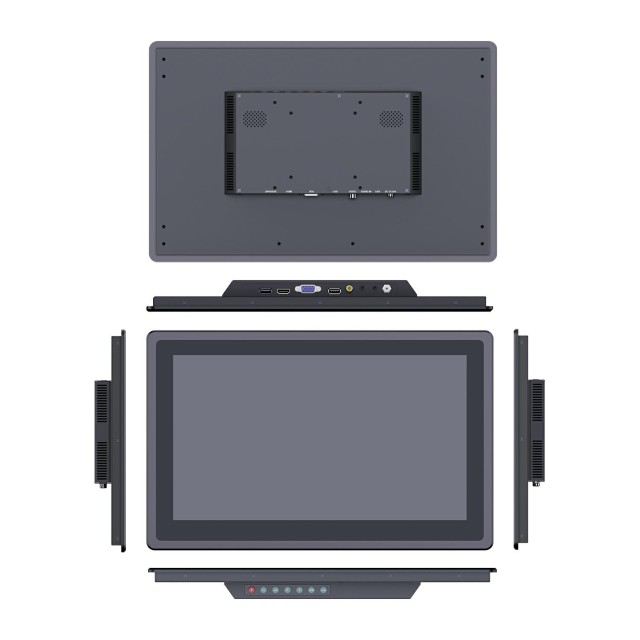

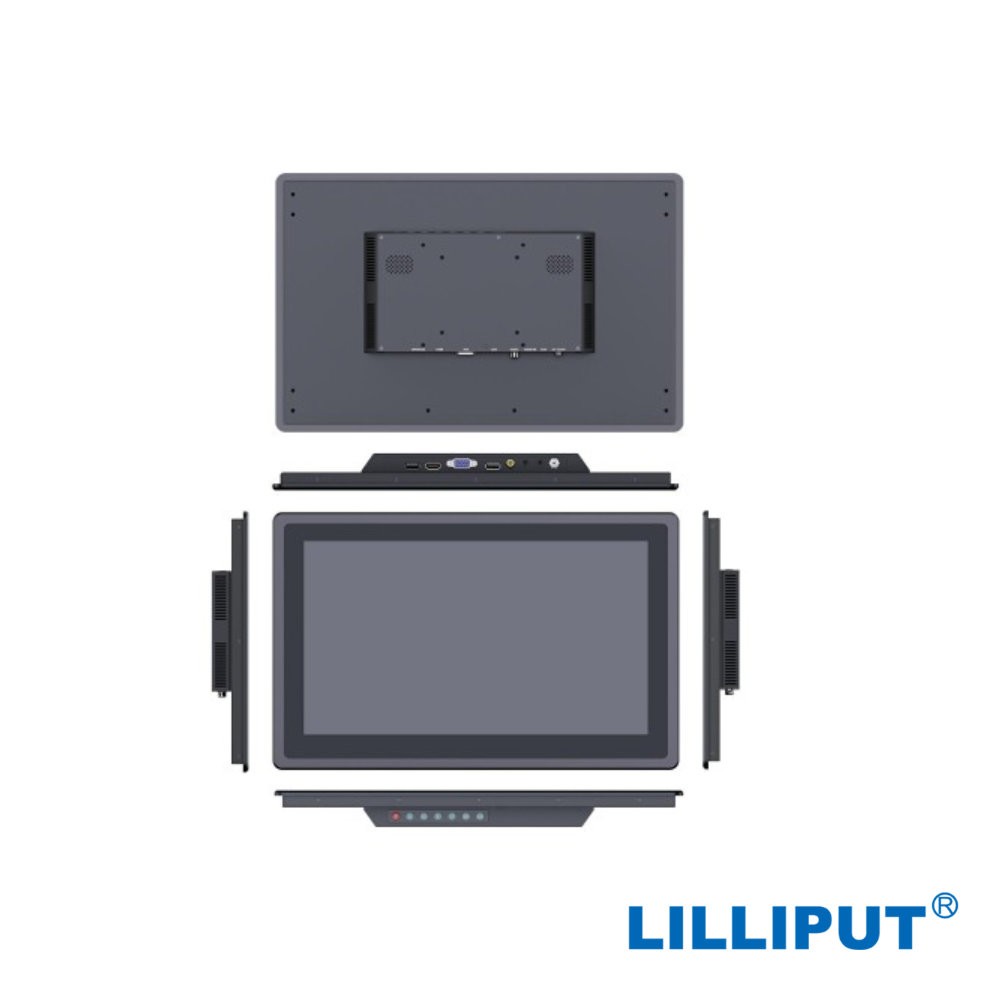

All sides
A slim 36.5 mm deep metal body with buttons on the top edge.
More information
About the TK1560/T

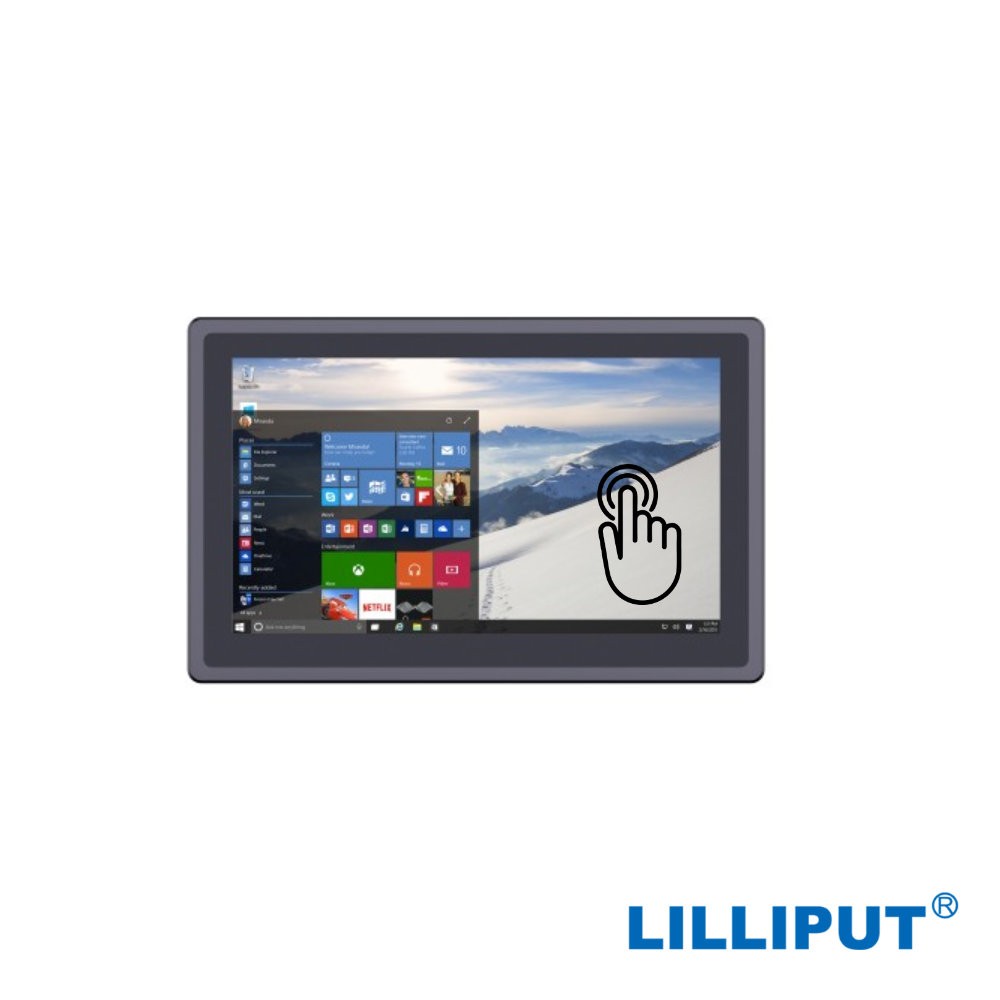

The TK1560/T is a 15.6" HDMI monitor – the bigger sibling of the Lilliput TK1330 – with a high-brightness 1000 cd/m² panel. Its 10-point capacitive touch screen suits interactive terminals. Thanks to its sturdy metal frame it is a rugged monitor that can be used outdoors or in industrial environments without worry, not least because of its IP64 rating.
It supports several video inputs (HDMI up to 4K 30 Hz, VGA, AV) and audio input, and touch works with Windows, Android, Linux and macOS.
PACKAGE CONTENT
- Lilliput TK1560/T monitor
- 12 V / 3 A power adapter
- HDMI A–A cable
- VGA cable
- USB A–A cable (for touch)
- Audio/video input cable
- Fixing screws with clamps (4 pcs)
- Cable clamps (4 pcs)
SPECIFICATIONS
- Model: TK1560/T
- Display: 15.6" LCD
- Resolution: 1920 × 1080
- Aspect ratio: 16:9
- Brightness: 1000 cd/m²
- Contrast: 1000:1
- Viewing angle: 160° / 160° (H/V)
- Touch panel: 10-point capacitive
- Inputs: 1× HDMI 1.4b, 1× VGA, 1× AV
- HDMI formats: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- Audio: 2× speaker, HDMI (2ch), 3.5 mm headphone output (2ch, 48 kHz, 24 bit)
- Power input: DC 12–24 V
- Power consumption: ≤ 24.5 W (15 V)
- Protection rating: front panel IP64 (dust IP6x, water IPx4)
- Operating temperature: −20 to 60 °C
- Storage temperature: −30 to 70 °C
- Dimensions (W × H × D): 408 × 259 × 36.5 mm
- Weight: 2.9 kg
- Mounting: VESA 75/100 mm, panel mounting
- Housing: metal housing
WE RECOMMEND
Recommended for the Lilliput TK1560/T 15.6" industrial touch monitor:
Cables – to connect the video source
Mounting – on a stand, an arm or a desk
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p · 4K UHD up to 30p |
| Size | 15.6" |
| Monitor inputs | HDMI · Composite Video · VGA |
| Luminosity | 1000cd/m2 |
| Panel resolution | 1920x1080 |
| Monitor power supply | DC 12–24 V |
Other parameters
| Tally | No |
| Other features | Touchscreen · Resilient |
| High Brightness | Yes |
