Lilliput TK1560/C 15.6" industrial monitor

+6
SKU: TK1560/C

The Lilliput TK1560/C is a 15.6" Full HD industrial monitor with 1000 nits brightness for outdoor and industrial environments. It has a metal housing, an IP64 front panel, HDMI (up to 4K 30 Hz), VGA and AV inputs, two speakers, 12–24 V power and VESA 75/100 mm or panel mounting.

More information

362 € with VAT 299.17 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
TK1560/C
Add to Compare Price history

Lilliput TK1560/T 15.6" industrial touch monitor

439 €without VAT 362.81 €

Top accessories for Lilliput TK1560/C 15.6" industrial monitor

SmallRig Mount Plate for Monitor VESA for Camera Cart 6257

The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
In stock > 5 pcs

PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum

  • SHOWROOM PRAHA
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 4 pcs

Canare HDMI Cable 5 m

  • New
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs

Manfrotto TetherGear VESA Monitor Mount

  • SHOWROOM PRAHA
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
2 pcs in stock at the supplier
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Lilliput TK1560/C is a 15.6" Full HD industrial monitor with 1000 nits brightness for outdoor and industrial environments. It has a metal housing, an IP64 front panel, HDMI (up to 4K 30 Hz), VGA and AV inputs, two speakers, 12–24 V power and VESA 75/100 mm or panel mounting.

Full HD with 1000 nits

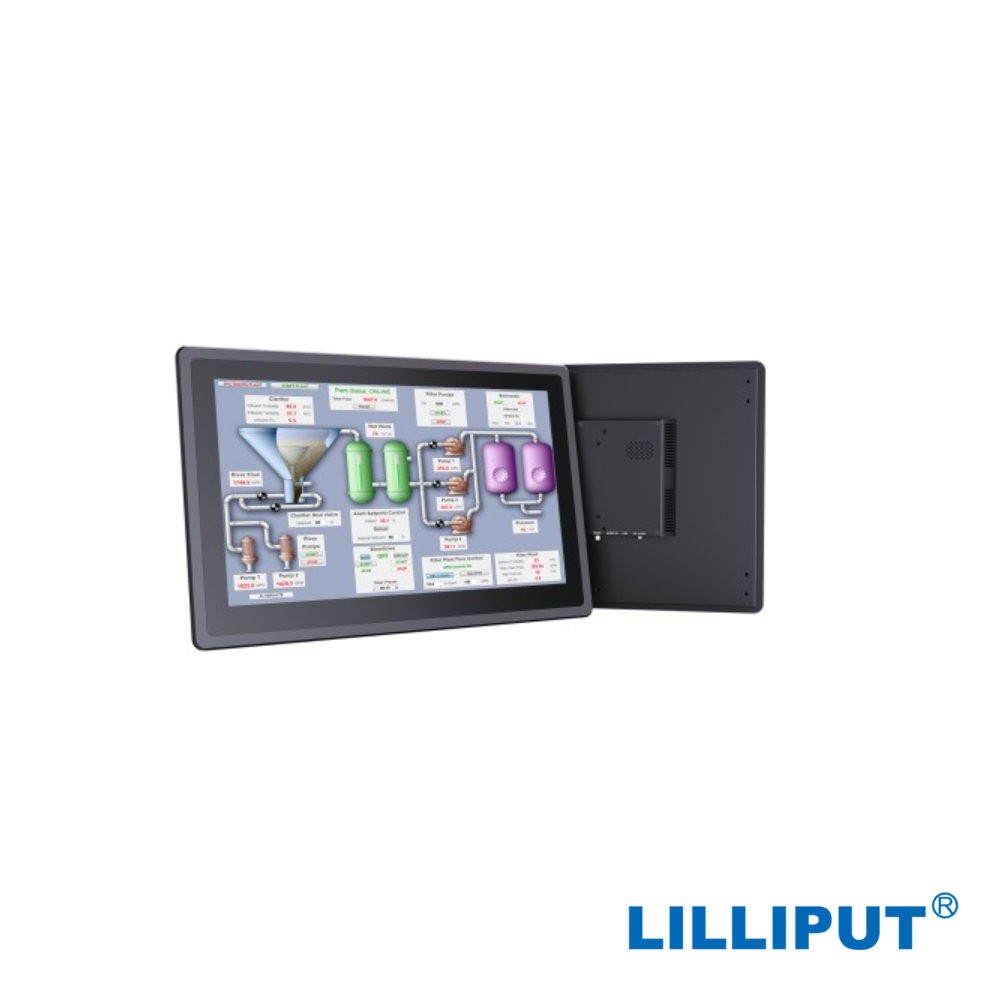

A rugged metal monitor for outdoor vending machines, industrial HMIs and self-service terminals. The IP64 front withstands dust and splashing water.

Lilliput TK1560/C
15.6" 1920 × 10801000 nitsHDMI · VGA · AVIP64 frontDC 12–24 V

Interfaces ready for customisation

Besides HDMI, VGA and AV, the mainboard has room for further ports and the sheet-metal connector cover is easy to replace, so the monitor can be adapted to a specific project.

24.5 W

Consumption at 15 V, 12–24 V DC input.

−20 to 60 °C

Works in unheated environments too.

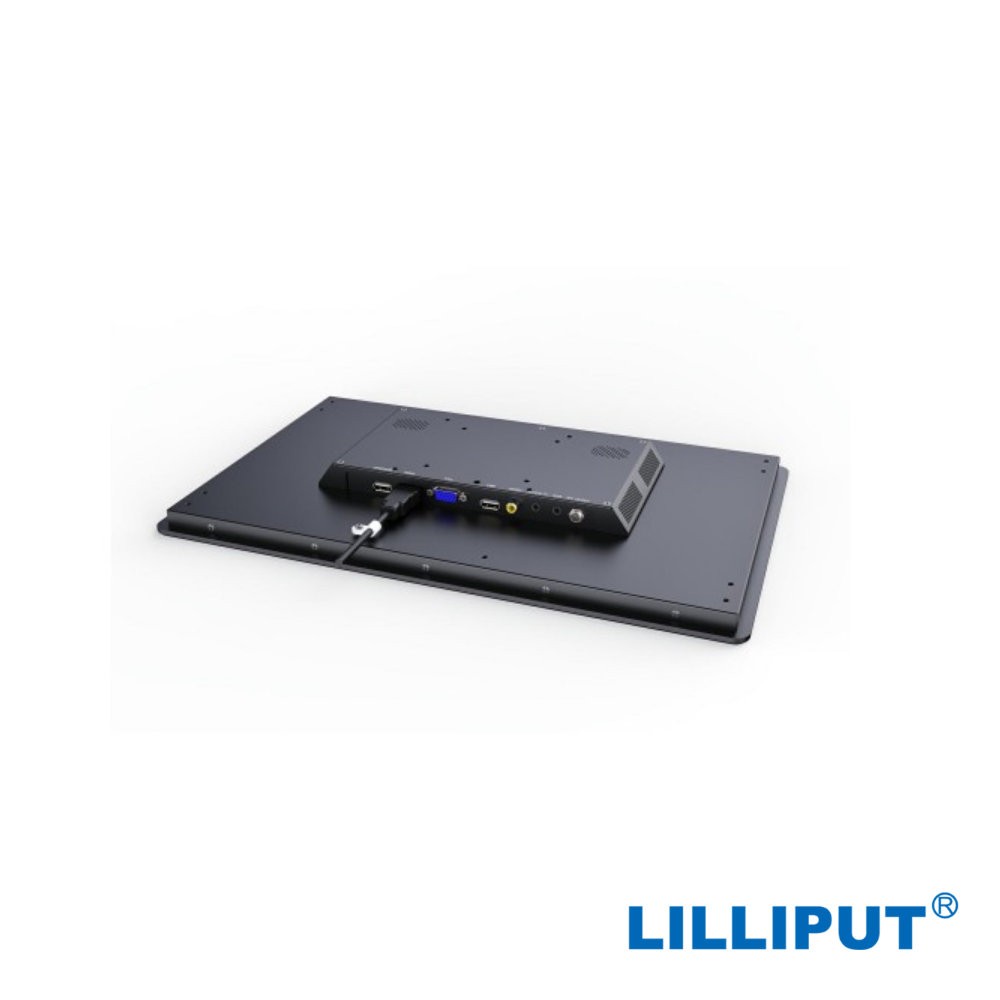

Cable retention

A clamp keeps cables in place under vibration.

VESA 75/100

On an arm, a stand or in a panel.

Lilliput TK1560/C – infographic 1Lilliput TK1560/C – infographic 2
Lilliput TK1560/C – Connectors at the back

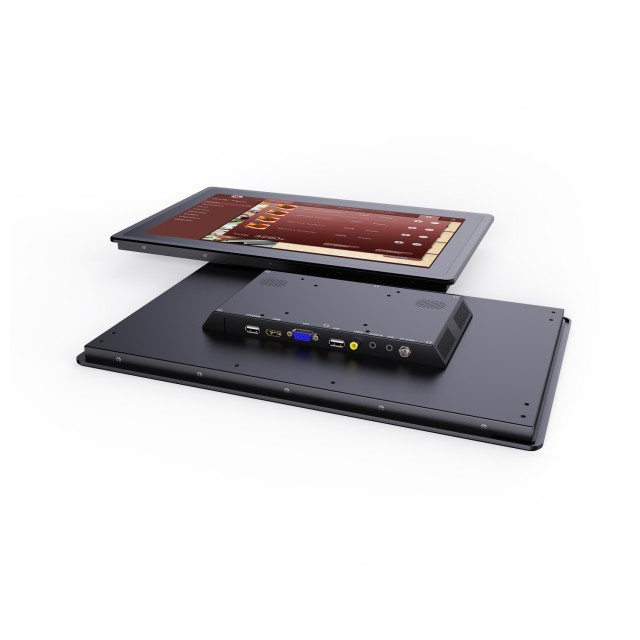

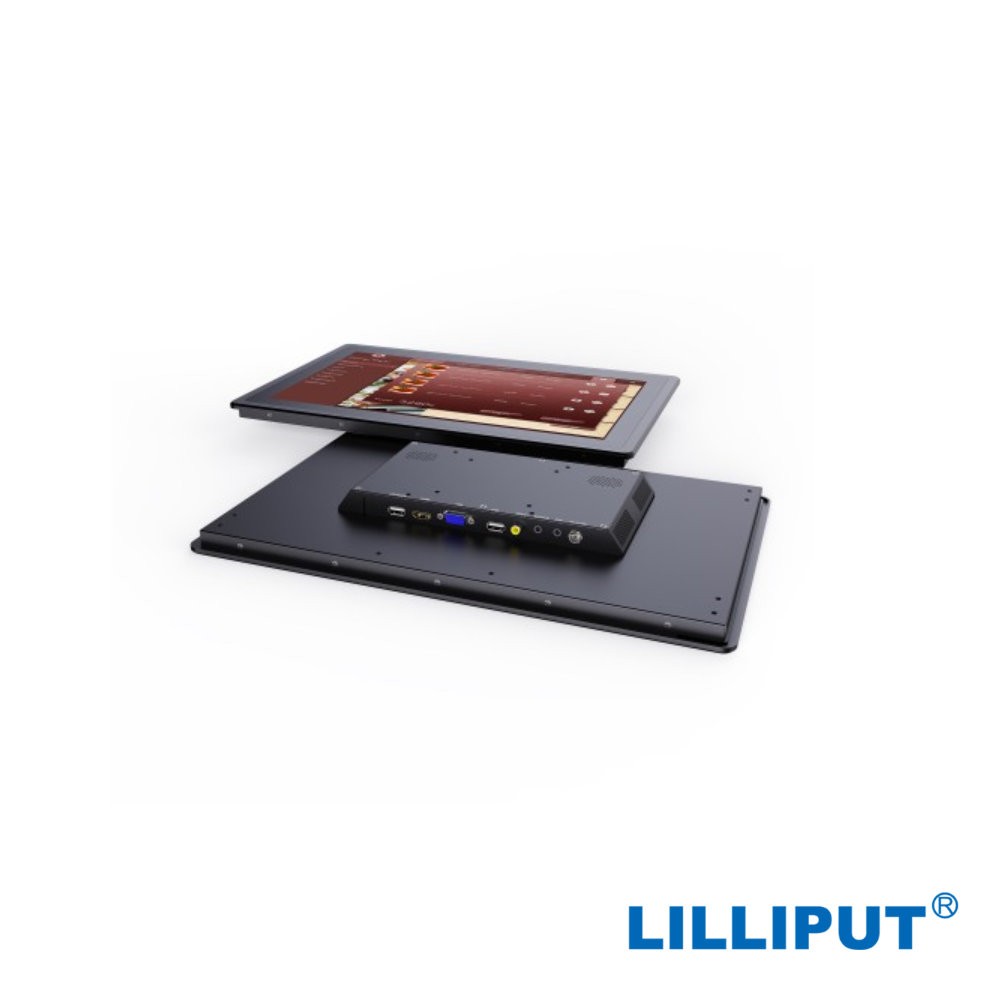

Connectors at the back

The ports sit in the rear electronics box and a clamp keeps the cables from being pulled out.

Lilliput TK1560/C – All sides

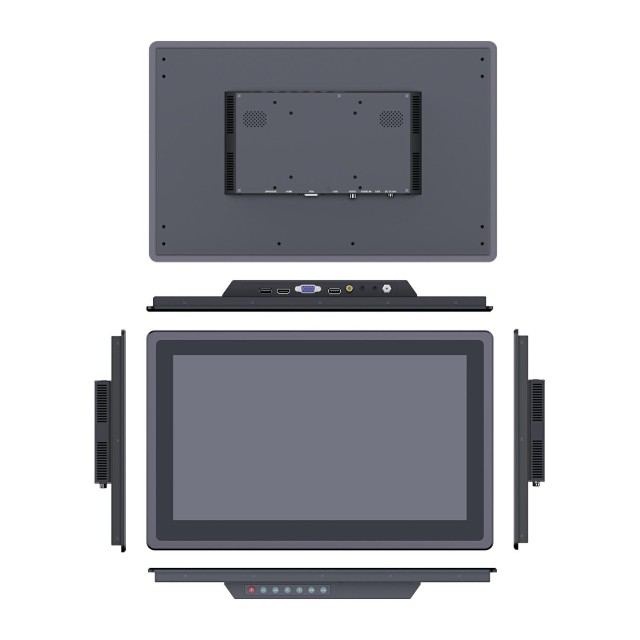

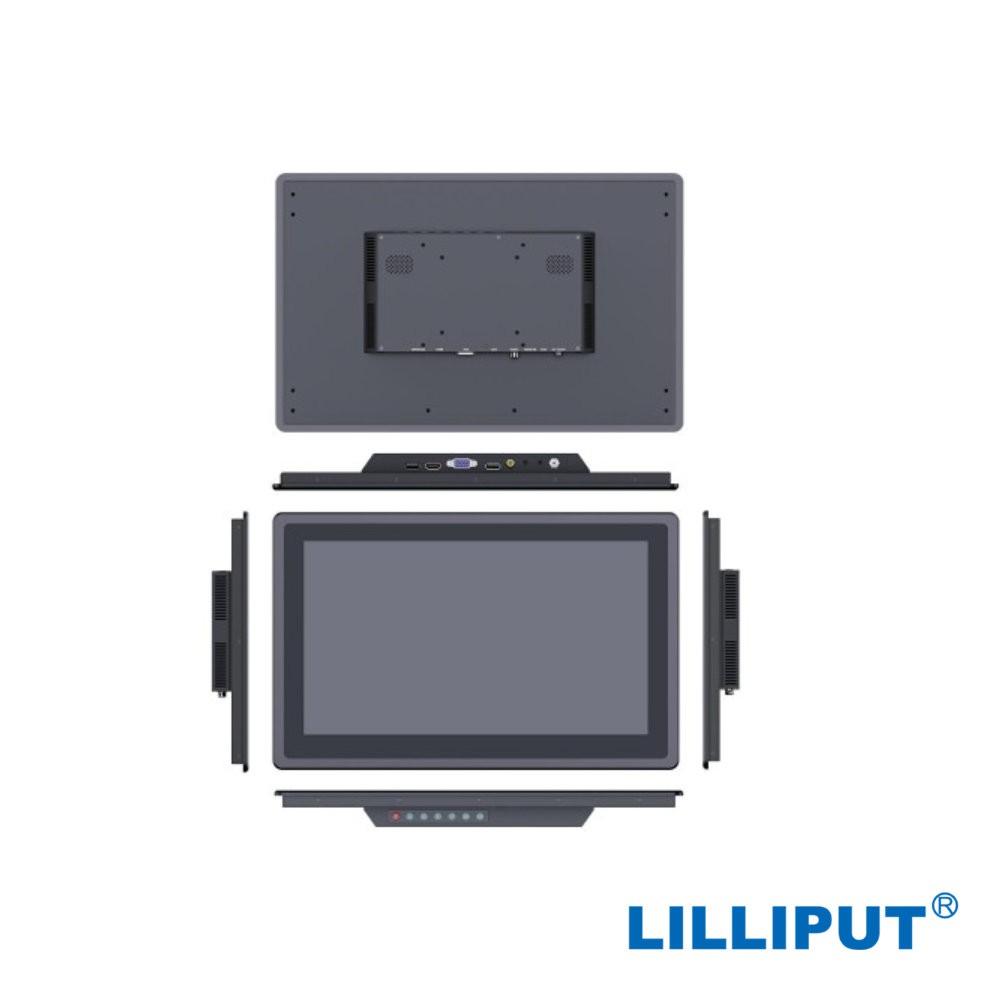

All sides

A slim 36.5 mm deep metal body with buttons on the top edge.

More information

About the TK1560/C

The TK1560/C is a 15.6" HDMI monitor – the bigger sibling of the Lilliput TK1330 – with a high-brightness 1000 cd/m² panel. Thanks to its sturdy metal frame it is a rugged monitor that can be used outdoors or in industrial environments without worry, not least because of its IP64 rating.

It supports several video inputs (HDMI up to 4K 30 Hz, VGA, AV) and audio input.

PACKAGE CONTENT

  • Lilliput TK1560/C monitor
  • 12 V / 3 A power adapter
  • HDMI A–A cable
  • VGA cable
  • Audio/video input cable
  • Fixing screws with clamps (4 pcs)
  • Cable clamps (4 pcs)

SPECIFICATIONS

  • Model: TK1560/C
  • Display: 15.6" LCD
  • Resolution: 1920 × 1080
  • Aspect ratio: 16:9
  • Brightness: 1000 cd/m²
  • Contrast: 1000:1
  • Viewing angle: 160° / 160° (H/V)
  • Touch panel: none (non-touch)
  • Inputs: 1× HDMI 1.4b, 1× VGA, 1× AV
  • HDMI formats: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
  • Audio: 2× speaker, HDMI (2ch), 3.5 mm headphone output (2ch, 48 kHz, 24 bit)
  • Power input: DC 12–24 V
  • Power consumption: ≤ 24.5 W (15 V)
  • Protection rating: front panel IP64 (dust IP6x, water IPx4)
  • Operating temperature: −20 to 60 °C
  • Storage temperature: −30 to 70 °C
  • Dimensions (W × H × D): 408 × 259 × 36.5 mm
  • Weight: 2.9 kg
  • Mounting: VESA 75/100 mm, panel mounting
  • Housing: metal housing

WE RECOMMEND

Recommended for the Lilliput TK1560/C 15.6" industrial monitor:

Cables – to connect the video source

Mounting – on a stand, an arm or a desk

Parameters

Parameters

Manufacturer: Lilliput
Category: Studio Monitors

Main parameters

Supported video signal modes (resolution / frame rate)1080i up to 60i · 720p up to 60p · 1080p up to 60p · 4K UHD up to 30p
Size15.6"
Monitor inputsHDMI · Composite Video · VGA
Luminosity1000cd/m2
Panel resolution1920x1080
Monitor power supplyDC 12–24 V

Other parameters

TallyNo
Other featuresResilient
High BrightnessYes
