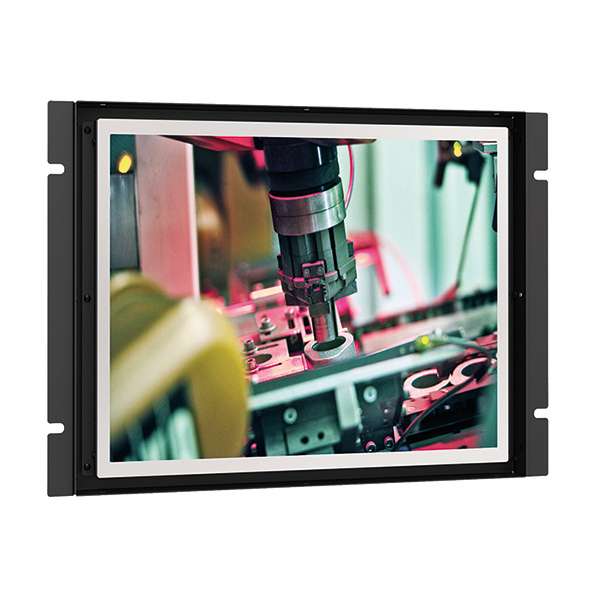

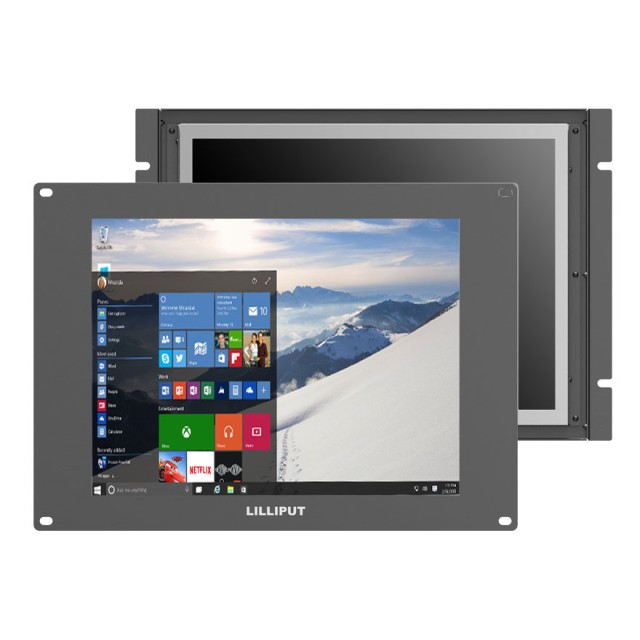

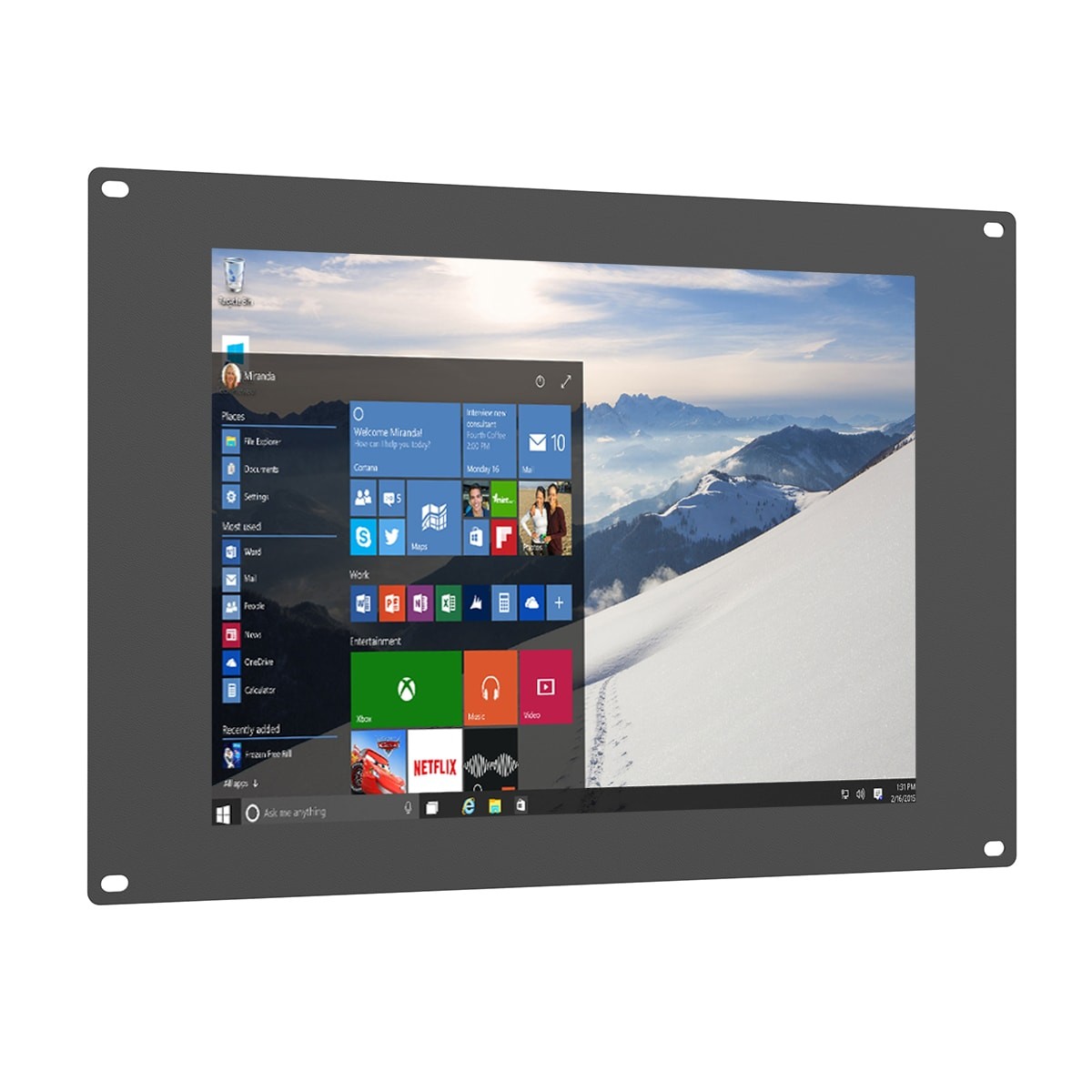

Lilliput TK1500-NP/C/T 15" industrial touch monitor
SKU: TK1500-NP/C/T
The Lilliput TK1500-NP/C/T is a 15" industrial open-frame metal monitor with a 5-wire resistive touch layer and 1000 cd/m² brightness. The 4:3 panel with 1024 × 768 resolution and 1500:1 contrast has HDMI, DVI, VGA and composite inputs. It suits kiosks, machine control panels and custom integrations.
398 € with VAT
328.93 € without VAT
Availability
14-30 days
Top accessories for Lilliput TK1500-NP/C/T 15" industrial touch monitor
PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 4 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
SmallRig Mount Plate for Monitor VESA for Camera Cart 6257
The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
Backordered > 5 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput TK1500-NP/C/T is a 15" industrial open-frame metal monitor with a 5-wire resistive touch layer and 1000 cd/m² brightness. The 4:3 panel with 1024 × 768 resolution and 1500:1 contrast has HDMI, DVI, VGA and composite inputs. It suits kiosks, machine control panels and custom integrations.

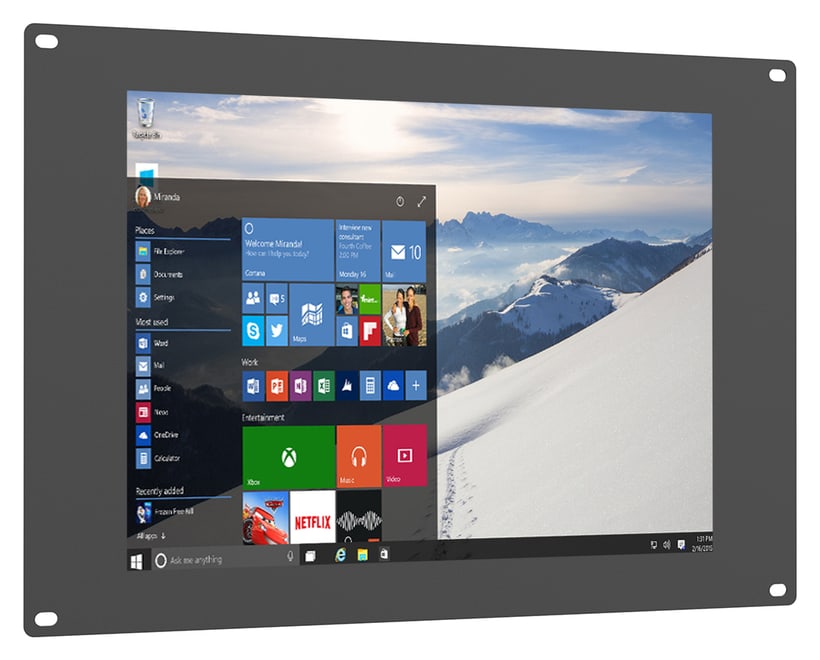

Bright 4:3 touch monitor for integration
The open metal frame screws from behind to a panel or wall. 1000 cd/m² brightness and 1500:1 contrast keep the image readable even in a brightly lit hall.
15" 1024 × 7681000 cd/m²HDMI · DVI · VGA · AVResistive touch−20 to 60 °C
Resistive touch for industry
The 5-wire resistive layer reacts to the pressure of a finger, stylus or glove and is unaffected by dust or greasy hands. Touch connects via USB; a stylus and driver CD are included.
1000 cd/m²
High brightness for bright workplaces.
1500:1
Contrast and 170° / 170° angles.
15 W
Consumption on a 12 V DC supply.
Open frame
400 × 279 × 43.5 mm for integration.

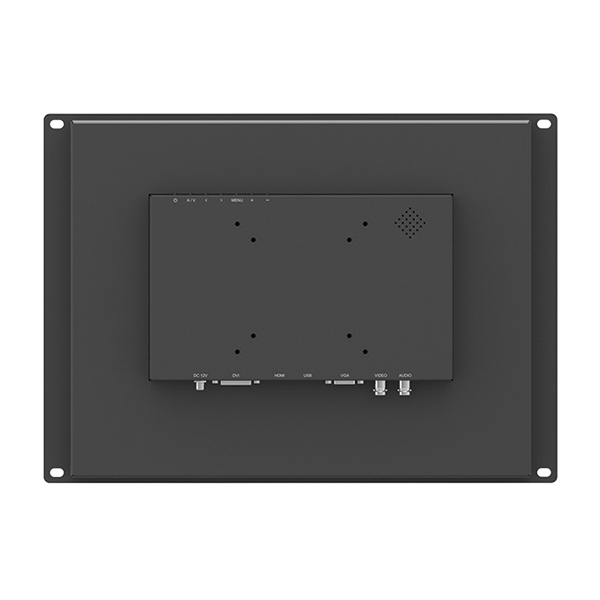

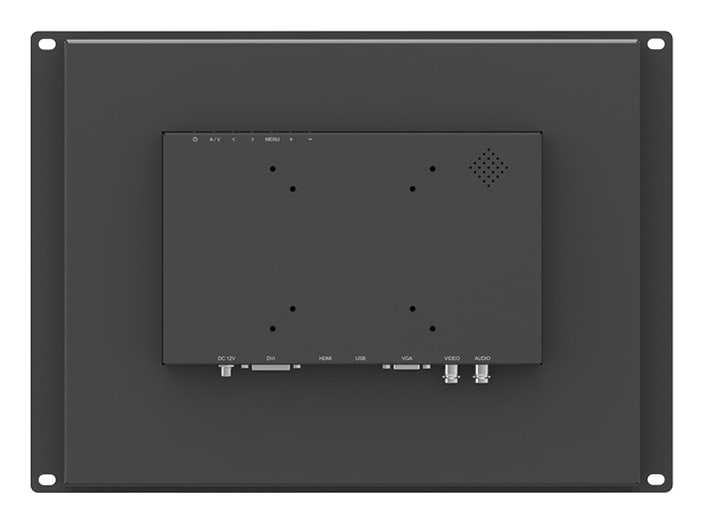

Rear side
The electronics box with VESA holes sits in the centre of the back, surrounded by the flat frame with mounting holes.

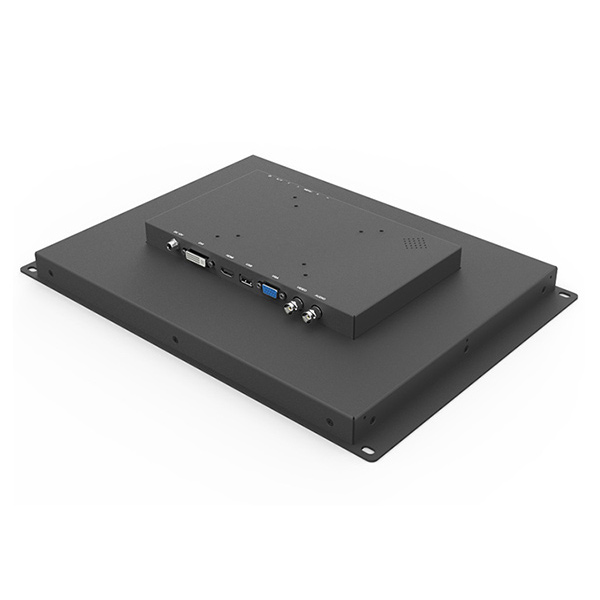

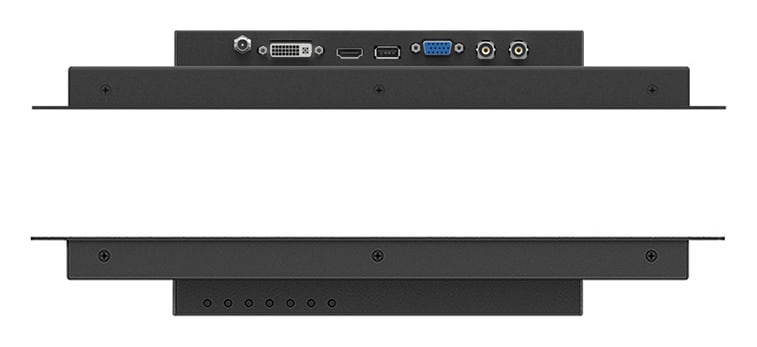

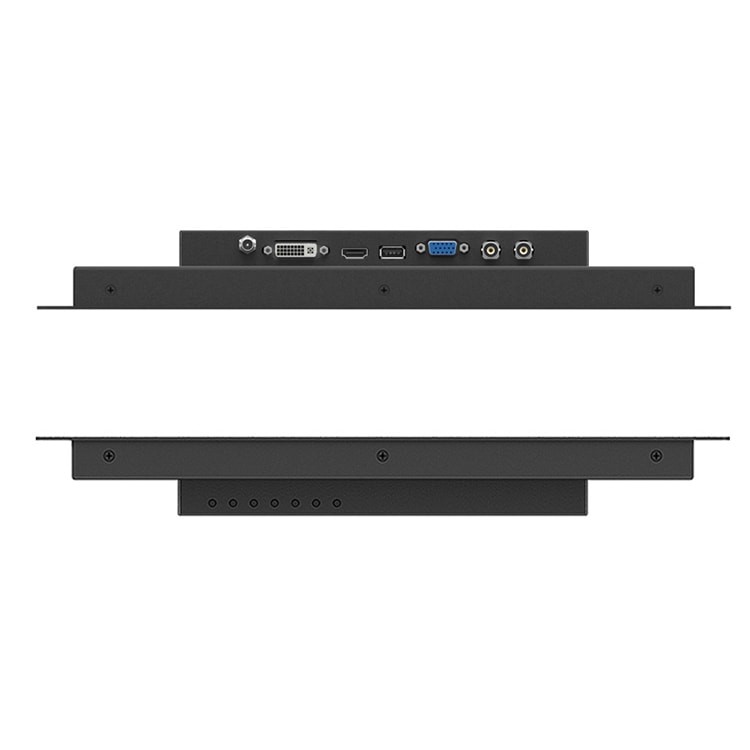

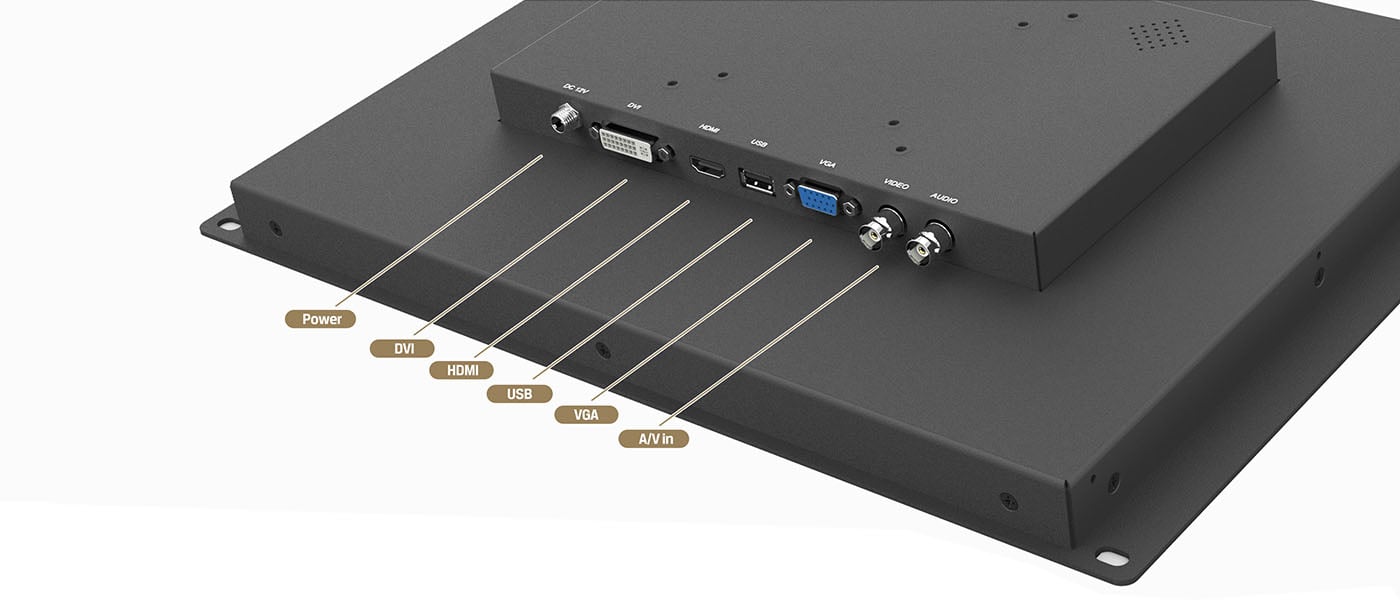

Connectors
DVI, HDMI, USB, VGA and BNC for video and audio are on one side of the electronics box.
More information
About the TK1500-NP/C/T
The TK1500-NP/C/T is a 15" LCD monitor with an open metal frame, 4:3 aspect ratio and HDMI, DVI, VGA and composite inputs. It is designed for integration into custom projects and industrial applications; 5-wire resistive touch turns it into a machine or kiosk control panel.

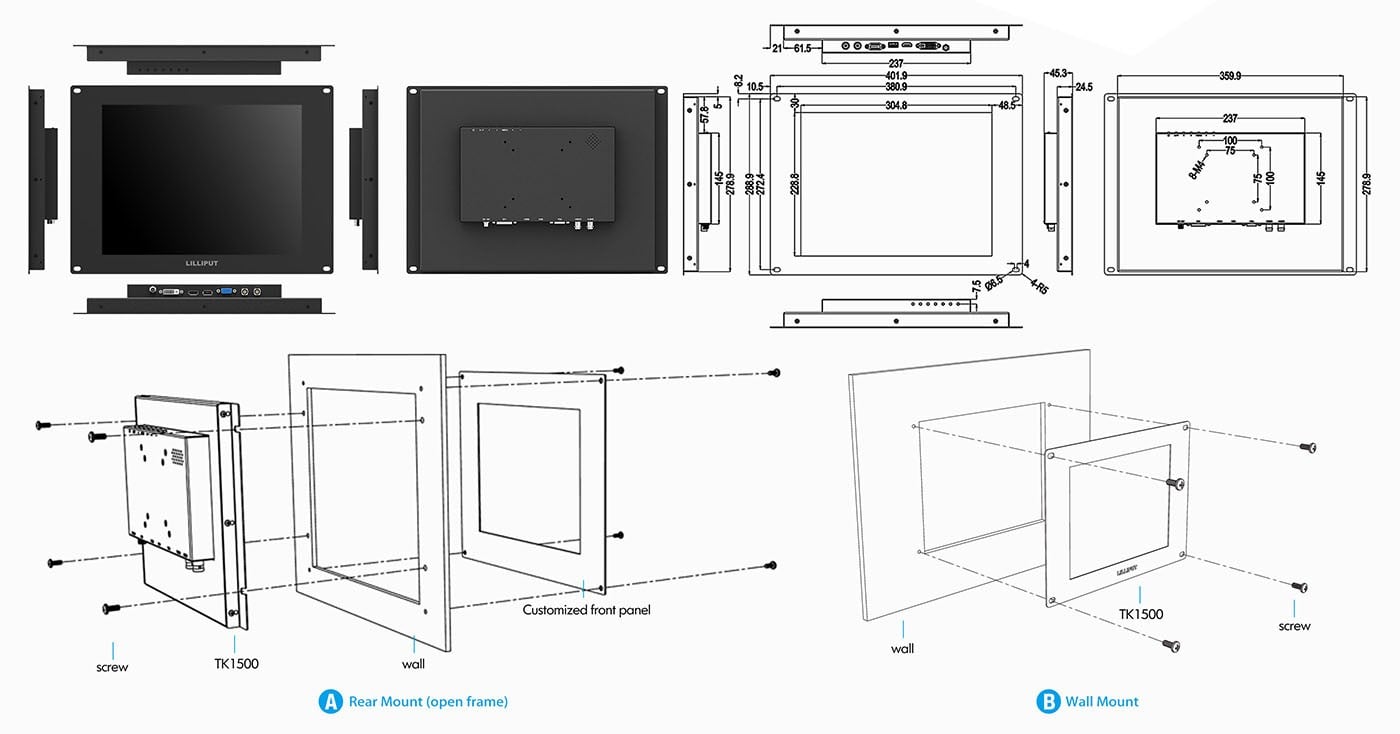

The frame mounts from behind to a panel or wall; a folding VESA bracket and separate open-frame brackets are available as options.
PACKAGE CONTENT
- Lilliput TK1500-NP/C/T monitor
- 12 V DC power adapter
- HDMI A–A cable
- VGA cable
- USB cable (for touch)
- BNC audio cable
- BNC video cable (composite)
- Driver CD
- Touch pen
- User manual
SPECIFICATIONS
- Model: TK1500-NP/C/T
- Display: 15" LCD
- Resolution: 1024 × 768
- Aspect ratio: 4:3
- Brightness: 1000 cd/m²
- Contrast: 1500:1
- Viewing angle: 170° / 170° (H/V)
- Touch panel: 5-wire resistive
- Inputs: 1× HDMI, 1× DVI, 1× VGA, 1× composite video (BNC), audio (BNC)
- HDMI formats: 720p 50/60, 1080i 50/60, 1080p 50/60
- Audio: 1× speaker, 3.5 mm headphone output (2ch, 48 kHz, 24 bit)
- Power input: DC 12 V
- Power consumption: ≤ 15 W
- Operating temperature: −20 to 60 °C
- Storage temperature: −30 to 70 °C
- Dimensions (W × H × D): 402 × 289 × 45.5 mm; open frame 400 × 279 × 43.5 mm
- Weight: 3.2 kg
- Mounting: open frame (rear or wall mounting), VESA
- Housing: metal housing
WE RECOMMEND
Recommended for the Lilliput TK1500-NP/C/T 15" industrial touch monitor:
Cables – to connect the video source
Mounting – on a stand, an arm or a desk
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p |
| Size | 15" |
| Monitor inputs | HDMI · Composite Video · DVI · VGA |
| Luminosity | 1000cd/m2 |
| Panel resolution | 1024x768 |
| Monitor power supply | DC 12V |
Other parameters
| Tally | No |
| Other features | Touchscreen |
| High Brightness | Yes |
