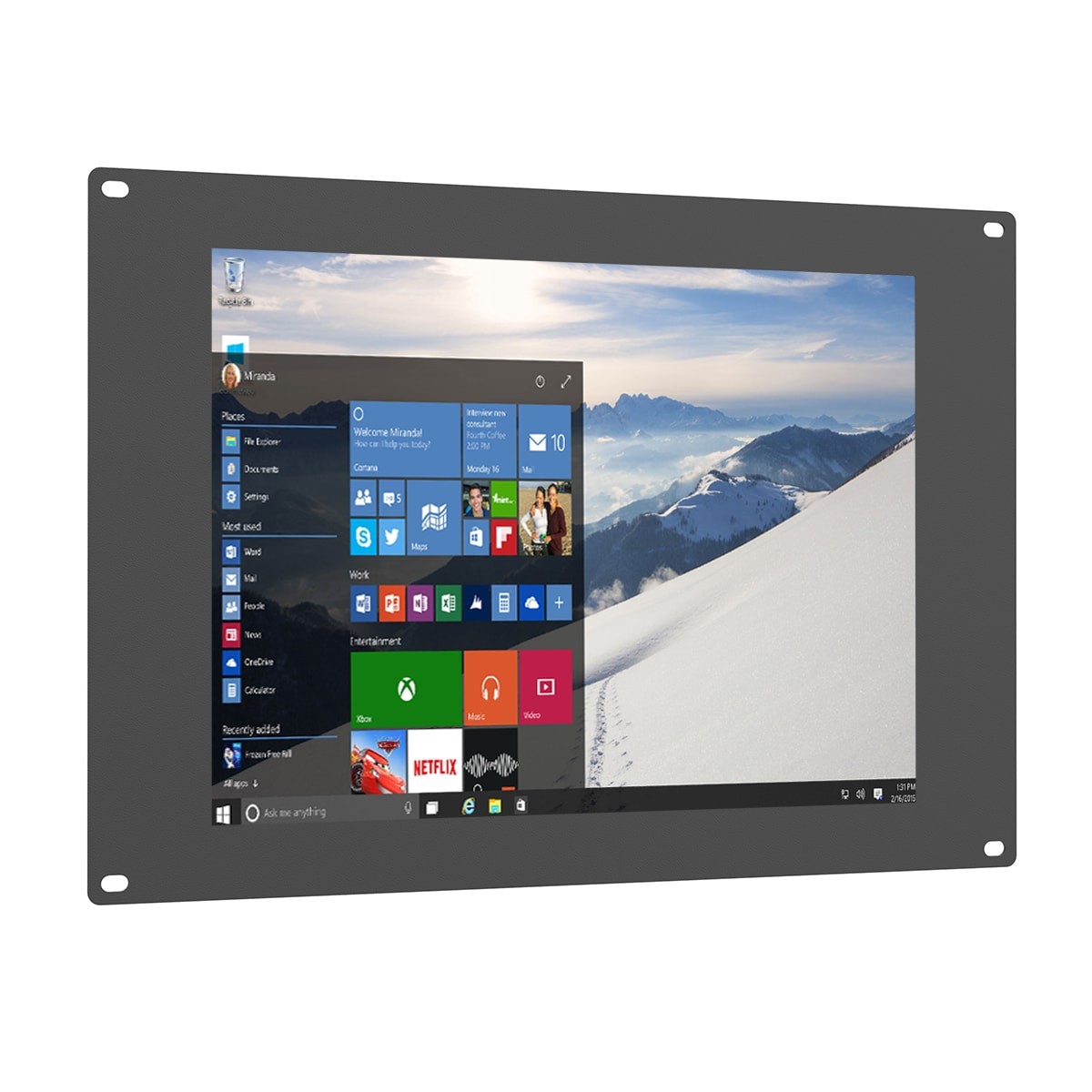

Lilliput TK1500-NP/C 15" industrial monitor
SKU: TK1500-NP/C

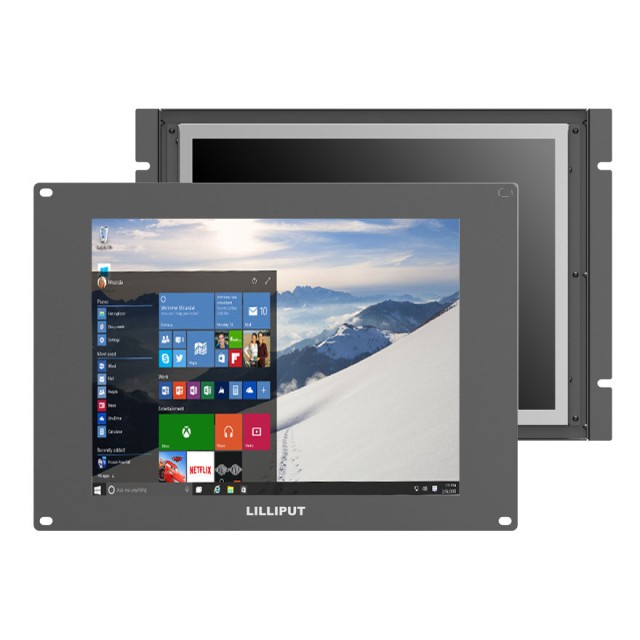

The Lilliput TK1500-NP/C is a 15" non-touch industrial monitor in an open metal frame with 1000 cd/m² brightness. The 4:3 panel with 1024 × 768 resolution and 1500:1 contrast has HDMI, DVI, VGA and composite inputs. It is designed for integration into custom projects and industrial equipment, or for wall mounting.
313 € with VAT
258.68 € without VAT
Availability
14-30 days
Top accessories for Lilliput TK1500-NP/C 15" industrial monitor
PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 4 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
SmallRig Mount Plate for Monitor VESA for Camera Cart 6257
The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
Backordered > 5 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

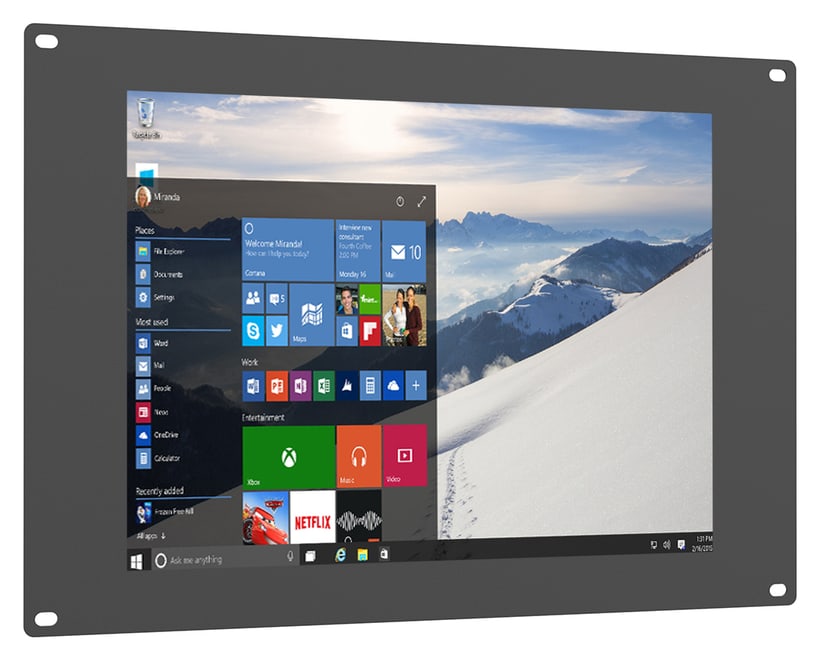

The Lilliput TK1500-NP/C is a 15" non-touch industrial monitor in an open metal frame with 1000 cd/m² brightness. The 4:3 panel with 1024 × 768 resolution and 1500:1 contrast has HDMI, DVI, VGA and composite inputs. It is designed for integration into custom projects and industrial equipment, or for wall mounting.
Bright 4:3 monitor for integration

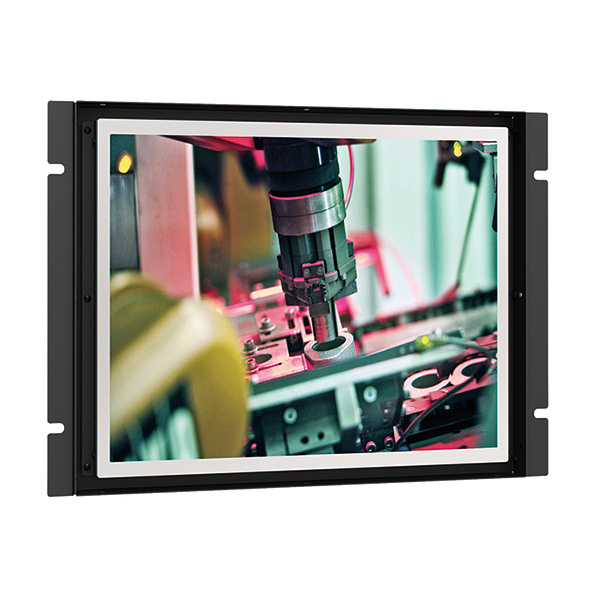

The open metal frame screws from behind to a panel or wall. 1000 cd/m² brightness and 1500:1 contrast keep the image readable even in a brightly lit hall.
15" 1024 × 7681000 cd/m²HDMI · DVI · VGA · AVOpen frame−20 to 60 °C
Legacy and modern video sources
HDMI and DVI for current computers, VGA and composite video for older control systems and cameras. The 4:3 panel naturally shows traditional industrial interfaces.
1000 cd/m²
High brightness for bright workplaces.
1500:1
Contrast and 170° / 170° angles.
15 W
Consumption on a 12 V DC supply.
Open frame
400 × 279 × 43.5 mm for integration.

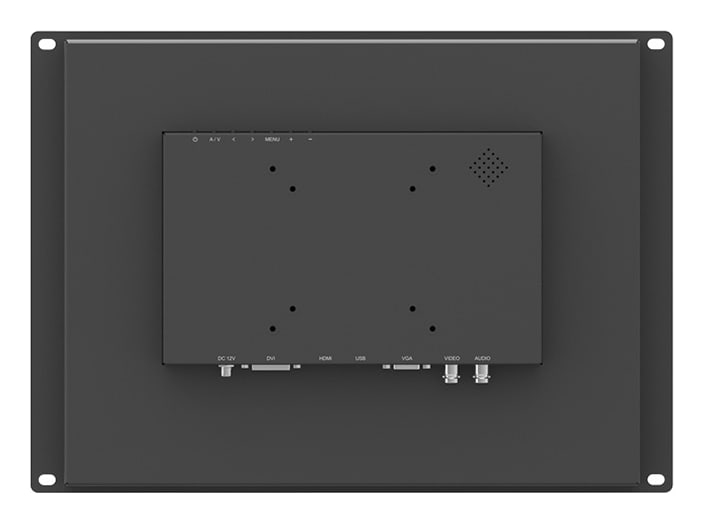

Rear side

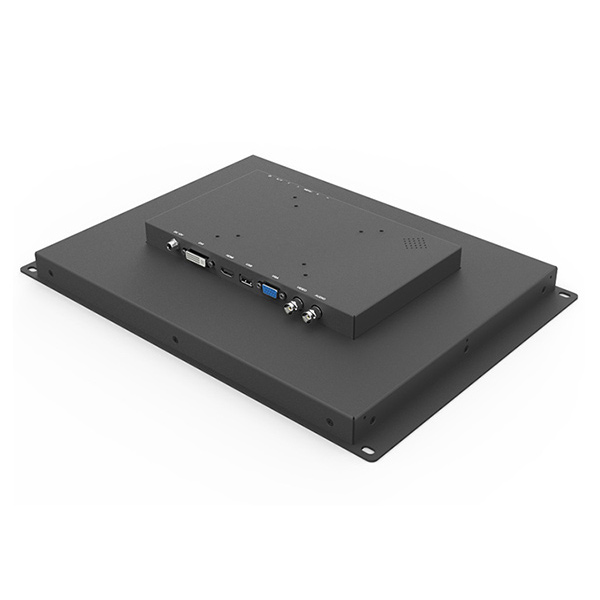

The electronics box with VESA holes sits in the centre of the back, surrounded by the flat frame with mounting holes.

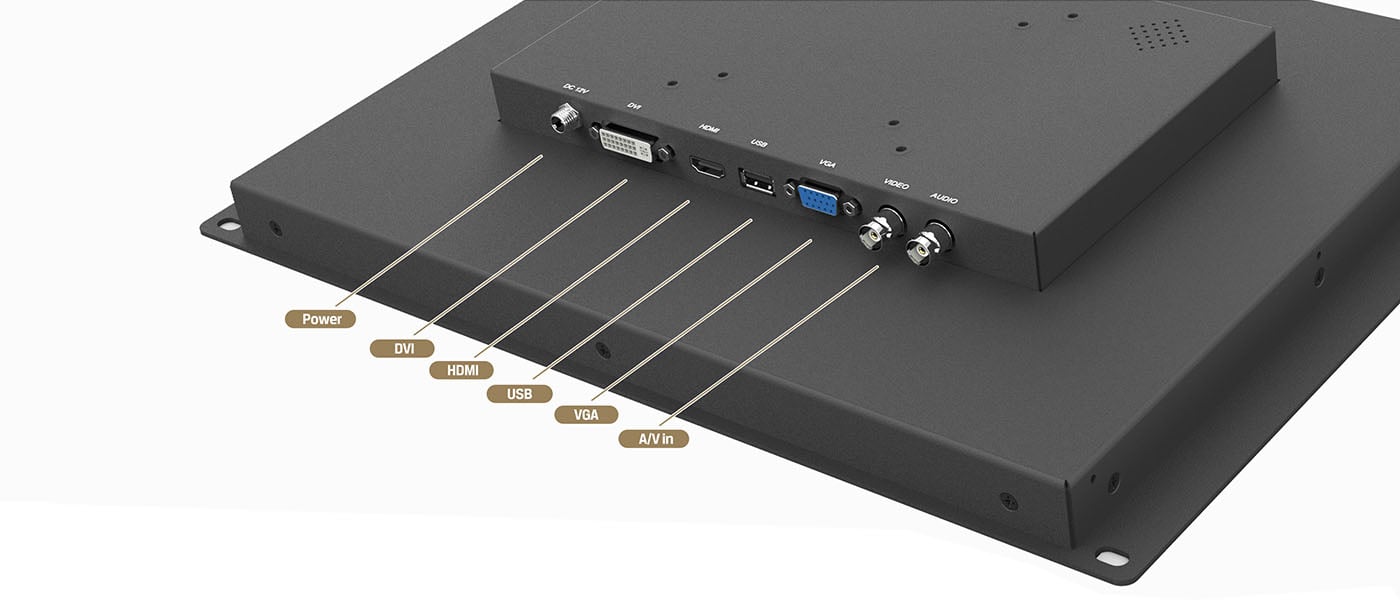

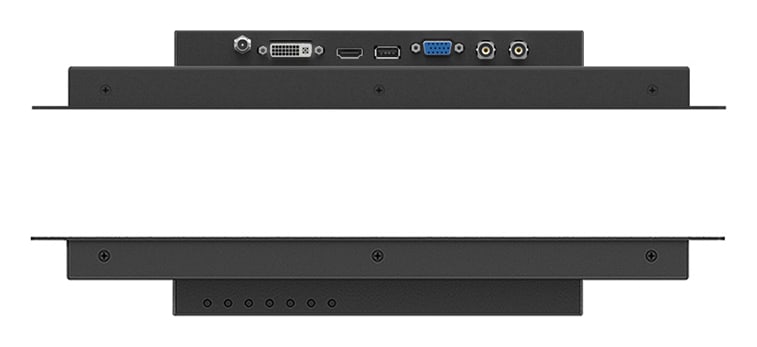

Connectors

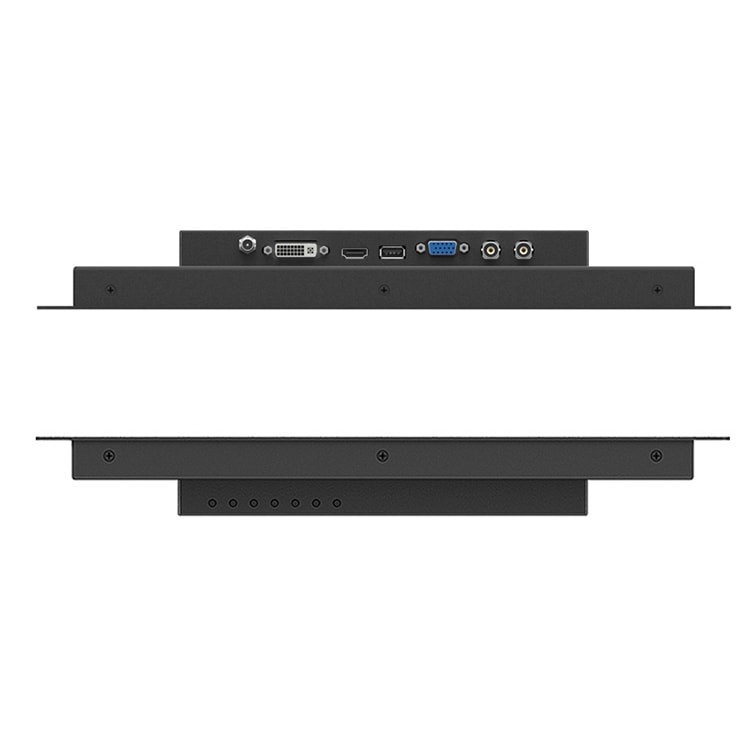

DVI, HDMI, USB, VGA and BNC for video and audio are on one side of the electronics box.
More information
About the TK1500-NP/C
The TK1500-NP/C is a 15" LCD monitor with an open metal frame, 4:3 aspect ratio and HDMI, DVI, VGA and composite inputs. It is designed for integration into custom projects and industrial applications as a versatile, sturdy wall-mount monitor.

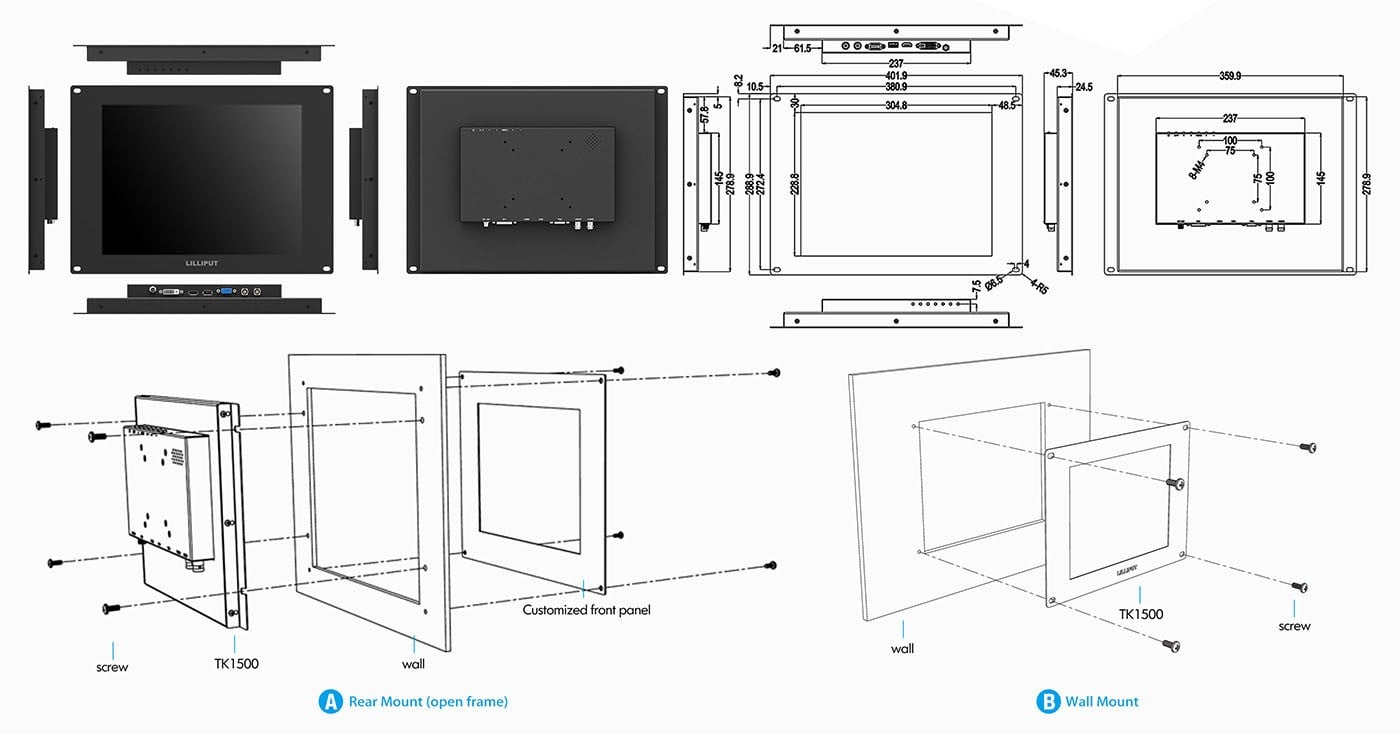

The frame mounts from behind to a panel or wall; a folding VESA bracket and separate open-frame brackets are available as options.
PACKAGE CONTENT
- Lilliput TK1500-NP/C monitor
- 12 V DC power adapter
- HDMI A–A cable
- VGA cable
- BNC audio cable
- BNC video cable (composite)
- User manual
SPECIFICATIONS
- Model: TK1500-NP/C
- Display: 15" LCD
- Resolution: 1024 × 768
- Aspect ratio: 4:3
- Brightness: 1000 cd/m²
- Contrast: 1500:1
- Viewing angle: 170° / 170° (H/V)
- Touch panel: none (non-touch)
- Inputs: 1× HDMI, 1× DVI, 1× VGA, 1× composite video (BNC), audio (BNC)
- HDMI formats: 720p 50/60, 1080i 50/60, 1080p 50/60
- Audio: 1× speaker, 3.5 mm headphone output (2ch, 48 kHz, 24 bit)
- Power input: DC 12 V
- Power consumption: ≤ 15 W
- Operating temperature: −20 to 60 °C
- Storage temperature: −30 to 70 °C
- Dimensions (W × H × D): 402 × 289 × 45.5 mm; open frame 400 × 279 × 43.5 mm
- Weight: 3.2 kg
- Mounting: open frame (rear or wall mounting), VESA
- Housing: metal housing
WE RECOMMEND
Recommended for the Lilliput TK1500-NP/C 15" industrial monitor:
Cables – to connect the video source
Mounting – on a stand, an arm or a desk
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p |
| Size | 15" |
| Monitor inputs | HDMI · Composite Video · DVI · VGA |
| Luminosity | 1000cd/m2 |
| Panel resolution | 1024x768 |
| Monitor power supply | DC 12V |
Other parameters
| Tally | No |
| High Brightness | Yes |
