Lilliput FA1019-NP/C/T
SKU: FA1019-NP/C/T
The Lilliput FA1019-NP/C/T is a 10.1″ industrial touch monitor with 1920 × 1200 resolution and 1500 cd/m² brightness, readable even outdoors in the sun. A capacitive touch layer, metal housing, HDMI, VGA and USB-C inputs (video, touch and power over one cable) and a 12–24 V DC supply – for kiosks, checkouts and machine control.
386 € with VAT
319.01 € without VAT
Availability
on request
Top accessories for Lilliput FA1019-NP/C/T
PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 4 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
Lilliput VESA 75mm Bracket for FA1019 NP/C/T
The Lilliput FA1019-VB folding stand with a VESA 75 mm interface for Lilliput FA1019
17 €
In stock 2 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

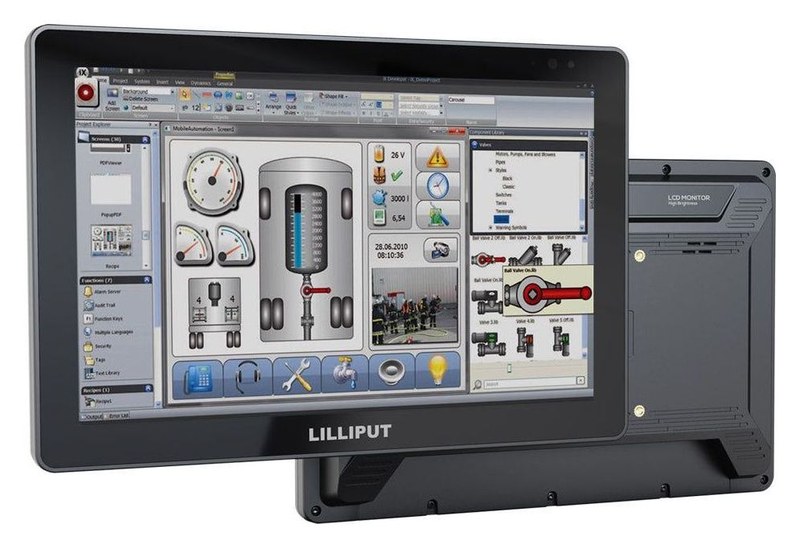

The Lilliput FA1019-NP/C/T is a 10.1″ industrial touch monitor with 1920 × 1200 resolution and 1500 cd/m² brightness, readable even outdoors in the sun. A capacitive touch layer, metal housing, HDMI, VGA and USB-C inputs (video, touch and power over one cable) and a 12–24 V DC supply – for kiosks, checkouts and machine control.
A 10.1" touch monitor with 1500 nits
A 1920 × 1200 panel with 1500 cd/m², capacitive touch and a metal housing. USB-C carries video, touch and power over one cable.
10.1" 1920 × 12001500 cd/m²capacitive touchHDMI · VGA · USB-C12–24 V DC
1500 nits for outdoor use
The display stays readable in direct sunlight, so it suits kiosks, service windows and machines in the open. An ambient light sensor adjusts the brightness automatically and saves power.
Full HD+ on 10.1"
The 1920 × 1200 resolution in 16:10 renders even dense control screens crisply.
One USB-C cable
Video, touch and power over a single USB-C cable simplify the wiring of a kiosk or panel.
50,000 hours
An industrial LCD panel selected through multiple tests for a long working life.
−20 to 60 °C
A metal housing and a wide temperature range for shops and unheated spaces alike.

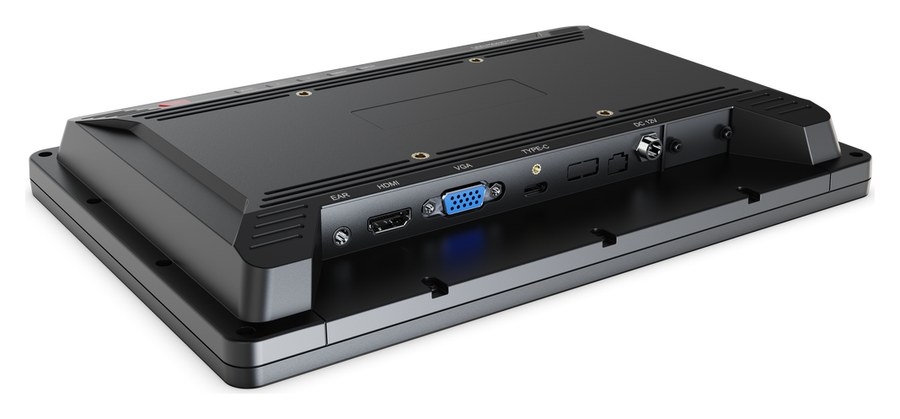

Connectors on the bottom edge
Headphone output, HDMI, VGA, USB-C and the 12 V power input; the screw-locking USB-C cable cannot fall out.

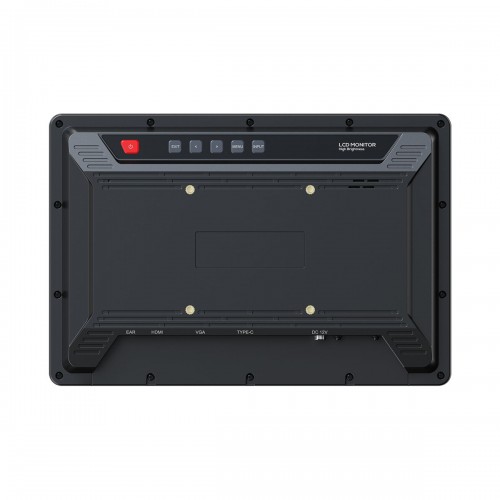

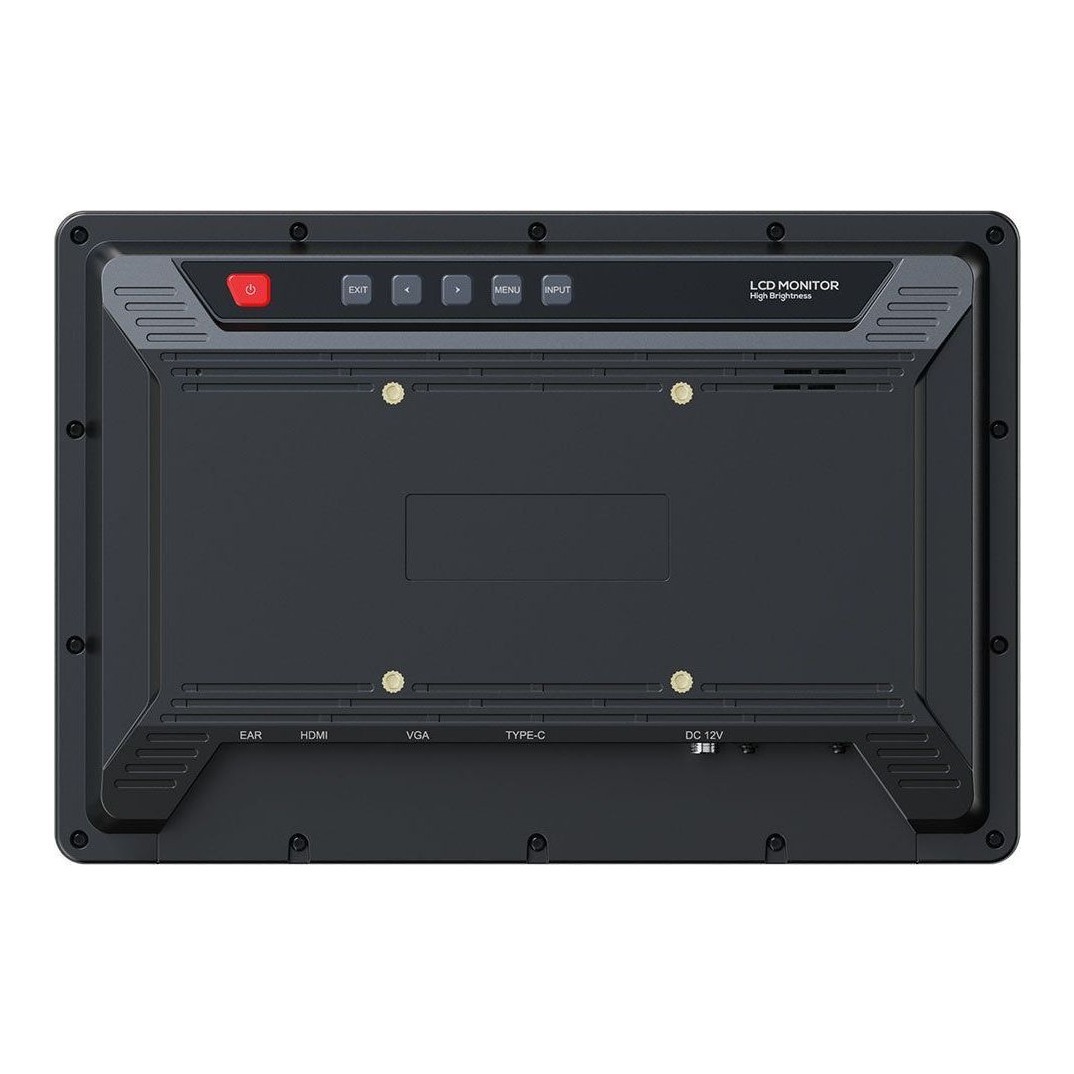

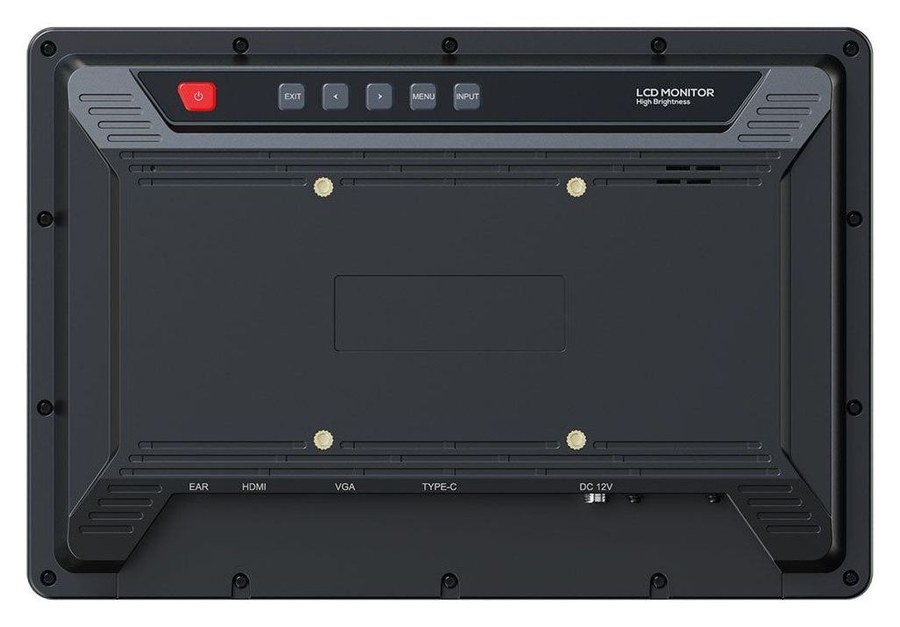

Rear with VESA 75 mm
Control buttons on the top edge and VESA 75 mm mounting points for a stand, arm or built-in installation.

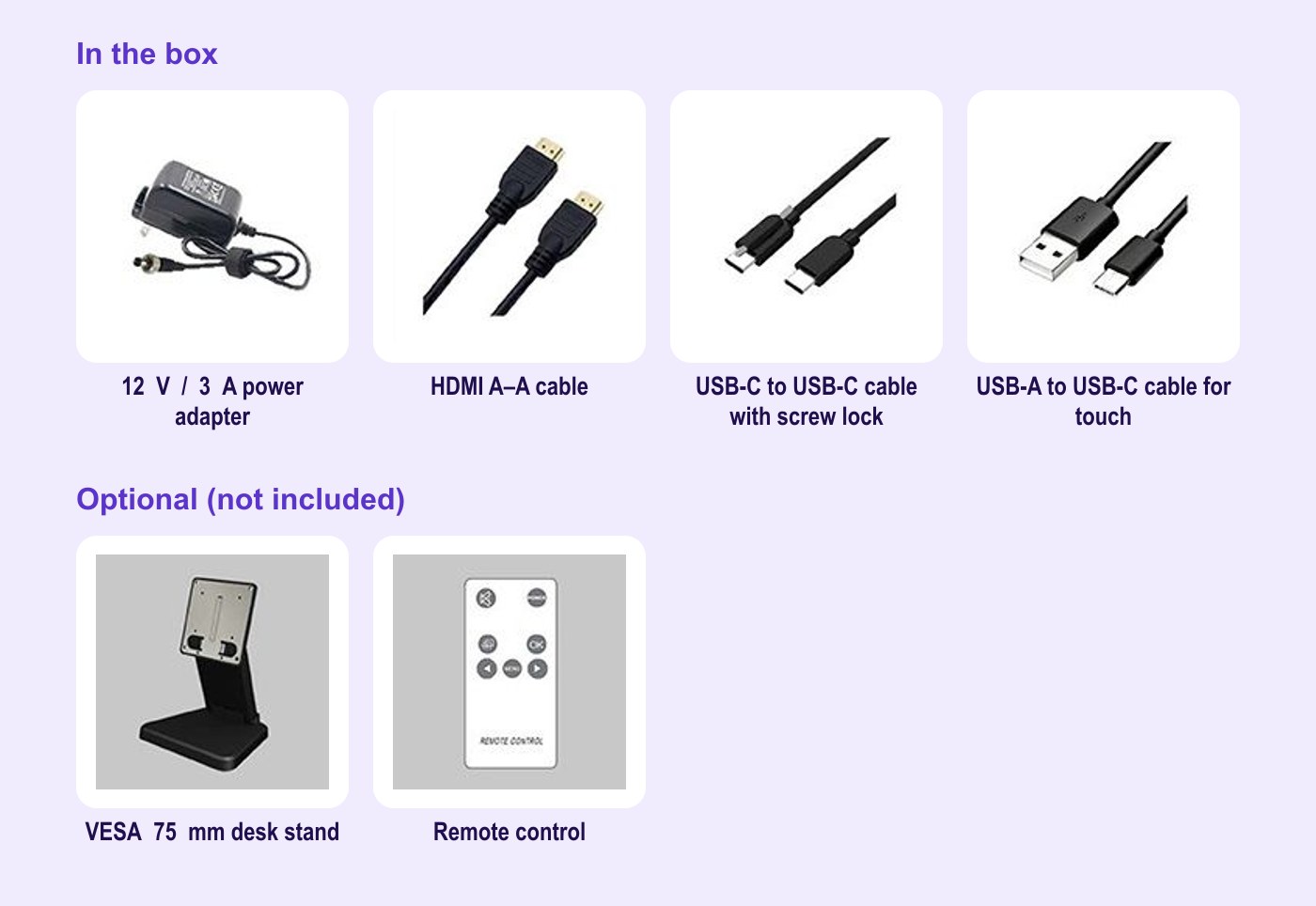

Box contents and optional accessories
More information
About the monitor
The Lilliput FA1019-NP/C/T features a 10.1" display with a high 1920 × 1200 resolution and an impressive 1500 cd/m² brightness for clear viewing in any lighting. HDMI, VGA and USB-C inputs offer versatile connectivity, and the capacitive touch layer makes operation easy. Automatic dimming and a 50,000-hour backlight life ensure optimal performance and longevity in a wide range of applications.
The FA1019 series is also available with an IP65 frame and an extension cable (HDMI or VGA version) for demanding environments; this model is the standard version without the frame. A folding VESA 75 mm stand is available for desk or ceiling mounting.
PACKAGE CONTENT
- 1× Lilliput FA1019-NP/C/T monitor
- 12 V / 3 A power adapter
- HDMI A–A cable
- USB-C to USB-C cable with screw lock
- USB-A to USB-C cable for touch
SPECIFICATIONS
- Brand: Lilliput
- Model: FA1019-NP/C/T
- Display: 10.1" LCD
- Resolution: 1920 × 1200
- Aspect ratio: 16:10
- Brightness: 1500 cd/m²
- Contrast: 1000:1
- Viewing angles: 170°/170° (H/V)
- Panel life: 50,000 h
- Touch screen: 10-point capacitive (PCAP)
- Inputs: 1× HDMI, 1× VGA, 1× USB-C (video, touch and power)
- HDMI formats: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- VGA formats: 1080p 24/25/30/50/60, 1080psF 24/25/30, 1080i 50/60, 720p 50/60
- USB-C formats: 1080p 24/25/30/50/60, 1080psF 24/25/30, 1080i 50/60, 720p 50/60
- Audio: 1× speaker, audio via HDMI, 3.5 mm headphone output (2 ch, 48 kHz, 24-bit)
- Power input: 12–24 V DC
- Power consumption: ≤ 19 W (at 12 V)
- Operating temperature: −20 to 60 °C
- Storage temperature: −30 to 80 °C
- Features: automatic dimming based on ambient light
- Housing: metal
- Mounting: VESA 75 mm
- Dimensions (W × H × D): 251 × 170 × 33 mm
- Weight: 820 g
WE RECOMMEND
Recommended for the Lilliput FA1019-NP/C/T monitor:
Cables – a longer HDMI run and a USB-C laptop connection
Mounting – on a stand, an arm or a desk
Parameters
| Manufacturer: | Lilliput |
| Category: | Camera monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p · 4K UHD up to 30p |
| Size | 10.1" |
| Monitor inputs | HDMI · VGA · USB-C |
| Luminosity | 1500cd/m2 |
| Panel resolution | 1920x1200 |
| Monitor power supply | USB-C · DC 12-24V |
Other parameters
| Other features | Touchscreen |
| High Brightness | Yes |
