Lilliput FA1330/C

Name: Lilliput FA1330/C
Brand: Lilliput
SKU: FA1330/C
Price: 289 EUR
Availability: OutOfStock

SKU: FA1330/C

The Lilliput FA1330/C is a 13.3″ industrial monitor with 1920 × 1080 resolution and a fully laminated display. It has HDMI, DisplayPort up to 4K60 and VGA inputs, two built-in speakers, a 7–24 V DC supply, VESA 75 mm mounting and 1/4″ threads on the sides – for control rooms, information panels and machines.

More information

289 € with VAT 238.84 € without VAT

Price history

Availability

on request

SKU:
FA1330/C

Price history

Top accessories for Lilliput FA1330/C

SmallRig Mount Plate for Monitor VESA for Camera Cart 6257

The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand

330 €

In stock > 5 pcs

PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum

SHOWROOM PRAHA

This cable enables high-quality video and audio conversion from USB-C to HDMI connector

13 €

In stock 3 pcs

Canare HDMI Cable 5 m

Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.

20 €

In stock 4 pcs

Manfrotto TetherGear VESA Monitor Mount

SHOWROOM PRAHA

The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers

197 €

4 pcs in stock at the supplier

Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

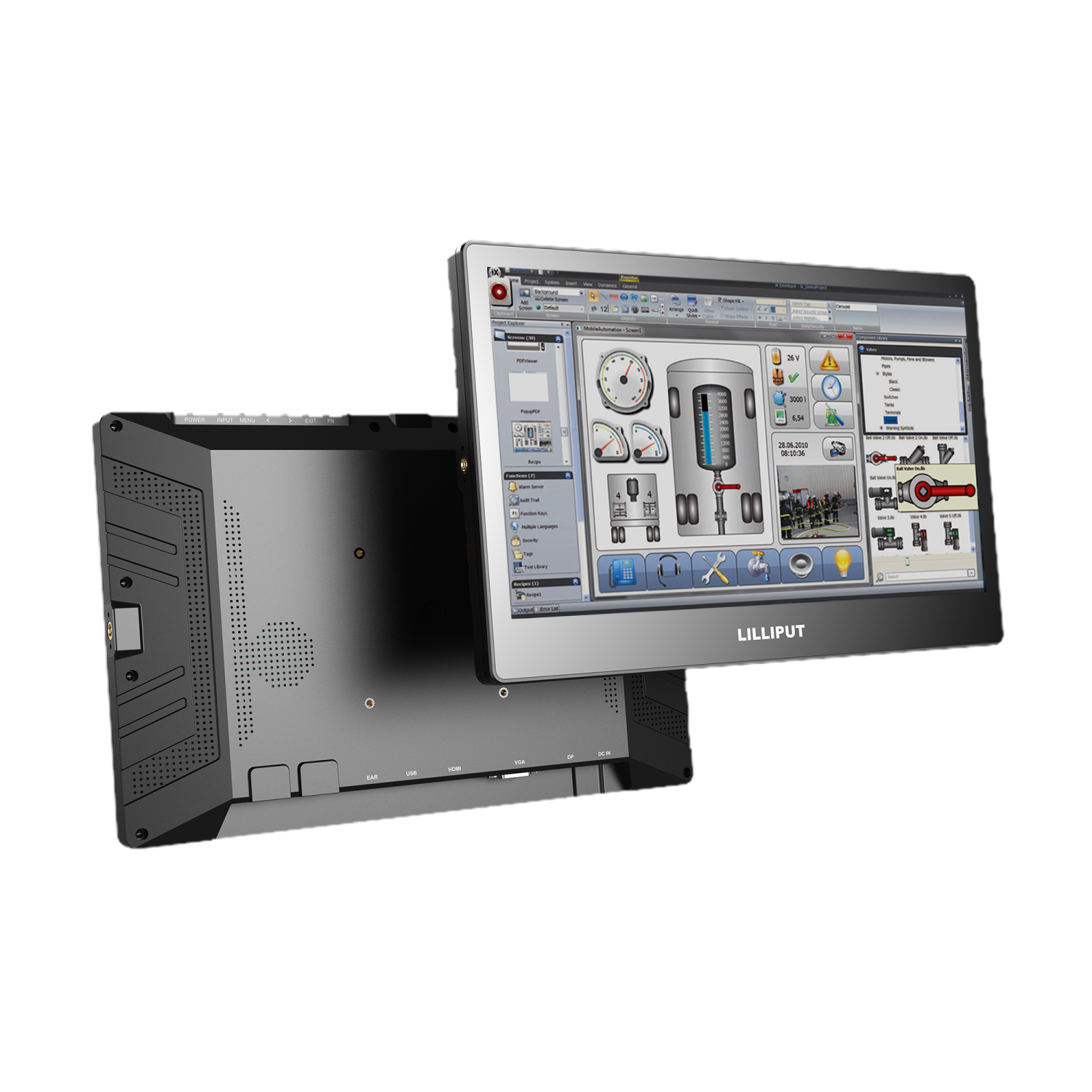

A 13.3" Full HD monitor for industry

A fully laminated 1920 × 1080 panel and three video inputs – HDMI, DisplayPort and VGA. 7–24 V power input, two speakers and VESA 75 mm mounting.

13.3" 1920 × 1080HDMI · DP · VGAfull lamination7–24 V DCVESA 75 mm

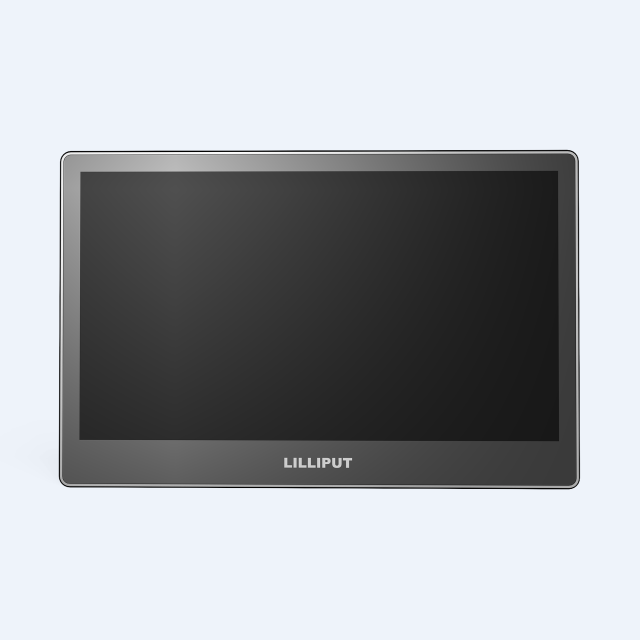

Full lamination

The cover glass is bonded to the panel without an air gap, so the screen transmits light better, reflects less of its surroundings and keeps dust out.

DisplayPort up to 4K60

DP accepts up to 2160p60, HDMI 2160p30 and VGA 1080p60; the image is scaled to the Full HD panel.

Two speakers

Built-in speakers and a 3.5 mm headphone output for system announcements and audio checks.

7–24 V power input

A wide input range, up to 12 W consumption and a slim 26.5 mm deep body.

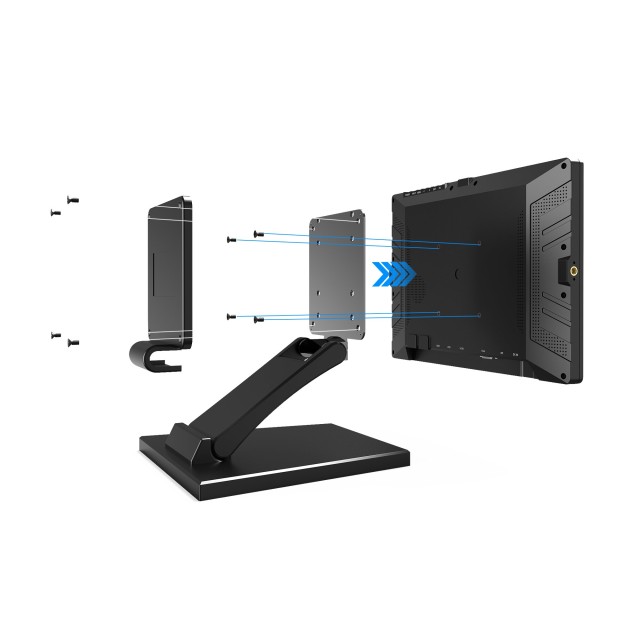

VESA 75 mm and 1/4"

On a stand, an arm or in a console; 1/4" threads on both sides add further integration options.

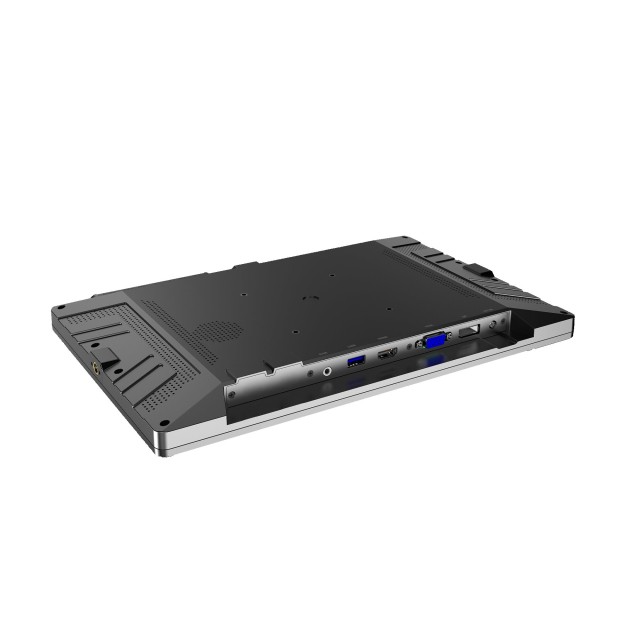

Connectors on the bottom edge

Headphone output, USB, HDMI, VGA, DisplayPort and the 7–24 V power input.

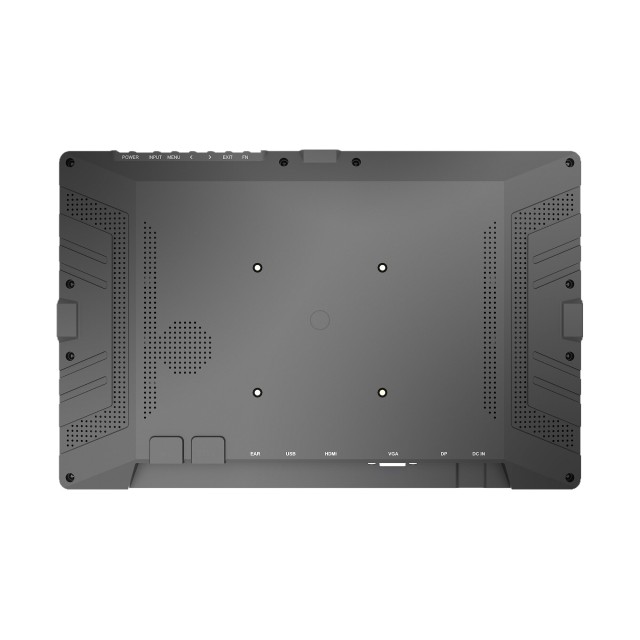

Rear with VESA 75 mm

VESA 75 mm mounting points in the centre of the back and 1/4" threads on the sides.

Box contents and optional accessories

More information

About the monitor

The FA1330/C has a fully laminated 13.3" screen with 1920 × 1080 resolution; it is the version without a touch layer (the touch version is the FA1330/T). It suits a wide range of industrial and commercial applications such as POI/POS, kiosks, HMI and all kinds of heavy-duty industrial field equipment.

The monitor can be installed in different ways: as a desktop device for control centres, as a built-in unit for control consoles, or as a PC-based visualisation and control solution where the operator panel is separated from the industrial PC or server – as a stand-alone solution or with several control stations in extensive visualisation and control systems.

PACKAGE CONTENT

1× Lilliput FA1330/C monitor
12 V / 2 A power adapter
1.5 m HDMI A–A cable
e-manual (card with QR code)

SPECIFICATIONS

Brand: Lilliput
Model: FA1330/C
Display: 13.3" LCD, full lamination
Resolution: 1920 × 1080
Aspect ratio: 16:9
Brightness: 300 cd/m²
Contrast: 800:1
Viewing angles: 170°/170° (H/V)
Touch screen: none (non-touch)
Inputs: 1× HDMI, 1× DisplayPort, 1× VGA
HDMI formats: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
DisplayPort formats: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
VGA formats: 1080p 24/25/30/50/60, 1080psF 24/25/30, 1080i 50/60, 720p 50/60
Audio: 2× speaker, 3.5 mm headphone output (2 ch, 48 kHz, 24-bit)
Power input: 7–24 V DC
Power consumption: ≤ 12 W (at 12 V)
Operating temperature: 0 to 50 °C
Storage temperature: −20 to 60 °C
Mounting: VESA 75 mm, 1/4" threads on both sides
Dimensions (W × H × D): 320 × 208 × 26.5 mm
Weight: 1.15 kg

ARTICLES

New Lilliput monitors

WE RECOMMEND

Recommended for the Lilliput FA1330/C monitor:

Cables – a longer HDMI run and a USB-C laptop connection

Mounting – on a stand, an arm or a desk

Parameters

Manufacturer:	Lilliput
Category:	Surveillance monitors

Main parameters

Supported video signal modes (resolution / frame rate)	1080i up to 60i · 1080p up to 60p · 720p up to 60p · Ultra HD up to 60p
Size	13.3"
Monitor inputs	Display Port · HDMI · VGA
Luminosity	300cd/m2
Panel resolution	1920x1080
Monitor power supply	DC 7-24V
